Blue Sea 15A 5-Position DC Distribution Panel with Volt/Amp Meter

Pre-Wired Busbars, Backlit Labels, LED Indicators & 3-Bank Switch


Regular price $806.25
/
Availability: Special Order
View all products from Blue Sea

Free Shipping | This item has a free shipping option Australia-wide.

Guaranteed Safe and Secure Checkout
Apple Pay Google Pay Mastercard PayPalShop Pay Visa
0

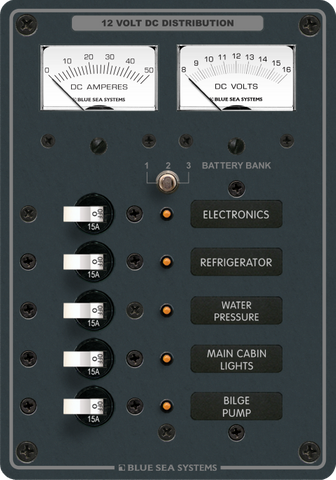

Front view of a 5-position DC distribution panel with analog volt and ampere meters and toggle breakers

Blue Sea 15A 5-Position DC Distribution Panel with Volt/Amp Meter

DESCRIPTION

Centralised DC Circuit Protection and Real-Time System Monitoring

Managing multiple electrical loads in a marine, caravan, or off-grid power system requires reliable circuit protection and clear operational visibility. This Blue Sea Systems 5-Position 15A DC Distribution Panel combines magnetic-hydraulic toggle circuit breakers with dedicated analogue voltage and amperage metering. Supplied fully pre-wired with positive, negative, and grounding busbars already installed, it significantly reduces installation time and eliminates the clutter and failure risks associated with unorganised, makeshift wiring looms.

Integrated Analogue Metering and Multi-Bank Monitoring

Maintaining awareness of your system health helps prevent unexpected battery depletion and electrical faults. This panel features dual analogue displays: a DC Voltmeter measuring from 8V to 16V, and a DC Ammeter monitoring current draw up to 50A. An integrated three-position toggle switch allows you to wire and monitor up to three separate battery banks from a single control point. While configured out of the box for standard 12V architectures, the analogue voltage meter can be owner-upgraded for 24V systems by purchasing a compatible Blue Sea 8240 or 8243 (18V to 32V DC) meter module separately.

Engineered for Low-Light Visibility and Safety

Operating a vessel at night or managing a dark camper cabin demands intuitive, clearly visible controls. Every circuit position on this distribution panel features a built-in orange ON-indicating LED, providing immediate visual confirmation of active loads. Additionally, the interchangeable circuit label positions are factory-backlit as standard, requiring no secondary lighting kits to read your switch designations in low-light environments.

Key Features and Benefits

  • Fully Pre-Wired Assembly: Factory-installed positive, negative, and grounding buses streamline installation and reduce wiring errors.
  • Dual Analogue Metering: Includes an 8V to 16V DC Voltmeter and a 0A to 50A DC Ammeter for continuous system diagnostics.
  • Multi-Bank Selector Switch: Integrated toggle switch enables convenient voltage monitoring across up to three independent battery banks.
  • 15A Magnetic-Hydraulic Breakers: Five pre-installed 15A toggle circuit breakers combine switching and overcurrent protection in one rugged mechanism.
  • Complete Low-Light Illumination: Standard backlit circuit labels and active-status LED indicators ensure safe, accurate operation in the dark.
  • 24V Upgrade Path: Supports owner modification for 24V DC environments using optional 18V to 32V meter replacements (not included).

Mitigating Electrical Risks in Mobile Environments

High-vibration environments like 4WDs, boats, and off-grid trailers quickly expose weaknesses in standard electrical setups. Using separate fuse blocks, unlabelled switches, and external shunts increases the number of termination points, which in turn elevates the risk of loose connections, voltage drop, and thermal events. By consolidating circuit protection, busbars, and metering into a single unified chassis, this Blue Sea panel minimises termination points and delivers professional-grade reliability.

Upgrade Your DC Power Distribution

Bring structured, safe, and clearly monitored power control to your marine console, RV canopy, or off-grid cabin. Order the Blue Sea 5-Position DC Distribution Panel today for a streamlined and professional electrical installation.


SKU: BS-8081B

SPECIFICATIONS

SpecificationDetails
Product typeDC distribution panel
Number of positions5
Meter15A V/A meter
Bus barsPositive, negative and grounding buses installed
WiringFully pre-wired
Battery bank mountingToggle switch for mounting up to 3 battery banks
Analog meter upgradeOwner upgradable to 24V using 8240 or 8243 18–32V DC meters
Circuit labelsBacklit on standard panels
IndicatorsON-indicating LEDs in all circuit positions

SKU: BS-8081B
Model #: BS-8081B
MPN: BS-8081B
HS code: 8537109170
Country of origin: MX
Package weight: 0.66 kg
Package length: 0.21 m
Package width: 0.16 m
Package height: 0.1 m

WARRANTY

Blue Sea Warranty Policy

Blue Sea Systems products sold by us are supplied with a warranty against defects for the warranty period shown below, subject to the product type, application and the terms of this warranty policy.

The express warranty provided by us is limited to a maximum of 5 years from the original date of purchase, unless otherwise required under Australian Consumer Law.

Blue Sea Systems may offer longer manufacturer support on some products at their discretion

Warranty Lengths by Product Range

Blue Sea Product Range Warranty Length Application / Notes
Most Blue Sea Systems Products 5 years Applies to most Blue Sea Systems products found to be defective in materials or manufacture.
P12 Battery Chargers 5 years Warranty period starts from the original date of purchase.
P12 Remote Displays 5 years Warranty period starts from the original date of purchase.
Digital Meters 3 years Warranty period starts from the original date of purchase.
Vessel System Monitors 3 years Warranty period starts from the original date of purchase.

Warranty Assessment and Remedy

If a Blue Sea Systems product is found to be defective in materials or manufacture within the applicable warranty period, we will, at our discretion, arrange a repair, replacement, store credit or refund, depending on the nature of the fault and the requirements of Australian Consumer Law.

Products may need to be returned for assessment before a warranty claim can be approved. Where required, the product must be returned with dated proof of purchase and a clear description of the fault.

Labour costs for removing, replacing, reinstalling or diagnosing a product are not covered by this express warranty unless otherwise required under Australian Consumer Law.

Making a Warranty Claim

To make a warranty claim, please contact us with your dated proof of purchase, product details and a description of the fault.

The product may need to be returned for inspection before the claim can be assessed. If the product is confirmed to be faulty and covered by this warranty, we will advise the available remedy.

What This Warranty Does Not Cover

This warranty does not cover faults or damage caused by incorrect installation, incorrect application, misuse, abuse, neglect, unauthorised modification, accidental damage, normal wear and tear, environmental damage, or failure to use the product in accordance with the manufacturer's instructions.

  • Incorrect installation or wiring
  • Incorrect product selection or application
  • Misuse, abuse or neglect
  • Physical or accidental damage
  • Water ingress or environmental damage outside the product's intended use
  • Unauthorised modification or repair
  • Normal wear and tear
  • Labour costs for removal, replacement, reinstallation or diagnosis
  • Freight, travel or call-out costs unless otherwise required by law
  • Products not returned for assessment when reasonably required

Manufacturer Support

Blue Sea Systems may provide additional manufacturer support on some products beyond the warranty period listed above. Where available, we may assist customers in contacting the manufacturer, but any manufacturer support beyond the express warranty period is subject to the manufacturer's own terms and continued availability.

Australian Consumer Law

This warranty is in addition to other rights and remedies available at law. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
