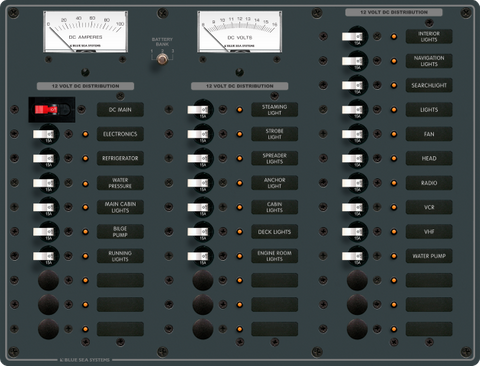

Blue Sea 15A 32-Position DC Distribution Panel with Meter
Blue Sea 15A 32-Position DC Distribution Panel with Meter
Pre-Wired Positive, Negative & Ground Buses with 3-Bank Battery Toggle
Regular price
$2,656.37
Availability:
Special Order
View all products from Blue Sea
Guaranteed Safe and Secure Checkout
0
DESCRIPTION
Centralised 12V Power Management for Complex Marine and Off-Grid Systems
Managing large-scale DC electrical systems in marine vessels, motorhomes, and off-grid setups requires reliable circuit protection and clear system visibility. The Blue Sea Systems 32-Position DC Distribution Panel (BS-8381B) provides a comprehensive solution for organising and protecting extensive 12V wiring looms. Engineered for demanding environments, this panel comes fully pre-wired with positive, negative, and grounding buses already installed. This integrated design significantly reduces installation time, minimises the risk of wiring errors behind the dash, and eliminates the clutter associated with makeshift distribution setups.
Integrated Analogue System Monitoring
Keeping track of power consumption and battery health is critical when operating away from shore or grid power. This distribution panel features built-in analogue meters, including an 8-16V DC voltmeter and a 0-100A DC ammeter, giving you immediate visual feedback on your system's electrical status. An integrated toggle switch allows you to monitor the voltage across up to three separate battery banks from a single location, ensuring you can easily check your start, house, and auxiliary batteries without needing external gauges.
For users planning future system upgrades or operating higher-voltage architectures, the panel offers forward compatibility. The onboard analogue meters are owner-upgradable to 24V DC operation by substituting the standard gauges with compatible 18-32V DC meters (models 8240 or 8243, sold separately).
Key Features and Benefits
- Fully Pre-Wired Architecture: Factory-installed positive, negative, and grounding buses streamline integration into your main electrical cabinet.
- Comprehensive Circuit Protection: Equipped with 15A magnetic hydraulic circuit breakers and a dedicated red toggle master breaker for reliable main system isolation.
- Multi-Bank Monitoring: Built-in 8-16V voltmeter and 0-100A ammeter paired with a three-position toggle switch to monitor up to three independent battery banks.
- Low-Light Visibility: All circuit label positions are backlit as standard without requiring additional upgrade kits, making night-time operation straightforward.
- Immediate Status Confirmation: Individual "ON" indicator LEDs in every circuit position provide instant visual confirmation of active loads.
- 24V Upgrade Path: Supports owner upgrades for 24V DC systems using compatible 18-32V DC analogue meters (upgrade meters not included).
Designed for Operational Safety and Ease of Use
Operating a vessel at night or managing a dark equipment locker demands intuitive controls. Every circuit position on this Blue Sea panel includes factory-installed backlighting for the labels and dedicated "ON" indicator LEDs. This ensures you can identify and isolate specific appliances, lighting circuits, or navigation equipment at a glance, preventing accidental disconnection of critical loads.
By consolidating 32 circuits into a single, structured interface with magnetic hydraulic breakers, this panel mitigates the risks of overloaded wiring and voltage drop common in poorly terminated switchboards. Upgrade your vessel or off-grid vehicle's electrical architecture with the Blue Sea 32-Position DC Distribution Panel for dependable, centralised circuit control.
SKU: BS-8381B
SPECIFICATIONS
| Specification | Details |
|---|---|
| Product type | DC distribution panel |
| Title designation | 15A |
| Number of positions | 32 |
| Buses | Positive, negative and grounding buses |
| Wiring | Fully pre-wired |
| Meter-equipped panel feature | Toggle switch for mounting up to 3 battery banks |
| Circuit labels | All circuit label positions are backlit on standard panels; no kit required |
| Circuit indicators | “ON” indicating LEDs in all circuit positions |
| Analog meter upgrade information | Panels with analog meters are owner upgradable to 24V with 8240 or 8243 (18-32V DC meters) |
| SKU: | BS-8381B |
| Model #: | BS-8381B |
| MPN: | BS-8381B |
| Package weight: | 6.0 kg |
| Package length: | 0.58 m |
| Package width: | 0.39 m |
| Package height: | 0.15 m |
WARRANTY
Blue Sea Warranty Policy
Blue Sea Systems products sold by us are supplied with a warranty against defects for the warranty period shown below, subject to the product type, application and the terms of this warranty policy.
The express warranty provided by us is limited to a maximum of 5 years from the original date of purchase, unless otherwise required under Australian Consumer Law.
Blue Sea Systems may offer longer manufacturer support on some products at their discretion
Warranty Lengths by Product Range
| Blue Sea Product Range | Warranty Length | Application / Notes |
|---|---|---|
| Most Blue Sea Systems Products | 5 years | Applies to most Blue Sea Systems products found to be defective in materials or manufacture. |
| P12 Battery Chargers | 5 years | Warranty period starts from the original date of purchase. |
| P12 Remote Displays | 5 years | Warranty period starts from the original date of purchase. |
| Digital Meters | 3 years | Warranty period starts from the original date of purchase. |
| Vessel System Monitors | 3 years | Warranty period starts from the original date of purchase. |
Warranty Assessment and Remedy
If a Blue Sea Systems product is found to be defective in materials or manufacture within the applicable warranty period, we will, at our discretion, arrange a repair, replacement, store credit or refund, depending on the nature of the fault and the requirements of Australian Consumer Law.
Products may need to be returned for assessment before a warranty claim can be approved. Where required, the product must be returned with dated proof of purchase and a clear description of the fault.
Labour costs for removing, replacing, reinstalling or diagnosing a product are not covered by this express warranty unless otherwise required under Australian Consumer Law.
Making a Warranty Claim
To make a warranty claim, please contact us with your dated proof of purchase, product details and a description of the fault.
The product may need to be returned for inspection before the claim can be assessed. If the product is confirmed to be faulty and covered by this warranty, we will advise the available remedy.
What This Warranty Does Not Cover
This warranty does not cover faults or damage caused by incorrect installation, incorrect application, misuse, abuse, neglect, unauthorised modification, accidental damage, normal wear and tear, environmental damage, or failure to use the product in accordance with the manufacturer's instructions.
- Incorrect installation or wiring
- Incorrect product selection or application
- Misuse, abuse or neglect
- Physical or accidental damage
- Water ingress or environmental damage outside the product's intended use
- Unauthorised modification or repair
- Normal wear and tear
- Labour costs for removal, replacement, reinstallation or diagnosis
- Freight, travel or call-out costs unless otherwise required by law
- Products not returned for assessment when reasonably required
Manufacturer Support
Blue Sea Systems may provide additional manufacturer support on some products beyond the warranty period listed above. Where available, we may assist customers in contacting the manufacturer, but any manufacturer support beyond the express warranty period is subject to the manufacturer's own terms and continued availability.
Australian Consumer Law
This warranty is in addition to other rights and remedies available at law. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
