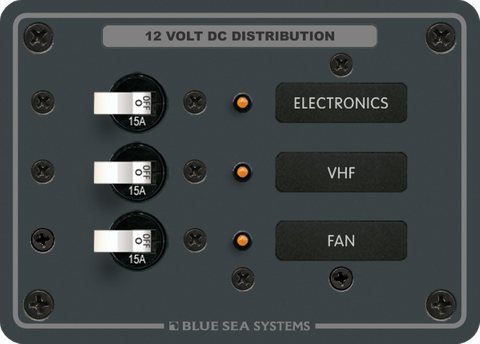

Blue Sea 15A 3-Position DC Distribution Panel
Blue Sea 15A 3-Position DC Distribution Panel
Pre-Wired 12V Breaker Panel with Backlit Labels & LED Indicators
Regular price
$345.94
Availability:
Special Order
View all products from Blue Sea
Guaranteed Safe and Secure Checkout
0
DESCRIPTION
Reliable 12V DC Circuit Protection and Power Management
Managing auxiliary power in marine vessels, caravans, and off-grid setups requires dependable circuit protection and organised wiring. The Blue Sea Systems BS-8025B provides a centralised, professional solution for controlling and safeguarding up to three individual 12V DC circuits. Engineered for demanding environments, this distribution panel combines heavy-duty switching with overcurrent protection, helping to prevent electrical faults, equipment damage, and wiring hazards in your mobile or marine electrical system.
Pre-Wired Convenience for Streamlined Installation
Complex behind-the-dash wiring can lead to loose connections, voltage drop, and hours of frustrating troubleshooting. To reduce installation time and minimise the risk of wiring errors, this panel arrives fully pre-wired with positive, negative, and grounding buses already installed. Installers and DIY builders simply need to connect the main DC feed and wire the individual load appliances. This integrated busbar approach eliminates the need to source and mount separate terminal blocks in tight console or cabinet spaces, resulting in a cleaner, safer, and more serviceable electrical layout.
Clear Status Indication in Low-Light Conditions
Operating a vessel at night or managing power inside a dimly lit camper canopy demands intuitive, easy-to-read controls. This distribution panel features integrated backlit circuit labels as standard, requiring no additional backlighting kits to install. Furthermore, each of the three positions is fitted with an amber ON-indicating LED. At a glance, you can verify which circuits are active and quickly identify loads that may be drawing power from your battery bank unnecessarily.
Key Features and Benefits
- Integrated Circuit Protection: Features three 15A magnetic hydraulic toggle switches that act as both manual power switches and reliable circuit breakers.
- Complete Pre-Wired Assembly: Supplied with pre-installed positive, negative, and grounding buses to simplify installation and ensure solid electrical connections.
- Built-In Backlit Labels: Standard illuminated circuit labels allow for effortless identification in dark cabins, cockpits, or storage lockers without extra accessories.
- Active Circuit Monitoring: Amber ON-indicating LEDs are pre-installed in every circuit position for immediate visual confirmation of power status.
- Rugged Construction: Designed to withstand the vibrations and environmental challenges common to marine, 4WD, and recreational vehicle applications.
Why Choose a Dedicated Distribution Panel?
Compared to basic fuse blocks and separate toggle switches, an integrated magnetic hydraulic breaker panel significantly reduces potential points of failure. Standard automotive fuses require spare parts and can be difficult to inspect or replace in the dark. With a dedicated breaker panel, a tripped circuit can be easily identified and reset once the fault is cleared, offering peace of mind during remote travel or offshore passages. Please note that while the wider Blue Sea series supports meter panels with battery bank toggle switches and 24V (18-32V DC) analog meter upgrades, meter inclusion is not specified for this compact 3-position unit, which is strictly focused on streamlined circuit switching and protection.
Ideal Applications
- Marine Vessels: Perfect for controlling navigation lights, bilge pumps, cabin lighting, and marine electronics on tinnies, yachts, and powerboats.
- Caravans and Camper Trailers: Centralise control for 12V water pumps, diesel heaters, internal LED lighting, and fridge circuits.
- 4WD Canopy Dual Battery Systems: Neatly manage auxiliary accessories, work lights, and power sockets in service bodies and touring canopies.
Upgrade Your 12V Electrical System
Equip your vessel, caravan, or off-grid canopy with the Blue Sea 15A 3-Position DC Distribution Panel to achieve a safer, cleaner, and more dependable power distribution setup.
SKU: BS-8025B
SPECIFICATIONS
| Specification | Details |
|---|---|
| Product type | DC distribution panel |
| Number of positions | 3 |
| Maximum current | 15A |
| Buses | Positive, negative and grounding buses installed |
| Wiring | Fully pre-wired |
| Meter panels | Panels with meters include a toggle switch for mounting up to 3 battery banks |
| Analog meter upgrade | Analog meters are owner-upgradable to 24V with 8240 or 8243 meters; the described meters are rated 18–32V DC |
| Circuit labels | Backlit on standard panels; no kit required |
| Circuit indicators | ON-indicating LEDs installed in all circuit positions |
| SKU: | BS-8025B |
| Model #: | BS-8025B |
| MPN: | BS-8025B |
| Package weight: | 0.54 kg |
| Package length: | 0.15 m |
| Package width: | 0.12 m |
| Package height: | 0.1 m |
WARRANTY
Blue Sea Warranty Policy
Blue Sea Systems products sold by us are supplied with a warranty against defects for the warranty period shown below, subject to the product type, application and the terms of this warranty policy.
The express warranty provided by us is limited to a maximum of 5 years from the original date of purchase, unless otherwise required under Australian Consumer Law.
Blue Sea Systems may offer longer manufacturer support on some products at their discretion
Warranty Lengths by Product Range
| Blue Sea Product Range | Warranty Length | Application / Notes |
|---|---|---|
| Most Blue Sea Systems Products | 5 years | Applies to most Blue Sea Systems products found to be defective in materials or manufacture. |
| P12 Battery Chargers | 5 years | Warranty period starts from the original date of purchase. |
| P12 Remote Displays | 5 years | Warranty period starts from the original date of purchase. |
| Digital Meters | 3 years | Warranty period starts from the original date of purchase. |
| Vessel System Monitors | 3 years | Warranty period starts from the original date of purchase. |
Warranty Assessment and Remedy
If a Blue Sea Systems product is found to be defective in materials or manufacture within the applicable warranty period, we will, at our discretion, arrange a repair, replacement, store credit or refund, depending on the nature of the fault and the requirements of Australian Consumer Law.
Products may need to be returned for assessment before a warranty claim can be approved. Where required, the product must be returned with dated proof of purchase and a clear description of the fault.
Labour costs for removing, replacing, reinstalling or diagnosing a product are not covered by this express warranty unless otherwise required under Australian Consumer Law.
Making a Warranty Claim
To make a warranty claim, please contact us with your dated proof of purchase, product details and a description of the fault.
The product may need to be returned for inspection before the claim can be assessed. If the product is confirmed to be faulty and covered by this warranty, we will advise the available remedy.
What This Warranty Does Not Cover
This warranty does not cover faults or damage caused by incorrect installation, incorrect application, misuse, abuse, neglect, unauthorised modification, accidental damage, normal wear and tear, environmental damage, or failure to use the product in accordance with the manufacturer's instructions.
- Incorrect installation or wiring
- Incorrect product selection or application
- Misuse, abuse or neglect
- Physical or accidental damage
- Water ingress or environmental damage outside the product's intended use
- Unauthorised modification or repair
- Normal wear and tear
- Labour costs for removal, replacement, reinstallation or diagnosis
- Freight, travel or call-out costs unless otherwise required by law
- Products not returned for assessment when reasonably required
Manufacturer Support
Blue Sea Systems may provide additional manufacturer support on some products beyond the warranty period listed above. Where available, we may assist customers in contacting the manufacturer, but any manufacturer support beyond the express warranty period is subject to the manufacturer's own terms and continued availability.
Australian Consumer Law
This warranty is in addition to other rights and remedies available at law. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
