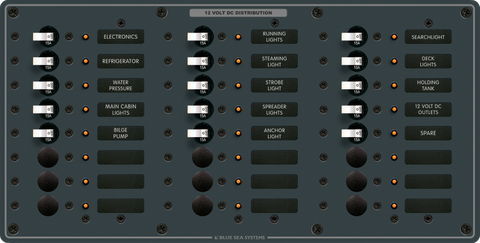

Blue Sea 15A 24-Position DC Distribution Panel
Blue Sea 15A 24-Position DC Distribution Panel
Pre-Wired Positive, Negative & Grounding Buses with Backlit Labels
Regular price
$1,581.46
Availability:
Special Order
View all products from Blue Sea
Guaranteed Safe and Secure Checkout
0
DESCRIPTION
Centralised 12V DC Circuit Management and Protection
Managing complex electrical systems in marine vessels, off-grid setups, and custom recreational vehicles requires a reliable, well-organised control centre. The Blue Sea Systems 24-Position DC Distribution Panel offers a professional-grade solution for consolidating and protecting up to twenty-four individual DC circuits. Supplied fully pre-wired with positive, negative, and grounding buses already installed, this panel significantly reduces installation time and eliminates the clutter of messy, point-to-point wiring harnesses.
Intuitive Operation and Low-Light Visibility
Navigating a switchboard in the dark on a boat bridge or inside a dimly lit caravan canopy can be challenging. This distribution panel features backlit circuit label positions as standard, allowing operators to quickly and accurately identify critical loads at night without needing an external torch. Furthermore, every single circuit position is equipped with an individual ON-indicating amber LED. This provides an immediate, at-a-glance visual confirmation of which systems are currently energised, helping to prevent accidental battery drain from forgotten appliances or lighting.
- Fully Pre-Wired Architecture: Arrives with positive, negative, and grounding buses pre-installed to streamline integration and minimise wiring errors.
- Integrated Circuit Protection: Features high-quality 15A toggle circuit breakers that combine switching and overcurrent protection into a single mechanism.
- Comprehensive Visual Feedback: Individual ON-indicating LEDs are fitted across all circuit positions for instant status monitoring.
- Backlit Labelling System: Standard backlit label positions ensure clear circuit identification during night operations or in dark enclosures.
- Scalable Layout: Includes pre-prepared positions that allow for structured future system expansion as your power requirements grow.
Why Upgrade to a Professional Distribution Panel?
Inferior switch panels often rely on separate fuse blocks, exposed wiring spades, and fragile toggle switches that can fail under constant vibration or corrosive marine conditions. By integrating the switching mechanism and circuit breaker into a single, robust toggle switch, the BS-8264B reduces the number of termination points. Fewer connections mean a lower risk of voltage drop, loose wires, and thermal hotspots. The inclusion of dedicated negative and grounding buses on the rear of the panel ensures that your entire return path is just as organised and secure as your positive supply.
System Compatibility and Meter Options
Designed primarily around a 12V DC header configuration with a 15A rating per circuit, this panel is ideal for controlling navigation equipment, bilge pumps, cabin lighting, water pumps, and communication gear. For installations utilizing meter-equipped versions of this series, a built-in toggle switch allows for the convenient monitoring of up to three separate battery banks. Additionally, versions fitted with analogue meters can be upgraded by the owner for 24V DC system compatibility using an 8240 or 8243 (18V to 32V DC) meter. Please note that specific upgrade meters are not included as standard and must be sourced separately if converting an analogue meter variant to 24V operation.
Streamline Your Electrical Installation
Upgrade your vessel or off-grid vehicle with a dependable, factory-wired power distribution hub. Add the Blue Sea 24-Position DC Distribution Panel to your build today to achieve a clean, safe, and easily manageable electrical system.
SKU: BS-8264B
SPECIFICATIONS
| Product type | DC distribution panel |
|---|---|
| Number of positions | 24 |
| Maximum current | 15A |
| Buses | Positive, negative and grounding buses installed |
| Wiring | Fully pre-wired |
| Circuit labels | Backlit on standard panels |
| Indicators | ON-indicating LEDs installed in all circuit positions |
| Meter-panel feature | Panels with meters include a toggle switch for mounting up to 3 battery banks |
| Analog meter upgrade | Panels with analog meters are owner-upgradable to 24V with 8240 or 8243 (18–32V DC meters) |
| SKU: | BS-8264B |
| Model #: | BS-8264B |
| MPN: | BS-8264B |
| Package weight: | 3.84 kg |
| Package length: | 0.52 m |
| Package width: | 0.34 m |
| Package height: | 0.12 m |
WARRANTY
Blue Sea Warranty Policy
Blue Sea Systems products sold by us are supplied with a warranty against defects for the warranty period shown below, subject to the product type, application and the terms of this warranty policy.
The express warranty provided by us is limited to a maximum of 5 years from the original date of purchase, unless otherwise required under Australian Consumer Law.
Blue Sea Systems may offer longer manufacturer support on some products at their discretion
Warranty Lengths by Product Range
| Blue Sea Product Range | Warranty Length | Application / Notes |
|---|---|---|
| Most Blue Sea Systems Products | 5 years | Applies to most Blue Sea Systems products found to be defective in materials or manufacture. |
| P12 Battery Chargers | 5 years | Warranty period starts from the original date of purchase. |
| P12 Remote Displays | 5 years | Warranty period starts from the original date of purchase. |
| Digital Meters | 3 years | Warranty period starts from the original date of purchase. |
| Vessel System Monitors | 3 years | Warranty period starts from the original date of purchase. |
Warranty Assessment and Remedy
If a Blue Sea Systems product is found to be defective in materials or manufacture within the applicable warranty period, we will, at our discretion, arrange a repair, replacement, store credit or refund, depending on the nature of the fault and the requirements of Australian Consumer Law.
Products may need to be returned for assessment before a warranty claim can be approved. Where required, the product must be returned with dated proof of purchase and a clear description of the fault.
Labour costs for removing, replacing, reinstalling or diagnosing a product are not covered by this express warranty unless otherwise required under Australian Consumer Law.
Making a Warranty Claim
To make a warranty claim, please contact us with your dated proof of purchase, product details and a description of the fault.
The product may need to be returned for inspection before the claim can be assessed. If the product is confirmed to be faulty and covered by this warranty, we will advise the available remedy.
What This Warranty Does Not Cover
This warranty does not cover faults or damage caused by incorrect installation, incorrect application, misuse, abuse, neglect, unauthorised modification, accidental damage, normal wear and tear, environmental damage, or failure to use the product in accordance with the manufacturer's instructions.
- Incorrect installation or wiring
- Incorrect product selection or application
- Misuse, abuse or neglect
- Physical or accidental damage
- Water ingress or environmental damage outside the product's intended use
- Unauthorised modification or repair
- Normal wear and tear
- Labour costs for removal, replacement, reinstallation or diagnosis
- Freight, travel or call-out costs unless otherwise required by law
- Products not returned for assessment when reasonably required
Manufacturer Support
Blue Sea Systems may provide additional manufacturer support on some products beyond the warranty period listed above. Where available, we may assist customers in contacting the manufacturer, but any manufacturer support beyond the express warranty period is subject to the manufacturer's own terms and continued availability.
Australian Consumer Law
This warranty is in addition to other rights and remedies available at law. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
