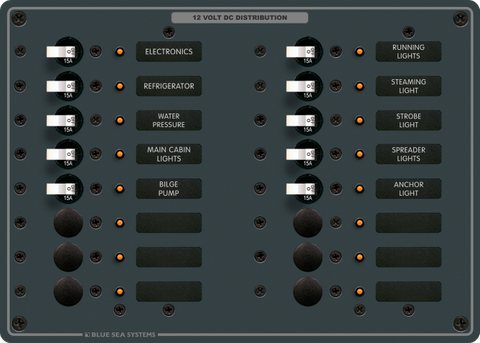

Blue Sea 15A 16-Position DC Distribution Panel
Blue Sea 15A 16-Position DC Distribution Panel
Pre-Wired Positive, Negative & Ground Buses with Backlit LED Labels
Regular price
$1,100.65
Availability:
Special Order
View all products from Blue Sea
Guaranteed Safe and Secure Checkout
0
DESCRIPTION
Centralised, Pre-Wired 12V DC Circuit Management for Demanding Environments
Managing multiple electrical circuits in a complex off-grid, caravan, or marine power system requires a tidy, reliable, and safe foundation. The Blue Sea 15A 16-Position DC Distribution Panel offers a professional-grade solution for centralising your DC loads. Engineered with positive, negative, and grounding buses already installed and fully pre-wired, this distribution board significantly reduces installation time and eliminates the clutter of point-to-point wiring behind the dash or inside your electrical cabinet.
Designed for critical 12V DC distribution applications, this panel combines circuit switching and overcurrent protection into one streamlined interface. By consolidating up to 16 individual circuits onto a heavy-duty faceplate, it provides a clean, easily accessible control centre for your lighting, pumps, navigation gear, and auxiliary electronics.
Key Features and Technical Advantages
- Fully Pre-Wired Busbars: Factory-installed positive, negative, and grounding buses streamline the installation process and minimise the risk of wiring errors.
- Combined Switching and Protection: Pre-installed 15A toggle circuit breakers allow you to manually control loads while safeguarding wiring against electrical overloads.
- Backlit Circuit Labels: Integrated backlighting ensures effortless circuit identification during night navigation or inside dark equipment lockers.
- ON-Indicating LEDs: Individual LEDs across all 16 positions provide immediate visual confirmation of active circuits at a glance.
- Heavy-Duty Construction: A robust faceplate with countersunk corner mounting points resists vibration and harsh environmental conditions.
Why Upgrade to a Pre-Wired Distribution System?
In custom electrical builds, messy wiring is more than just an aesthetic issue; it is a primary point of failure. Standard, unbushed switch panels require installers to manually crimp and daisy-chain power feeds across every single switch, multiplying the number of potential loose connections, voltage drops, and thermal hotspots. The Blue Sea pre-wired architecture solves this problem directly out of the box.
With the busbars professionally integrated at the factory, your primary DC feed connects cleanly to the panel, distributing power evenly across all positions. This reduces labour time during fit-outs and greatly enhances the long-term reliability of your electrical system, especially in high-vibration environments like 4WDs, caravans, and marine vessels.
Clear Visibility and Intuitive Operation
Operating a vessel at night or troubleshooting a caravan electrical system in low light demands a user interface that is easy to read. This panel features backlit label positions alongside bright ON-indicating LEDs in every circuit slot. You no longer need a torch to find the right switch for your bilge pump, cabin lights, or communications gear. Furthermore, the tactile magnetic-hydraulic toggle circuit breakers allow you to quickly spot and reset a tripped circuit without fumbling for spare fuses in an emergency.
Ideal Applications
- Marine Vessels: Consolidate navigation electronics, lighting, pumps, and cabin accessories in boats, yachts, and commercial craft.
- Caravans and RVs: Create a master control hub for 12V appliances, water pumps, fans, and off-grid living amenities.
- Service Bodies and 4WD Canopies: Manage work lights, inverters, compressors, and charging accessories safely and reliably.
- Off-Grid Cabins and Tiny Homes: Organise low-voltage DC distribution with a neat, commercial-quality breaker panel.
Streamline Your Electrical Fit-Out
Upgrade your DC power management with a system built for safety, visibility, and longevity. Add the Blue Sea 15A 16-Position DC Distribution Panel to your build today to achieve a clean, compliant, and dependable electrical installation.
SKU: BS-8377B
SPECIFICATIONS
| Specification | Detail |
|---|---|
| Product type | DC distribution panel |
| Positions | 16 |
| Rating stated in title | 15A |
| Buses | Positive, negative and grounding; installed and fully pre-wired |
| Circuit indicators | Backlit label positions on standard panels; ON-indicating LEDs in all circuit positions |
| SKU: | BS-8377B |
| Model #: | BS-8377B |
| MPN: | BS-8377B |
| Package weight: | 1.44 kg |
| Package length: | 0.36 m |
| Package width: | 0.2 m |
| Package height: | 0.14 m |
