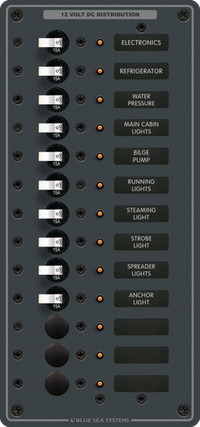

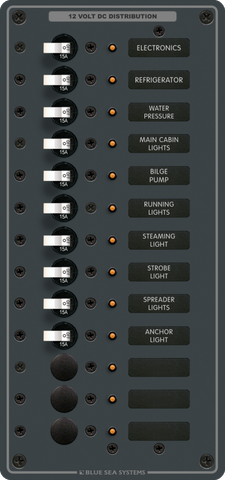

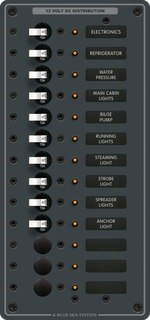

Blue Sea 15A 13 Position DC Electrical Distribution Panel
Blue Sea 15A 13 Position DC Electrical Distribution Panel
Pre-Wired with Busbars, Backlit Labels & A-Series Toggle Breakers
Regular price
$937.96
Availability:
Special Order
View all products from Blue Sea
Guaranteed Safe and Secure Checkout
0
DESCRIPTION
Centralised, Pre-Wired 12V and 24V DC Circuit Protection and Switching
Managing complex electrical systems in marine vessels, off-grid caravans, and specialist service vehicles requires dependable circuit protection and intuitive organisation. The Blue Sea 15A 13 Position DC Electrical Distribution Panel offers a professional-grade solution for centralising your auxiliary power feeds. Arriving fully pre-wired with positive, negative, and grounding buses already installed, this unit significantly reduces installation time and eliminates the clutter of external busbars and custom wiring harnesses.
Unlike standard switch panels that rely on separate fuse blocks, this distribution panel integrates switching and circuit protection into a single, cohesive unit using reliable A-Series toggle circuit breakers. Each pre-installed breaker is rated at 15A, providing robust protection for lighting, bilge pumps, navigation electronics, communication radios, and cabin accessories. For systems with growing power requirements, the panel layout includes three open expansion slots, allowing you to fit additional circuit breakers tailored to future upgrades.
Engineered for Low-Light Visibility and Rapid Diagnostics
Operating a vessel at night or managing power inside a dimly lit RV canopy demands clear visual feedback. This panel comes standard with backlit circuit label positions, requiring no separate backlighting kit to install. Paired with amber ON-indicating LEDs fitted across all circuit positions, operators can verify active loads and identify tripped breakers at a glance, preventing accidental battery drain and simplifying system troubleshooting.
Key Features and System Benefits
- Fully Pre-Wired Architecture: Integrated positive, negative, and grounding buses streamline installation and reduce potential failure points in high-vibration environments.
- Integrated A-Series Breakers: Combines switching and 15A circuit protection into a single toggle action for reliable fault management.
- Built-In Backlit Labels: Standard illuminated label positions ensure effortless circuit identification in low-light conditions without requiring add-on kits.
- Active Status Indicators: Amber ON-indicating LEDs in every position provide immediate visual confirmation of live circuits.
- Future-Ready Expansion: Features three available breaker slots to accommodate additional electrical accessories as your setup evolves.
- Flush Mounting Design: Uses countersunk mounting fasteners for a clean, secure installation into dashboards, bulkheads, or electrical enclosures.
Versatile System Integration
Designed primarily for 12V DC architectures, this distribution panel can also be adapted for higher voltage applications. Note that while standard configurations suit 12V systems, on meter-equipped versions, a toggle switch supports monitoring for up to three battery banks, and analog meters can be owner-upgraded to 24V using compatible 8240 or 8243 meters (rated for 18V to 32V DC). By consolidating your wiring into a single engineered enclosure, you mitigate the risks of loose connections, voltage drop, and electrical shorts common in DIY setups.
Upgrade Your DC Power Management
Bring order, safety, and professional reliability to your marine or mobile electrical system. Add the Blue Sea 13-Position DC Distribution Panel to your build today for streamlined installation and dependable circuit control.
SKU: BS-8376B
SPECIFICATIONS
| Specification | Details |
|---|---|
| Product type | DC distribution panel |
| Number of positions | 13 |
| Title rating | 15A |
| Buses | Positive, negative and grounding buses installed |
| Wiring | Fully pre-wired |
| Meter panels | Panels with meters include a toggle switch for mounting up to 3 battery banks |
| Analog meter upgrade | Owner-upgradable to 24V with 8240 or 8243 (18-32V DC meters) |
| Circuit labels | Backlit on standard panels; no kit required |
| Circuit indicators | ON-indicating LEDs installed in all circuit positions |
| SKU: | BS-8376B |
| Model #: | BS-8376B |
| MPN: | BS-8376B |
| Package weight: | 1.56 kg |
| Package length: | 0.36 m |
| Package width: | 0.2 m |
| Package height: | 0.11 m |
WARRANTY
Blue Sea Warranty Policy
Blue Sea Systems products sold by us are supplied with a warranty against defects for the warranty period shown below, subject to the product type, application and the terms of this warranty policy.
The express warranty provided by us is limited to a maximum of 5 years from the original date of purchase, unless otherwise required under Australian Consumer Law.
Blue Sea Systems may offer longer manufacturer support on some products at their discretion
Warranty Lengths by Product Range
| Blue Sea Product Range | Warranty Length | Application / Notes |
|---|---|---|
| Most Blue Sea Systems Products | 5 years | Applies to most Blue Sea Systems products found to be defective in materials or manufacture. |
| P12 Battery Chargers | 5 years | Warranty period starts from the original date of purchase. |
| P12 Remote Displays | 5 years | Warranty period starts from the original date of purchase. |
| Digital Meters | 3 years | Warranty period starts from the original date of purchase. |
| Vessel System Monitors | 3 years | Warranty period starts from the original date of purchase. |
Warranty Assessment and Remedy
If a Blue Sea Systems product is found to be defective in materials or manufacture within the applicable warranty period, we will, at our discretion, arrange a repair, replacement, store credit or refund, depending on the nature of the fault and the requirements of Australian Consumer Law.
Products may need to be returned for assessment before a warranty claim can be approved. Where required, the product must be returned with dated proof of purchase and a clear description of the fault.
Labour costs for removing, replacing, reinstalling or diagnosing a product are not covered by this express warranty unless otherwise required under Australian Consumer Law.
Making a Warranty Claim
To make a warranty claim, please contact us with your dated proof of purchase, product details and a description of the fault.
The product may need to be returned for inspection before the claim can be assessed. If the product is confirmed to be faulty and covered by this warranty, we will advise the available remedy.
What This Warranty Does Not Cover
This warranty does not cover faults or damage caused by incorrect installation, incorrect application, misuse, abuse, neglect, unauthorised modification, accidental damage, normal wear and tear, environmental damage, or failure to use the product in accordance with the manufacturer's instructions.
- Incorrect installation or wiring
- Incorrect product selection or application
- Misuse, abuse or neglect
- Physical or accidental damage
- Water ingress or environmental damage outside the product's intended use
- Unauthorised modification or repair
- Normal wear and tear
- Labour costs for removal, replacement, reinstallation or diagnosis
- Freight, travel or call-out costs unless otherwise required by law
- Products not returned for assessment when reasonably required
Manufacturer Support
Blue Sea Systems may provide additional manufacturer support on some products beyond the warranty period listed above. Where available, we may assist customers in contacting the manufacturer, but any manufacturer support beyond the express warranty period is subject to the manufacturer's own terms and continued availability.
Australian Consumer Law
This warranty is in addition to other rights and remedies available at law. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
