Blue Sea 15A 13-Position DC Distribution Panel with Multifunction Meter

Pre-Wired Buses, Backlit Labels & 3-Bank Battery Monitoring


Regular price $1,567.05
/
Availability: Special Order
View all products from Blue Sea

Free Shipping | This item has a free shipping option Australia-wide.

Guaranteed Safe and Secure Checkout
Apple Pay Google Pay Mastercard PayPalShop Pay Visa
0

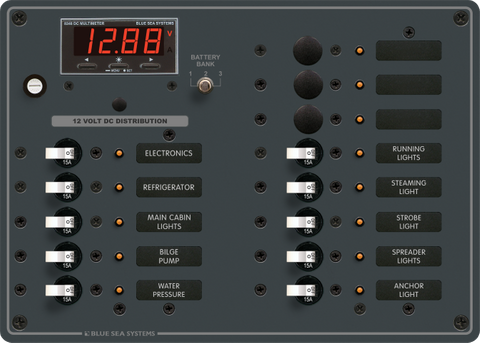

13-position DC distribution panel with digital multifunction meter and 15A circuit breakers

Blue Sea 15A 13-Position DC Distribution Panel with Multifunction Meter

DESCRIPTION

Integrated Circuit Protection and Real-Time System Monitoring

The Blue Sea 15A 13-Position DC Distribution Panel with Multifunction Meter provides a centralised, organised hub for managing complex direct current electrical systems. Engineered for marine vessels, caravans, motorhomes, and specialised off-grid installations, this panel combines heavy-duty circuit protection with comprehensive digital system monitoring. By consolidating thirteen circuit positions and a multifunction meter into a single unit, it eliminates the clutter of standalone gauges and piecemeal fuse blocks, significantly reducing the risk of loose connections and wiring faults.

Streamlined Installation with Pre-Wired Buses

Installing a multi-circuit DC distribution system from scratch can be labour-intensive and prone to wiring errors. This Blue Sea panel simplifies the process by arriving with the positive, negative, and grounding buses already installed and fully pre-wired. This factory-terminated architecture saves considerable installation time behind the dash or inside electrical cabinets, ensuring clean, reliable current flow and making future maintenance or fault-finding straightforward.

  • Fully Pre-Wired Buses: Positive, negative, and grounding buses are factory-installed to streamline wiring and reduce installation time.
  • Digital Multifunction Meter: Provides real-time voltage and amperage data for accurate power management.
  • Multi-Bank Monitoring: Integrated toggle switch allows convenient monitoring of up to three separate battery banks.
  • Clear Visual Status: Every circuit position is fitted with an orange ON indicator LED and backlit circuit-label positions (no separate label kit required).
  • Magnetic-Hydraulic Breakers: Combines reliable circuit switching and overcurrent protection into durable toggle switches.

Advanced Metering and Low-Light Visibility

Staying informed about your battery health and power consumption is critical when operating off-grid or out at sea. The integrated digital multifunction meter displays essential system metrics, while the dedicated battery bank selector toggle switch lets you cycle through and monitor up to three individual battery banks from one location. For low-light environments such as boat cabins at night or dimly lit RV interiors, the panel features built-in backlighting for the circuit labels alongside individual LED status indicators. This allows operators to immediately identify which circuits are active at a glance without needing a torch.

System Compatibility and Expansion Options

Designed to grow with your electrical requirements, the panel layout includes expansion positions fitted with blanking plugs, allowing for future circuit additions as you add new accessories or appliances. For users configuring specific 24V DC architectures who prefer analogue readouts, this panel is compatible with Blue Sea 8240 or 8243 analogue meter upgrades (rated 18V to 32V DC). Please note that these analogue upgrade meters are optional accessories and are not included with the standard panel.

Upgrade Your DC Electrical Architecture

Whether you are refitting a marine helm, building a custom expedition vehicle, or upgrading a caravan power system, this distribution panel delivers professional-grade circuit management. Add the Blue Sea 13-Position DC Distribution Panel to your build for organised, reliable, and easily monitored DC power control.


SKU: BS-8403B

SPECIFICATIONS

SpecificationDetails
Product typeDC distribution panel
Number of positions13
Current15A
MeterMultifunction meter
BusesPositive, negative and grounding buses; fully pre-wired
Battery bank switchToggle switch for mounting up to 3 battery banks on panels with meters
Analog meter upgradeCompatible with 8240 or 8243 meters rated 18–32V DC for 24V use
Indicators and labelsBacklit circuit label positions on standard panels; ON indicator LEDs in all circuit positions

SKU: BS-8403B
Model #: BS-8403B
MPN: BS-8403B
HS code: 8537109170
Country of origin: MX
Package weight: 1.8 kg
Package length: 0.36 m
Package width: 0.22 m
Package height: 0.15 m
