Blue Sea 15A 10-Position DC Switch Panel with Multifunction Meter

Pre-Wired Buses, 3-Bank Battery Selector & 7x 15A Breakers Installed


Regular price $1,295.24
/
Availability: Special Order
View all products from Blue Sea
Guaranteed Safe and Secure Checkout
Apple Pay Google Pay Mastercard PayPalShop Pay Visa
0

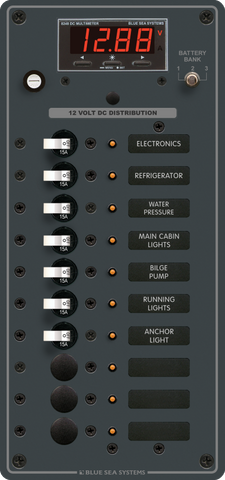

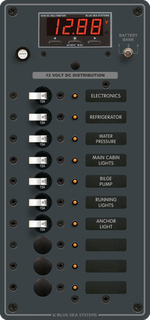

Blue Sea 10-position DC switch panel with digital multifunction multimeter and battery bank selector switch

Blue Sea 15A 10-Position DC Switch Panel with Multifunction Meter

DESCRIPTION

Centralised DC Power Distribution and Real-Time System Monitoring

Managing complex electrical systems in marine vessels, caravans, and off-grid setups requires reliable circuit protection and clear visibility. This 10-position DC switch panel consolidates your auxiliary circuits into one organised hub while providing real-time electrical data via the integrated digital multifunction meter. With positive, negative, and grounding buses fully pre-wired at the factory, installation time is significantly reduced, eliminating the clutter and potential failure points of manual point-to-point wiring.

Key Features and System Benefits

  • Pre-Wired Bus Architecture: Fully installed positive, negative, and grounding buses streamline setup and ensure secure, high-integrity connections right out of the box.
  • Integrated Digital Multifunction Meter: Monitor system voltage and amperage in real time to prevent unexpected battery depletion and track load demands accurately.
  • Multi-Bank Monitoring Capability: Includes a dedicated toggle switch allowing you to monitor up to three separate battery banks from a single display.
  • Ready to Run with Expansion Room: Supplied with seven pre-installed 15A toggle circuit breakers for immediate circuit protection, plus three blank positions to accommodate future system upgrades.
  • Low-Light Visibility: Every circuit position features integrated backlit label slots and individual ON indicating LEDs, requiring no separate backlighting kits for night-time operation.

Engineered for Demanding Environments

Inferior switch panels often suffer from loose terminations, illegible labels, and complicated wiring looms that make fault-finding a nightmare. By combining switching and circuit protection into single toggle breakers, this panel reduces the footprint required on your dashboard or bulkhead. The built-in ON indicator LEDs provide immediate visual confirmation of active loads, helping you avoid accidentally leaving pumps, lights, or electronics running when unattended.

Simplified Multi-Battery Management

For setups utilising auxiliary batteries, house banks, and starter batteries, the integrated selector toggle switch offers a practical monitoring solution. You can easily cycle through up to three battery banks to check voltage levels without installing multiple external gauges. Please note that while the panel provides the switching provision for monitoring up to three banks, the battery banks and external sensing wiring are not included.

Ideal Applications

Designed to meet the rigorous demands of mobile and marine electrical systems, this DC distribution panel is well suited for:

  • Marine vessels, yachts, and trailer boats requiring consolidated cabin and navigation circuit control
  • Caravans, motorhomes, and camper trailers running multiple 12V appliances and lighting zones
  • Off-grid cabins and specialised service vehicles needing reliable DC circuit protection and load monitoring

Upgrade Your Electrical Control

Ensure your DC power distribution is safe, organised, and easy to monitor. Add this pre-wired switch panel to your setup for professional-grade circuit management on your next build or refit.


SKU: BS-8402B

SPECIFICATIONS

SpecificationDetails
Product typeDC switch panel
Current15A
Circuit positions10
MeterMultifunction meter
BusesPositive, negative and grounding buses; fully pre-wired
Battery bank mountingPanels with meters include a toggle switch for mounting up to 3 battery banks
Circuit labelsAll circuit label positions are backlit on standard panels
Indicator LEDsON indicating LEDs installed in all circuit positions
Analog meter upgradePanels with analog meters can be upgraded to 24V with 8240 or 8243 meters (18–32V DC meters)

SKU: BS-8402B
Model #: BS-8402B
MPN: BS-8402B
Package weight: 0.9 kg
Package length: 0.27 m
Package width: 0.17 m
Package height: 0.12 m

WARRANTY

Blue Sea Warranty Policy

Blue Sea Systems products sold by us are supplied with a warranty against defects for the warranty period shown below, subject to the product type, application and the terms of this warranty policy.

The express warranty provided by us is limited to a maximum of 5 years from the original date of purchase, unless otherwise required under Australian Consumer Law.

Blue Sea Systems may offer longer manufacturer support on some products at their discretion

Warranty Lengths by Product Range

Blue Sea Product Range Warranty Length Application / Notes
Most Blue Sea Systems Products 5 years Applies to most Blue Sea Systems products found to be defective in materials or manufacture.
P12 Battery Chargers 5 years Warranty period starts from the original date of purchase.
P12 Remote Displays 5 years Warranty period starts from the original date of purchase.
Digital Meters 3 years Warranty period starts from the original date of purchase.
Vessel System Monitors 3 years Warranty period starts from the original date of purchase.

Warranty Assessment and Remedy

If a Blue Sea Systems product is found to be defective in materials or manufacture within the applicable warranty period, we will, at our discretion, arrange a repair, replacement, store credit or refund, depending on the nature of the fault and the requirements of Australian Consumer Law.

Products may need to be returned for assessment before a warranty claim can be approved. Where required, the product must be returned with dated proof of purchase and a clear description of the fault.

Labour costs for removing, replacing, reinstalling or diagnosing a product are not covered by this express warranty unless otherwise required under Australian Consumer Law.

Making a Warranty Claim

To make a warranty claim, please contact us with your dated proof of purchase, product details and a description of the fault.

The product may need to be returned for inspection before the claim can be assessed. If the product is confirmed to be faulty and covered by this warranty, we will advise the available remedy.

What This Warranty Does Not Cover

This warranty does not cover faults or damage caused by incorrect installation, incorrect application, misuse, abuse, neglect, unauthorised modification, accidental damage, normal wear and tear, environmental damage, or failure to use the product in accordance with the manufacturer's instructions.

  • Incorrect installation or wiring
  • Incorrect product selection or application
  • Misuse, abuse or neglect
  • Physical or accidental damage
  • Water ingress or environmental damage outside the product's intended use
  • Unauthorised modification or repair
  • Normal wear and tear
  • Labour costs for removal, replacement, reinstallation or diagnosis
  • Freight, travel or call-out costs unless otherwise required by law
  • Products not returned for assessment when reasonably required

Manufacturer Support

Blue Sea Systems may provide additional manufacturer support on some products beyond the warranty period listed above. Where available, we may assist customers in contacting the manufacturer, but any manufacturer support beyond the express warranty period is subject to the manufacturer's own terms and continued availability.

Australian Consumer Law

This warranty is in addition to other rights and remedies available at law. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
