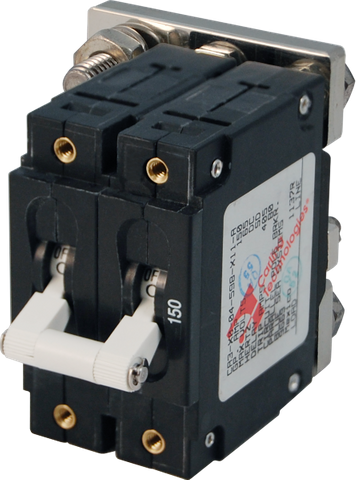

Blue Sea 150A C-Series Double-Pole Toggle Circuit Breaker
Blue Sea 150A C-Series Double-Pole Toggle Circuit Breaker
Magnetic Hydraulic Trip-Free Design with Rear Stud Terminals
Regular price
$256.37
Availability:
Special Order
View all products from Blue Sea
Guaranteed Safe and Secure Checkout
0
DESCRIPTION
Integrated High-Amperage Switching and Overcurrent Protection
Managing high-current loads in demanding marine, RV, and off-grid electrical systems requires components engineered for precision and endurance. The Blue Sea C-Series 150A Double-Pole Toggle Circuit Breaker (BS-7267B) combines manual circuit switching and automatic overcurrent protection into a single, compact device. By consolidating the functions of a heavy-duty battery switch and a main fuse, this circuit breaker simplifies panel design, reduces wiring connections, and minimises potential points of failure in your electrical system.
Why Magnetic Hydraulic Technology Matters
Unlike standard thermal circuit breakers that rely on heat-sensitive bimetallic strips, the C-Series utilises an advanced magnetic hydraulic mechanism. Standard thermal breakers can suffer from nuisance tripping in hot engine bays, canopies, or enclosures because high ambient temperatures lower their trip threshold. Conversely, in freezing conditions, they may delay tripping during a fault.
A magnetic hydraulic circuit breaker senses only the actual electrical current flowing through the coil, remaining completely unaffected by ambient temperature fluctuations. This ensures consistent, predictable protection at its rated 150A capacity whether installed in a hot Australian 4WD canopy, a marine engine room, or an off-grid solar cabinet.
Key Features and Design Benefits
- Simultaneous Double-Pole Switching: Features mechanically linked white toggles that trip and switch both poles together. If an overcurrent fault occurs on one pole, both poles disconnect immediately, making it suitable for isolating both positive and negative DC lines or multi-wire AC shore power and generator circuits.
- Trip-Free Mechanism: Engineered with an internal trip-free design, meaning the contacts cannot be manually held closed during an active overcurrent fault. This critical safety feature prevents catastrophic wire damage and reduces fire risks if an operator attempts to force the circuit on before clearing a short circuit.
- Magnetic Hydraulic Operation: Delivers precise, temperature-independent trip curves that eliminate nuisance tripping in high-heat environments while providing immediate response to severe short circuits.
- Heavy-Duty Rear Stud Terminals: Equipped with robust threaded stud terminals on the rear housing to secure large-gauge lugs, ensuring low-resistance connections capable of handling continuous high-current loads.
- Panel-Mount Ready: Incorporates threaded brass inserts on the front face for secure, vibration-resistant installation into custom switch panels and power distribution boards, complete with a clearly marked 150A amperage rating on the toggle handle.
Applications in Marine, RV, and Off-Grid Power
The double-pole configuration of the BS-7267B offers exceptional versatility for system builders and auto electricians. In DC applications, it can be wired to break both the positive and negative conductors simultaneously for complete circuit isolation, which is often required in specialised marine and commercial survey vessels. Alternatively, it serves as an dependable main breaker for heavy-duty inverters, windlasses, bow thrusters, and high-output charging systems where reliable manual isolation is needed alongside overcurrent safety.
Upgrade Your Circuit Protection
Ensure your high-current electrical architecture is protected against overloads and short circuits without compromising on operational convenience. Integrate this 150A magnetic hydraulic breaker into your power distribution panel today for dependable, professional-grade circuit management.
SKU: BS-7267B
SPECIFICATIONS
| Specification | Value |
|---|---|
| Product type | Circuit breaker |
| SKU: | BS-7267B |
| Model #: | BS-7267B |
| MPN: | BS-7267B |
| Package weight: | 0.54 kg |
| Package length: | 0.11 m |
| Package width: | 0.08 m |
| Package height: | 0.1 m |
WARRANTY
Blue Sea Warranty Policy
Blue Sea Systems products sold by us are supplied with a warranty against defects for the warranty period shown below, subject to the product type, application and the terms of this warranty policy.
The express warranty provided by us is limited to a maximum of 5 years from the original date of purchase, unless otherwise required under Australian Consumer Law.
Blue Sea Systems may offer longer manufacturer support on some products at their discretion
Warranty Lengths by Product Range
| Blue Sea Product Range | Warranty Length | Application / Notes |
|---|---|---|
| Most Blue Sea Systems Products | 5 years | Applies to most Blue Sea Systems products found to be defective in materials or manufacture. |
| P12 Battery Chargers | 5 years | Warranty period starts from the original date of purchase. |
| P12 Remote Displays | 5 years | Warranty period starts from the original date of purchase. |
| Digital Meters | 3 years | Warranty period starts from the original date of purchase. |
| Vessel System Monitors | 3 years | Warranty period starts from the original date of purchase. |
Warranty Assessment and Remedy
If a Blue Sea Systems product is found to be defective in materials or manufacture within the applicable warranty period, we will, at our discretion, arrange a repair, replacement, store credit or refund, depending on the nature of the fault and the requirements of Australian Consumer Law.
Products may need to be returned for assessment before a warranty claim can be approved. Where required, the product must be returned with dated proof of purchase and a clear description of the fault.
Labour costs for removing, replacing, reinstalling or diagnosing a product are not covered by this express warranty unless otherwise required under Australian Consumer Law.
Making a Warranty Claim
To make a warranty claim, please contact us with your dated proof of purchase, product details and a description of the fault.
The product may need to be returned for inspection before the claim can be assessed. If the product is confirmed to be faulty and covered by this warranty, we will advise the available remedy.
What This Warranty Does Not Cover
This warranty does not cover faults or damage caused by incorrect installation, incorrect application, misuse, abuse, neglect, unauthorised modification, accidental damage, normal wear and tear, environmental damage, or failure to use the product in accordance with the manufacturer's instructions.
- Incorrect installation or wiring
- Incorrect product selection or application
- Misuse, abuse or neglect
- Physical or accidental damage
- Water ingress or environmental damage outside the product's intended use
- Unauthorised modification or repair
- Normal wear and tear
- Labour costs for removal, replacement, reinstallation or diagnosis
- Freight, travel or call-out costs unless otherwise required by law
- Products not returned for assessment when reasonably required
Manufacturer Support
Blue Sea Systems may provide additional manufacturer support on some products beyond the warranty period listed above. Where available, we may assist customers in contacting the manufacturer, but any manufacturer support beyond the express warranty period is subject to the manufacturer's own terms and continued availability.
Australian Consumer Law
This warranty is in addition to other rights and remedies available at law. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
