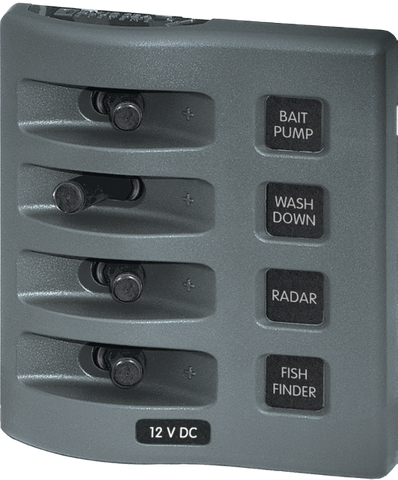

Blue Sea 12VDC WeatherDeck Waterproof Switch Panel, Gray 4P
Blue Sea 12VDC WeatherDeck Waterproof Switch Panel, Gray 4P
IP67 Front Rating, Integrated Switch Guards - No Fuses or Backlighting
Regular price
$116.34
Availability:
Special Order
View all products from Blue Sea
Guaranteed Safe and Secure Checkout
0
DESCRIPTION
Rugged Marine Electrical Control for Exposed Environments
The Blue Sea Systems WeatherDeck 4-Position Switch Panel is engineered specifically for demanding 12V DC applications where standard controls fail. Designed for open-cockpit boats, flybridges, and exposed off-road vehicle dashboards, this grey 4-position panel provides dependable switching in environments subjected to relentless sun, salt spray, and heavy washdowns. Unlike lower-grade alternatives that quickly succumb to UV degradation and moisture ingress, the WeatherDeck series utilises specialised, UV-stabilised materials that resist deterioration and maintain structural integrity over years of harsh exposure.
IP67 Rated Protection Against Water Ingress
Water intrusion is one of the leading causes of marine electrical failure and short circuits. When properly installed with a watertight mounting gasket, the front of this switch panel achieves an IP67 ingress protection rating. This ensures the panel can withstand temporary immersion in up to 1 metre of water for 30 minutes without compromising the electrical contacts behind the dash. The heavy-duty toggle switches are sealed to prevent salt and moisture from corroding the internal mechanisms, giving you confidence when navigating rough seas or hosing down your deck.
Practical Design and Installation Flexibility
Designed with the installer and end-user in mind, this panel addresses common cockpit frustrations through intelligent physical engineering. The unit can be mounted in four different orientations (vertical or horizontal), allowing you to adapt the layout to tight helm stations or custom dashboard cut-outs. Furthermore, the snap-on faceplate conceals all mounting screws for a clean, professional finish while allowing rapid access to internal components for inspection or maintenance.
- IP67 Waterproof Rating: Front-panel protection against heavy spray and temporary submersion when correctly gasket-mounted.
- Integrated Switch Guards: Moulded guards surround each toggle to prevent accidental switching caused by crew movement, snagged lines, or rough water.
- UV-Stabilised Faceplate: Grey snap-on cover resists fading and embrittlement under intense Australian UV conditions while hiding mounting hardware.
- Multi-Orientation Mounting: Can be installed in four distinct positions to suit vertical or horizontal console layouts.
- Customisable Identification: Features dedicated square recesses next to each switch for clear, application-specific labelling.
Important System Integration Notes
To offer maximum flexibility for custom electrical architectures, this specific WeatherDeck model (BS-4305B) is supplied as a dedicated switching interface. Please note that internal backlighting and integrated circuit protection (fuses or circuit breakers) are not included in this panel. This makes it an ideal choice for vessels and vehicles that already utilise a separate, centralised fuse block or digital distribution system, preventing redundant components behind the dash and simplifying wiring runs.
Upgrade Your Helm Station
Eliminate the risk of corroded switches and accidental equipment activation in exposed control areas. Integrate the Blue Sea 12V DC WeatherDeck 4-Position Switch Panel into your marine or off-grid electrical system for long-lasting, weather-resistant control.
SKU: BS-4305B
SPECIFICATIONS
| Specification | Details |
|---|---|
| Product type | Switch panel |
| Voltage | 12VDC |
| Series | WeatherDeck |
| Configuration | Gray 4P |
| Waterproof rating | IP67 |
| Front protection | IP67 when properly mounted with a watertight mounting gasket |
| Immersion protection | Up to 1 meter for 30 minutes |
| Switch guards | Integrated |
| Mounting orientations | Four |
| Backlighting | Not included |
| Circuit protection | Not included |
| Faceplate | UV-stabilized and weather-resistant; snaps on and off for access to components and to conceal mounting screws |
| Material resistance | Materials specified not to deteriorate in harsh sun, salt and water |
| SKU: | BS-4305B |
| Model #: | BS-4305B |
| MPN: | BS-4305B |
| Package weight: | 0.24 kg |
| Package length: | 0.15 m |
| Package width: | 0.15 m |
| Package height: | 0.1 m |
WARRANTY
Blue Sea Warranty Policy
Blue Sea Systems products sold by us are supplied with a warranty against defects for the warranty period shown below, subject to the product type, application and the terms of this warranty policy.
The express warranty provided by us is limited to a maximum of 5 years from the original date of purchase, unless otherwise required under Australian Consumer Law.
Blue Sea Systems may offer longer manufacturer support on some products at their discretion
Warranty Lengths by Product Range
| Blue Sea Product Range | Warranty Length | Application / Notes |
|---|---|---|
| Most Blue Sea Systems Products | 5 years | Applies to most Blue Sea Systems products found to be defective in materials or manufacture. |
| P12 Battery Chargers | 5 years | Warranty period starts from the original date of purchase. |
| P12 Remote Displays | 5 years | Warranty period starts from the original date of purchase. |
| Digital Meters | 3 years | Warranty period starts from the original date of purchase. |
| Vessel System Monitors | 3 years | Warranty period starts from the original date of purchase. |
Warranty Assessment and Remedy
If a Blue Sea Systems product is found to be defective in materials or manufacture within the applicable warranty period, we will, at our discretion, arrange a repair, replacement, store credit or refund, depending on the nature of the fault and the requirements of Australian Consumer Law.
Products may need to be returned for assessment before a warranty claim can be approved. Where required, the product must be returned with dated proof of purchase and a clear description of the fault.
Labour costs for removing, replacing, reinstalling or diagnosing a product are not covered by this express warranty unless otherwise required under Australian Consumer Law.
Making a Warranty Claim
To make a warranty claim, please contact us with your dated proof of purchase, product details and a description of the fault.
The product may need to be returned for inspection before the claim can be assessed. If the product is confirmed to be faulty and covered by this warranty, we will advise the available remedy.
What This Warranty Does Not Cover
This warranty does not cover faults or damage caused by incorrect installation, incorrect application, misuse, abuse, neglect, unauthorised modification, accidental damage, normal wear and tear, environmental damage, or failure to use the product in accordance with the manufacturer's instructions.
- Incorrect installation or wiring
- Incorrect product selection or application
- Misuse, abuse or neglect
- Physical or accidental damage
- Water ingress or environmental damage outside the product's intended use
- Unauthorised modification or repair
- Normal wear and tear
- Labour costs for removal, replacement, reinstallation or diagnosis
- Freight, travel or call-out costs unless otherwise required by law
- Products not returned for assessment when reasonably required
Manufacturer Support
Blue Sea Systems may provide additional manufacturer support on some products beyond the warranty period listed above. Where available, we may assist customers in contacting the manufacturer, but any manufacturer support beyond the express warranty period is subject to the manufacturer's own terms and continued availability.
Australian Consumer Law
This warranty is in addition to other rights and remedies available at law. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
