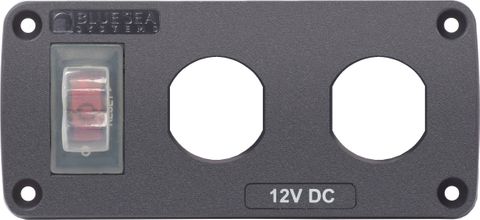

Blue Sea 12V Water-Resistant Accessory Panel with 15A Circuit Breaker and 2 Blank Apertures
Blue Sea 12V Water-Resistant Accessory Panel with 15A Circuit Breaker and 2 Blank Apertures
Pre-Wired Harness, UV-Stabilised Face & Illuminated Carling Switch

DESCRIPTION
Customisable 12V Power Distribution and Accessory Control for Harsh Environments
Engineered for Marine, 4WD, and Off-Grid DC Installations
Managing auxiliary power in exposed environments requires hardware that can withstand moisture, salt spray, and relentless sun exposure. The Blue Sea Systems BS-4364B is a purpose-built, water-resistant 12V accessory panel designed to give you complete control over your custom charging and monitoring setup. Whether you are outfitting a boat console, a 4WD canopy, or a camper trailer, this panel provides a reliable, weather-sealed foundation for your 12V DC electrical system.
Unlike standard switch panels that come pre-populated with fixed sockets you might never use, this model features two blank apertures. This allows you to tailor the panel specifically to your application by installing your preferred combination of 12V cigarette lighter sockets, dual USB chargers, or mini digital voltmeters.
Eliminate Parasitic Battery Drain
A common frustration in marine and automotive electrical setups is parasitic draw. Modern USB chargers and digital voltage displays continuously consume a small amount of current, even when no devices are plugged in. Over days or weeks in storage, this constant drain can flatten your auxiliary or starter battery.
To prevent this risk, the panel integrates a genuine, illuminated Carling Technologies 15A circuit breaker switch. This single component serves a dual purpose: it provides reliable overcurrent protection for your connected accessories, and it acts as a master isolation switch. When you park your vehicle or moor your vessel, simply toggle the breaker off to completely disconnect power to the installed sockets, preserving your battery bank.
Built to Withstand Australian Conditions
Inferior panels often suffer from brittle plastic, rusted mounting hardware, and corroded terminals when exposed to the elements. Blue Sea Systems addresses these failure points with marine-grade materials and thoughtful engineering:
- Water-Resistant Sealing: Equipped with a rear silicone gasket and a heavy-duty silicone breaker boot to help prevent water and dust ingress from the front of the panel.
- UV-Stabilised Polycarbonate/ABS Face: The rugged faceplate resists degradation and cracking under harsh Australian UV exposure.
- Corrosion-Free & Flame-Retardant: Constructed from non-corrosive, flame-retardant materials that ensure long-term structural integrity and electrical safety in salty or humid environments.
- Illuminated Carling 15A Breaker: Delivers clear visual confirmation when the panel is live, combining switching and circuit protection in one durable mechanism.
- Pre-Wired Harness Included: Supplied with a factory-installed wiring harness across the rear to simplify installation, reduce crimping time, and ensure secure electrical connections.
- Dual Blank Apertures: Features two standard mounting cutouts ready to accept compatible 12V charging outlets and monitoring gauges (sold separately).
Important Installation & Compatibility Notes
Please note that this accessory panel is engineered and rated for 12V DC systems only due to the internal illumination circuitry of the Carling breaker switch; it is not suitable for 24V or 48V applications. Additionally, the two blank apertures do not include sockets or gauges, allowing you to source the exact accessories required for your build.
Upgrade Your 12V Auxiliary Setup
Take control of your off-grid, 4WD, or marine power distribution with components built to last. Add the Blue Sea 12V Water-Resistant Accessory Panel to your system today and build a custom charging station that protects your batteries and endures the elements.
SKU: BS-4364B
SPECIFICATIONS
| Specification | Details |
|---|---|
| Product type | Water-resistant accessory panel |
| Supported system voltage | 12V DC only |
| Circuit breaker | Illuminated Carling Technologies 15A circuit breaker switch |
| Switch function | Can shut off the panel to prevent parasitic draw |
| Charging and monitoring | Customizable 12V charging and monitoring options |
| Harness | Pre-wired harness included |
| Water protection | Silicon breaker boots and gasket protect against water ingress |
| Panel face material | Polycarbonate/ABS |
| Panel face properties | UV-stabilized, flame retardant, and will not corrode |
| Blank apertures | 2 |
| SKU: | BS-4364B |
| Model #: | BS-4364B |
| MPN: | BS-4364B |
| HS code: | 8536200040 |
| Country of origin: | MX |
| Package weight: | 0.36 kg |
| Package length: | 0.2 m |
| Package width: | 0.15 m |
| Package height: | 0.1 m |
WARRANTY
Blue Sea Warranty Policy
Blue Sea Systems products sold by us are supplied with a warranty against defects for the warranty period shown below, subject to the product type, application and the terms of this warranty policy.
The express warranty provided by us is limited to a maximum of 5 years from the original date of purchase, unless otherwise required under Australian Consumer Law.
Blue Sea Systems may offer longer manufacturer support on some products at their discretion
Warranty Lengths by Product Range
| Blue Sea Product Range | Warranty Length | Application / Notes |
|---|---|---|
| Most Blue Sea Systems Products | 5 years | Applies to most Blue Sea Systems products found to be defective in materials or manufacture. |
| P12 Battery Chargers | 5 years | Warranty period starts from the original date of purchase. |
| P12 Remote Displays | 5 years | Warranty period starts from the original date of purchase. |
| Digital Meters | 3 years | Warranty period starts from the original date of purchase. |
| Vessel System Monitors | 3 years | Warranty period starts from the original date of purchase. |
Warranty Assessment and Remedy
If a Blue Sea Systems product is found to be defective in materials or manufacture within the applicable warranty period, we will, at our discretion, arrange a repair, replacement, store credit or refund, depending on the nature of the fault and the requirements of Australian Consumer Law.
Products may need to be returned for assessment before a warranty claim can be approved. Where required, the product must be returned with dated proof of purchase and a clear description of the fault.
Labour costs for removing, replacing, reinstalling or diagnosing a product are not covered by this express warranty unless otherwise required under Australian Consumer Law.
Making a Warranty Claim
To make a warranty claim, please contact us with your dated proof of purchase, product details and a description of the fault.
The product may need to be returned for inspection before the claim can be assessed. If the product is confirmed to be faulty and covered by this warranty, we will advise the available remedy.
What This Warranty Does Not Cover
This warranty does not cover faults or damage caused by incorrect installation, incorrect application, misuse, abuse, neglect, unauthorised modification, accidental damage, normal wear and tear, environmental damage, or failure to use the product in accordance with the manufacturer's instructions.
- Incorrect installation or wiring
- Incorrect product selection or application
- Misuse, abuse or neglect
- Physical or accidental damage
- Water ingress or environmental damage outside the product's intended use
- Unauthorised modification or repair
- Normal wear and tear
- Labour costs for removal, replacement, reinstallation or diagnosis
- Freight, travel or call-out costs unless otherwise required by law
- Products not returned for assessment when reasonably required
Manufacturer Support
Blue Sea Systems may provide additional manufacturer support on some products beyond the warranty period listed above. Where available, we may assist customers in contacting the manufacturer, but any manufacturer support beyond the express warranty period is subject to the manufacturer's own terms and continued availability.
Australian Consumer Law
This warranty is in addition to other rights and remedies available at law. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
