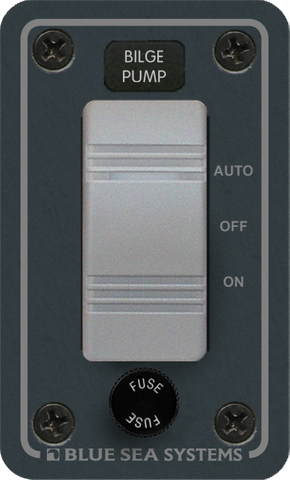

Blue Sea 12V Contura Fused Bilge Pump Switch Panel
Blue Sea 12V Contura Fused Bilge Pump Switch Panel
Pre-Wired ON-OFF-AUTO Control with Watertight Gasket & Running LED
Regular price
$95.75
Availability:
Special Order
View all products from Blue Sea
Guaranteed Safe and Secure Checkout
0
DESCRIPTION
Dedicated Marine Bilge Pump Control for Exposed Helm Areas
Maintaining reliable control over your vessel's bilge system is critical for marine safety. Designed specifically for harsh marine environments, the Blue Sea 12V Contura Fused Bilge Pump Switch Panel provides a centralised, dependable control point for your 12V DC bilge system. Engineered to withstand the rigours of flybridge and open cockpit applications, this unit offers superior protection against moisture and salt spray compared to standard automotive-grade switches.
Unlike basic, unsealed switch components that require complex custom wiring and are prone to premature corrosion in marine settings, this panel comes completely pre-wired and ready to install. This significantly reduces installation time, minimises the risk of wiring errors behind the dash, and ensures a clean, professional finish at the helm.
Intuitive ON-OFF-AUTO Control and Status Monitoring
At the core of the panel is a heavy-duty Contura rocker switch featuring clearly defined ON, OFF, and AUTO positions. This three-way functionality allows you to easily toggle between manual override when immediate pumping is required, complete system shut-off during maintenance, or automatic operation controlled by your vessel's float switch or water sensor.
To prevent accidental battery drain or pump burn-out from dry running, the switch features an embedded ON LED indicator. This light illuminates whenever the bilge pump is actively drawing power, whether triggered manually at the helm or automatically via the float switch. This immediate visual confirmation ensures the skipper is always aware of bilge activity, even in noisy open-water conditions where the pump cannot be heard.
Watertight Construction and Accessible Circuit Protection
Open cockpits, centre consoles, and flybridges are constantly exposed to wave splash, rain, and washdowns. To protect your behind-the-dash electrical systems from water ingress, this panel includes a specialised watertight mounting gasket. This creates a secure seal against the mounting surface, mitigating the risk of short circuits and corrosion in your primary DC wiring loom.
Integrated directly into the front fascia is a convenient fuse holder compatible with widely available AGC and MDL glass fuses. Front-panel fuse access means that if a circuit blows due to a jammed impeller or electrical spike, you can quickly inspect and replace the fuse right at the helm without needing to crawl under the console or dismantle the dashboard.
Key Features
- 3-Position Contura Switch: Offers seamless switching between manual ON, OFF, and float-activated AUTO modes.
- Weather-Resistant Design: Supplied with a watertight mounting gasket suited for exposed flybridges and open cockpits.
- Visual Running Indicator: Embedded LED illuminates to confirm whenever the 12V DC bilge pump is actively operating.
- Front-Access Circuit Protection: Integrated fuse holder accepts standard AGC and MDL glass fuses for rapid servicing.
- Pre-Wired Assembly: Arrives completely wired from the factory, simplifying installation and improving electrical reliability.
Ideal Marine Applications
Whether you are refitting an older vessel or fitting out a new trailer boat, this switch panel is built for longevity in exposed locations. It is ideally suited for:
- Open cockpit tinnies, runabouts, and centre console fishing boats
- Flybridge helms on larger cruisers and sportfishing vessels
- Secondary bilge control stations on workboats and yachts
- Upgrading loose, unsealed toggle switches to a unified, protected panel
Upgrade Your Helm Control
Equip your vessel with dependable, weather-resistant bilge management. Add the Blue Sea 12V Contura Fused Bilge Pump Switch Panel to your marine electrical setup today for streamlined installation and confident on-water operation.
SKU: BS-8263B
SPECIFICATIONS
| Specification | Details |
|---|---|
| Product type | Fused bilge pump switch panel |
| Voltage | 12VDC |
| Switch count | 1 |
| Switch | ON-OFF-AUTO Contura switch |
| Mounting gasket | Watertight |
| Fuse compatibility | AGC and MDL glass fuses |
| Indicator | Embedded ON LED indicates the pump is running |
| Installation | Completely wired and ready to install |
| Application | Designed for flybridge and open cockpit applications |
| SKU: | BS-8263B |
| Model #: | BS-8263B |
| MPN: | BS-8263B |
| Package weight: | 0.216 kg |
| Package length: | 0.15 m |
| Package width: | 0.11 m |
| Package height: | 0.09 m |
