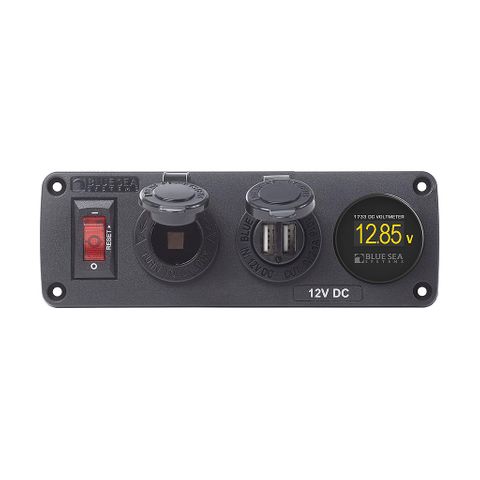

Blue Sea 12V Below-Deck Switch Panel with Socket, Dual USB Ports and Voltmeter
Blue Sea 12V Below-Deck Switch Panel with Socket, Dual USB Ports and Voltmeter
15A Circuit Breaker, 2.1A USB & Pre-Wired Harness (12V DC Only)
Regular price
$185.33
Availability:
Special Order
View all products from Blue Sea
Guaranteed Safe and Secure Checkout
0
DESCRIPTION
Centralised 12V Power Distribution and Battery Monitoring
Managing auxiliary power in marine vessels, caravans, and off-grid vehicles requires components engineered for safety and reliability. This integrated 12V control panel consolidates essential device charging and real-time system monitoring into a single, compact unit. Designed specifically for interior, below-deck, or cabin installations, it eliminates the clutter of multiple standalone gauges and sockets while providing convenient access to your DC power system.
Prevent Parasitic Battery Drain
A common issue with permanently wired USB chargers and digital voltmeters is the continuous, low-level current they draw even when not actively in use. Over time, this parasitic load can deplete your auxiliary or starter battery, leaving you without power when you need it most. To eliminate this risk, this panel features an integrated, illuminated Carling Technologies 15A circuit-breaker switch. With a single action, you can completely isolate the power to the voltmeter, USB ports, and 12V socket when the vessel or vehicle is in storage, preserving your battery bank's state of charge while simultaneously providing reliable overcurrent protection.
Engineered for Harsh Marine and Off-Grid Environments
Standard automotive switch panels often degrade quickly when exposed to high humidity, salt air, or fluctuating cabin temperatures. The faceplate of this Blue Sea Systems unit is manufactured from heavy-duty polycarbonate/ABS. This advanced material is fully UV-stabilised, flame-retardant, and impervious to corrosion, outperforming standard metal or low-grade plastic alternatives in demanding Australian conditions. Both the 12V DC accessory socket and the dual 2.1A USB charger are equipped with protective flip covers, shielding the internal contacts from dust and incidental moisture when not in use.
Simplified Installation with Pre-Wired Harness
Whether you are fitting out a new boat cabin, upgrading a camper trailer, or building a custom 4WD canopy setup, installation time is minimised thanks to the included pre-wired harness. Instead of crimping and routing individual positive and negative leads for every single module, the factory-installed wiring links the components cleanly behind the faceplate. This significantly reduces the potential for loose connections or voltage drop, allowing for a neat, professional-grade fit-out straight out of the box.
Key Features and Benefits
- Strict 12V DC System Compatibility: Optimised specifically for 12V battery systems; not suitable for 24V or higher voltage configurations.
- Integrated 15A Circuit Breaker: Illuminated Carling Technologies switch offers combined overcurrent protection and total system shut-off to prevent parasitic battery drain.
- Versatile Device Charging: Includes a 2.1A dual USB port module for mobile devices and tablets, alongside a standard 12V DC accessory socket for portable fridges, lighting, or marine electronics.
- Real-Time Voltage Tracking: The bright digital LED voltmeter allows you to monitor your 12V battery health at a glance, helping to prevent harmful deep discharges.
- Marine-Grade Construction: Non-corrosive, UV-stabilised, and flame-retardant polycarbonate/ABS faceplate ensures long-term structural integrity.
- Plug-and-Play Wiring: Supplied with a pre-wired rear harness for fast, secure, and tidy electrical integration.
Upgrade Your Cabin Power Management
Streamline your auxiliary 12V electrical system with a dependable, all-in-one charging and monitoring station. Add the Blue Sea Systems below-deck switch panel to your cart today for a cleaner, safer installation in your vessel, RV, or off-grid setup.
SKU: BS-4366B
SPECIFICATIONS
| Specification | Details |
|---|---|
| Product type | Below-deck switch panel |
| Voltage | 12V DC only |
| Circuit-breaker switch | 1 illuminated Carling Technologies 15A circuit-breaker switch |
| USB | 2 x 2.1A Dual USB |
| Socket | 1 x 12V socket |
| Voltmeter | 1 voltmeter |
| Harness | Pre-wired harness included |
| Panel face material | Polycarbonate/ABS; UV-stabilized, flame retardant and will not corrode |
| Switch function | Allows the panel to be shut off to prevent parasitic draw |
| Charging and monitoring | Customizable 12V charging and monitoring options |
| SKU: | BS-4366B |
| Model #: | BS-4366B |
| MPN: | BS-4366B |
| Package weight: | 0.42 kg |
| Package length: | 0.2 m |
| Package width: | 0.15 m |
| Package height: | 0.1 m |
WARRANTY
Blue Sea Warranty Policy
Blue Sea Systems products sold by us are supplied with a warranty against defects for the warranty period shown below, subject to the product type, application and the terms of this warranty policy.
The express warranty provided by us is limited to a maximum of 5 years from the original date of purchase, unless otherwise required under Australian Consumer Law.
Blue Sea Systems may offer longer manufacturer support on some products at their discretion
Warranty Lengths by Product Range
| Blue Sea Product Range | Warranty Length | Application / Notes |
|---|---|---|
| Most Blue Sea Systems Products | 5 years | Applies to most Blue Sea Systems products found to be defective in materials or manufacture. |
| P12 Battery Chargers | 5 years | Warranty period starts from the original date of purchase. |
| P12 Remote Displays | 5 years | Warranty period starts from the original date of purchase. |
| Digital Meters | 3 years | Warranty period starts from the original date of purchase. |
| Vessel System Monitors | 3 years | Warranty period starts from the original date of purchase. |
Warranty Assessment and Remedy
If a Blue Sea Systems product is found to be defective in materials or manufacture within the applicable warranty period, we will, at our discretion, arrange a repair, replacement, store credit or refund, depending on the nature of the fault and the requirements of Australian Consumer Law.
Products may need to be returned for assessment before a warranty claim can be approved. Where required, the product must be returned with dated proof of purchase and a clear description of the fault.
Labour costs for removing, replacing, reinstalling or diagnosing a product are not covered by this express warranty unless otherwise required under Australian Consumer Law.
Making a Warranty Claim
To make a warranty claim, please contact us with your dated proof of purchase, product details and a description of the fault.
The product may need to be returned for inspection before the claim can be assessed. If the product is confirmed to be faulty and covered by this warranty, we will advise the available remedy.
What This Warranty Does Not Cover
This warranty does not cover faults or damage caused by incorrect installation, incorrect application, misuse, abuse, neglect, unauthorised modification, accidental damage, normal wear and tear, environmental damage, or failure to use the product in accordance with the manufacturer's instructions.
- Incorrect installation or wiring
- Incorrect product selection or application
- Misuse, abuse or neglect
- Physical or accidental damage
- Water ingress or environmental damage outside the product's intended use
- Unauthorised modification or repair
- Normal wear and tear
- Labour costs for removal, replacement, reinstallation or diagnosis
- Freight, travel or call-out costs unless otherwise required by law
- Products not returned for assessment when reasonably required
Manufacturer Support
Blue Sea Systems may provide additional manufacturer support on some products beyond the warranty period listed above. Where available, we may assist customers in contacting the manufacturer, but any manufacturer support beyond the express warranty period is subject to the manufacturer's own terms and continued availability.
Australian Consumer Law
This warranty is in addition to other rights and remedies available at law. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
