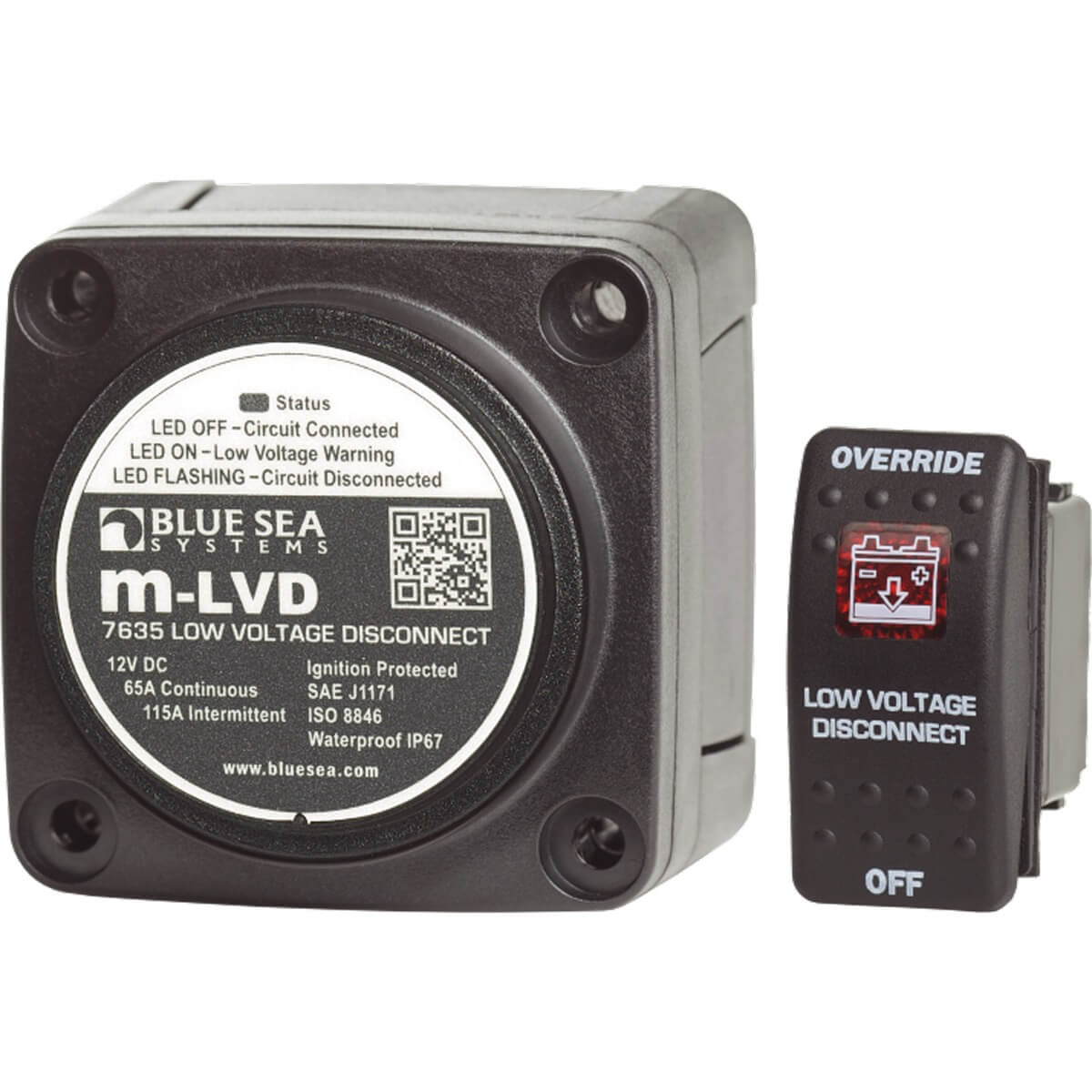

Blue Sea 12V 65A m-LVD Low Voltage Disconnect
Blue Sea 12V 65A m-LVD Low Voltage Disconnect
IP67 Waterproof Battery Saver with Remote Switch & Adjustable Cut-Off
Regular price
$162.90
Availability:
Special Order
View all products from Blue Sea
Guaranteed Safe and Secure Checkout
0
DESCRIPTION
Automated 12V Battery Protection for Marine and Automotive Systems
Managing auxiliary loads in mobile, marine, and off-grid electrical setups is critical to avoiding unexpected power loss and irreversible battery damage. The Blue Sea 12V 65A m-LVD Low Voltage Disconnect provides automated protection for your 12V DC battery bank. By continuously monitoring voltage levels, this solid-state unit automatically isolates non-essential devices when battery voltage drops below a safe threshold. This preserves vital cranking capacity for engine starting and extends the overall lifespan of your deep-cycle or starting batteries.
Intelligent Monitoring and Remote Control Integration
Unlike standard voltage-sensitive relays that offer little user feedback, the m-LVD features a comprehensive warning and control architecture. Integrated status LEDs on both the main disconnect body and the included Remote Control Switch provide a clear visual alert prior to load shedding, giving operators time to react before electronics power down.
The included remote switch mounts neatly into standard dashboards or switch panels, providing versatile operational control:
- Adjustable Disconnect Voltage: Tailor the voltage cut-off threshold directly from the switch to suit specific battery chemistries and operational requirements.
- 10-Minute Override Delay: Temporarily delay the impending circuit disconnection for 10 minutes to finish critical tasks, such as radio transmissions or navigation updates.
- Manual Circuit Shut-Off: Manually place the circuit into an OFF state to conserve battery power until charging resumes and system voltage rises.
- Audible Alarm Support: Includes a dedicated alarm output pin to trigger an audible warning prior to disconnection. Using the Override or OFF functions on the remote switch will also silence the alarm (note: an optional external alarm is required for audible alerts).
Engineered for Harsh Environments
Standard electrical switches often fail when exposed to moisture, vibration, and corrosive salt air. Designed specifically for demanding marine, 4WD, and commercial vehicle environments, the m-LVD features a rugged, IP67-rated enclosure capable of withstanding temporary water immersion. The unit is also ignition protected, making it safe for installation aboard petrol-powered boats where explosive fumes may be present.
To prevent accidental short circuits in tight wiring bays, a protective rear insulating cover shields the conductive contacts. The versatile case design supports surface, front-panel, or rear-panel mounting, allowing seamless integration into custom distribution panels, boat consoles, or canopy dual-battery setups.
Key Features and Specifications
- High Current Capacity: Supports a 65A continuous current rating and handles intermittent surges up to 115A for 5 minutes.
- Heavy-Duty Connections: Equipped with 1/4"-20 (Approx. M6) terminal studs capable of accepting heavy cable lugs up to 1/0 AWG (approx. 50mm2).
- Low Parasitic Draw: Consumes just 95mA when connected and drops to an ultra-low 4mA in the open state to prevent further drain on depleted batteries.
- Waterproof Construction: IP67 rated for temporary immersion in harsh marine and off-road applications.
- Complete Kit: Supplied with the main m-LVD unit and the Contura-style Remote Control Switch.
Secure Your Starting Power Today
Eliminate the risk of being stranded with a flat battery on the water or at a remote campsite. Integrate the Blue Sea m-LVD into your 12V electrical system for reliable, automated load management.
SPECIFICATIONS
| Specification | Detail |
|---|---|
| Product | m-LVD Low Voltage Disconnect |
| Nominal voltage | 12V DC |
| Amperage operating current | 95mA (Connected); 4mA (Open) |
| Continuous rating | 65A |
| Intermittent rating | 115A (5 Min) |
| Terminal stud torque | 60 in-lb (6.78 Nm) |
| Maximum cable size | 1/0 AWG (50mm2) |
| Terminal stud length | 7/16 in (11.11 mm) |
| Terminal stud size | 1/4″ – 20 (M6) |
| Weight | 0.77lb (0.35 kg) |
| Mounting | Surface, front panel, or rear panel mounting |
| Waterproof rating | IP67 for temporary immersion |
| Automatic disconnection | Senses low battery voltage and automatically disconnects non-essential devices to save power for starting or to preserve battery life. |
| Status indication | Status light in both the m-LVD and Remote Control Switch provides visual warning of low voltage state prior to disconnect. |
| Alarm output | Output available for audible warning of low voltage state prior to disconnect; optional alarm required. |
| Remote Control Switch functions | Disconnect Voltage Adjustment sets desired disconnect voltage; Override temporarily delays circuit disconnect for 10 minutes; OFF temporarily disconnects circuits until voltage rises; Override or OFF silences the alarm (optional alarm required). |
| Rear protection | Rear insulating cover protects rear contacts. |
| SKU: | BS-7635 |
| Model #: | BS-7635 |
| MPN: | BS-7635 |
| Package weight: | 0.42 kg |
| Package length: | 0.16 m |
| Package width: | 0.12 m |
| Package height: | 0.09 m |
