Blue Sea 12V 4-Circuit Fuse Panel with IP67 Front - Grey

ATO/ATC Fuse Protection, Bicoloured Status LEDs & 4 Mounting Options


Regular price $193.56
/
Availability: Special Order
View all products from Blue Sea
Guaranteed Safe and Secure Checkout
Apple Pay Google Pay Mastercard PayPalShop Pay Visa
0

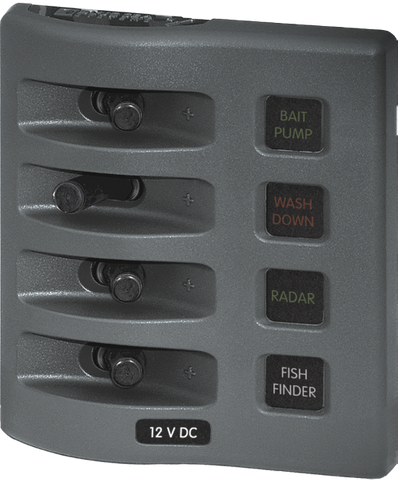

Gray Blue Sea 12V 4-circuit marine fuse panel with waterproof toggle switches and backlit labels

Blue Sea 12V 4-Circuit Fuse Panel with IP67 Front - Grey

DESCRIPTION

Reliable 12V Marine Circuit Protection for Open Cockpits and Flybridges

Managing electrical systems in exposed marine environments requires hardware engineered to withstand constant moisture, salt spray, and vibration. This 12V 4-circuit marine fuse panel provides integrated switching and circuit protection specifically designed for flybridges, open cockpits, and Exposed helm stations. By combining robust toggle switches with standard ATO/ATC blade fuse protection, it streamlines dashboard wiring while protecting vital onboard electronics from overloads and short circuits.

Engineered for Harsh Marine Environments

Standard electrical switch panels often fail prematurely when subjected to water ingress, leading to corroded terminals and intermittent electrical faults. When properly mounted with a watertight mounting gasket, the front of this panel achieves an IP67 waterproof rating, capable of withstanding temporary immersion up to 1 metre for 30 minutes. Please note that the watertight gasket is required to achieve this front protection rating, and specific supplied mounting hardware or contents are not specified.

Intuitive Diagnostics and Night Vision Preservation

Troubleshooting a dark helm station at night can be challenging and hazardous. This unit solves visibility issues through intelligent illumination and clear circuit diagnostics:

  • Bicoloured LED Status Indicators: Integrated LEDs illuminate the circuit labels to provide instant visual feedback. Circuits glow green when ON, red when OFF, and display no colour if a fuse is blown. If no indicators illuminate across the board, it provides an immediate diagnostic cue that the panel is not receiving primary power.
  • Independent Label Backlighting: Features a dedicated backlighting circuit that supports remote switching and dimming. This allows skippers to adjust dashboard illumination to preserve night vision during evening navigation without affecting the primary circuit status indicators.
  • Flexible Installation: Engineered with four distinct mounting orientations, allowing marine electricians and boat builders to fit the panel vertically or horizontally to suit tight dash layouts and custom console configurations.
  • Accessible Fuse Management: Utilises widely available ATO/ATC fuses alongside heavy-duty waterproof toggle switches, making replacements straightforward while out on the water.

Ideal Applications

Designed specifically for 12V DC electrical systems, this compact four-circuit distribution panel is well suited for:

  • Flybridge consoles and open-cockpit center consoles
  • Rigid inflatable boats (RIBs), tinnies, and commercial workboats
  • Exposed off-road camper trailers or utility vehicles requiring weatherproof external switching
  • Controlling navigation lights, bilge pumps, baitwell pumps, and marine electronics

Upgrade Your Helm Station Today

Ensure dependable power distribution and clear circuit monitoring in exposed marine locations. Integrate the Blue Sea BS-4304B 4-circuit waterproof fuse panel into your vessel's 12V electrical system for clean, weather-resistant control.


SKU: BS-4304B

SPECIFICATIONS

SpecificationValue
System voltage12VDC
Number of circuits4
Integrated fuse protectionATO/ATC fuse-based circuit protection
Front protection ratingIP67 when properly mounted with a watertight mounting gasket
Intended applicationsFlybridge and open cockpit applications
Mounting orientationsFour
Label backlightingIndependent circuit for remote switching and dimming
Circuit status indicatorsBicolored LEDs indicate OFF (red), ON (green), or blown (no color)

SKU: BS-4304B
Model #: BS-4304B
MPN: BS-4304B
Package weight: 0.42 kg
Package length: 0.18 m
Package width: 0.16 m
Package height: 0.1 m
