Blue Sea 12V 25A DeckHand Dimmer

0-100% Digital Control with Memory, Exit Delay & Momentary Switch


Regular price $166.80
/
Availability: Special Order
View all products from Blue Sea
Guaranteed Safe and Secure Checkout
Apple Pay Google Pay Mastercard PayPalShop Pay Visa
0

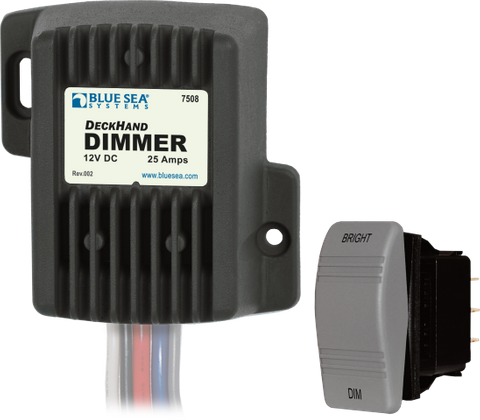

12V 25A digital dimmer module with integrated heat sink and separate grey momentary rocker switch

Blue Sea 12V 25A DeckHand Dimmer

DESCRIPTION

Precision Digital Lighting Control for 12V Marine and Off-Grid Systems

Managing cabin, deck, and canopy lighting requires a control solution that balances power handling with smooth operation. The Blue Sea Systems 7508B DeckHand Dimmer provides seamless digital control for your 12V lighting circuits, accommodating loads up to a substantial 25A capacity. Designed for demanding marine, caravan, and automotive environments, this module delivers continuous voltage regulation from 0% to 100% of the input voltage. Whether you need full illumination for deck work or low-level lighting to preserve night vision at the helm, the DeckHand Dimmer ensures smooth transitions without the harsh steps found in basic rotary controllers.

Engineered for High-Current Thermal Efficiency and Longevity

Inferior dimming switches often suffer from severe heat build-up, audible buzzing, and premature failure when subjected to heavy loads. The DeckHand Dimmer overcomes these common issues through intelligent digital regulation and a heavy-duty construction. Featuring a finned housing that acts as an integrated heat sink, the unit provides efficient thermal dissipation during sustained high-current operation. By actively managing voltage output, it also helps reduce overall battery draw and extends the operational lifespan of your light fittings.

Key Features and Benefits

  • Continuous 0-100% Voltage Control: Digitally adjusts lighting intensity across the entire voltage range for smooth, flicker-free dimming.
  • Versatile Lighting Compatibility: Engineered to control non-regulated LED, incandescent, and halogen light arrays up to 25A.
  • Last-Setting Memory: Automatically retains your preferred brightness level when powered down, eliminating the need to readjust your lights every time you switch them on.
  • Illuminated Exit Delay: Features an adjustable time delay that keeps lights active momentarily after shutting down the circuit, providing safe passage out of dark cabins, boats, or campers.
  • Space-Saving Installation: Built with offset mounting tabs that allow multiple dimmer modules to be installed closely together on crowded electrical panels.
  • Complete Retail Package: Supplied with a dedicated momentary (ON)-OFF-(ON) rocker switch and pre-wired, colour-coded leads for straightforward integration into your 12V DC setup.

Important Compatibility and Installation Considerations

To ensure optimal performance and avoid circuit incompatibilities, please note that this unit is specifically designed for non-regulated 12V LEDs, alongside standard halogen and incandescent bulbs. It is not suitable for constant-current or internally voltage-regulated LED fixtures, as their internal drivers will resist voltage-based dimming. The included momentary rocker switch allows intuitive manual control over bright and dim settings, while the offset tabs make multi-zone lighting management neat and accessible behind the dash or in a dedicated electrical locker.

Upgrade Your 12V Lighting Setup

Enhance the comfort, safety, and energy efficiency of your vessel, caravan, or 4WD canopy. Integrate the Blue Sea 12V 25A DeckHand Dimmer into your electrical system today for dependable, professional-grade illumination control.


SKU: BS-7508B

SPECIFICATIONS

SpecificationDetails
Product typeDimmer
Voltage12V
Rated current25A
Lighting compatibilityNon-regulated LED, incandescent and halogen lights
Dimming controlDigitally controls dimming; provides continuous voltage control from 0 to 100% of input voltage
Illuminated exitAdjustable time delay
MemoryMemory for last setting
MountingOffset mounting tabs allow dimmers to be mounted close together
Included with retail packageMomentary (ON)-OFF-(ON) switch

SKU: BS-7508B
Model #: BS-7508B
MPN: BS-7508B
Package weight: 0.24 kg
Package length: 0.15 m
Package width: 0.11 m
Package height: 0.08 m

WARRANTY

Blue Sea Warranty Policy

Blue Sea Systems products sold by us are supplied with a warranty against defects for the warranty period shown below, subject to the product type, application and the terms of this warranty policy.

The express warranty provided by us is limited to a maximum of 5 years from the original date of purchase, unless otherwise required under Australian Consumer Law.

Blue Sea Systems may offer longer manufacturer support on some products at their discretion

Warranty Lengths by Product Range

Blue Sea Product Range Warranty Length Application / Notes
Most Blue Sea Systems Products 5 years Applies to most Blue Sea Systems products found to be defective in materials or manufacture.
P12 Battery Chargers 5 years Warranty period starts from the original date of purchase.
P12 Remote Displays 5 years Warranty period starts from the original date of purchase.
Digital Meters 3 years Warranty period starts from the original date of purchase.
Vessel System Monitors 3 years Warranty period starts from the original date of purchase.

Warranty Assessment and Remedy

If a Blue Sea Systems product is found to be defective in materials or manufacture within the applicable warranty period, we will, at our discretion, arrange a repair, replacement, store credit or refund, depending on the nature of the fault and the requirements of Australian Consumer Law.

Products may need to be returned for assessment before a warranty claim can be approved. Where required, the product must be returned with dated proof of purchase and a clear description of the fault.

Labour costs for removing, replacing, reinstalling or diagnosing a product are not covered by this express warranty unless otherwise required under Australian Consumer Law.

Making a Warranty Claim

To make a warranty claim, please contact us with your dated proof of purchase, product details and a description of the fault.

The product may need to be returned for inspection before the claim can be assessed. If the product is confirmed to be faulty and covered by this warranty, we will advise the available remedy.

What This Warranty Does Not Cover

This warranty does not cover faults or damage caused by incorrect installation, incorrect application, misuse, abuse, neglect, unauthorised modification, accidental damage, normal wear and tear, environmental damage, or failure to use the product in accordance with the manufacturer's instructions.

  • Incorrect installation or wiring
  • Incorrect product selection or application
  • Misuse, abuse or neglect
  • Physical or accidental damage
  • Water ingress or environmental damage outside the product's intended use
  • Unauthorised modification or repair
  • Normal wear and tear
  • Labour costs for removal, replacement, reinstallation or diagnosis
  • Freight, travel or call-out costs unless otherwise required by law
  • Products not returned for assessment when reasonably required

Manufacturer Support

Blue Sea Systems may provide additional manufacturer support on some products beyond the warranty period listed above. Where available, we may assist customers in contacting the manufacturer, but any manufacturer support beyond the express warranty period is subject to the manufacturer's own terms and continued availability.

Australian Consumer Law

This warranty is in addition to other rights and remedies available at law. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
