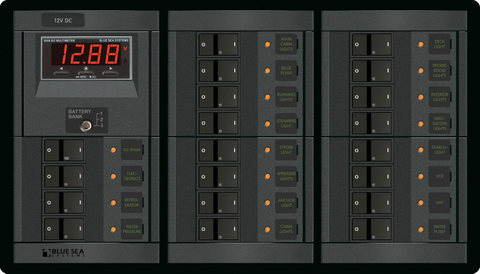

Blue Sea 12V 15A Per-Circuit Panel 360 Main + 19-Position Circuit Breaker Distribution Panel
Blue Sea 12V 15A Per-Circuit Panel 360 Main + 19-Position Circuit Breaker Distribution Panel
Digital Multimeter, 3-Bank Selector, LED Indicators & Backlit Labels
Regular price
$2,616.21
Availability:
Special Order
View all products from Blue Sea
Guaranteed Safe and Secure Checkout
0
DESCRIPTION
Centralised 12V DC Circuit Protection and System Monitoring
Managing complex electrical systems in marine vessels, off-grid caravans, and specialty vehicles requires dependable power distribution. This Panel 360 configuration consolidates a dedicated DC main breaker with 19 individual branch circuits into a single, structured assembly. Engineered specifically for 12V DC architectures, it eliminates the clutter of multiple independent fuse blocks and provides a streamlined hub for controlling and protecting vital onboard electronics.
Integrated Digital Multimeter and Multi-Bank Monitoring
Beyond circuit protection, this distribution panel incorporates a high-visibility digital multimeter alongside an integrated battery bank selector switch. This combination allows operators to monitor DC voltage and current across up to three separate battery banks from a single interface. Active tracking of power consumption and battery health helps reduce the risk of unexpected voltage drops, deep discharges, and premature battery degradation during extended off-grid travel or coastal passages.
Key Features and Benefits
- Master System Control: Features an integrated DC main breaker for secure, system-wide power isolation during maintenance or emergencies.
- Pre-Installed Circuit Protection: Equipped with 19 individual 15A toggle circuit breakers, providing both switching functionality and reliable overcurrent protection.
- Digital Metering Interface: High-visibility digital display tracks system voltage and amperage, paired with a selector switch to monitor up to three battery banks.
- Immediate Visual Diagnostics: Individual red LED status indicators confirm active circuits at a glance, simplifying troubleshooting in low-light conditions.
- Backlit Circuit Identification: Supplied with a 4205 Square Format Label Set and backlit label positions for clear visibility during night operations.
- Modular 360 Panel Architecture: Designed for clean integration into marine dashboards, RV control centres, and custom electrical enclosures.
Engineered to Reduce Electrical Risks
Substandard distribution blocks often suffer from loose terminations, inadequate circuit labelling, and poor visibility, which can lead to thermal build-up or accidental switching errors. By utilising marine-grade circuit breakers with positive toggle action and clear LED indicators, this panel significantly reduces the risk of electrical faults. The included 4205 Square Format Label Set allows installers to clearly mark every branch circuit, from bilge pumps and navigation lights to cabin refrigeration and communication gear. Please note that while the label set and pre-installed breakers are included, additional mounting hardware or external shunts are not specified in the supplied kit details.
Ideal Applications
This 19-position distribution panel is built for demanding 12V DC installations where circuit density and real-time system oversight are critical:
- Cruising yachts, powerboats, and commercial marine vessels
- Expedition vehicles, 4WD canopies, and off-grid motorhomes
- Mobile command units and emergency service vehicles
- Custom tiny homes and remote 12V off-grid cabin setups
Upgrade Your 12V Power Distribution
Bring professional-grade organisation, circuit protection, and multi-bank metering to your vessel or vehicle electrical system. Configure your installation with the Blue Sea Panel 360 today for reliable 12V DC management.
SKU: BS-1221B
SPECIFICATIONS
| Specification | Value |
|---|---|
| Product type | Circuit breaker distribution panel |
| Supported system voltage | 12VDC |
| Panel configuration | Main + 19 positions |
| Number of positions | 19 |
| Installed circuit breakers | 15A per circuit |
| Available configurations | Voltmeters, ammeters, and digital multimeters |
| Included | 4205 Square Format Label Set |
| SKU: | BS-1221B |
| Model #: | BS-1221B |
| MPN: | BS-1221B |
| HS code: | 8536200040 |
| Country of origin: | MX |
| Package weight: | 3.0 kg |
| Package length: | 0.44 m |
| Package width: | 0.3 m |
| Package height: | 0.12 m |
WARRANTY
Blue Sea Warranty Policy
Blue Sea Systems products sold by us are supplied with a warranty against defects for the warranty period shown below, subject to the product type, application and the terms of this warranty policy.
The express warranty provided by us is limited to a maximum of 5 years from the original date of purchase, unless otherwise required under Australian Consumer Law.
Blue Sea Systems may offer longer manufacturer support on some products at their discretion
Warranty Lengths by Product Range
| Blue Sea Product Range | Warranty Length | Application / Notes |
|---|---|---|
| Most Blue Sea Systems Products | 5 years | Applies to most Blue Sea Systems products found to be defective in materials or manufacture. |
| P12 Battery Chargers | 5 years | Warranty period starts from the original date of purchase. |
| P12 Remote Displays | 5 years | Warranty period starts from the original date of purchase. |
| Digital Meters | 3 years | Warranty period starts from the original date of purchase. |
| Vessel System Monitors | 3 years | Warranty period starts from the original date of purchase. |
Warranty Assessment and Remedy
If a Blue Sea Systems product is found to be defective in materials or manufacture within the applicable warranty period, we will, at our discretion, arrange a repair, replacement, store credit or refund, depending on the nature of the fault and the requirements of Australian Consumer Law.
Products may need to be returned for assessment before a warranty claim can be approved. Where required, the product must be returned with dated proof of purchase and a clear description of the fault.
Labour costs for removing, replacing, reinstalling or diagnosing a product are not covered by this express warranty unless otherwise required under Australian Consumer Law.
Making a Warranty Claim
To make a warranty claim, please contact us with your dated proof of purchase, product details and a description of the fault.
The product may need to be returned for inspection before the claim can be assessed. If the product is confirmed to be faulty and covered by this warranty, we will advise the available remedy.
What This Warranty Does Not Cover
This warranty does not cover faults or damage caused by incorrect installation, incorrect application, misuse, abuse, neglect, unauthorised modification, accidental damage, normal wear and tear, environmental damage, or failure to use the product in accordance with the manufacturer's instructions.
- Incorrect installation or wiring
- Incorrect product selection or application
- Misuse, abuse or neglect
- Physical or accidental damage
- Water ingress or environmental damage outside the product's intended use
- Unauthorised modification or repair
- Normal wear and tear
- Labour costs for removal, replacement, reinstallation or diagnosis
- Freight, travel or call-out costs unless otherwise required by law
- Products not returned for assessment when reasonably required
Manufacturer Support
Blue Sea Systems may provide additional manufacturer support on some products beyond the warranty period listed above. Where available, we may assist customers in contacting the manufacturer, but any manufacturer support beyond the express warranty period is subject to the manufacturer's own terms and continued availability.
Australian Consumer Law
This warranty is in addition to other rights and remedies available at law. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
