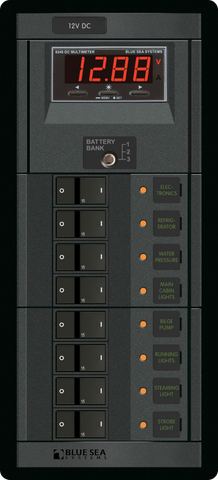

Blue Sea 12V 15A Per Circuit Panel 360 8-Position Circuit Breaker Distribution Panel
Blue Sea 12V 15A Per Circuit Panel 360 8-Position Circuit Breaker Distribution Panel
Includes DC Digital Multimeter, Backlit Labels & A-Series Breakers
Regular price
$1,360.10
Availability:
Special Order
View all products from Blue Sea
Guaranteed Safe and Secure Checkout
0
DESCRIPTION
Integrated 12V DC Branch-Circuit Distribution and System Monitoring
Managing multiple electrical loads in a marine vessel, caravan, or off-grid vehicle requires a reliable, centralised distribution point. The Blue Sea Systems 360 Panel (BS-1227B) combines eight 12V DC branch circuits with an integrated DC digital multimeter, delivering both circuit protection and real-time system monitoring in a single, streamlined assembly.
Unlike standard fuse blocks that require separate switches, indicator lights, and external battery monitors, this distribution panel consolidates your electrical architecture. Each of the eight positions comes pre-populated with a 15A A-Series flat rocker circuit breaker, functioning as both a heavy-duty power switch and an overcurrent protection device. This integrated approach reduces wiring complexity, minimises voltage drop across unnecessary connections, and significantly lowers the risk of electrical faults caused by disorganized cabling.
Key Features and System Benefits
- Pre-Installed 15A A-Series Breakers: Eight flat-rocker magnetic hydraulic circuit breakers provide dependable branch-circuit protection and manual switching, eliminating the need to carry spare fuses.
- Integrated DC Digital Multimeter: Offers accurate, real-time monitoring of system voltage and amperage, allowing you to track power consumption and prevent accidental battery over-discharge.
- Multi-Bank Battery Selector: Features a dedicated toggle switch below the multimeter to easily check the voltage status across up to three separate battery banks.
- Backlit Circuit Identification: Includes a square-format label set with integrated backlighting, ensuring clear visibility and safe operation in dark cabins or night-time driving conditions.
- Active Circuit LED Indicators: Individual orange LED status lights next to each rocker switch provide immediate visual confirmation of active loads.
- Modular 360 Panel Architecture: Built on the versatile Blue Sea 360 platform, ensuring seamless aesthetic and dimensional compatibility with other 360 Series modules as your power system expands.
Engineered for Harsh Marine and Mobile Environments
Electrical systems in boats, 4WDs, and RVs are constantly subjected to vibration, moisture, and fluctuating temperatures. Inferior switch panels often suffer from premature contact corrosion, accidental switching, or thermal tripping. The BS-1227B utilizes flush-mounted A-Series flat rocker breakers, which are specifically designed to prevent accidental actuation in tight quarters or rough seas.
By bringing branch-circuit protection and multi-bank battery monitoring together at the main distribution point, installers can achieve a clean, professional finish that simplifies fault finding and routine operation. Whether you are wiring navigation electronics, cabin lighting, bilge pumps, or auxiliary 12V appliances, this panel provides the structural integrity and electrical reliability needed for demanding Australian conditions.
Ideal Applications
- Marine Vessels: Centralised helm or cabin power distribution for yachts, cruisers, and commercial boats.
- Caravans and Motorhomes: Managing 12V house loads such as water pumps, lighting, fans, and diesel heaters while keeping an eye on house and starter batteries.
- Off-Grid 4WD Canopies: Compact, rugged power control for dual-battery setups and touring accessories.
Upgrade your 12V electrical installation with the organised protection and monitoring of the Blue Sea 360 8-Position Distribution Panel for your next marine or mobile build.
SKU: BS-1227B
SPECIFICATIONS
| Specification | Value |
|---|---|
| Product type | Circuit breaker distribution panel |
| Supported system voltage | 12VDC |
| Number of positions | 8 |
| Installed circuit breakers | 15A per circuit |
| Branch circuits | Description states 4 to 32 branch circuits |
| Available configurations | Voltmeters, ammeters and digital multimeters |
| Included | Square-format label set |
| SKU: | BS-1227B |
| Model #: | BS-1227B |
| MPN: | BS-1227B |
| Package weight: | 1.62 kg |
| Package length: | 0.27 m |
| Package width: | 0.22 m |
| Package height: | 0.12 m |
