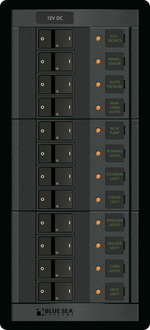

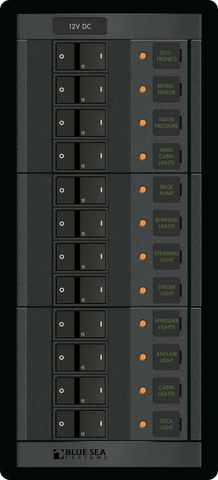

Blue Sea 12V 15A Per Circuit Panel 360 12-Position Circuit Breaker Distribution Panel
Blue Sea 12V 15A Per Circuit Panel 360 12-Position Circuit Breaker Distribution Panel
Backlit Labels, Amber LED Indicators & Modular Open-Frame Design
Regular price
$1,139.77
Availability:
Special Order
View all products from Blue Sea
Guaranteed Safe and Secure Checkout
0
DESCRIPTION
Centralised 12V DC Branch-Circuit Distribution and Protection
Managing multiple electrical loads in a marine, caravan, or off-grid system requires an organised and dependable approach to circuit protection. The Blue Sea Systems 360 Panel provides a streamlined platform for 12V DC distribution, bringing 12 individual branch circuits together into a single, cohesive unit. Pre-configured with 12 rocker-style 15A circuit breakers, this panel simplifies complex wiring looms while providing vital overcurrent protection for your essential onboard electronics, lighting, and auxiliary equipment.
Intuitive Operation for Low-Light Environments
Operating a vessel at night or managing a dark camper canopy demands clear visual feedback from your electrical system. Each of the 12 positions on this 12V distribution panel is equipped with an individual amber LED status indicator, offering immediate confirmation when a circuit is active. Furthermore, the panel incorporates backlit label positions and comes supplied with the Blue Sea 4205 Square Format Label Set. This combination allows you to clearly customise and identify every branch circuit, reducing the risk of switching the wrong appliance in low-light conditions.
Key Features and Benefits
- Integrated Protection and Switching: Combines circuit switching and 15A overcurrent protection into single rocker-style breakers, eliminating the need for separate fuse blocks and switch panels.
- Clear Visual Diagnostics: Individual amber LEDs illuminate when circuits are energised, helping you monitor active loads and manage battery consumption.
- Low-Light Readability: Features backlit label zones and includes the 4205 Square Format Label Set for tailored circuit identification.
- Modular 360 Panel Architecture: Built on an open-frame construction that supports versatile mounting and provides unobstructed access to rear wiring during installation and maintenance.
- Resettable Reliability: Eliminates the need to carry and replace blown fuses in the field; simply reset the breaker once a fault is cleared.
Engineered for Demanding Installations
Inferior switch panels often suffer from fragile housings, awkward rear access, and separate fuse holders that double the number of termination points. Every additional connection in a 12V electrical system introduces a potential point of failure or voltage drop. By integrating the switch and circuit breaker into a single mechanism, the 360 Panel series reduces wiring complexity and minimises failure risks.
The open-frame modular design makes routing heavy-duty supply cables and branch wiring straightforward, saving significant time during custom fit-outs. Please note that while the broader 360 Panel family supports optional voltmeters, ammeters, and digital multimeters in other configurations, those monitoring instruments are not included with this specific 12-position breaker panel.
Ideal Applications
This 12-position circuit breaker panel is engineered for custom and retrofit installations requiring high-density DC circuit management:
- Marine consoles, yachts, and commercial vessels requiring organised helm or cabin power distribution
- Caravans, motorhomes, and expedition vehicles with extensive 12V lighting, pump, and accessory loads
- 4WD canopy setups and mobile service bodies needing reliable, resettable circuit protection
- Off-grid cabins and Tiny Homes operating dedicated 12V DC sub-circuits
Upgrade Your 12V Power Management
Bring professional-grade organisation and dependable circuit protection to your next electrical fit-out. Order the Blue Sea 12-Position 360 Distribution Panel today to streamline your 12V DC branch wiring.
SKU: BS-1223B
SPECIFICATIONS
| Specification | Details |
|---|---|
| Product type | Distribution panel |
| System voltage | 12VDC |
| Number of positions | 12 |
| Maximum current per circuit | 15A |
| Branch circuits | Source describes a range of 4 to 32 branch circuits |
| Meter options | Voltmeters, ammeters, and digital multimeters are available |
| Included item | 4205 Square Format Label Set |
| SKU: | BS-1223B |
| Model #: | BS-1223B |
| MPN: | BS-1223B |
| Package weight: | 1.68 kg |
| Package length: | 0.36 m |
| Package width: | 0.24 m |
| Package height: | 0.15 m |
