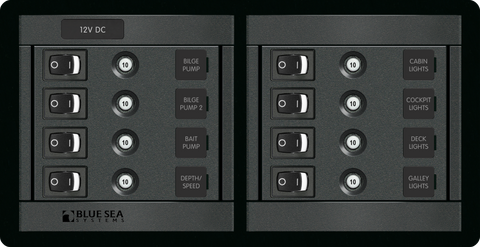

Blue Sea 12V 10A Panel 360 Distribution Panel, 8-Position CLB, Horizontal
Blue Sea 12V 10A Panel 360 Distribution Panel, 8-Position CLB, Horizontal
Illuminated Rocker Switches, Push-Button Breakers & Backlit Labels
Regular price
$473.62
Availability:
Special Order
View all products from Blue Sea
Guaranteed Safe and Secure Checkout
0
DESCRIPTION
Centralised 12V DC Power Management and Circuit Protection
Organising complex 12V electrical systems in marine vessels, caravans, and off-grid setups requires reliable components that simplify wiring and improve safety. The Blue Sea Systems 360 Series 8-Position Distribution Panel provides a dedicated, professional interface for controlling and protecting up to eight individual DC circuits in a streamlined horizontal layout.
Standard automotive switch panels often suffer from exposed wiring, poor labelling, and fragile fuse holders that degrade in harsh environments. This 12V distribution panel addresses these common failure points by integrating switching and circuit protection into a single, cohesive unit. Rather than fumbling for spare fuses in the dark when a fault occurs, this panel utilises push-to-reset thermal circuit breakers, allowing for immediate power restoration once the electrical issue is resolved.
Key Features and Benefits
- Integrated CLB Thermal Breakers: Features eight 10A push-button reset-only circuit breakers that provide reliable over-current protection and eliminate the need to carry replacement blade fuses.
- Illuminated Rocker Switches: Eight dedicated ON-OFF rocker switches offer tactile control and clear visual confirmation of active circuits.
- Backlit Circuit Identification: Equipped with backlit label positions and supplied with a 4205-Square Format Label Set, ensuring effortless readability in low-light cabins, helms, or camper interiors.
- Modular 360 Panel System: Designed to integrate seamlessly with other Blue Sea 360 Series modules, allowing for custom electrical panel configurations that suit your exact space and system requirements.
- Space-Saving Horizontal Orientation: The horizontal layout is ideal for mounting above windscreens, along slim bulkhead spaces, or within compact caravan control cabinetry.
Engineered for Harsh Marine and Off-Grid Environments
Electrical systems in boats, 4WDs, and RVs are constantly subjected to vibration, moisture, and temperature fluctuations. This marine switch panel is engineered to reduce the risk of electrical shorts, loose connections, and corrosion. By consolidating eight circuits into one structured frame, it drastically reduces behind-dash cable clutter and makes fault-finding significantly faster.
The inclusion of backlit square format labels means you can clearly mark essential loads such as bilge pumps, navigation lights, water pumps, and cabin lighting. The integrated 12V DC system identifier further ensures clarity for anyone operating the onboard electrical system.
Versatile Applications and System Expandability
As part of the renowned 360 Panel System, this unit offers exceptional flexibility for both new builds and retrofits. While this specific module provides eight switched 10A positions, the broader 360 Series range includes options equipped with voltmeters and ammeters, where a built-in toggle switch allows for convenient voltage monitoring across up to three battery banks. This makes the 360 platform an exceptional choice for scaling your power management setup over time.
Ideal applications include:
- Marine helm stations and cabin power distribution
- Caravan, camper trailer, and motorhome 12V control centres
- Service body canopies and 4WD dual-battery setups
- Off-grid tiny homes and remote telemetry enclosures
Upgrade Your 12V Control System
Ensure your auxiliary electronics are properly organised and protected against overloads. Add the Blue Sea 8-Position Horizontal Distribution Panel to your build for a clean, dependable, and marine-grade 12V wiring installation.
SKU: BS-1456B
SPECIFICATIONS
| Specification | Value |
|---|---|
| Product type | Distribution panel |
| Supported system voltage | 12V |
| Maximum current | 10A |
| Number of positions | 8 |
| Configuration | CLB, horizontal |
| Meter availability | Available with voltmeters and ammeters |
| Feature on panels with meters | Toggle switch to monitor voltage on up to three battery banks |
| Included | 4205-Square Format Label Set |
| SKU: | BS-1456B |
| Model #: | BS-1456B |
| MPN: | BS-1456B |
| HS code: | 8537109170 |
| Country of origin: | MX |
| Package weight: | 0.96 kg |
| Package length: | 0.29 m |
| Package width: | 0.2 m |
| Package height: | 0.1 m |
WARRANTY
Blue Sea Warranty Policy
Blue Sea Systems products sold by us are supplied with a warranty against defects for the warranty period shown below, subject to the product type, application and the terms of this warranty policy.
The express warranty provided by us is limited to a maximum of 5 years from the original date of purchase, unless otherwise required under Australian Consumer Law.
Blue Sea Systems may offer longer manufacturer support on some products at their discretion
Warranty Lengths by Product Range
| Blue Sea Product Range | Warranty Length | Application / Notes |
|---|---|---|
| Most Blue Sea Systems Products | 5 years | Applies to most Blue Sea Systems products found to be defective in materials or manufacture. |
| P12 Battery Chargers | 5 years | Warranty period starts from the original date of purchase. |
| P12 Remote Displays | 5 years | Warranty period starts from the original date of purchase. |
| Digital Meters | 3 years | Warranty period starts from the original date of purchase. |
| Vessel System Monitors | 3 years | Warranty period starts from the original date of purchase. |
Warranty Assessment and Remedy
If a Blue Sea Systems product is found to be defective in materials or manufacture within the applicable warranty period, we will, at our discretion, arrange a repair, replacement, store credit or refund, depending on the nature of the fault and the requirements of Australian Consumer Law.
Products may need to be returned for assessment before a warranty claim can be approved. Where required, the product must be returned with dated proof of purchase and a clear description of the fault.
Labour costs for removing, replacing, reinstalling or diagnosing a product are not covered by this express warranty unless otherwise required under Australian Consumer Law.
Making a Warranty Claim
To make a warranty claim, please contact us with your dated proof of purchase, product details and a description of the fault.
The product may need to be returned for inspection before the claim can be assessed. If the product is confirmed to be faulty and covered by this warranty, we will advise the available remedy.
What This Warranty Does Not Cover
This warranty does not cover faults or damage caused by incorrect installation, incorrect application, misuse, abuse, neglect, unauthorised modification, accidental damage, normal wear and tear, environmental damage, or failure to use the product in accordance with the manufacturer's instructions.
- Incorrect installation or wiring
- Incorrect product selection or application
- Misuse, abuse or neglect
- Physical or accidental damage
- Water ingress or environmental damage outside the product's intended use
- Unauthorised modification or repair
- Normal wear and tear
- Labour costs for removal, replacement, reinstallation or diagnosis
- Freight, travel or call-out costs unless otherwise required by law
- Products not returned for assessment when reasonably required
Manufacturer Support
Blue Sea Systems may provide additional manufacturer support on some products beyond the warranty period listed above. Where available, we may assist customers in contacting the manufacturer, but any manufacturer support beyond the express warranty period is subject to the manufacturer's own terms and continued availability.
Australian Consumer Law
This warranty is in addition to other rights and remedies available at law. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
