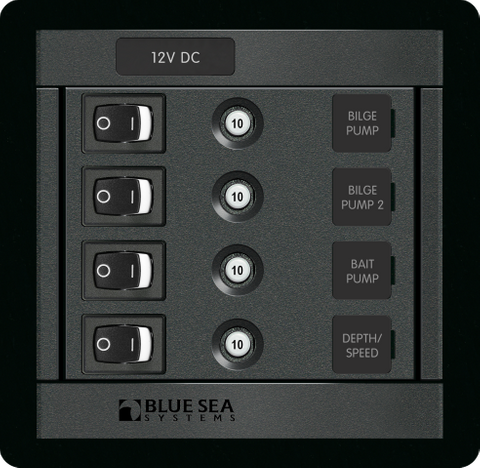

Blue Sea 12V 10A Panel 360 4-Position Square Switch Panel
Blue Sea 12V 10A Panel 360 4-Position Square Switch Panel
Integrated ON/OFF Rocker Switches & Push-To-Reset CLB Circuit Breakers
Regular price
$220.34
Availability:
Special Order
View all products from Blue Sea
Guaranteed Safe and Secure Checkout
0
DESCRIPTION
Integrated 12V DC Circuit Protection and Switching for Modular Electrical Systems
Compact, Professional Control for Marine, Caravan, and Off-Grid Installations
Managing auxiliary loads in mobile, recreational, and marine environments requires dependable circuit control and overcurrent protection that fits into tight console spaces. The Blue Sea Systems 12V 10A Panel 360 4-Position Square Switch Panel bridges the gap between basic unlabelled toggle arrays and complex distribution boards. By integrating four distinct ON/OFF rocker switches with dedicated push-to-reset CLB circuit breakers, this modular panel simplifies wiring architectures while maintaining a clean, factory-grade aesthetic on your dashboard or electrical bulkhead.
Designed as part of the scalable Panel 360 system, its uniform square footprint allows system builders to create custom, expandable control centres. Whether outfitting a boat helm, a 4WD canopy, or a caravan power wall, this unit consolidates circuit switching and safety into one streamlined assembly, reducing installation time and behind-the-dash cable clutter.
Key Features and Technical Highlights
- Integrated CLB Circuit Breakers: Features four individual 10A push-to-reset thermal circuit breakers, eliminating the need to carry spare fuses or wire separate fuse blocks for connected loads.
- Tactile Rocker Switches: Four dedicated ON/OFF rocker switches provide positive, direct control over 12V DC branch circuits.
- Modular Panel 360 Architecture: The square-format bezel provides a neat, concealed mounting finish and aligns seamlessly with other Panel 360 modules, such as voltmeters and ammeters.
- Customisable Circuit Identification: Supplied with the 4205-Square Format Label Set, allowing installers to clearly designate lighting, pumps, electronics, and accessories.
- Clear System Designation: Includes a prominent 12V DC header label for immediate voltage identification during operation and maintenance.
Why Upgrade to an Integrated Breaker and Switch Panel?
Standard automotive or marine switch panels often rely on inline glass or blade fuses hidden behind the dash, or lack overcurrent protection altogether. When a fault or overload occurs in a dimly lit cabin or on rough water, diagnosing and replacing a blown fuse can be frustrating and hazardous. Furthermore, poorly constructed panels often suffer from loose terminals, faded labels, and premature switch failure due to vibration and moisture exposure.
This Blue Sea Systems panel reduces operational risk by placing both the switch and the 10A CLB circuit breaker directly on the front faceplate. If a connected appliance draws excessive current, the thermal breaker trips to protect your wiring harness from overheating. Once the fault is cleared, power is restored with a simple push of a button. The robust Panel 360 bezel encapsulates the mounting hardware, delivering a snag-free, professional finish that holds up to the rigours of corrugated tracks and marine swells.
System Planning and Configuration Notes
While the broader Panel 360 family supports integrated voltmeter and ammeter modules, please note that meter displays are not included in this specific four-position switch configuration. If your electrical layout requires real-time voltage or current monitoring alongside your switches, this unit can be paired side-by-side with compatible Panel 360 meter modules to build a comprehensive monitoring and distribution hub.
Ideal Applications
- Marine Vessels: Controlling navigation lights, bilge pumps, bait tank aerators, and cabin lighting on runabouts, yachts, and cruisers.
- Caravans and Camper Trailers: Managing 12V water pumps, internal LED lighting zones, diesel heater controls, and exhaust fans.
- 4WD Dual Battery Canopies: Switching work lights, air compressors (via relay trigger), USB charging hubs, and auxiliary canopy accessories.
- Off-Grid Cabins and Service Vehicles: Organising low-voltage DC branch circuits in compact utility enclosures.
Upgrade Your 12V Control Layout
Streamline your next electrical build with reliable circuit protection and clean modular styling. Add the Blue Sea 12V 10A Panel 360 4-Position Switch Panel to your system configuration today for organised, dependable DC power management.
SKU: BS-1455B
SPECIFICATIONS
| Specification | Details |
|---|---|
| Product type | Switch panel |
| Designation | Panel 360; CLB |
| Title rating | 12V-10A |
| Positions | 4 |
| Format | Square |
| Function | Circuit protection and switching |
| Included | 4205-Square Format Label Set |
| Available configurations | With voltmeters and ammeters |
| SKU: | BS-1455B |
| Model #: | Panel 360 |
| MPN: | Panel 360 |
| HS code: | 8537109170 |
| Country of origin: | MX |
| Package weight: | 0.42 kg |
| Package length: | 0.17 m |
| Package width: | 0.17 m |
| Package height: | 0.1 m |
