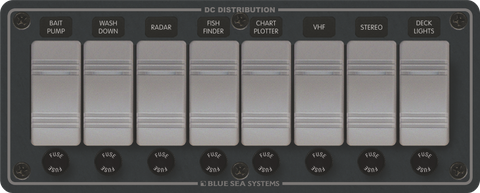

Blue Sea 12/24VDC 8 Position Fused Switch Panel in Slate Grey
Blue Sea 12/24VDC 8 Position Fused Switch Panel in Slate Grey
Weather-Resistant Contura Switches with LEDs & Front-Access Fuses
Regular price
$452.00
Availability:
Special Order
View all products from Blue Sea
Guaranteed Safe and Secure Checkout
0
DESCRIPTION
Heavy-Duty Above-Deck Marine DC Power Control and Circuit Protection
Engineered for Harsh Saltwater, Rain, and Washdown Environments
Managing multiple electrical circuits on open vessels requires switch gear capable of withstanding relentless environmental exposure. The Blue Sea Systems 8 Position Fused Switch Panel delivers centralised manual control and circuit protection for 12V and 24V DC electrical systems. Finished in low-glare slate grey, this panel is purpose-built for above-deck marine applications, open-cockpit boats, and exposed off-road vehicles where moisture ingress and corrosion rapidly degrade standard electrical components.
Unlike basic switch panels that suffer from corroded contacts and short circuits when exposed to moisture, this unit is engineered to handle the realities of life on the water. It reliably resists salt spray, driving rain, direct hose washdowns, and even momentary immersions. Whether you are wiring navigation lights, bilge pumps, bait tank aerators, or radar systems, this panel ensures your critical electronics remain operational when conditions deteriorate.
Tactile Contura Switches with Integrated Status Indication
At the core of the panel are eight heavy-duty ON-OFF Contura rocker switches. Renowned in the marine industry for their durability and positive tactile feedback, these switches allow for confident operation even in rough seas or while wearing gloves. Each switch features an embedded LED indicator that illuminates clearly when the circuit is active. This immediate visual confirmation helps prevent accidental battery drain from forgotten loads like deck lights or auxiliary pumps, while enhancing night-time visibility at the helm without causing excessive glare.
Front-Access Fuse Holders for Streamlined Maintenance
Troubleshooting a blown fuse at sea or on a dark trail shouldn't require dismantling your dashboard. This 8-position marine switch panel incorporates individual front-access, screw-out fuse holders directly alongside each corresponding switch. If an overcurrent event occurs, you can quickly identify, access, and replace the affected fuse from the front of the console, restoring power to your equipment in seconds.
- Above-Deck Weather Resistance: Built to endure salt spray, rain, hose washdowns, and momentary immersions without compromising electrical integrity.
- Dual Voltage Compatibility: Seamlessly integrates into both 12V DC and 24V DC marine, RV, and commercial vehicle power systems.
- Embedded ON-Indicating LEDs: Bright, integrated status lights within each rocker switch provide instant confirmation of active circuits.
- Front-Serviceable Circuit Protection: Screw-out fuse holders allow for rapid fuse inspection and replacement without accessing the rear wiring harness.
- Clear Circuit Identification: Dedicated label recesses above each switch keep helm layouts organised for critical electronics like plotters, VHF radios, and pumps.
- Low-Glare Slate Grey Finish: Modern aesthetic complements contemporary helm stations while minimising reflections in bright sunlight.
Versatile Applications Across Marine and Off-Grid Setups
While optimised for center consoles, flybridges, and open workboats, the robust construction of this panel makes it equally valuable for demanding land-based installations. It serves as a reliable power distribution hub for 4WD canopy setups, camper trailers, agricultural machinery, and outdoor industrial control boxes where dust, mud, and high-pressure washdowns are routine.
Upgrade Your Helm's Electrical Reliability
Equip your vessel or vehicle with a switching solution designed to survive the elements. Incorporate the Blue Sea 8 Position Fused Switch Panel into your 12V or 24V DC system for dependable, weather-resistant power control.
SKU: BS-8261B
SPECIFICATIONS
| Specification | Details |
|---|---|
| Product type | Switch panel |
| Switch count | 8 positions |
| Voltage | 12/24VDC |
| Panel type | Fused |
| Finish | Slate grey |
| Switches | ON-OFF Contura switches |
| Indicators | ON indicating LEDs embedded in switches |
| Water exposure | Salt spray, rain, hose washdowns and momentary immersions normally encountered in above-deck applications |
| SKU: | BS-8261B |
| Model #: | BS-8261B |
| MPN: | BS-8261B |
| HS code: | 8537109170 |
| Country of origin: | MX |
| Package weight: | 1.68 kg |
| Package length: | 0.35 m |
| Package width: | 0.2 m |
| Package height: | 0.12 m |
