Blue Sea 12/24VDC 8 Position Circuit Breaker Switch Panel - Black
Blue Sea 12/24VDC 8 Position Circuit Breaker Switch Panel - Black
IP66 Weatherproof Front - Contura LED Switches - Ignition Protected
Regular price
$526.12
Availability:
Special Order
View all products from Blue Sea
Guaranteed Safe and Secure Checkout
0
DESCRIPTION
Weatherproof Marine Electrical Distribution for Open Cockpits and Flybridges

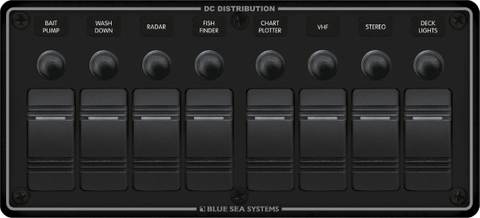

Managing multiple electrical circuits in exposed marine environments requires equipment engineered to withstand constant moisture, salt spray, and vibration. The Blue Sea Systems 8371B 8-Position Circuit Breaker Switch Panel provides a consolidated, weatherproof solution for 12V DC and 24V DC electrical systems. Designed specifically for open cockpit boats, flybridges, and exposed helms, this heavy-duty marine switch panel combines circuit switching and overcurrent protection into a single, streamlined unit.
Standard automotive or interior-grade switch panels quickly succumb to corrosion and water ingress when exposed to the elements, leading to electrical failures and potential safety hazards at sea. This Blue Sea panel mitigates those risks with an IP66-rated front face, offering robust protection against powerful water jets and heavy seas. A dedicated watertight mounting gasket seals the panel directly against the console or bulkhead, preventing water from leaking behind the dash and damaging sensitive marine electronics or wiring harnesses.
Engineered for Harsh Marine Conditions and Safety
Safety is critical on any vessel, particularly those powered by petrol engines where fuel vapours may be present. This 8-gang switch panel is fully ignition protected, meaning it will not ignite surrounding flammable gases under normal operating or fault conditions. This makes it safe for installation aboard petrol-powered boats, ski boats, and tenders.
Each of the eight circuits is controlled by a durable ON-OFF Contura rocker switch. These switches are built to handle extreme temperatures, vibration, and thermal shock. Embedded within each rocker switch is a bright ON-indicating LED, providing immediate visual confirmation of active circuits during night navigation or low-light conditions. Above the switches, customisable labels allow for clear identification of bilge pumps, navigation lights, fishfinders, and other vital accessories.
Integrated Overcurrent Protection
Rather than relying on separate fuse blocks that require carrying spare fuses on board, this panel integrates push-button reset-only circuit breakers directly alongside each switch. If an overload occurs, the breaker trips to protect the wiring and connected appliance, and can be easily reset once the fault is cleared. Each breaker is fitted with a protective silicone waterproof boot to shield the internal mechanism from salt buildup and moisture ingress.
Key Features and Benefits
- IP66 Weatherproof Front: Engineered to withstand powerful water jets, heavy spray, and washdowns in exposed marine locations.
- Watertight Mounting Gasket: Creates a reliable seal against the mounting surface to prevent water intrusion behind the helm.
- Ignition Protected: Certified safe for installation in spaces where petrol fumes may accumulate, ideal for inboard and outboard petrol vessels.
- Heavy-Duty Contura Switches: Eight ON-OFF rocker switches with integrated LED indicators for clear status monitoring in all lighting conditions.
- Push-Button Circuit Breakers: Reset-only thermal breakers encased in waterproof silicone boots eliminate the need for replacement fuses.
- Dual Voltage Compatibility: Seamlessly supports both 12V DC and 24V DC marine and off-grid electrical architectures.
Versatile Applications
While purpose-built for marine environments, the rugged construction of the Blue Sea 8-position panel makes it equally suitable for demanding off-road and industrial applications:
- Centre console fishing boats, walkarounds, and RIBs
- Yacht flybridges and exterior control stations
- Petrol-powered ski boats, wakeboard boats, and runabouts
- 4WD canopy setups, camper trailers, and exposed utility vehicles
Upgrade Your Helm's Electrical Reliability
Protect your vessel's critical electronics from the elements and simplify your dashboard wiring. Integrate the Blue Sea 8-Position Watertight Switch Panel into your 12V DC or 24V DC system for dependable circuit control on the water.
SKU: BS-8371B
SPECIFICATIONS
| Specification | Details |
|---|---|
| Product type | Switch panel |
| Positions | 8 |
| Voltage | 12/24VDC |
| Colour | Black |
| Switches | ON-OFF Contura switches |
| Indicators | ON-indicating LEDs embedded in switches |
| Circuit breakers | Push-button reset-only circuit breakers with waterproof boots |
| Panel front rating | IP66; protected against powerful water jets |
| Ignition protection | Safe for installation aboard gasoline-powered boats |
| Mounting gasket | Watertight |
| Designed applications | Flybridge and open cockpit |
| SKU: | BS-8371B |
| Model #: | BS-8371B |
| MPN: | BS-8371B |
| Package weight: | 1.68 kg |
| Package length: | 0.29 m |
| Package width: | 0.24 m |
| Package height: | 0.12 m |
WARRANTY
Blue Sea Warranty Policy
Blue Sea Systems products sold by us are supplied with a warranty against defects for the warranty period shown below, subject to the product type, application and the terms of this warranty policy.
The express warranty provided by us is limited to a maximum of 5 years from the original date of purchase, unless otherwise required under Australian Consumer Law.
Blue Sea Systems may offer longer manufacturer support on some products at their discretion
Warranty Lengths by Product Range
| Blue Sea Product Range | Warranty Length | Application / Notes |
|---|---|---|
| Most Blue Sea Systems Products | 5 years | Applies to most Blue Sea Systems products found to be defective in materials or manufacture. |
| P12 Battery Chargers | 5 years | Warranty period starts from the original date of purchase. |
| P12 Remote Displays | 5 years | Warranty period starts from the original date of purchase. |
| Digital Meters | 3 years | Warranty period starts from the original date of purchase. |
| Vessel System Monitors | 3 years | Warranty period starts from the original date of purchase. |
Warranty Assessment and Remedy
If a Blue Sea Systems product is found to be defective in materials or manufacture within the applicable warranty period, we will, at our discretion, arrange a repair, replacement, store credit or refund, depending on the nature of the fault and the requirements of Australian Consumer Law.
Products may need to be returned for assessment before a warranty claim can be approved. Where required, the product must be returned with dated proof of purchase and a clear description of the fault.
Labour costs for removing, replacing, reinstalling or diagnosing a product are not covered by this express warranty unless otherwise required under Australian Consumer Law.
Making a Warranty Claim
To make a warranty claim, please contact us with your dated proof of purchase, product details and a description of the fault.
The product may need to be returned for inspection before the claim can be assessed. If the product is confirmed to be faulty and covered by this warranty, we will advise the available remedy.
What This Warranty Does Not Cover
This warranty does not cover faults or damage caused by incorrect installation, incorrect application, misuse, abuse, neglect, unauthorised modification, accidental damage, normal wear and tear, environmental damage, or failure to use the product in accordance with the manufacturer's instructions.
- Incorrect installation or wiring
- Incorrect product selection or application
- Misuse, abuse or neglect
- Physical or accidental damage
- Water ingress or environmental damage outside the product's intended use
- Unauthorised modification or repair
- Normal wear and tear
- Labour costs for removal, replacement, reinstallation or diagnosis
- Freight, travel or call-out costs unless otherwise required by law
- Products not returned for assessment when reasonably required
Manufacturer Support
Blue Sea Systems may provide additional manufacturer support on some products beyond the warranty period listed above. Where available, we may assist customers in contacting the manufacturer, but any manufacturer support beyond the express warranty period is subject to the manufacturer's own terms and continued availability.
Australian Consumer Law
This warranty is in addition to other rights and remedies available at law. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
