Blue Sea 12/24V 10 Position Backlight System
Blue Sea 12/24V 10 Position Backlight System
Suits 12V & 24V DC Blue Sea Panels - Cut-to-Length 3 to 10 Positions
Regular price
$43.25
Availability:
Special Order
View all products from Blue Sea
Guaranteed Safe and Secure Checkout
0
DESCRIPTION
Blue Sea Systems 8069: Modular LED Backlight System for Circuit Breaker Panels
Reliable 12V and 24V DC Illumination for Marine, Caravan, and Off-Grid Switch Panels
Operating electrical systems in low-light conditions requires clear, dependable visibility. The Blue Sea Systems 10-Position Backlight System (Part 8069) provides crisp, uniform illumination for compatible circuit breaker panel labels. While the product title references 12V, this unit is fully engineered for both 12V DC and 24V DC systems, making it an essential replacement or upgrade component for marine vessels, 4WDs, caravans, and commercial vehicles.
Please note that backlighting comes standard on most pre-assembled Blue Sea Systems circuit breaker panels. This standalone printed circuit board (PCB) assembly is specifically designed as a genuine service replacement part or as an integration kit for custom-built panel installations where low-glare label identification is critical during night navigation or off-grid operation.
Customizable Modular Design

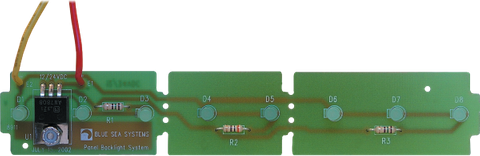

One of the standout engineering features of the Blue Sea Systems 8069 is its versatile, scored PCB construction. Supplied as a 10-position strip, it incorporates specialized modular joiner tabs between sections. This allows electrical installers and DIY enthusiasts to easily shorten the board to suit smaller panel configurations, including 8-position, 5-position, and 3-position circuit breaker panels. Rather than sourcing multiple part numbers for different panel sizes on a vessel or vehicle, this single adaptable component covers a wide range of layouts.
Engineered for Electrical Protection and Efficiency
Unlike standard aftermarket LED strips that can suffer from voltage spikes or drain auxiliary batteries, this dedicated backlight system uses an integrated voltage regulator and precision through-hole resistors to manage current flow effectively. Drawing a minimal 5mA per LED, it ensures your switch labels remain continuously illuminated throughout the night without placing unnecessary parasitic load on your house battery bank.
- Dual-Voltage Compatibility: Operates seamlessly across both 12V DC and 24V DC electrical architectures without requiring external voltage droppers.
- Configurable Length: Unique 10-position PCB design can be cleanly shortened to accommodate 8, 5, or 3 position breaker panels.
- Built-In Reverse Polarity Protection: Integrated circuit protection prevents component damage if positive and negative leads are accidentally cross-connected during installation.
- Ultra-Low Current Draw: Consumes just 5mA per LED position, preserving valuable battery capacity in off-grid and marine environments.
- Pre-Wired for Easy Termination: Supplied with heavy-duty 18 AWG (approx. 0.82mm2) wire leads for straightforward integration into existing busbars or dimmer circuits.
Simple Installation and Risk Reduction
Working behind dashboards and inside tight console spaces often presents wiring challenges. To reduce installation errors, the board features built-in reverse polarity protection, safeguarding the surface-mount LEDs and integrated circuitry against accidental miswiring. Connection to your DC power source is simplified via the attached 18 AWG (approx. 0.82mm2) positive and negative wire leads, providing ample length and durability for secure crimping and routing in high-vibration environments.
Upgrade or Restore Your Panel Visibility
Ensure your critical electrical controls are clearly legible at any hour. Order the Blue Sea Systems 10-Position Backlight System today to restore or customize your 12V or 24V circuit breaker panel with reliable, professional-grade illumination.
SKU: BS-8069B
SPECIFICATIONS
Specifications
| Part Number | 8069 |
|---|---|
| Power Supply | 12/24 V DC |
| Maximum Voltage | 24 V DC |
| Current Draw | 5 mA / LED |
| Design | Unique 10 position design that can be shortened for 8, 5, and 3 position panels |
| Wire Leads | Two 12″ 18 AWG wire leads (approx. 305 mm each) |
| Reverse Polarity Protection | Built-in |
| Weight | 0.09 lb (0.04 kg) |
| SKU: | BS-8069B |
| Model #: | BS-8069B |
| MPN: | BS-8069B |
| Package weight: | 0.072 kg |
| Package length: | 0.24 m |
| Package width: | 0.06 m |
| Package height: | 0.03 m |
WARRANTY
Blue Sea Warranty Policy
Blue Sea Systems products sold by us are supplied with a warranty against defects for the warranty period shown below, subject to the product type, application and the terms of this warranty policy.
The express warranty provided by us is limited to a maximum of 5 years from the original date of purchase, unless otherwise required under Australian Consumer Law.
Blue Sea Systems may offer longer manufacturer support on some products at their discretion
Warranty Lengths by Product Range
| Blue Sea Product Range | Warranty Length | Application / Notes |
|---|---|---|
| Most Blue Sea Systems Products | 5 years | Applies to most Blue Sea Systems products found to be defective in materials or manufacture. |
| P12 Battery Chargers | 5 years | Warranty period starts from the original date of purchase. |
| P12 Remote Displays | 5 years | Warranty period starts from the original date of purchase. |
| Digital Meters | 3 years | Warranty period starts from the original date of purchase. |
| Vessel System Monitors | 3 years | Warranty period starts from the original date of purchase. |
Warranty Assessment and Remedy
If a Blue Sea Systems product is found to be defective in materials or manufacture within the applicable warranty period, we will, at our discretion, arrange a repair, replacement, store credit or refund, depending on the nature of the fault and the requirements of Australian Consumer Law.
Products may need to be returned for assessment before a warranty claim can be approved. Where required, the product must be returned with dated proof of purchase and a clear description of the fault.
Labour costs for removing, replacing, reinstalling or diagnosing a product are not covered by this express warranty unless otherwise required under Australian Consumer Law.
Making a Warranty Claim
To make a warranty claim, please contact us with your dated proof of purchase, product details and a description of the fault.
The product may need to be returned for inspection before the claim can be assessed. If the product is confirmed to be faulty and covered by this warranty, we will advise the available remedy.
What This Warranty Does Not Cover
This warranty does not cover faults or damage caused by incorrect installation, incorrect application, misuse, abuse, neglect, unauthorised modification, accidental damage, normal wear and tear, environmental damage, or failure to use the product in accordance with the manufacturer's instructions.
- Incorrect installation or wiring
- Incorrect product selection or application
- Misuse, abuse or neglect
- Physical or accidental damage
- Water ingress or environmental damage outside the product's intended use
- Unauthorised modification or repair
- Normal wear and tear
- Labour costs for removal, replacement, reinstallation or diagnosis
- Freight, travel or call-out costs unless otherwise required by law
- Products not returned for assessment when reasonably required
Manufacturer Support
Blue Sea Systems may provide additional manufacturer support on some products beyond the warranty period listed above. Where available, we may assist customers in contacting the manufacturer, but any manufacturer support beyond the express warranty period is subject to the manufacturer's own terms and continued availability.
Australian Consumer Law
This warranty is in addition to other rights and remedies available at law. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
