Blue Sea 11.2mm Cable Clam Waterproof Antenna Cable Seal
Blue Sea 11.2mm Cable Clam Waterproof Antenna Cable Seal
No-Cut Coaxial Pass-Through - UV-Stabilised Above Waterline Mount
Regular price
$38.10
Availability:
Special Order
View all products from Blue Sea
Guaranteed Safe and Secure Checkout
0
DESCRIPTION
Watertight Coaxial and Antenna Cable Pass-Through
Routing marine electronics, VHF antennas, or GPS wiring through a deck, cabin roof, or bulkhead often presents a frustrating challenge: the factory-installed connector is substantially wider than the wire itself. The Blue Sea 11.2mm Cable Clam provides a reliable, professional solution for creating a watertight pass-through without the need to cut off and re-terminate factory-fitted plugs. Designed specifically for marine, caravan, and off-grid applications, this unit ensures your interior spaces remain completely dry while maintaining the structural and electrical integrity of your wiring.
Retain Factory Terminations and Prevent Signal Loss
Splicing coaxial cables or installing aftermarket field connectors introduces significant risks to your communication and navigation systems. Cutting a factory-moulded plug can lead to impedance mismatches, signal attenuation, and moisture ingress within the cable braid itself. Furthermore, removing a pre-attached connector often voids the manufacturer warranty on high-end marine electronics and antennas. By accommodating the large connector during the initial pass-through and sealing tightly around the narrower 11.2mm cable jacket afterward, this cable gland eliminates the expense of replacement connectors and prevents poor connections caused by manual re-termination.
Key Features and Benefits
- No-Cut Installation: Allows large factory-installed coaxial and data connectors to pass through the mounting hole intact, saving installation time and preserving system warranties.

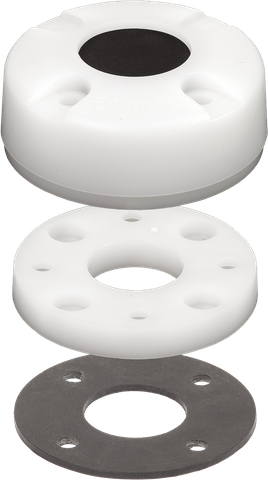

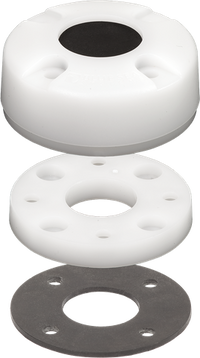

- Three-Part Compression Design: Combines a durable outer cap, an internal spacer insert, and a flexible base gasket to compress evenly around the cable and against the mounting surface.
- UV-Stabilised Construction: Built with marine-grade materials that resist degradation, cracking, and discolouration from prolonged exposure to harsh Australian sunlight and saltwater spray.
- Low-Profile Aesthetic: Features a smooth, contoured housing that minimises snagging hazards on decks and provides a clean, factory-finished look on cabin roofs or RV exteriors.
- Reliable Moisture Protection: Prevents water ingress into cabin interiors, protecting sensitive 12V and 24V electrical panels, headliners, and structural timber from rot and corrosion.
Engineered for Harsh Marine and Mobile Environments
Standard rubber grommets and basic plastic pass-throughs quickly perish when exposed to constant UV radiation and thermal cycling, leading to slow leaks that can cause extensive damage behind interior panelling. The Blue Sea Systems design utilises a robust, UV-stabilised cap paired with a specialised rubber seal and a flexible black mounting gasket. When fastened down, the assembly compresses to form a dependable barrier against rain, washdowns, and deck spray.
Please note: This product is engineered and rated for installations above the waterline only. It is not suitable for submerged hull penetrations.
Ideal Applications
- Routing VHF, AIS, and AM/FM antenna coaxial cables through boat decks, radar arches, and hardtops
- Installing GPS receivers, satellite domes, and transducer wiring on marine vessels
- Passing solar monitoring cables, cellular antennas, or satellite internet wiring through caravan, motorhome, and camper trailer roofs
- Weatherproofing exterior camera and sensor wiring on utility vehicles and off-grid cabins
Upgrade Your Cable Management
Protect your vessel or vehicle from water damage while ensuring optimal signal performance for your electronics. Add the Blue Sea 11.2mm Cable Clam to your toolkit today for a clean, watertight, and hassle-free antenna installation.
SKU: BS-1002B
SPECIFICATIONS
| Specification | Value |
|---|---|
| Product type | Cable Seal |
| Entry style | Cable Clam |
| Entry size | 11.2mm |
| Waterproof rating | Waterproof |
| Mounting location | Above waterline |
| Function | Waterproof pass-through for antenna cables without requiring removal of the factory-installed connector |
| SKU: | BS-1002B |
| Model #: | BS-1002B |
| MPN: | BS-1002B |
| HS code: | 3926909989 |
| Country of origin: | MX |
| Package weight: | 0.096 kg |
| Package length: | 0.1 m |
| Package width: | 0.09 m |
| Package height: | 0.05 m |
WARRANTY
Blue Sea Warranty Policy
Blue Sea Systems products sold by us are supplied with a warranty against defects for the warranty period shown below, subject to the product type, application and the terms of this warranty policy.
The express warranty provided by us is limited to a maximum of 5 years from the original date of purchase, unless otherwise required under Australian Consumer Law.
Blue Sea Systems may offer longer manufacturer support on some products at their discretion
Warranty Lengths by Product Range
| Blue Sea Product Range | Warranty Length | Application / Notes |
|---|---|---|
| Most Blue Sea Systems Products | 5 years | Applies to most Blue Sea Systems products found to be defective in materials or manufacture. |
| P12 Battery Chargers | 5 years | Warranty period starts from the original date of purchase. |
| P12 Remote Displays | 5 years | Warranty period starts from the original date of purchase. |
| Digital Meters | 3 years | Warranty period starts from the original date of purchase. |
| Vessel System Monitors | 3 years | Warranty period starts from the original date of purchase. |
Warranty Assessment and Remedy
If a Blue Sea Systems product is found to be defective in materials or manufacture within the applicable warranty period, we will, at our discretion, arrange a repair, replacement, store credit or refund, depending on the nature of the fault and the requirements of Australian Consumer Law.
Products may need to be returned for assessment before a warranty claim can be approved. Where required, the product must be returned with dated proof of purchase and a clear description of the fault.
Labour costs for removing, replacing, reinstalling or diagnosing a product are not covered by this express warranty unless otherwise required under Australian Consumer Law.
Making a Warranty Claim
To make a warranty claim, please contact us with your dated proof of purchase, product details and a description of the fault.
The product may need to be returned for inspection before the claim can be assessed. If the product is confirmed to be faulty and covered by this warranty, we will advise the available remedy.
What This Warranty Does Not Cover
This warranty does not cover faults or damage caused by incorrect installation, incorrect application, misuse, abuse, neglect, unauthorised modification, accidental damage, normal wear and tear, environmental damage, or failure to use the product in accordance with the manufacturer's instructions.
- Incorrect installation or wiring
- Incorrect product selection or application
- Misuse, abuse or neglect
- Physical or accidental damage
- Water ingress or environmental damage outside the product's intended use
- Unauthorised modification or repair
- Normal wear and tear
- Labour costs for removal, replacement, reinstallation or diagnosis
- Freight, travel or call-out costs unless otherwise required by law
- Products not returned for assessment when reasonably required
Manufacturer Support
Blue Sea Systems may provide additional manufacturer support on some products beyond the warranty period listed above. Where available, we may assist customers in contacting the manufacturer, but any manufacturer support beyond the express warranty period is subject to the manufacturer's own terms and continued availability.
Australian Consumer Law
This warranty is in addition to other rights and remedies available at law. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
