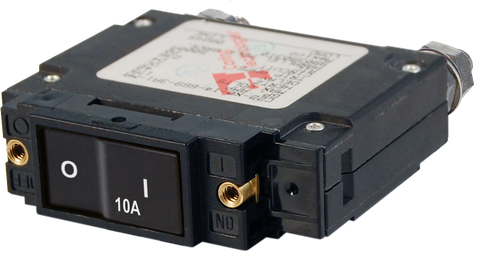

Blue Sea 10A C-Series Single-Pole Flat Rocker Circuit Breaker
Blue Sea 10A C-Series Single-Pole Flat Rocker Circuit Breaker
Flush-Mount Manual Disconnect, Trip-Free Safety & 5/16" (M8) Studs
Regular price
$71.05
Availability:
Special Order
View all products from Blue Sea
Guaranteed Safe and Secure Checkout
0
DESCRIPTION
Integrated Manual Switching and Overcurrent Protection for Demanding Electrical Systems
Managing and protecting critical circuits in marine, RV, and off-grid power architectures requires components built for safety and longevity. This circuit breaker combines manual ON/OFF switching and reliable overcurrent protection into a single, compact device. By integrating both functions, it eliminates the need to install a separate battery switch and inline fuse holder. This dual-purpose capability streamlines your switchboard layout, reduces the number of potential failure points in your wiring, and saves valuable panel space in tight installations.
Engineered to Prevent Accidental Switching
Standard toggle switches and basic push-button breakers are prone to accidental activation or deactivation when installed in cramped helm stations, utility lockers, or high-traffic walkways. The C-Series flat rocker design solves this common issue by sitting completely flush with the faceplate when in the ON position. This low-profile contour reduces the risk of snagging on clothing, gear, or equipment, ensuring your essential systems remain powered until you intentionally disconnect them. When the circuit is manually switched off or tripped due to an electrical fault, the coloured actuator visibly tilts outward to provide clear, immediate visual confirmation of the circuit status.
Uncompromising Trip-Free Safety
In the event of a short circuit or sustained overload, electrical safety is paramount. This unit features an internal trip-free mechanism, meaning the breaker contacts cannot be manually held closed during an active fault condition. Even if the rocker actuator is physically held in the ON position, the internal mechanism will still trip and isolate the circuit. This reduces the risk of severe cable damage, melted insulation, or electrical fires, outperforming inferior grade alternatives that may fail to isolate under physical restraint.
Key Features and Benefits
- Dual-Function Design: Combines manual circuit disconnection with precise 10A overcurrent protection in one unit.
- Flush ON Actuator: Flat rocker sits level with the mounting panel when active to prevent unintended switching.
- Trip-Free Operation: Internal mechanism ensures the circuit disconnects during a fault, even if the actuator is held in the ON position.
- Heavy-Duty Terminations: Equipped with 5/16-inch (approx. M8) rear stud terminals to accommodate robust ring terminals for high-conductivity connections.
- Vibration-Resistant Mounting: Integrated brass threaded inserts allow for secure front-panel installation in high-vibration marine and mobile environments.
- Visual Status Indicator: Coloured actuator clearly displays the OFF or tripped state for rapid troubleshooting.
Built for Harsh Marine and Mobile Environments
Loose connections and mechanical fatigue are leading causes of electrical failure in mobile and marine applications. To combat this, the rear of the breaker features heavy-duty 5/16-inch (approx. M8) stud terminals designed to accept substantial cable lugs, ensuring a low-resistance path and secure mechanical clamping. Furthermore, the housing incorporates integrated brass threaded mounting inserts rather than relying on self-tapping screws into plastic. This provides superior pull-out resistance and ensures the breaker remains firmly anchored to your dash or distribution panel across rough seas and corrugated off-road tracks.
Ideal Applications
While the broader C-Series architecture is renowned for handling high-amperage loads like windlasses, bow thrusters, and large inverters, this specific 10A model provides dedicated protection and manual control for lower-draw auxiliary circuits, control wiring, and sensitive electronics across 12V, 24V, and 48V DC systems. It is an ideal choice for:
- Marine helm panels, navigation electronics, and bilge control circuits
- Caravan, camper trailer, and motorhome 12V or 24V distribution boards
- Auxiliary control circuits for inverters, battery management systems, and relays
- Off-grid solar control panels and industrial DC equipment
Upgrade Your Circuit Protection
Streamline your electrical panel and protect your wiring with a professional-grade switching solution. Add the Blue Sea C-Series 10A Flat Rocker Circuit Breaker to your system today for dependable, space-saving circuit control.
SKU: BS-7541B
SPECIFICATIONS
| Specification | Details |
|---|---|
| Product type | Circuit breaker |
| Switching logic | Manual |
| Disconnect type | Manual disconnect |
| Switching function | ON/OFF |
| Actuator type | Rocker |
| Actuator position | Flush in the ON position |
| OFF indication | Colour actuator indicates OFF |
| Pole configuration | Paralleled poles |
| Terminal | 5/16-inch stud on bus |
| Protection | Overcurrent protection for inverters, bow thrusters and windlasses |
| Trip behaviour | Trip-free; cannot be held closed after trip |
| SKU: | BS-7541B |
| Model #: | BS-7541B |
| MPN: | BS-7541B |
| Package weight: | 0.264 kg |
| Package length: | 0.12 m |
| Package width: | 0.09 m |
| Package height: | 0.09 m |
