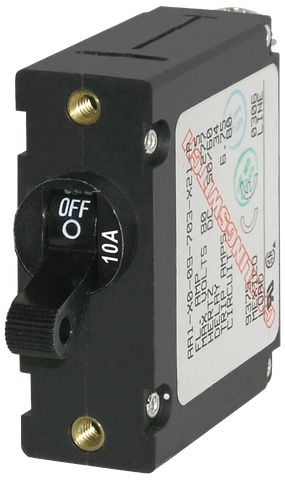

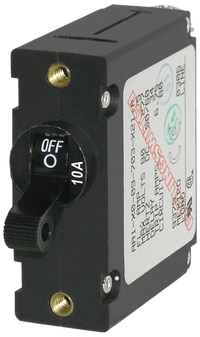

Blue Sea 10A A-Series Single Pole Toggle Circuit Breaker - Black
Blue Sea 10A A-Series Single Pole Toggle Circuit Breaker - Black
Magnetic-Hydraulic AC Main Switch & Protection - Trip-Free ABYC Design
Regular price
$32.95
Availability:
Special Order
View all products from Blue Sea
Guaranteed Safe and Secure Checkout
0
DESCRIPTION
Magnetic-Hydraulic Protection for AC Main Circuits
The Blue Sea Systems A-Series Double Pole Circuit Breaker integrates both manual circuit switching and precise overcurrent protection into a single, compact device. Designed primarily for AC main circuit protection in marine, RV, and off-grid electrical panels, this double-pole toggle breaker simultaneously disconnects both the active (hot) and neutral conductors when tripped or switched off. This dual-pole isolation is critical in mobile and marine AC electrical systems where reverse polarity from shore power or generator connections can pose significant safety hazards.
Advanced Magnetic-Hydraulic Technology
Unlike standard thermal breakers that rely on heat-sensitive bimetallic strips, the A-Series utilises a magnetic-hydraulic trip mechanism. This design ensures that the trip threshold remains stable regardless of ambient temperature fluctuations. In high-temperature environments such as boat engine rooms, enclosed caravan electrical cabinets, or sun-exposed switchboards, conventional thermal breakers can experience nuisance tripping or derating. A magnetic-hydraulic circuit breaker senses only the actual current flowing through the coil, providing consistent, reliable overcurrent protection while accommodating normal temporary inrush currents from AC appliances.
Engineered for Safety and Compliance
Safety in high-vibration and moisture-prone environments requires components that resist mechanical failure and operator error. The Blue Sea A-Series features an internal trip-free design, meaning the contacts cannot be manually held in the closed (ON) position while a fault current condition persists. Even if the ergonomic toggle actuator is physically restrained, the internal mechanism will trip independently to protect downstream wiring and equipment from thermal damage or fire risks.
- Simultaneous Double-Pole Switching: Breaks both active and neutral poles at once, making it the industry standard for 120V AC and 240V AC main shore power and inverter distribution panels.
- Trip-Free Mechanism: Internal contacts disconnect during an overload or short circuit even if the toggle switch is held in the ON position.
- Temperature-Stable Performance: Magnetic-hydraulic operation avoids false tripping in hot enclosures and maintains accurate trip curves across varied Australian climates.
- Robust Panel Integration: Equipped with durable brass threaded mounting inserts and secure screw terminals for reliable mechanical fastening and low-resistance wire terminations.
- Global Marine & Industrial Certifications: Meets American Boat and Yacht Council (ABYC) standards, and holds UL 1077 recognition, TUV certification, CE marking, and CSA certification.
Ideal Applications for Double Pole Breakers
Combining switching and circuit protection eliminates the need for separate AC isolation switches and fuse holders, saving valuable space on custom dash panels and main switchboards. This breaker is suited for:
- Marine shore power inlets, onboard marine generators, and AC main distribution switchboards
- Caravan, motorhome, and camper trailer 240V AC inverter-charger and mains hook-up panels
- Off-grid mobile work vehicles and specialist industrial control cabinets requiring dual-conductor isolation
Upgrade Your Electrical Panel Protection
Ensure your vessel or mobile power system meets strict electrical safety standards with dependable overcurrent protection. Select the Blue Sea A-Series Double Pole Circuit Breaker for your AC distribution panel build or upgrade today.
SKU: BS-7204B
SPECIFICATIONS
| Specification | Value |
|---|---|
| Product type | Circuit breaker |
| Pole configuration | Double pole |
| Typical application | AC main circuit protection |
| Standards / compliance | American Boat and Yacht Council (ABYC); UL 1077 recognized; TUV certified; CE marked for Europe; CSA certified for Canada |
| SKU: | BS-7204B |
| Model #: | BS-7204B |
| MPN: | BS-7204B |
| Package weight: | 0.3 kg |
| Package length: | 0.1 m |
| Package width: | 0.09 m |
| Package height: | 0.08 m |
WARRANTY
Blue Sea Warranty Policy
Blue Sea Systems products sold by us are supplied with a warranty against defects for the warranty period shown below, subject to the product type, application and the terms of this warranty policy.
The express warranty provided by us is limited to a maximum of 5 years from the original date of purchase, unless otherwise required under Australian Consumer Law.
Blue Sea Systems may offer longer manufacturer support on some products at their discretion
Warranty Lengths by Product Range
| Blue Sea Product Range | Warranty Length | Application / Notes |
|---|---|---|
| Most Blue Sea Systems Products | 5 years | Applies to most Blue Sea Systems products found to be defective in materials or manufacture. |
| P12 Battery Chargers | 5 years | Warranty period starts from the original date of purchase. |
| P12 Remote Displays | 5 years | Warranty period starts from the original date of purchase. |
| Digital Meters | 3 years | Warranty period starts from the original date of purchase. |
| Vessel System Monitors | 3 years | Warranty period starts from the original date of purchase. |
Warranty Assessment and Remedy
If a Blue Sea Systems product is found to be defective in materials or manufacture within the applicable warranty period, we will, at our discretion, arrange a repair, replacement, store credit or refund, depending on the nature of the fault and the requirements of Australian Consumer Law.
Products may need to be returned for assessment before a warranty claim can be approved. Where required, the product must be returned with dated proof of purchase and a clear description of the fault.
Labour costs for removing, replacing, reinstalling or diagnosing a product are not covered by this express warranty unless otherwise required under Australian Consumer Law.
Making a Warranty Claim
To make a warranty claim, please contact us with your dated proof of purchase, product details and a description of the fault.
The product may need to be returned for inspection before the claim can be assessed. If the product is confirmed to be faulty and covered by this warranty, we will advise the available remedy.
What This Warranty Does Not Cover
This warranty does not cover faults or damage caused by incorrect installation, incorrect application, misuse, abuse, neglect, unauthorised modification, accidental damage, normal wear and tear, environmental damage, or failure to use the product in accordance with the manufacturer's instructions.
- Incorrect installation or wiring
- Incorrect product selection or application
- Misuse, abuse or neglect
- Physical or accidental damage
- Water ingress or environmental damage outside the product's intended use
- Unauthorised modification or repair
- Normal wear and tear
- Labour costs for removal, replacement, reinstallation or diagnosis
- Freight, travel or call-out costs unless otherwise required by law
- Products not returned for assessment when reasonably required
Manufacturer Support
Blue Sea Systems may provide additional manufacturer support on some products beyond the warranty period listed above. Where available, we may assist customers in contacting the manufacturer, but any manufacturer support beyond the express warranty period is subject to the manufacturer's own terms and continued availability.
Australian Consumer Law
This warranty is in addition to other rights and remedies available at law. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
