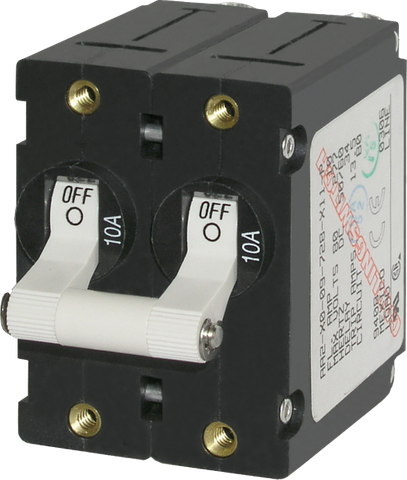

Blue Sea 10A A-Series Double Pole Toggle Circuit Breaker - White
Blue Sea 10A A-Series Double Pole Toggle Circuit Breaker - White
Magnetic-Hydraulic Protection & Trip-Free Switching for Panels
Regular price
$77.22
Availability:
Special Order
View all products from Blue Sea
Guaranteed Safe and Secure Checkout
0
DESCRIPTION
Magnetic-Hydraulic Circuit Protection and Switching for Electrical Panels
The Blue Sea A-Series 10A Double-Pole Toggle Circuit Breaker delivers reliable overcurrent protection and intuitive manual switching in a single, compact device. Engineered specifically for Blue Sea Systems electrical panels and custom distribution boards, this breaker is built to meet the rigorous demands of marine, caravan, RV, and off-grid electrical architectures. By combining switching and protection, it streamlines panel layouts and eliminates the need for separate fuse holders and toggle switches.
Advanced Magnetic-Hydraulic Technology
Unlike standard thermal circuit breakers that rely on heat-sensitive bimetallic strips, the A-Series utilises a precision magnetic-hydraulic mechanism. Standard thermal breakers can suffer from nuisance tripping when installed in hot engine bays, enclosed electrical cabinets, or under the harsh Australian sun. Because magnetic-hydraulic operation is driven by the magnetic field generated by the current itself rather than ambient temperature, this 10A circuit breaker maintains a consistent trip curve and reliable current carrying capacity across fluctuating environmental conditions.
Simultaneous Double-Pole Isolation
Equipped with mechanically linked white toggle handles, this double-pole circuit breaker provides simultaneous switching and tripping of both poles. In AC electrical systems, this is critical for safely isolating both the active and neutral conductors at the same time. In DC applications, it allows for the complete isolation of both positive and negative lines, or the simultaneous protection of two related branch circuits. If an overcurrent fault occurs on either pole, the internal linkage ensures both poles trip together, completely de-energising the circuit to reduce the risk of electrical hazards during maintenance or fault finding.
Key Features and Benefits
- Trip-Free Design: The internal mechanism cannot be manually held in the ON position during a fault-current condition, preventing equipment damage and reducing fire risks.
- Dual Functionality: Combines heavy-duty switching and precision overcurrent protection in one compact housing to save valuable panel space.
- Linked White Actuators: Provides clear visual indication of circuit status and simultaneous two-pole isolation with a clean, high-visibility finish.
- Brass Threaded Inserts: Integrated brass mounting inserts allow for secure, vibration-resistant front panel installation in mobile and marine environments.
- Temperature Stable Operation: Magnetic-hydraulic design resists nuisance tripping in high-temperature enclosures and marine engine rooms.
- Clear Identification: Features a front-facing 10A rating stamp and a comprehensive side-mounted specification label for straightforward compliance checks and wiring verification.
Engineered for Harsh Marine and Mobile Environments
Electrical components in boats, 4WDs, and off-grid setups are constantly exposed to vibration, moisture, and temperature extremes. Inferior protection devices can corrode or fail to trip accurately when needed most. The robust A-Series enclosure and corrosion-resistant brass mounting hardware are specifically selected to withstand coastal and mobile conditions, ensuring long-term mechanical and electrical integrity.
Ideal Applications
- Marine AC and DC main or branch circuit distribution panels
- Caravan, camper trailer, and motorhome electrical switchboards
- Off-grid solar and battery storage distribution enclosures
- Custom 12V, 24V, and AC control panels requiring simultaneous two-pole disconnect
Upgrade Your Electrical Panel Protection
Ensure safe, compliant, and dependable power distribution in your vessel or vehicle. Add the Blue Sea A-Series 10A Double-Pole Toggle Circuit Breaker to your electrical build for professional-grade switching and circuit protection.
SKU: BS-7233B
SPECIFICATIONS
| Specification | Details |
|---|---|
| Product type | Circuit breaker |
| SKU: | BS-7233B |
| Model #: | BS-7233B |
| MPN: | BS-7233B |
| Package weight: | 0.3 kg |
| Package length: | 0.1 m |
| Package width: | 0.08 m |
| Package height: | 0.09 m |
WARRANTY
Blue Sea Warranty Policy
Blue Sea Systems products sold by us are supplied with a warranty against defects for the warranty period shown below, subject to the product type, application and the terms of this warranty policy.
The express warranty provided by us is limited to a maximum of 5 years from the original date of purchase, unless otherwise required under Australian Consumer Law.
Blue Sea Systems may offer longer manufacturer support on some products at their discretion
Warranty Lengths by Product Range
| Blue Sea Product Range | Warranty Length | Application / Notes |
|---|---|---|
| Most Blue Sea Systems Products | 5 years | Applies to most Blue Sea Systems products found to be defective in materials or manufacture. |
| P12 Battery Chargers | 5 years | Warranty period starts from the original date of purchase. |
| P12 Remote Displays | 5 years | Warranty period starts from the original date of purchase. |
| Digital Meters | 3 years | Warranty period starts from the original date of purchase. |
| Vessel System Monitors | 3 years | Warranty period starts from the original date of purchase. |
Warranty Assessment and Remedy
If a Blue Sea Systems product is found to be defective in materials or manufacture within the applicable warranty period, we will, at our discretion, arrange a repair, replacement, store credit or refund, depending on the nature of the fault and the requirements of Australian Consumer Law.
Products may need to be returned for assessment before a warranty claim can be approved. Where required, the product must be returned with dated proof of purchase and a clear description of the fault.
Labour costs for removing, replacing, reinstalling or diagnosing a product are not covered by this express warranty unless otherwise required under Australian Consumer Law.
Making a Warranty Claim
To make a warranty claim, please contact us with your dated proof of purchase, product details and a description of the fault.
The product may need to be returned for inspection before the claim can be assessed. If the product is confirmed to be faulty and covered by this warranty, we will advise the available remedy.
What This Warranty Does Not Cover
This warranty does not cover faults or damage caused by incorrect installation, incorrect application, misuse, abuse, neglect, unauthorised modification, accidental damage, normal wear and tear, environmental damage, or failure to use the product in accordance with the manufacturer's instructions.
- Incorrect installation or wiring
- Incorrect product selection or application
- Misuse, abuse or neglect
- Physical or accidental damage
- Water ingress or environmental damage outside the product's intended use
- Unauthorised modification or repair
- Normal wear and tear
- Labour costs for removal, replacement, reinstallation or diagnosis
- Freight, travel or call-out costs unless otherwise required by law
- Products not returned for assessment when reasonably required
Manufacturer Support
Blue Sea Systems may provide additional manufacturer support on some products beyond the warranty period listed above. Where available, we may assist customers in contacting the manufacturer, but any manufacturer support beyond the express warranty period is subject to the manufacturer's own terms and continued availability.
Australian Consumer Law
This warranty is in addition to other rights and remedies available at law. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
