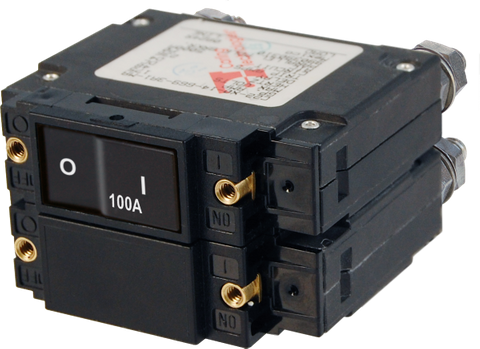

Blue Sea 100A AC C-Series Double-Pole Flat Rocker Circuit Breaker
Blue Sea 100A AC C-Series Double-Pole Flat Rocker Circuit Breaker
Trip-Free Overcurrent Protection & Switching - 5/16" (M8) Studs
Regular price
$128.70
Availability:
Special Order
View all products from Blue Sea
Guaranteed Safe and Secure Checkout
0
DESCRIPTION
Combined Manual Switching and Heavy-Duty Overcurrent Protection
Managing high-current electrical systems in marine, caravan, and off-grid setups requires components that offer uncompromising safety and operational reliability. The Blue Sea C-Series 100A circuit breaker integrates manual on/off switching with robust overcurrent protection in a single compact unit. By consolidating these functions, it simplifies switchboard wiring, reduces the number of failure-prone connection points, and saves valuable space in tight distribution panels.
Engineered specifically for demanding loads, this double-pole circuit breaker is ideally suited for isolating and protecting power inverters, bow thrusters, and electric windlasses. When installed in AC systems, the two-pole configuration allows simultaneous disconnection of dual conductors, ensuring thorough circuit isolation during maintenance or fault conditions.
Ergonomic Flat Rocker and Trip-Free Safety
Accidental circuit disconnection in rough seas or over corrugated outback tracks can disrupt critical power supplies. This unit features a specialised flat rocker actuator that sits completely flush with the mounting bezel when in the ON position. This low-profile design significantly reduces the risk of snagging gear or inadvertently bumping the switch off in high-traffic areas. For immediate visual verification, a contrasting colour on the actuator clearly indicates when the breaker is switched to the OFF position.
To prevent catastrophic wire damage or electrical fires, the internal mechanism utilises a trip-free design. In the event of a sustained overload or short circuit, the breaker will trip internally even if the rocker actuator is physically held or jammed in the ON position. This ensures the circuit remains safely disconnected until the underlying fault is resolved.
- Dual Functionality: Combines heavy-duty manual on/off switching with automatic 100A overcurrent protection.
- Flush-Mount Rocker: Sits flat when engaged in the ON position to prevent accidental switching.
- Trip-Free Mechanism: Cannot be manually held closed during an active electrical fault, prioritising system safety.
- High-Current Terminals: Paralleled poles feature robust 5/16" (approx. M8 or 7.9mm) stud terminals on the bus to accommodate heavy-duty cable lugs.
- Secure Installation: Equipped with threaded brass mounting inserts for dependable, vibration-resistant panel installation.
- Clear Visual Status: Distinct colour-coded actuator provides instant confirmation of the OFF state.
Engineered for High-Vibration Environments
Unlike standard domestic breakers that can suffer from nuisance tripping or terminal degradation in mobile environments, the Blue Sea Systems C-Series is built to withstand harsh marine and automotive conditions. The heavy-duty 5/16" (approx. M8) stud terminals provide ample surface area for large gauge battery and inverter cables, minimising voltage drop and preventing dangerous heat build-up at the terminal interface. Integrated threaded brass inserts ensure the breaker remains firmly secured to your distribution panel, resisting the constant vibration and shock encountered on vessels and off-road vehicles.
Upgrade Your Electrical Distribution System
Protect your high-draw appliances and streamline your control panel with the Blue Sea C-Series 100A Double-Pole Flat Rocker Circuit Breaker. Add this essential safety component to your build today for reliable switching and circuit protection.
SKU: BS-7564B
SPECIFICATIONS
| Specification | Value |
|---|---|
| Product type | Circuit breaker |
| Switching function | On/off |
| Actuator type | Rocker |
| Terminal size | 5/16 in stud |
| SKU: | BS-7564B |
| Model #: | BS-7564B |
| MPN: | BS-7564B |
| Package weight: | 0.3 kg |
| Package length: | 0.11 m |
| Package width: | 0.06 m |
| Package height: | 0.09 m |
WARRANTY
Blue Sea Warranty Policy
Blue Sea Systems products sold by us are supplied with a warranty against defects for the warranty period shown below, subject to the product type, application and the terms of this warranty policy.
The express warranty provided by us is limited to a maximum of 5 years from the original date of purchase, unless otherwise required under Australian Consumer Law.
Blue Sea Systems may offer longer manufacturer support on some products at their discretion
Warranty Lengths by Product Range
| Blue Sea Product Range | Warranty Length | Application / Notes |
|---|---|---|
| Most Blue Sea Systems Products | 5 years | Applies to most Blue Sea Systems products found to be defective in materials or manufacture. |
| P12 Battery Chargers | 5 years | Warranty period starts from the original date of purchase. |
| P12 Remote Displays | 5 years | Warranty period starts from the original date of purchase. |
| Digital Meters | 3 years | Warranty period starts from the original date of purchase. |
| Vessel System Monitors | 3 years | Warranty period starts from the original date of purchase. |
Warranty Assessment and Remedy
If a Blue Sea Systems product is found to be defective in materials or manufacture within the applicable warranty period, we will, at our discretion, arrange a repair, replacement, store credit or refund, depending on the nature of the fault and the requirements of Australian Consumer Law.
Products may need to be returned for assessment before a warranty claim can be approved. Where required, the product must be returned with dated proof of purchase and a clear description of the fault.
Labour costs for removing, replacing, reinstalling or diagnosing a product are not covered by this express warranty unless otherwise required under Australian Consumer Law.
Making a Warranty Claim
To make a warranty claim, please contact us with your dated proof of purchase, product details and a description of the fault.
The product may need to be returned for inspection before the claim can be assessed. If the product is confirmed to be faulty and covered by this warranty, we will advise the available remedy.
What This Warranty Does Not Cover
This warranty does not cover faults or damage caused by incorrect installation, incorrect application, misuse, abuse, neglect, unauthorised modification, accidental damage, normal wear and tear, environmental damage, or failure to use the product in accordance with the manufacturer's instructions.
- Incorrect installation or wiring
- Incorrect product selection or application
- Misuse, abuse or neglect
- Physical or accidental damage
- Water ingress or environmental damage outside the product's intended use
- Unauthorised modification or repair
- Normal wear and tear
- Labour costs for removal, replacement, reinstallation or diagnosis
- Freight, travel or call-out costs unless otherwise required by law
- Products not returned for assessment when reasonably required
Manufacturer Support
Blue Sea Systems may provide additional manufacturer support on some products beyond the warranty period listed above. Where available, we may assist customers in contacting the manufacturer, but any manufacturer support beyond the express warranty period is subject to the manufacturer's own terms and continued availability.
Australian Consumer Law
This warranty is in addition to other rights and remedies available at law. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
