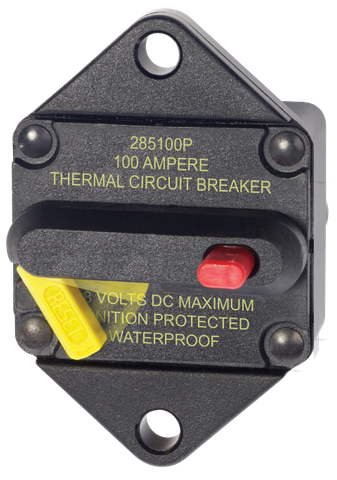

Blue Sea 100A 285-Series Panel Mount Thermal Circuit Breaker
Blue Sea 100A 285-Series Panel Mount Thermal Circuit Breaker
SAE J1171 Ignition Protected, On-Off Switching & Trip-Free Safety
Regular price
$95.75
Availability:
Special Order
View all products from Blue Sea
Guaranteed Safe and Secure Checkout
0
DESCRIPTION
Combined 100A DC Switching and Thermal Overcurrent Protection
The Blue Sea 285-Series 100A Panel Mount Thermal Circuit Breaker delivers reliable overcurrent protection and manual on-off switching in a single, streamlined unit. Engineered for demanding marine, caravan, and off-grid DC electrical systems, this dual-function design eliminates the need for a separate battery switch and fuse holder. By consolidating components, it saves valuable dashboard or distribution panel space while reducing wiring complexity and potential voltage drop points across your heavy-duty electrical circuits.
Designed as a direct drop-in replacement for older 185-Series circuit breakers, the 285-Series allows for straightforward system upgrades without requiring new panel cutouts or extensive re-wiring. The flush panel-mount form factor provides a clean, professional finish on dashboards, electrical enclosures, and custom distribution boards.
Engineered for Harsh Marine and Automotive Environments
Standard automotive circuit breakers can corrode quickly or pose safety hazards when exposed to moisture and fuel vapours. The Blue Sea 285-Series features a weather-resistant construction specifically built to withstand damp, salt-laden marine atmospheres and dusty off-road conditions. Furthermore, it meets strict SAE J1171 external ignition protection requirements. This critical safety rating ensures the internal mechanism will not ignite surrounding flammable gases, making it compliant and safe for installation aboard petrol-powered vessels, in boat bilges, and inside caravan battery compartments.
Intuitive Operation and Fail-Safe Design
Managing high-current 100A loads requires absolute clarity and dependable safety mechanisms. This thermal circuit breaker incorporates a high-visibility yellow reset lever that drops down to provide an immediate visual indication when a circuit has tripped. For routine maintenance or emergency isolation, the recessed red manual trip button allows you to instantly disconnect power to downstream equipment.
To prevent catastrophic wire damage or electrical fires during a persistent short circuit, the unit utilises a trip-free mechanism. This essential safety feature ensures that the internal contacts cannot be manually held in the closed position while a fault condition still exists, protecting your cabling and expensive appliances from thermal overload.
Key Features and Benefits
- Dual-Function Design: Combines 100A thermal circuit protection and manual on-off circuit switching into one compact unit.
- SAE J1171 Ignition Protected: Safe for installation in petrol engine compartments and enclosed battery boxes.
- Trip-Free Safety Mechanism: Cannot be forced or held closed during an active overcurrent fault, reducing the risk of cable damage.
- Clear Status Indication: High-contrast yellow lever visibly shows when the circuit is open, paired with a red push-to-trip button for manual isolation.
- Weather-Resistant Housing: Built to resist moisture and corrosion in marine, 4WD, and off-grid environments.
- Drop-In Compatibility: Shares the exact mounting footprint of the 185-Series for seamless retrofitting.
Application Guidelines and Exclusions
This 100A thermal breaker is well suited for protecting main DC sub-panels, high-output alternators, dual-battery charging systems, and heavy-duty accessories in 12V, 24V, and 32V applications. Please note an important operational exclusion: do not use this breaker as a regular manual switch where high inrush currents are expected, such as directly switching large inverters or windlasses under load, as repeated high-inrush switching can degrade the internal contacts over time.
Upgrade Your DC Circuit Protection
Secure your vessel, 4WD, or off-grid power system with marine-grade overcurrent protection. Add the Blue Sea 285-Series 100A Panel Mount Circuit Breaker to your setup today for dependable, space-saving electrical safety.
SKU: BS-7087B
SPECIFICATIONS
| Specification | Details |
|---|---|
| Product type | Thermal circuit breaker |
| Mounting / form factor | Panel mount |
| Switching function | On-off |
| Ignition protection | Ignition protected |
| Standards / compliance | SAE J1171 external ignition protection requirements |
| SKU: | BS-7087B |
| Model #: | BS-7087B |
| MPN: | BS-7087B |
| Package weight: | 0.216 kg |
| Package length: | 0.09 m |
| Package width: | 0.06 m |
| Package height: | 0.06 m |
WARRANTY
Blue Sea Warranty Policy
Blue Sea Systems products sold by us are supplied with a warranty against defects for the warranty period shown below, subject to the product type, application and the terms of this warranty policy.
The express warranty provided by us is limited to a maximum of 5 years from the original date of purchase, unless otherwise required under Australian Consumer Law.
Blue Sea Systems may offer longer manufacturer support on some products at their discretion
Warranty Lengths by Product Range
| Blue Sea Product Range | Warranty Length | Application / Notes |
|---|---|---|
| Most Blue Sea Systems Products | 5 years | Applies to most Blue Sea Systems products found to be defective in materials or manufacture. |
| P12 Battery Chargers | 5 years | Warranty period starts from the original date of purchase. |
| P12 Remote Displays | 5 years | Warranty period starts from the original date of purchase. |
| Digital Meters | 3 years | Warranty period starts from the original date of purchase. |
| Vessel System Monitors | 3 years | Warranty period starts from the original date of purchase. |
Warranty Assessment and Remedy
If a Blue Sea Systems product is found to be defective in materials or manufacture within the applicable warranty period, we will, at our discretion, arrange a repair, replacement, store credit or refund, depending on the nature of the fault and the requirements of Australian Consumer Law.
Products may need to be returned for assessment before a warranty claim can be approved. Where required, the product must be returned with dated proof of purchase and a clear description of the fault.
Labour costs for removing, replacing, reinstalling or diagnosing a product are not covered by this express warranty unless otherwise required under Australian Consumer Law.
Making a Warranty Claim
To make a warranty claim, please contact us with your dated proof of purchase, product details and a description of the fault.
The product may need to be returned for inspection before the claim can be assessed. If the product is confirmed to be faulty and covered by this warranty, we will advise the available remedy.
What This Warranty Does Not Cover
This warranty does not cover faults or damage caused by incorrect installation, incorrect application, misuse, abuse, neglect, unauthorised modification, accidental damage, normal wear and tear, environmental damage, or failure to use the product in accordance with the manufacturer's instructions.
- Incorrect installation or wiring
- Incorrect product selection or application
- Misuse, abuse or neglect
- Physical or accidental damage
- Water ingress or environmental damage outside the product's intended use
- Unauthorised modification or repair
- Normal wear and tear
- Labour costs for removal, replacement, reinstallation or diagnosis
- Freight, travel or call-out costs unless otherwise required by law
- Products not returned for assessment when reasonably required
Manufacturer Support
Blue Sea Systems may provide additional manufacturer support on some products beyond the warranty period listed above. Where available, we may assist customers in contacting the manufacturer, but any manufacturer support beyond the express warranty period is subject to the manufacturer's own terms and continued availability.
Australian Consumer Law
This warranty is in addition to other rights and remedies available at law. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
