Blue Sea 10 Position DC Distribution Panel with 15A V/A Meter

Pre-Wired Buses, Backlit Labels & 3-Bank Battery Monitor Switch


Regular price $999.07
/
Availability: Special Order
View all products from Blue Sea

Free Shipping in Selected Zones | Add to cart and enter your postcode to see live shipping options.

Eligible Free-shipping Zones

Adelaide metro, Brisbane metro, Canberra metro, Gold Coast, Hobart metro, Melbourne metro, NSW Regional Centres, Perth metro, Sydney metro, TAS Regional, VIC Regional Centres

Guaranteed Safe and Secure Checkout
Apple Pay Google Pay Mastercard PayPalShop Pay Visa
0

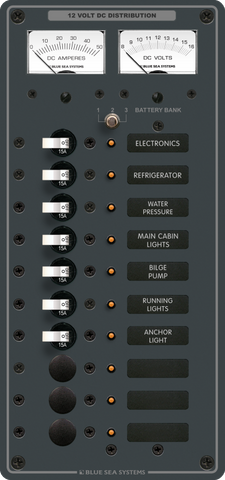

10 position 12V DC distribution panel with analog meters, battery bank switch and circuit breakers

Blue Sea 10 Position DC Distribution Panel with 15A V/A Meter

DESCRIPTION

Centralised 12V DC Circuit Management and System Monitoring

Managing multiple DC loads across marine vessels, caravans, and off-grid setups requires reliable overcurrent protection and clear system visibility. The Blue Sea Systems 8082B provides a comprehensive solution for organising up to ten individual DC circuits while offering real-time analogue monitoring of your electrical system. Engineered to streamline complex installations, this distribution panel comes with positive, negative, and grounding buses pre-installed and fully pre-wired right out of the box.

Unlike standard switch panels that require tedious manual busbar linking, this pre-wired architecture significantly reduces installation time and minimises the risk of wiring errors behind the dash or bulkhead. Each position is equipped with a 15A magnetic hydraulic circuit breaker, combining switching and reliable circuit protection into a single durable toggle.

Real-Time Voltage and Current Monitoring

Maintaining battery health is critical in remote marine and mobile applications. This distribution panel integrates dedicated analogue voltmeter (8V to 16V DC) and ammeter (0A to 50A DC) gauges directly into the faceplate. A built-in three-position toggle switch allows you to effortlessly monitor voltage across up to three separate battery banks, helping you prevent deep discharges and manage charging cycles effectively without needing external displays.

Key Features and Benefits

  • Fully Pre-Wired Buses: Factory-installed positive, negative, and grounding buses streamline installation and ensure secure, low-resistance electrical connections.
  • Integrated Analogue Metering: Features an 8V-16V DC voltmeter and 0A-50A DC ammeter for immediate visual checks of system load and battery status.
  • Multi-Bank Monitoring: Includes a dedicated toggle switch to check the voltage of up to three independent battery banks from a single location.
  • Illuminated Operation: Standard backlit circuit labels and individual ON-indicating LEDs at all ten positions allow for effortless circuit identification in low-light cabins or night navigation.
  • 24V System Upgradability: While configured for 12V systems out of the box, the analogue meters are owner-upgradable to 24V DC operation using compatible 18V-32V DC gauges (Blue Sea models 8240 or 8243, sold separately).

Built for Demanding Marine and Off-Grid Environments

Inferior distribution panels often suffer from terminal corrosion, nuisance tripping, and poor visibility in dark compartments. Blue Sea Systems addresses these risks by utilising magnetic hydraulic circuit breakers that are unaffected by high ambient temperatures, ensuring consistent trip curves in hot engine rooms or enclosed cabinetry. The integrated backlighting requires no separate accessory kit, providing clear visibility during night operations while the individual LED indicators confirm active loads at a glance.

Whether you are refitting a yacht helm, building a custom 4WD canopy electrical system, or wiring an off-grid cabin, this 10-position panel delivers professional-grade circuit organisation and protection.

Upgrade Your DC Power Distribution

Configure your marine or mobile electrical system with confidence by adding this pre-wired Blue Sea distribution panel to your setup today.


SKU: BS-8082B

SPECIFICATIONS

SpecificationDetails
Product typeDC distribution panel
Number of positions10
Meter15A V/A meter
BusesPositive, negative and grounding buses installed; fully pre-wired
Toggle switchPanels with meters include a toggle switch for mounting up to 3 battery banks
Analog meter upgradePanels with analog meters are owner-upgradable to 24V with 8240 or 8243 (18-32V DC meters)
Circuit labelsBacklit on standard panels; no kit required
IndicatorsON indicating LEDs installed in all circuit positions

SKU: BS-8082B
Model #: BS-8082B
MPN: BS-8082B
HS code: 8537109170
Country of origin: MX
Package weight: 1.08 kg
Package length: 0.36 m
Package width: 0.22 m
Package height: 0.12 m

WARRANTY

Blue Sea Warranty Policy

Blue Sea Systems products sold by us are supplied with a warranty against defects for the warranty period shown below, subject to the product type, application and the terms of this warranty policy.

The express warranty provided by us is limited to a maximum of 5 years from the original date of purchase, unless otherwise required under Australian Consumer Law.

Blue Sea Systems may offer longer manufacturer support on some products at their discretion

Warranty Lengths by Product Range

Blue Sea Product Range Warranty Length Application / Notes
Most Blue Sea Systems Products 5 years Applies to most Blue Sea Systems products found to be defective in materials or manufacture.
P12 Battery Chargers 5 years Warranty period starts from the original date of purchase.
P12 Remote Displays 5 years Warranty period starts from the original date of purchase.
Digital Meters 3 years Warranty period starts from the original date of purchase.
Vessel System Monitors 3 years Warranty period starts from the original date of purchase.

Warranty Assessment and Remedy

If a Blue Sea Systems product is found to be defective in materials or manufacture within the applicable warranty period, we will, at our discretion, arrange a repair, replacement, store credit or refund, depending on the nature of the fault and the requirements of Australian Consumer Law.

Products may need to be returned for assessment before a warranty claim can be approved. Where required, the product must be returned with dated proof of purchase and a clear description of the fault.

Labour costs for removing, replacing, reinstalling or diagnosing a product are not covered by this express warranty unless otherwise required under Australian Consumer Law.

Making a Warranty Claim

To make a warranty claim, please contact us with your dated proof of purchase, product details and a description of the fault.

The product may need to be returned for inspection before the claim can be assessed. If the product is confirmed to be faulty and covered by this warranty, we will advise the available remedy.

What This Warranty Does Not Cover

This warranty does not cover faults or damage caused by incorrect installation, incorrect application, misuse, abuse, neglect, unauthorised modification, accidental damage, normal wear and tear, environmental damage, or failure to use the product in accordance with the manufacturer's instructions.

  • Incorrect installation or wiring
  • Incorrect product selection or application
  • Misuse, abuse or neglect
  • Physical or accidental damage
  • Water ingress or environmental damage outside the product's intended use
  • Unauthorised modification or repair
  • Normal wear and tear
  • Labour costs for removal, replacement, reinstallation or diagnosis
  • Freight, travel or call-out costs unless otherwise required by law
  • Products not returned for assessment when reasonably required

Manufacturer Support

Blue Sea Systems may provide additional manufacturer support on some products beyond the warranty period listed above. Where available, we may assist customers in contacting the manufacturer, but any manufacturer support beyond the express warranty period is subject to the manufacturer's own terms and continued availability.

Australian Consumer Law

This warranty is in addition to other rights and remedies available at law. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
