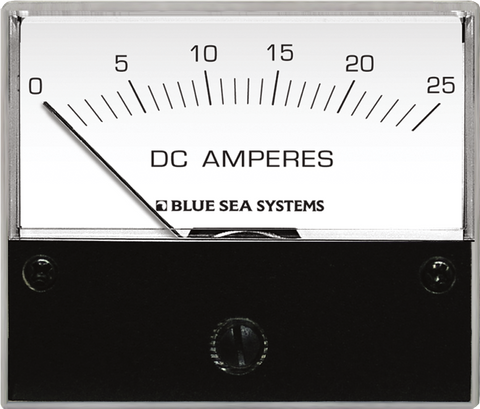

Blue Sea 0-25A DC Ammeter with Internal Shunt
Blue Sea 0-25A DC Ammeter with Internal Shunt
Backlit Analogue Face with 12V/24V Connections & 4-Wire Setup
Regular price
$92.66
Availability:
Special Order
View all products from Blue Sea
Guaranteed Safe and Secure Checkout
0
DESCRIPTION
Reliable Analogue Current Monitoring for Marine and Off-Grid Electrical Systems
Streamlined Installation with an Integrated Shunt
Accurately monitoring the current draw of your electrical appliances is critical for maintaining healthy battery banks in marine, caravan, and off-grid applications. The Blue Sea DC 0–25A Ammeter provides dependable, real-time current visibility without the complexity of wiring an external shunt. Because the shunt is housed internally within the meter body, installation is significantly streamlined. This integrated approach saves valuable space behind your dash or switch panel and reduces the number of heavy-duty connection points required in your circuit, minimising the risk of voltage drop or loose terminations.
Featuring a straightforward four-wire connection, this analogue ammeter integrates directly into your DC system. Unlike lower-tier meters that require complex calibration or delicate external sensing wires for low-amperage loads, this unit is purpose-built for direct monitoring of circuits up to 25A. It is an ideal solution for tracking the output of small solar regulators, wind generators, or the consumption of specific branch circuits such as refrigeration, lighting arrays, and water pumps.
Engineered for Clear Visibility in All Lighting Conditions
Reading system diagnostics at a glance is essential, whether navigating at night or checking your caravan's power consumption in a dimly lit cabin. This DC ammeter features a clean, high-contrast dial with clearly marked 1A increments across the 0–25A scale. The prominent indicator needle delivers immediate, easy-to-interpret readings without the lag or screen glare sometimes associated with digital displays.
To support low-light operation, the meter face is equipped with an integrated backlight. The lighting circuit features separate connections compatible with both 12V and 24V DC power supplies, allowing you to wire the illumination directly into your vessel or vehicle's instrument lighting switch for seamless operation.
- Integrated Internal Shunt: Eliminates the need to purchase, mount, and wire a separate external shunt for loads up to 25A.
- Simple 4-Wire Connection: Reduces installation time and wiring clutter behind your electrical distribution panel.
- Dual-Voltage Backlighting: Separate terminals support 12V or 24V DC instrument lighting for clear night-time visibility.
- Precision Analogue Scale: Crisp 1A increments and a front-access zero adjustment screw ensure reliable, accurate readings.
- Marine-Grade Durability: Built by Blue Sea Systems to withstand the demanding conditions of marine and mobile environments.
Why Choose an Analogue Ammeter for Your Panel?
While digital multi-meters have their place in complex battery management, a dedicated analogue current gauge offers distinct advantages for specific circuit monitoring. Analogue needles show trends and fluctuations in current draw instantly, making it easier to spot cycling appliances like bilge pumps or compressor fridges. Furthermore, the front-accessible zero adjustment screw allows for quick manual calibration over time, ensuring your readings remain accurate through years of vibration and temperature changes.
Applications and System Integration
Designed to meet the rigorous standards of marine and automotive electrical builders, this 0–25A meter is suited for a wide variety of low-to-medium current applications:
- Marine Vessels: Monitor house circuits, navigation electronics, or small charging sources directly from the helm or cabin switchboard.
- Caravans and Motorhomes: Keep track of daily 12V or 24V appliance draw to prevent unexpected battery depletion while camping off-grid.
- 4WD and Service Vehicles: Track auxiliary battery loads or dedicated work equipment in canopies and mobile workshops.
Upgrade Your Electrical Control Panel
Gain complete confidence in your system's power consumption with components built for longevity. Add the Blue Sea DC 0–25A Ammeter to your cart today to simplify your panel wiring and achieve clear, dependable current monitoring on your next installation.
SKU: BS-8005B
SPECIFICATIONS
| Specification | Details |
|---|---|
| Product type | DC ammeter |
| Current range | 0–25A |
| Shunt | Internal |
| Connection | Simple 4-wire connection |
| Meter face | Backlit |
| Backlight connections | Separate 12V or 24V DC connections |
| SKU: | BS-8005B |
| Model #: | BS-8005B |
| MPN: | BS-8005B |
| Package weight: | 0.18 kg |
| Package length: | 0.11 m |
| Package width: | 0.11 m |
| Package height: | 0.09 m |
WARRANTY
Blue Sea Warranty Policy
Blue Sea Systems products sold by us are supplied with a warranty against defects for the warranty period shown below, subject to the product type, application and the terms of this warranty policy.
The express warranty provided by us is limited to a maximum of 5 years from the original date of purchase, unless otherwise required under Australian Consumer Law.
Blue Sea Systems may offer longer manufacturer support on some products at their discretion
Warranty Lengths by Product Range
| Blue Sea Product Range | Warranty Length | Application / Notes |
|---|---|---|
| Most Blue Sea Systems Products | 5 years | Applies to most Blue Sea Systems products found to be defective in materials or manufacture. |
| P12 Battery Chargers | 5 years | Warranty period starts from the original date of purchase. |
| P12 Remote Displays | 5 years | Warranty period starts from the original date of purchase. |
| Digital Meters | 3 years | Warranty period starts from the original date of purchase. |
| Vessel System Monitors | 3 years | Warranty period starts from the original date of purchase. |
Warranty Assessment and Remedy
If a Blue Sea Systems product is found to be defective in materials or manufacture within the applicable warranty period, we will, at our discretion, arrange a repair, replacement, store credit or refund, depending on the nature of the fault and the requirements of Australian Consumer Law.
Products may need to be returned for assessment before a warranty claim can be approved. Where required, the product must be returned with dated proof of purchase and a clear description of the fault.
Labour costs for removing, replacing, reinstalling or diagnosing a product are not covered by this express warranty unless otherwise required under Australian Consumer Law.
Making a Warranty Claim
To make a warranty claim, please contact us with your dated proof of purchase, product details and a description of the fault.
The product may need to be returned for inspection before the claim can be assessed. If the product is confirmed to be faulty and covered by this warranty, we will advise the available remedy.
What This Warranty Does Not Cover
This warranty does not cover faults or damage caused by incorrect installation, incorrect application, misuse, abuse, neglect, unauthorised modification, accidental damage, normal wear and tear, environmental damage, or failure to use the product in accordance with the manufacturer's instructions.
- Incorrect installation or wiring
- Incorrect product selection or application
- Misuse, abuse or neglect
- Physical or accidental damage
- Water ingress or environmental damage outside the product's intended use
- Unauthorised modification or repair
- Normal wear and tear
- Labour costs for removal, replacement, reinstallation or diagnosis
- Freight, travel or call-out costs unless otherwise required by law
- Products not returned for assessment when reasonably required
Manufacturer Support
Blue Sea Systems may provide additional manufacturer support on some products beyond the warranty period listed above. Where available, we may assist customers in contacting the manufacturer, but any manufacturer support beyond the express warranty period is subject to the manufacturer's own terms and continued availability.
Australian Consumer Law
This warranty is in addition to other rights and remedies available at law. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
