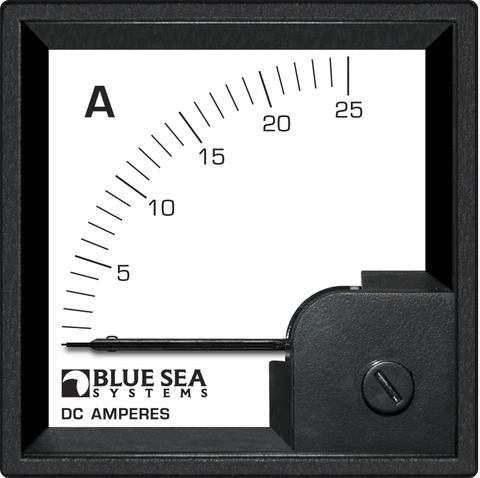

Blue Sea 0-25A 1052 DIN DC Ammeter with Internal Shunt
Blue Sea 0-25A 1052 DIN DC Ammeter with Internal Shunt
Blue Sea 72mm Panel Mount Analog Meter with 12V/24V Backlit Dial
Regular price
$123.55
Availability:
Special Order
View all products from Blue Sea
Guaranteed Safe and Secure Checkout
0
DESCRIPTION
Blue Sea Systems 72mm Analog DC Ammeter for Marine and Off-Grid Panels
Monitoring electrical current accurately is essential for maintaining the health and longevity of any 12V or 24V power system. The Blue Sea Systems 1052 is a precision-engineered analog DC ammeter designed to measure current draw from 0A to 25A. Built to a standard European 72mm DIN profile, this panel-mount meter provides reliable, real-time visual feedback for marine vessels, caravans, RVs, and industrial control panels.
Unlike standard meters that require complex external wiring and separate components, this unit features a built-in internal shunt. This simplifies the installation process significantly, allowing for a direct two-wire connection to measure system current without the need to mount and wire an external shunt module. While the metering mechanism itself is entirely self-powered via the measured circuit, the unit includes separate connections for optional 12V DC or 24V DC backlighting, ensuring clear visibility during night navigation or in dimly lit equipment bays.
Key Features and System Benefits
- Integrated Internal Shunt: Simplifies wiring and saves valuable space behind the dash or switchboard by eliminating the need for an external shunt on circuits up to 25A.
- High-Contrast Readability: Features a matte white dial with a crisp black printed scale and a precision knife-edge mechanical pointer to prevent parallax error and reduce glare.
- Dual-Voltage Backlighting: Equipped with separate terminals for 12V or 24V DC illumination, drawing minimal current (16mA at 12V DC; 20mA at 24V DC) to preserve battery capacity.
- Enhanced Electrical Safety: Supplied with an insulating terminal cover to protect rear connections and prevent accidental short circuits in tight panel enclosures.
- Standard 72mm DIN Footprint: The square bezel design ensures straightforward integration into custom switchboards, modular power distribution panels, and standard DIN cutouts.
- Manual Calibration: Includes a front-accessible zero adjustment screw for precise mechanical calibration of the needle to the zero position.
Engineered for Safety and Reliability
In mobile and marine environments, vibration and tight wiring spaces present constant risks to electrical integrity. Low-grade meters often lack proper terminal protection, increasing the risk of conductive objects bridging the rear studs and causing dangerous short circuits. The inclusion of a dedicated terminal cover directly mitigates this hazard, safeguarding your distribution panel and connected equipment.
Furthermore, the mechanical movement requires only 1mA at full scale, ensuring that the meter itself does not introduce parasitic drain on your battery bank. Whether you are tracking the output of a solar charge controller, monitoring a dedicated appliance circuit, or overseeing alternator charging currents up to 25A, this Blue Sea Systems ammeter delivers consistent, dependable metrics.
Ideal Applications
- Marine Switchboards: Monitor bilge pumps, navigation electronics, or cabin lighting loads on yachts, workboats, and cruisers.
- Caravan and RV Power Systems: Track 12V or 24V appliance draw and auxiliary battery charging rates in off-grid touring setups.
- Industrial Control Panels: Integrate into 72mm DIN grid layouts for reliable machinery and DC power supply monitoring.
Upgrade Your Electrical Monitoring
Ensure accurate current tracking and streamlined panel installation for your 12V or 24V electrical system. Add the Blue Sea Systems 0-25A DIN DC Ammeter to your setup today for dependable, professional-grade circuit monitoring.
SKU: BS-1052B
SPECIFICATIONS
Specifications
| Model | 1052 |
|---|---|
| Meter | Current |
| Function | 0-25 A |
| Design | Standard European 72 mm design |
| Dial | White matte dial with black printed scale and knife-edge pointer |
| Backlighting | Backlit meter face (separate 12 or 24 V DC backlight connections) |
| Backlighting Amperage | 16 mA @ 12 V DC; 20 mA @ 24 V DC |
| Connection | 2 wire-no other power required |
| Meter Current | 1 mA at full scale |
| Shunt Type | Internal |
| Terminal Cover | Included to prevent accidental short circuit |
| Weight | 0.33 lb (0.15 kg) |
| SKU: | BS-1052B |
| Model #: | BS-1052B |
| MPN: | BS-1052B |
| Package weight: | 0.24 kg |
| Package length: | 0.1 m |
| Package width: | 0.1 m |
| Package height: | 0.08 m |
