5mm (2.9mm²) Twin Core Automotive Cable per Metre
5mm (2.9mm²) Twin Core Automotive Cable per Metre
Twin core copper cable for neat, extra-low-voltage DC runs; 34A rated (AS/NZS 3008, free air 40°C)
View all products from Key

DESCRIPTION
5mm (2.9mm²) Twin Core Automotive Cable per Metre – Built for Dependable 12V/24V/48V Wiring
When you’re running low-voltage power in a 4WD, caravan, trailer or canopy build, the cable you choose can directly affect voltage drop, heat build-up and long-term reliability. The 5mm (2.9mm²) Twin Core Automotive Cable per Metre is a professional-grade twin core automotive cable, Australian made by KEY with plain copper conductors to support stable power delivery.

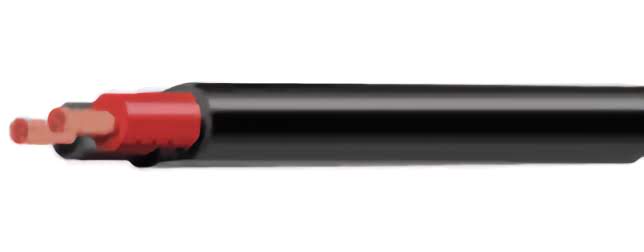

The twin core (twin sheathed) design keeps positive and negative together inside one outer jacket, helping you achieve a cleaner install, faster routing and simpler fault-finding. With red and black colour-coded cores, polarity identification is straightforward during installation and maintenance—particularly useful when you’re working under time pressure or tracing a circuit in tight spaces.
Designed to Help Reduce Voltage Drop in Real-World 12V Circuits
In touring and recreational setups, voltage drop is a common cause of dim lights, low-voltage cut-outs, poor fridge performance and slow charging at the load. Using quality copper conductors and selecting an appropriate cable size for your run length and current draw helps minimise losses so accessories operate as intended. This cable is suited to 12V wiring and is also commonly used in 24V and 48V systems; use it for extra-low-voltage DC only (refer to applicable wiring standards for your application).
Durability for Vehicles and Trailers
V90HT PVC insulates the red and black cores to better handle elevated temperatures. The flexible multi-strand copper construction makes it easier to pull through conduit, route behind trims, and follow chassis or cabinetry runs—without fighting the cable on tight bends. This can reduce installation time and help lower the risk of insulation damage.
Standards-Aligned Materials for Added Confidence
The conductors are made from plain annealed copper to AS/NZS 1125, with PVC compounds to AS 3808. Rated 34A to AS/NZS 3008.1.1 (twin-core cable in free air at 40°C ambient), it suits caravan, camper trailer and 4WD accessory circuits such as lighting, water pumps and fridges. *Derating factors apply for bundled cables, enclosure and higher ambient temperatures. Use our cable sizing calculator for your installation.
Please note: Not suitable for mains connection
Key features
- Twin core sheathed design for neat routing and added mechanical protection
- Plain copper conductors to support efficient low-voltage power delivery
- Rated 34A in free air at 40°C (AS/NZS 3008.1.1); derate when bundled or enclosed
- Red & black inner cores to help reduce polarity errors
- Flexible multi-strand construction for easier installation through tight runs
Typical applications
- 12V accessory wiring where tidy polarity and durability matter
- Caravan and camper trailer accessory circuits (lighting, water pumps, fridges)
- 4WD touring and canopy wiring (rear power, sockets, LED lighting feeds)
- Trailer wiring runs where easy identification is important
- General automotive and recreational low-voltage distribution within rated limits
Select the Right Size for Your Install
Choose the cable size based on current draw, run length and allowable voltage drop for your circuit, and ensure correct fusing and protection. If you’re unsure which option best suits your setup, consult an auto electrician for guidance—then order the 5mm (2.9mm²) Twin Core Automotive Cable per Metre and wire your 12V accessory circuits with confidence.
SKU: Key-KA2TW500-BK-1
SPECIFICATIONS
Specifications
Conductor: plain copper to AS/NZS 1125. Insulation: PVC V90HT to AS 3808.
This listing is the highlighted row. Source: KEY Automotive Cable Spec Sheet F181a-1 (July 2026); AMP ratings per the note below.
Single Core
| Part No. | Industry Size | No. of Cores | Conductor No. / Dia. (mm) | Nominal Area (mm²) | Insulation Thickness (mm) | Electrical Resistance at 20°C (ohm/km) | Nominal O.D. (mm) | **AMP Rating (free air, 40°C) |
|---|---|---|---|---|---|---|---|---|
| KA200 | 2 | 1 | 7/0.32 | 0.56 | 0.4 | 32.7 | 1.8 | – |
| KA300 | 3 | 1 | 14/0.32 | 1.13 | 0.4 | 16.5 | 2.3 | 22 |
| KA400 | 4 | 1 | 23/0.32 | 1.85 | 0.4 | 10.1 | 2.7 | 29 |
| KA500 | 5 | 1 | 36/0.32 | 2.90 | 0.4 | 6.4 | 3.05 | 37 |
| KA600 | 6 | 1 | 57/0.32 | 4.58 | 0.6 | 4.5 | 4.15 | 49 |
Twin Core
| Part No. | Industry Size | No. of Cores | Conductor No. / Dia. (mm) | Nominal Area (mm²) | Insulation Thickness (mm) | Electrical Resistance at 20°C (ohm/km) | Nominal O.D. (mm) | **AMP Rating (free air, 40°C) |
|---|---|---|---|---|---|---|---|---|
| KA2TW200 | 2 | 2 | 7/0.32 | 0.56 | 0.4 | 32.7 | 3.2 x 5.2 | – |
| KA2TW300 | 3 | 2 | 14/0.32 | 1.13 | 0.4 | 16.5 | 3.8 x 5.9 | 20 |
| KA2TW400 | 4 | 2 | 23/0.32 | 1.85 | 0.4 | 10.1 | 4.1 x 6.8 | 26 |
| KA2TW500 | 5 | 2 | 36/0.32 | 2.90 | 0.4 | 6.4 | 4.5 x 7.7 | 34 |
| KA2TW600 | 6 | 2 | 57/0.32 | 4.58 | 0.6 | 4.5 | 6.0 x 10.1 | 46 |
** AMP rating: AS/NZS 3008.1.1 value in free air at 40°C ambient (single core: two cables spaced in free air; twin core: one cable in free air), with the V90HT PVC insulation rated at 90°C, interpolated for each conductor size (– = below the smallest size the standard tabulates). Derating factors apply for bundled cables, enclosure and higher ambient temperatures. Use our cable sizing calculator for your installation.
| SKU: | Key-KA2TW500-BK-1 |
| Model #: | KA2TW500-BK |
| MPN: | KA2TW500-BK |
| HS code: | 8544493080 |
| Country of origin: | AU |
| Package weight: | 0.08 kg |
| Package length: | 0.01 m |
| Package width: | 0.01 m |
| Package height: | 0.01 m |
