30m Roll of 2B&S (32mm²) Black Single Core Marine (Tinned) Cable

172A rated (AS/NZS 3008, free air 40°C) 2B&S (32mm²) black marine tinned copper cable for high-current 12V/24V/48V DC wiring


Regular price $490.00
/
Availability: In Stock
View all products from Tyree

Shipping Calculated in Cart | Add to cart and enter your postcode to see live shipping options.

Guaranteed Safe and Secure Checkout
Apple Pay Google Pay Mastercard PayPalShop Pay Visa
99998

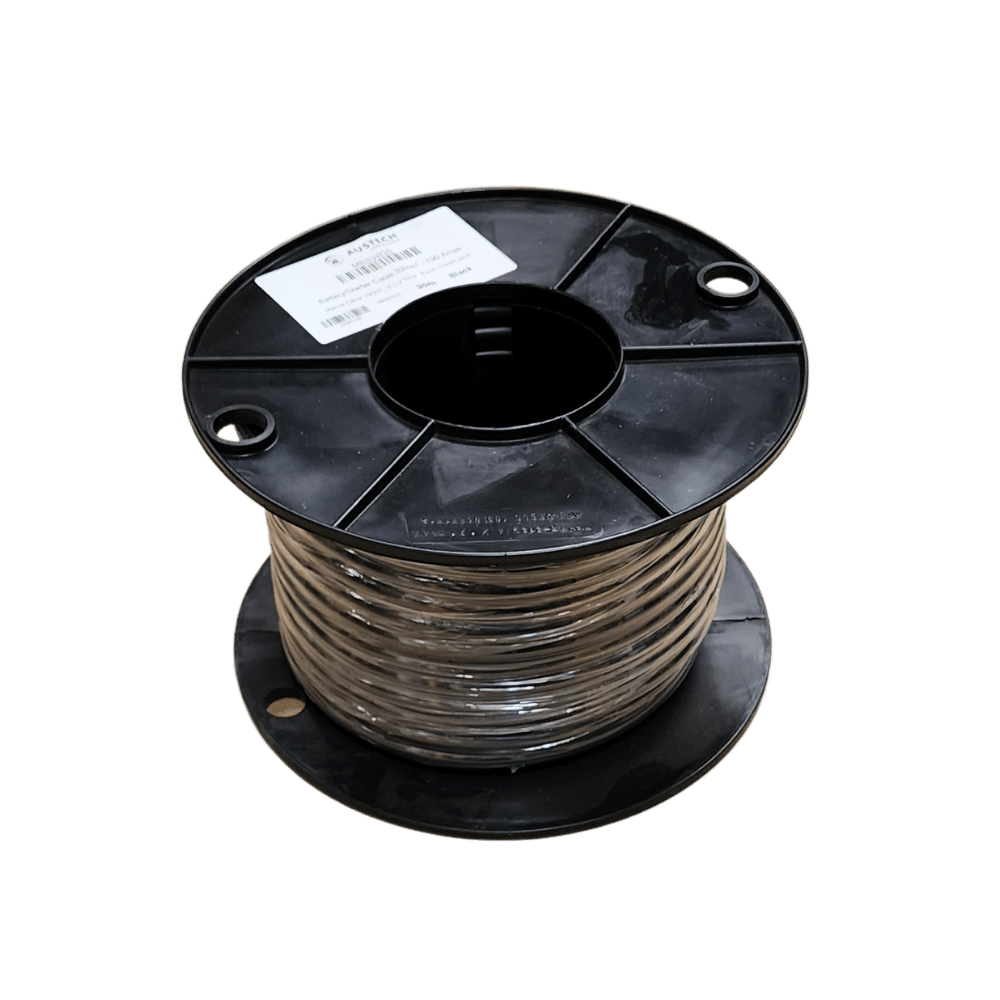

High-angle view of 30m cable roll on a black plastic spool with Austech label

30m Roll of 2B&S (32mm²) Black Single Core Marine (Tinned) Cable

DESCRIPTION

Marine-Grade Tinned Copper Cable for High-Current DC Systems

When you’re wiring a boat, 4WD, caravan, or off-grid battery bank, voltage drop and corrosion aren’t minor issues—they directly affect performance and reliability. Tycab 30m Roll of 2B&S (32mm²) Black Single Core Marine (Tinned) Cable is a heavy-duty marine tinned cable designed for demanding 12V and 24V electrical systems, and also suited to 48V DC applications where the DC voltage rating of 60V is appropriate. Built with a tinned copper conductor and V90 PVC insulation, it’s engineered to handle high current while maintaining conductivity in harsh marine and coastal environments.

Unlike standard automotive cable, tinned copper helps reduce the risk of corrosion creep and increased resistance over time—especially where salt spray, humidity, and temperature cycling are common. That means more consistent power delivery to critical loads like inverters, winches, DC chargers, battery interconnects and starter circuits, and less troubleshooting later.

Designed for Australian Conditions and Standards

This cable is Australian made, with a 399/0.32mm tinned copper conductor to AS/NZS 1125 and PVC insulation to AS/NZS 3808. The V90 insulation is rated for higher temperature operation (up to 90°C), which is particularly useful in engine bays, enclosed compartments, and tight cable runs where heat build-up can be a factor.

Supplied as a 30m continuous roll, it suits new installations and refits where you want fewer joins and a cleaner, more serviceable loom. The single-core design also makes polarity identification straightforward—choose black to match common marine and automotive wiring conventions.

Where This Cable Fits Best

If your system includes high-current DC equipment, cable quality matters. Using an appropriately sized, marine-grade conductor can help reduce:

  • Voltage drop across long runs
  • Heat build-up caused by undersized or high-resistance conductors
  • Corrosion-related faults in coastal and marine installs

Rated 172A to AS/NZS 3008.1.1 (two single-core cables spaced in free air at 40°C ambient), Tycab 30m Roll of 2B&S (32mm²) Black Single Core Marine (Tinned) Cable is a strong choice for high-current battery, inverter, winch, starter and DC charger wiring where durability, flexibility and stable conductivity are priorities. *Derating factors apply for bundled cables, enclosure and higher ambient temperatures. Use our cable sizing calculator for your installation. It is not suitable for mains connection and is made for extra-low-voltage DC systems up to 60V d.c.

Key features

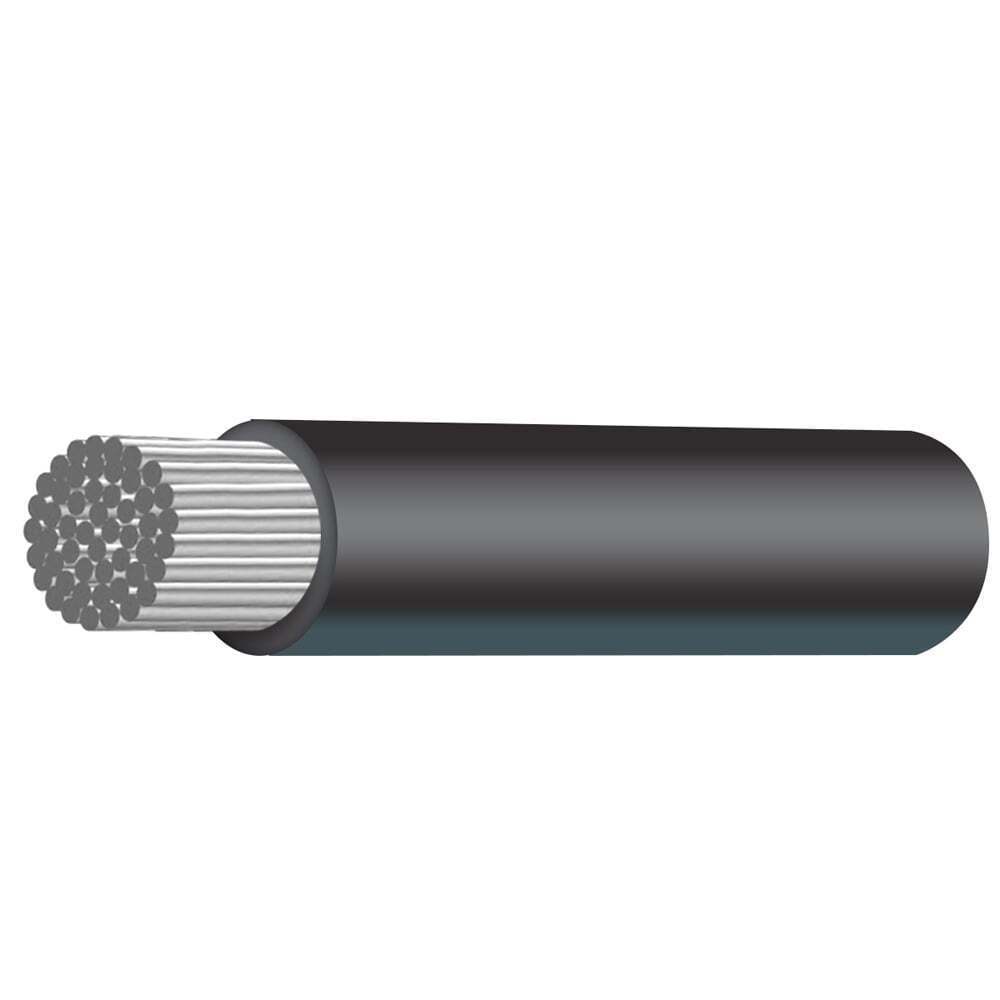

  • 399/0.32mm stranded tinned copper conductor to AS/NZS 1125 for corrosion resistance and flexibility for routing; resistance 0.62 ohm/km at 20°C
  • V90 PVC insulation to AS/NZS 3808, rated up to 90°C, with a nominal outer diameter of 10.3mm
  • High-current capability (rated 172A in free air at 40°C to AS/NZS 3008.1.1; derate when bundled or enclosed)
  • Extra-low voltage rated to 60V DC for suitable DC installations
  • 30m continuous roll for fewer joins and cleaner cable management

Build a Wiring System You Can Trust

Whether you’re upgrading battery cables, wiring a high-load accessory, or completing a full marine fit-out, choosing marine-grade tinned cable helps protect your investment in batteries, charging gear and DC appliances. Select 30m Roll of 2B&S (32mm²) Black Single Core Marine (Tinned) Cable for your high-current battery, inverter, winch, starter and DC charger wiring and complete your install with correctly sized tinned lugs, adhesive-lined heat shrink, suitable circuit protection and sound termination practices for a professional result.

SPECIFICATIONS

Specifications

  • Conductor: tinned annealed copper to AS/NZS 1125, drawn from Class 110A copper to AS/NZS 1574; 2 B&S cross-section to SAE J1127
  • Insulation: coloured V90 PVC to AS/NZS 3808
  • Colour: Black
  • Voltage rating: 60V d.c. Not for mains connection.
Code Size B&S Nominal Area (mm²) Strand No. / Size **AMP Rating (free air, 40°C) Max. D.C. Resistance at 20°C (Ω/km) Nominal Insulation Thickness (mm) Nominal O.D. (mm) Voltage Rating
MBS145503 2 32 399/0.32 172 0.62 1.7 10.3 60V d.c.

** AMP rating: AS/NZS 3008.1.1 value for two single-core cables spaced in free air at 40°C ambient, with the V90 PVC insulation rated at 90°C, interpolated for this conductor size. Derating factors apply for bundled cables, enclosure and higher ambient temperatures. Use our cable sizing calculator for your installation. Construction: Tycab MBS specification (revised 23 July 2026).


SKU: Ty-MBS145503-BK-100
Model #: MBS2B30-30
MPN: MBS2B30-30
HS code: 8544493080
Country of origin: AU
Package weight: 11.6 kg
Package length: 0.26 m
Package width: 0.26 m
Package height: 0.17 m
