Exotronic 24V 200W Portable Folding Solar Panel + 20A Bluetooth MPPT Solar Controller

Lithium Compatible

RRP $599.00
$449.00
SAVE $150.00 (25%)
In Stock
Exotronic logo

Free Fastway shipping for orders over $500 on items this size to capital cities. Calculate shipping in cart for more details.

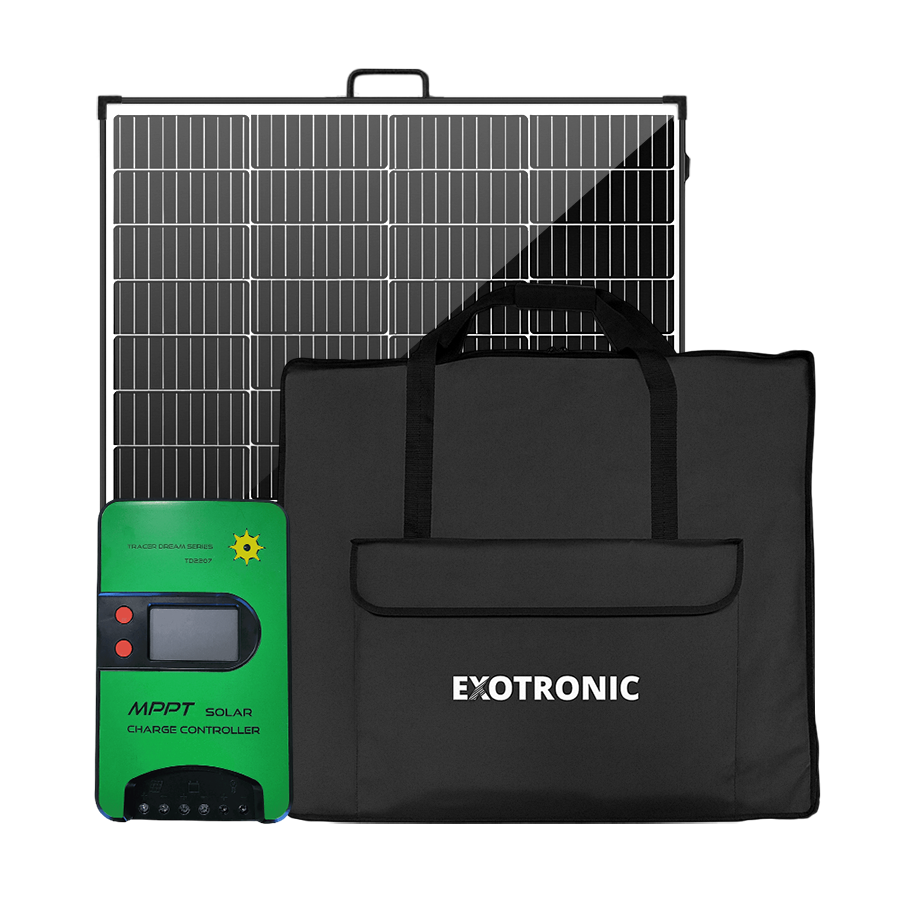

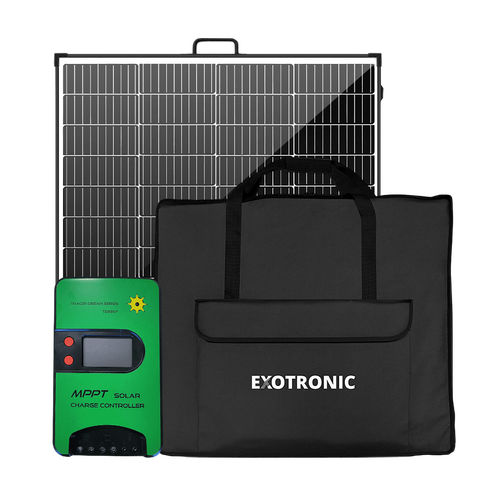

Exotronic Foldable 24V 200W Portable Solar Solution including an Exotronic 20A Bluetooth MPPT

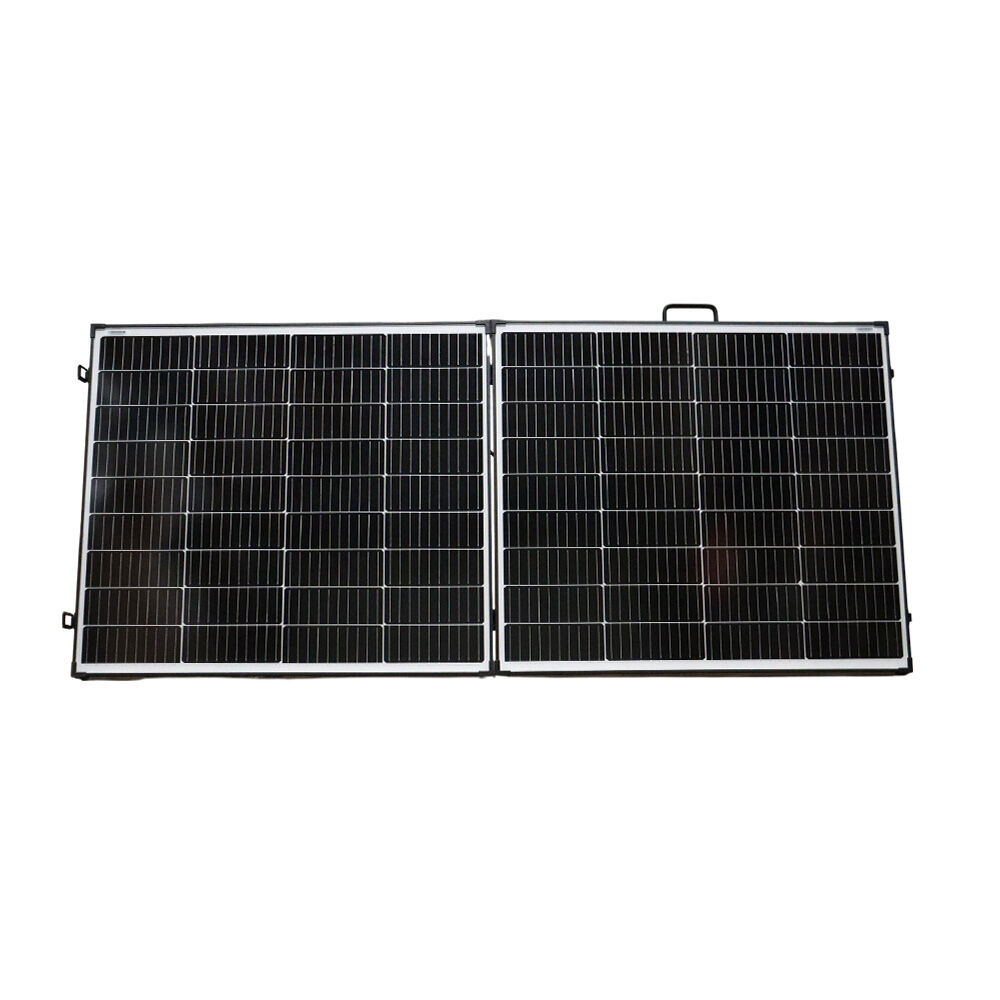

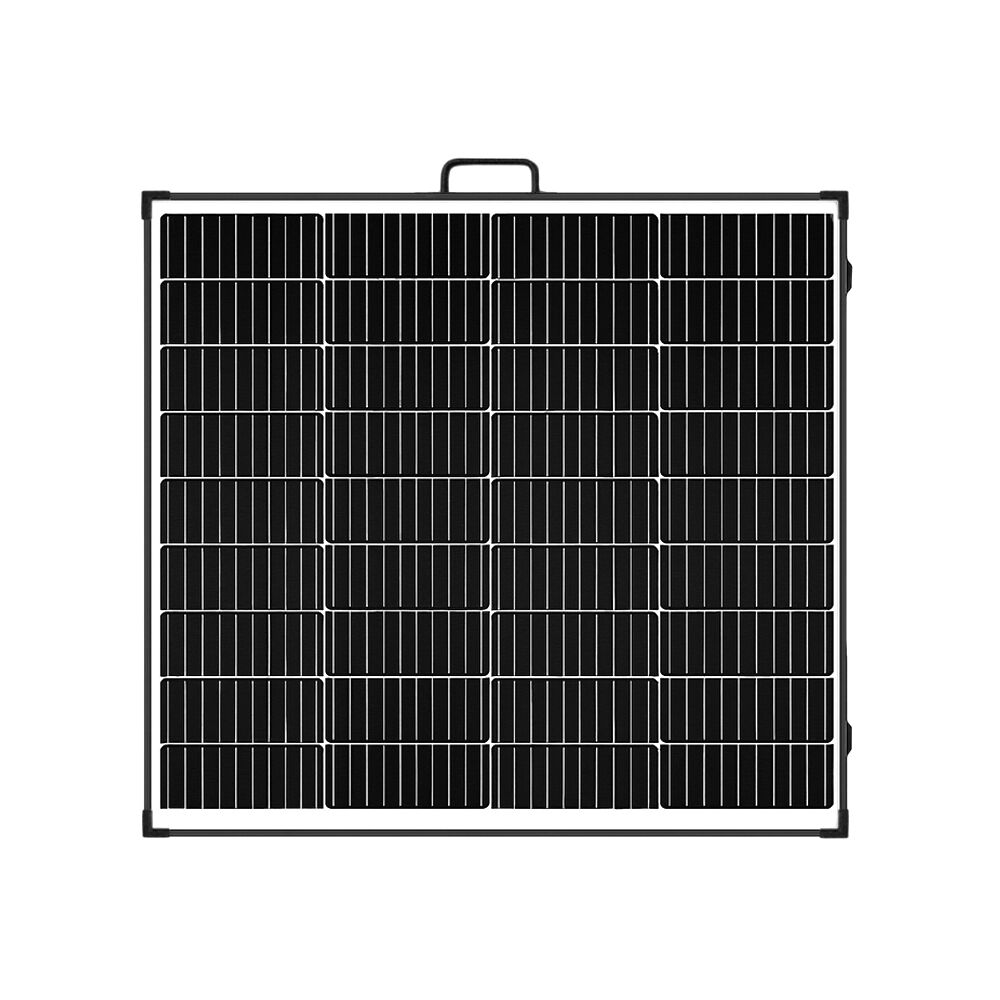

When camping, parking under shade, or need access to free power to charge your battery, Exotronic has you covered with a strong but small form-factor foldable glass solar panel solution.  The 200W briefcase is made up from two 100W solar modules using Trina half-cut 23% PERC monocrystalline solar cells with 9-wire busbars to maximise module efficiency.

Easy Setup and Transport

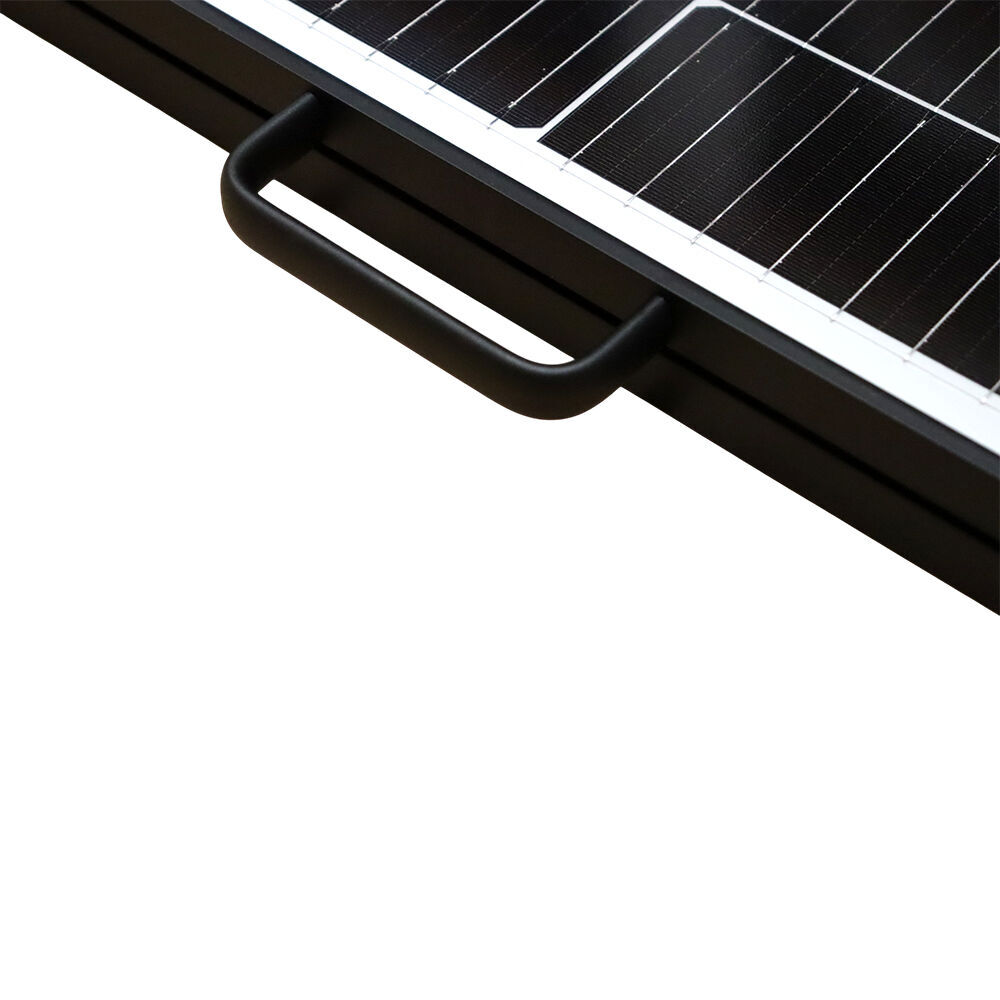

Weighing only 11.2kg, this panel can be manoeuvred with minimal effort.

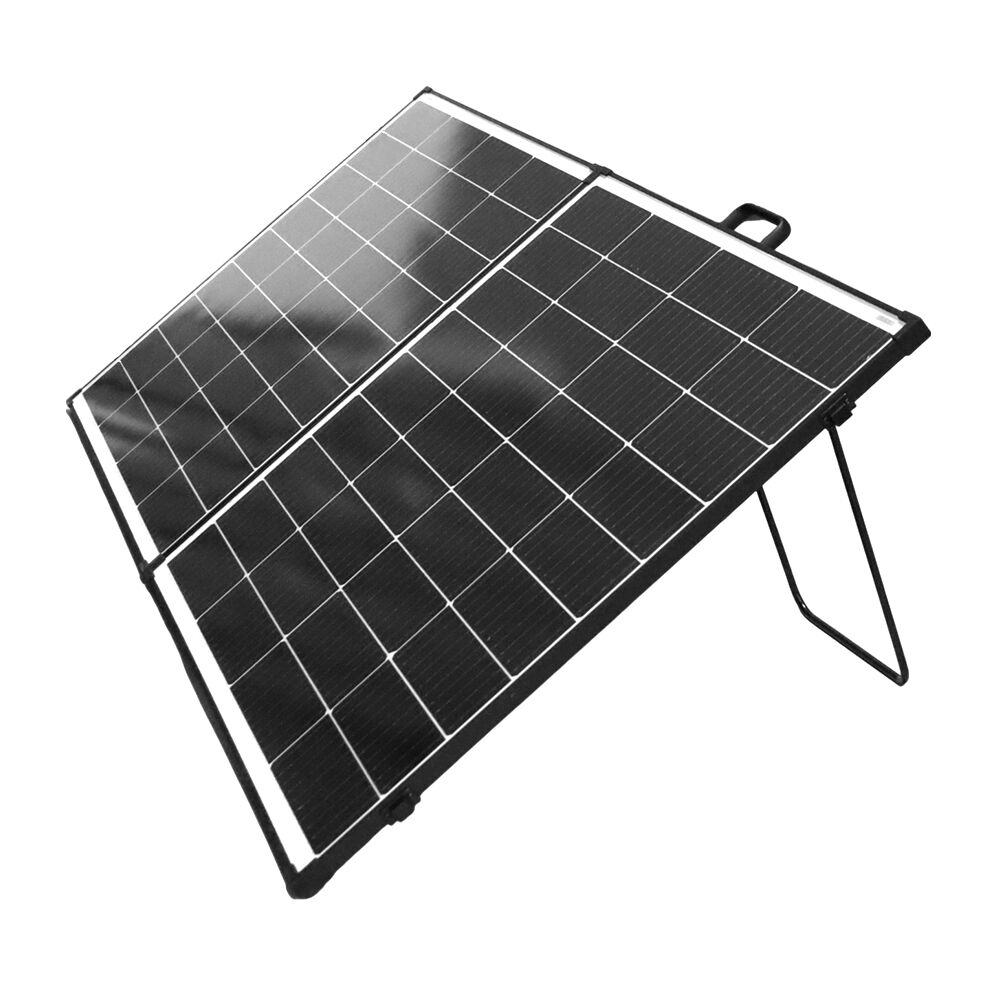

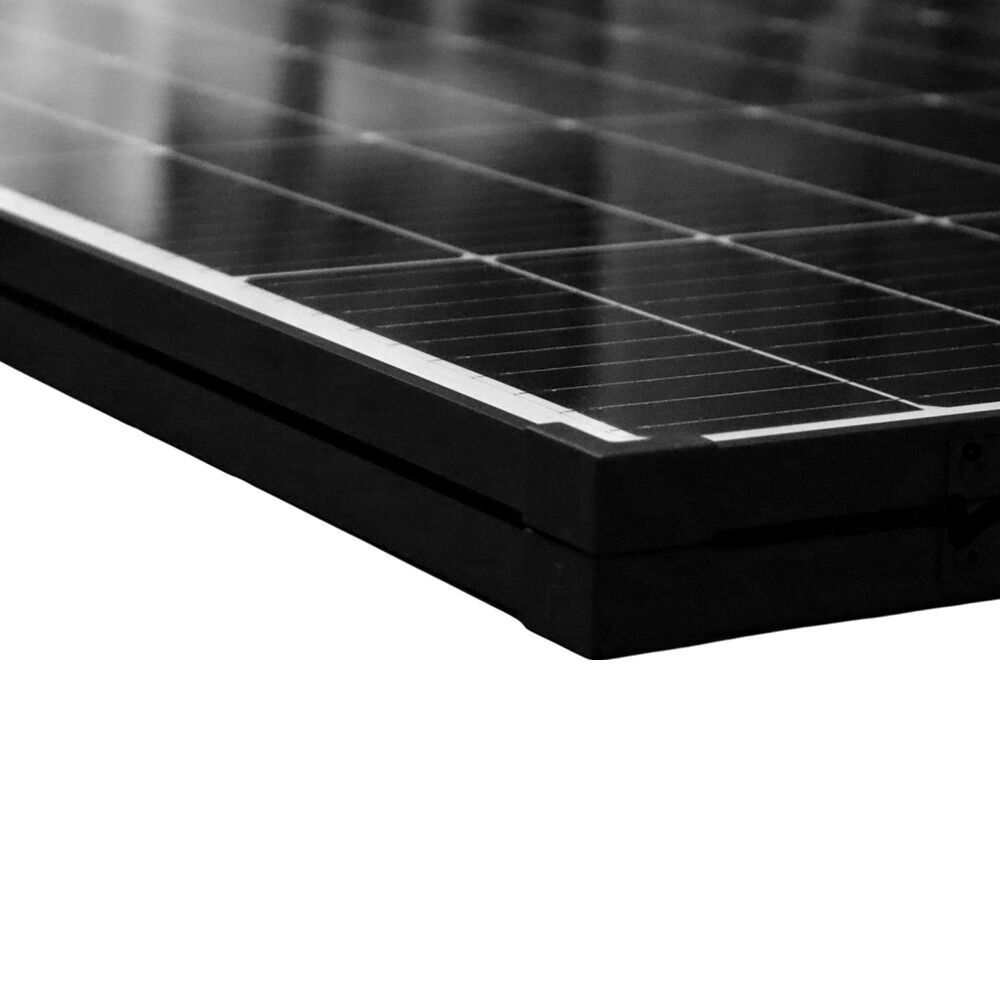

These modules include bumpers on the corners and fold-away legs,

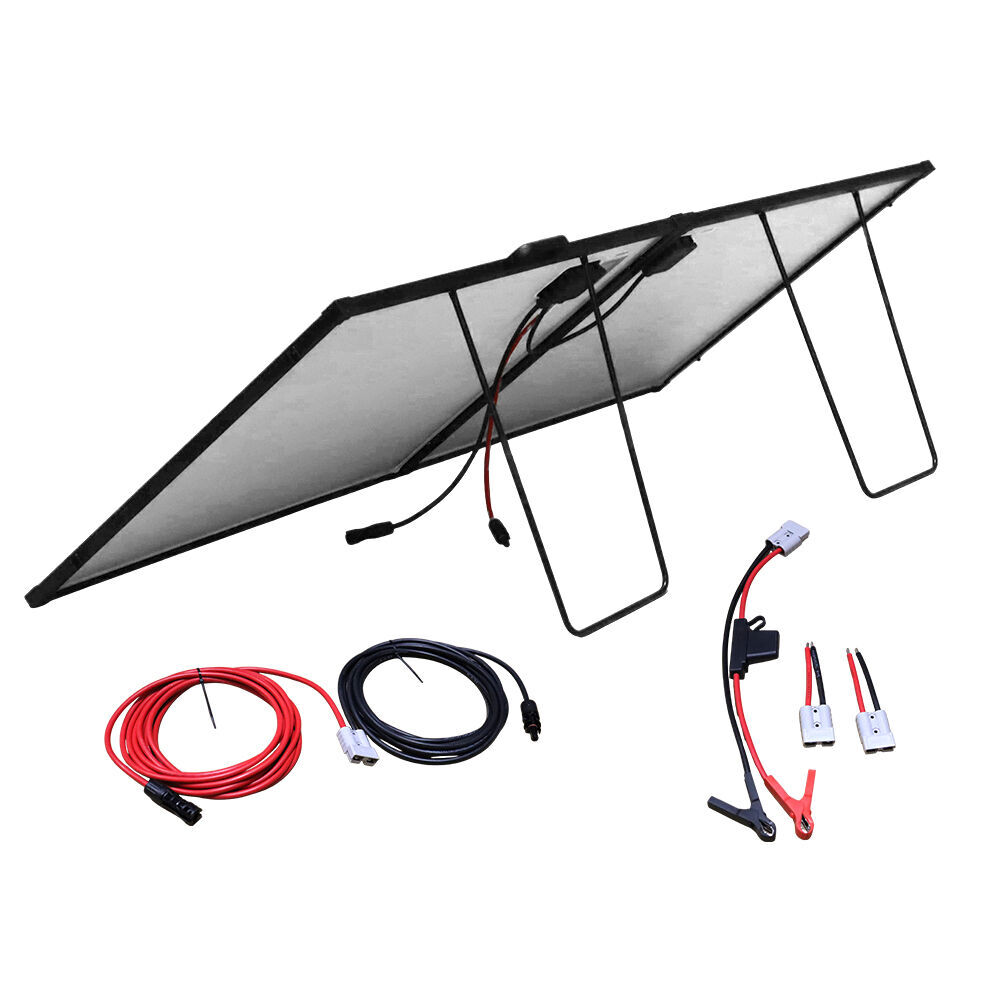

Premium Cable Set

Also included is an array of premium quality cables to suit any situation:

  • 5m 4mm2 PV1-F heavy duty tinned copper (marine) MC4 to 50A grey Anderson cable between the solar panel and solar charge controller (this can be connected directly to your existing DC-DC charger solar input or solar controller) - do not connect the panel directly to a battery without a controller
  • 2x 50A grey Anderson tails, to connect to your existing MPPT or PWM solar controller
  • Alligator to 50A grey Anderson with 30A fuse (this can be used to jump start a lithium battery BMS or charge a starter battery when needed)

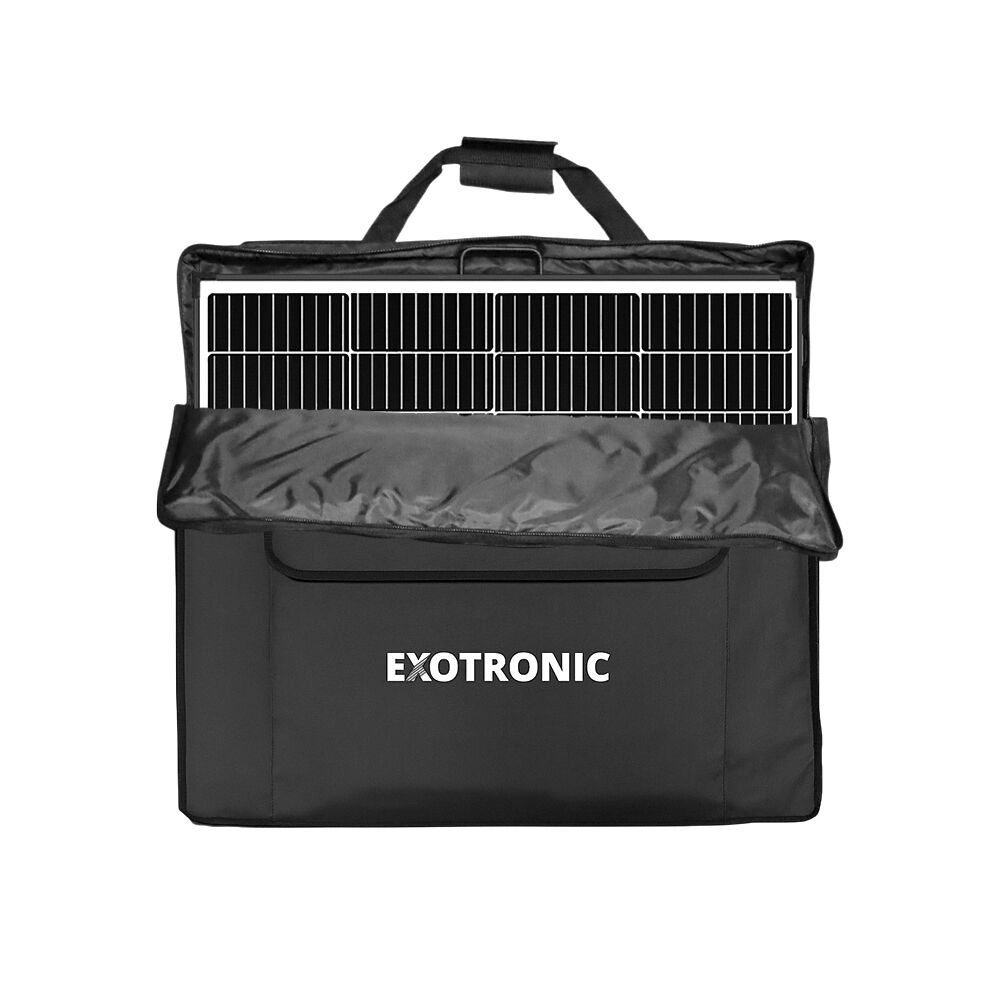

Protective Canvas Bag Included

The included padded canvas bag helps protect the solar module from scratches when stored away and includes a carry handle and pocket to store the cables and controller when not in use.

High-Efficiency Solar Power

Using 23% efficient Trina monocrystalline passivated emitter rear contact (mono-PERC) square cut cells and the latest 9-wire bus-bar low-loss design, these panels achieve a high efficiency with a positive power tolerance.

PERC cells provide better performance in low light applications compared to traditional monocrystalline silicone designs as some of the light that passes through the cell is bounced back and converted into electricity.

The 9-wire busbar decreases the resistance of the module and carries current evenly over the whole surface of the cells to ensure that all there are minimal power losses within the module and significantly reduces uneven cell heating and hot spots.

Exotronic Tracer Dream 75V Bluetooth Series: Advanced Solar Charge Controller

For optimal operation and safety, position the solar controller in proximity to your battery. This strategic placement minimizes heat transfer between the MPPT and the solar panel, enhancing efficiency and durability.

The Tracer Dream 75V Bluetooth Series is engineered with MPPT technology. Its 32-bit CPU ensures stability and high-speed operation. The innovative Synchronous Rectifier Technology enhances circuit transfer efficiency up to an impressive 98.5%, while the Pmax tracking accuracy soars to 99.5%. This ensures the controller quickly identifies the exact Pmax even in rapidly changing sunlight conditions. It effectively manages extreme weather and weak sunlight, ensuring maximum performance.

Key Features:

  • Employs advanced MPPT technology for swift and stable operation. It boasts up to 99.5% efficiency in tracking the Maximum Power Point.
  • Leverages Synchronous Rectifier Technology, enhancing the circuit transfer efficiency to an exceptional 98.5%.
  • Successfully identifies and tracks multi-peak power point function and PV array limited power input function, guaranteeing that the controller avoids overloading under any conditions.
  • Supports a wide Maximum Power Point range of PV array, with a maximum PV input voltage of 75V.
  • Automatically recognizes 12/24VDC system voltage.
  • Features a user-friendly LCD display, providing dynamic operation data and working status.

Control and Monitoring:

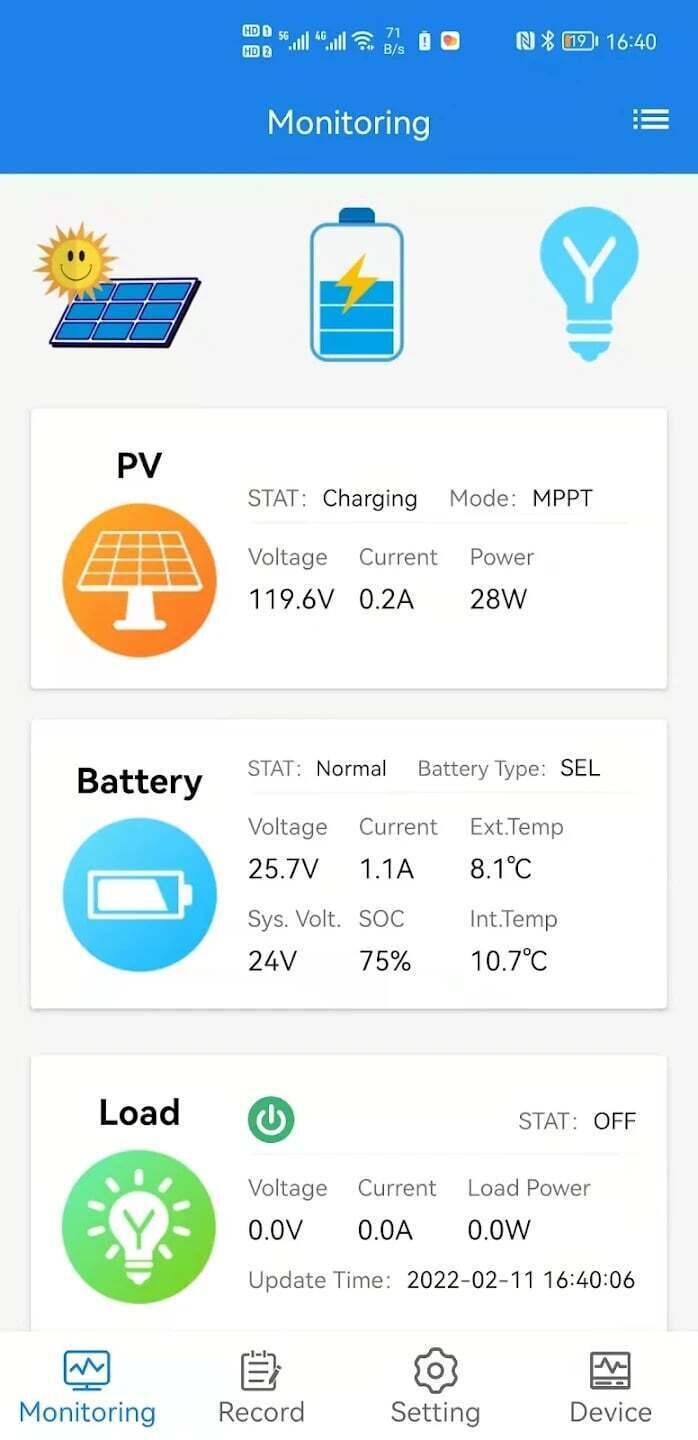

  • Access the Bluetooth App on your Apple or Android device by searching for LD iConnect. The default password is 1234.
  • Incorporates a built-in operation log for comprehensive record-keeping.
  • Offers multiple Load Output Control modes: Normal Mode, Sensor Mode, and Timer Mode.
  • Provides a Temperature Compensation Function to mitigate environmental effects.
  • Offers a charging and discharging accumulation function, alongside real-time power generation display.

Battery Charging and Protection:

  • Includes a 3-stage charging mode with several chemistry modes: Sealed, Gel, Flooded, Lithium, and many user-adjustable settings (default set to Lithium).
  • Comprehensive digital protection functions ensure the device's longevity and safety. These include safeguards against reverse connection, overcharging, over-discharging, overvoltage, overload, short circuits, and more.

(Exo-FP-200-24V-TD)

Need help choosing a solar panel? Click this link to check our solar panel selector table!

Foldable Solar Panel Specifications

Module Specifications
Model Power (W) No. of Cells Dimensions (mm) Folded Dimensions (mm) Unfolded Weight (kg) Vmp (V) Imp (A) Voc (V) Isc (A) Module Efficiency (%)
Exo-FP-200-24V 200 2x 36 (4x9) 775x675x40 775x1350x19 11.2 39.6 5.06 48.2 5.25 19.3



Temperature Ratings
NMOT 41C +/-3C
Temperature Coefficient of Pmax -0.37%/C
Temperature Coefficient of Voc -0.29%/C
Temperature Coefficient of Voc 0.05%/C



Maximum Ratings
Operating Temperature -40 - +85C
Maximum System Voltage 1000VDC
Maximum Fuse Rated Current 15A



Mechanical Characteristics
Front 3.2mm Tempered Glass
Frame Black Anodized Aluminium Alloy
Junction Box IP65/IP67
Connectors MC4 Compatible

Solar Charge Controller Specifications

Model TD2207
System Voltage 12V/24V DC auto
Working voltage range 8~32V
Max. PV open circuit voltage 75V(Min.working temperature) 70V(25°C)
MPP voltage range (Battery voltage+2V)~65V
Discharge circuit voltage drop ≤0.25V
Self-consumption <23mA
Rated charge current 20A
Rated discharge current 20A
Max.PV input power 260W/12V  520W/24V
Grounding Common positive
Battery type Sealed/Gel/Flood/Lithium (Default LITHIUM)
LVD※* 11.0V ADJ 9V...12V ; x2/24V
LVR※* 12.6V ADJ 11V...13.5V ;x2/24V
Float Voltage※* 13.8V ADJ 13V... 15V ; x2/24V (Default 13.5V)
Boost Voltage※* 14.4V ADJ 13V...17V ;x2/24 battery voltage less than 12.6v auto boost 2hours (Default 14.2V)
Battery Over Voltage Protection 16.5V ; x2/24V
USB Output 2x 5VDC/2A
Temperature Consumption# For 12V system:-24mV /°C ;x2/24V
Relative humidity ≤95%, N.C.
WorkingTemperature —20°C~+50°C (Controller can work continuously at full load)
LCD temperature range —20°C~+70°C
Waterproof grade IP32 (Not waterproof) - Install close to battery with weather protection for best life and charging efficiency

Exotronic 20A MPPT dimensions

SKU Exo-FP-200-24V-TD
MPN # Exo-FP-200-24V-TD

Warranty Statement

Foldable Solar Panel

Exotronic warrants its foldable solar modules, including framing, to be free of defects in workmanship and materials for a period of 60 months from the date of the authorised dealer's invoice to the original purchaser. This warranty is applicable for mobile and marine applications, provided that:

  • The product is correctly installed and used under normal operating conditions for which it was intended.
  • All warranty claims are received by an authorised Exotronic Dealer and approved by Exotronic.

Exotronic reserves the right to repair, replace, refund, or compensate for any decrease in value due to a defect.

Accessories (Cables/Connectors, Canvas Bag)

Exotronic warranties its accessories, including cables, connectors, and the canvas bag, to be free of defects in workmanship and materials for a period of 12 months from the date of the authorised dealer's invoice to the original purchaser. This warranty is applicable for mobile and marine applications, provided that:

  • The product is correctly installed and used under normal operating conditions for which it was intended.
  • All warranty claims are received by an authorised Exotronic Dealer and approved by Exotronic.

Exotronic reserves the right to repair, replace, refund, or compensate for any decrease in value due to a defect.

Solar Charge Controller

Exotronic warrants its solar charge controllers to be free of defects in workmanship and materials for a period of 24 months from the date of the authorised dealer's invoice to the original purchaser. This warranty is applicable for mobile and marine applications, provided that:

  • The product is correctly installed and used under normal operating conditions for which it was intended.
  • All warranty claims are received by an authorised Exotronic Dealer and approved by Exotronic.

Exotronic reserves the right to repair, replace, refund, or compensate for any decrease in value due to a defect.
