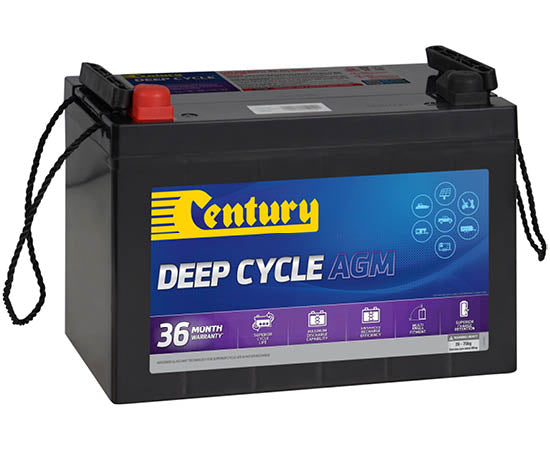

Century 12V 120Ah AGM Deep Cycle Battery
Century 12V 120Ah AGM Deep Cycle Battery
The ultimate in deep cycle battery performance
Key features: Sealed AGM design allows for safe multi-angle fitment, Integrated heavy-duty rope handles for secure lifting, 36-month warranty for long-term reliability, Deep cycle construction suitable for solar and recreational use.
Regular price
$544.35
Availability:
In Stock at Century Warehouse
Allow up to 3 days before dispatch
View all products from Century
Guaranteed Safe and Secure Checkout
0
DESCRIPTION
Century AGM Deep Cycle Batteries are the ultimate in deep cycle battery performance, designed to provide longer life and dependable deep cycling capability in the harshest of operating conditions and environments.
The Century Deep Cycle AGM range utilises Absorbed Glass Mat (AGM) technology which absorbs the liquid electrolyte within highly porous glass fibre mat separators. This eliminates loose electrolyte whilst the sealed maintenance free design prevents acid leaks and the need for on-going maintenance. Extra strong grid designs, superior active paste material and robust internal components ensure lower self discharge, superior vibration resistance, longer cycle life and improved recharge capabilities.
Century Deep Cycle AGM batteries are ideal for use in applications where fast recharge, and superior deep cycle capabilities are required, such as recreational vehicles and accessories, dual battery systems, golf carts, electric wheel chairs, mobility scooters and marine systems.
Features:
- Spill proof - ideal for 90° side mount applications
- Fast recharging capabilities and long cycle life
- Maintenance free design
SKU: C12-120XDA
SPECIFICATIONS
Specifications
| Cells | 6 | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Weight (min / max) | Approx. 32.0–32.0 kg (±2.0%) | ||||||||
| Voltage | 12V | ||||||||
| Max. Discharge Current | 1200A (5 sec) | ||||||||
| Capacity | 120Ah@20hr-rate to 1.75V per cell @ 25°C | ||||||||
| Internal Resistance | Approx. 4mΩ | ||||||||
| Operating Temperature Range |
Discharge: -20°C~60°C Charge: 0°C~50°C Storage: -20°C~60°C |
||||||||
| Terminal | M8 Insert | ||||||||
| Container Material | A.B.S. (UL94-HB) | ||||||||
| Normal Operating Temperature Range | 25°C ± 5°C | ||||||||
| Max. Charging Current Limit | 36A | ||||||||
| Float Charging Voltage | 13.6 to 13.8 VDC/unit (Average at 25°C) | ||||||||
| Temperature Compensation (Float) | -3mV/°C/Cell | ||||||||
| Equalisation & Cycle Service | 14.6 to 14.8 VDC/unit (Average at 25°C) | ||||||||
| Temperature Compensation (Equalisation/Cycle) | -4mV/°C/Cell | ||||||||
| Self Discharge |
Century AGM batteries can be stored for up to 6 months at 25°C, after which recharging is recommended. Self-discharge rate less than 3% per month at 25°C. Please charge batteries before using and prior to long term storage. |
||||||||
| Note | Warranty void if mounted under bonnet | ||||||||
| Dimensions | 328 (L) x 172 (W) x 215 (H) x 220 (TH) (mm) (±2.0mm) | ||||||||
| Discharge Current VS Discharge Voltage |
|
||||||||
| Storage Charging Recommendation | If stored at 25°C, charge batteries at least once every six months | ||||||||
| Charging Method | Constant Voltage -0.2Cx2h+2.4~2.45V/Cellx24h, Max.Current 0.3CA | ||||||||
| Notes | ALL MENTIONED VALUES ARE AVERAGE VALUES. |
| SKU: | C12-120XDA |
| Barcode: | 9313857331212 |
| Model #: | C12-120XDA |
| MPN: | C12-120XDA |
WARRANTY
24 months warranty - Conditions apply. Refer to individual warranty statements affixed to each product.
