Victron 12V to 24V Orion 12/24-8A Non-Isolated IP20 DC-DC Converter
Victron 12V to 24V Orion 12/24-8A Non-Isolated IP20 DC-DC Converter
High Power

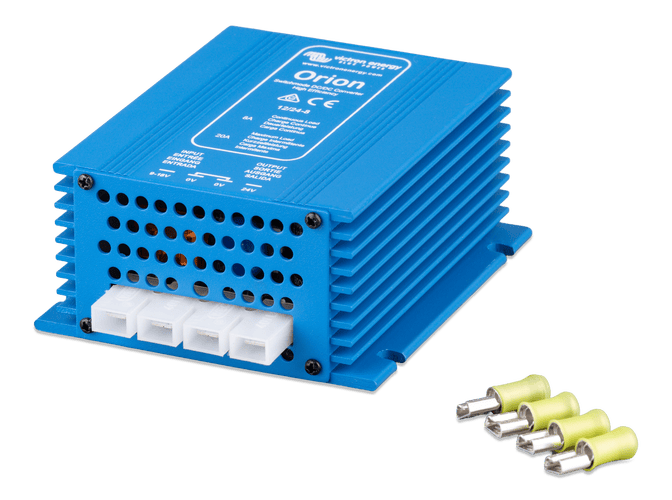

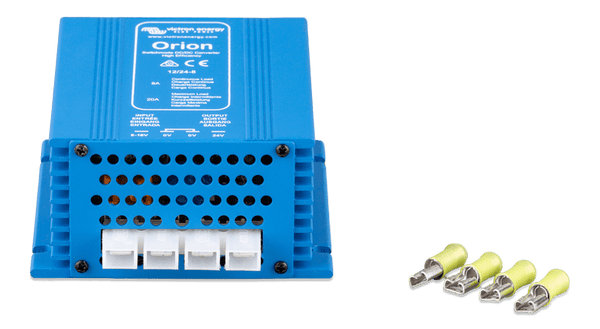

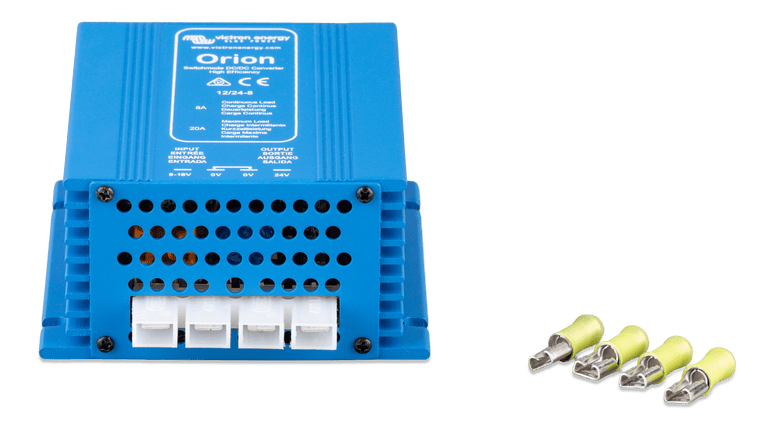

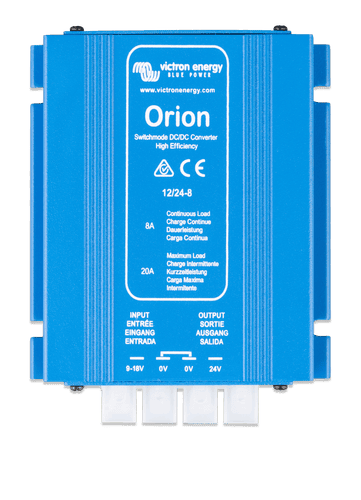

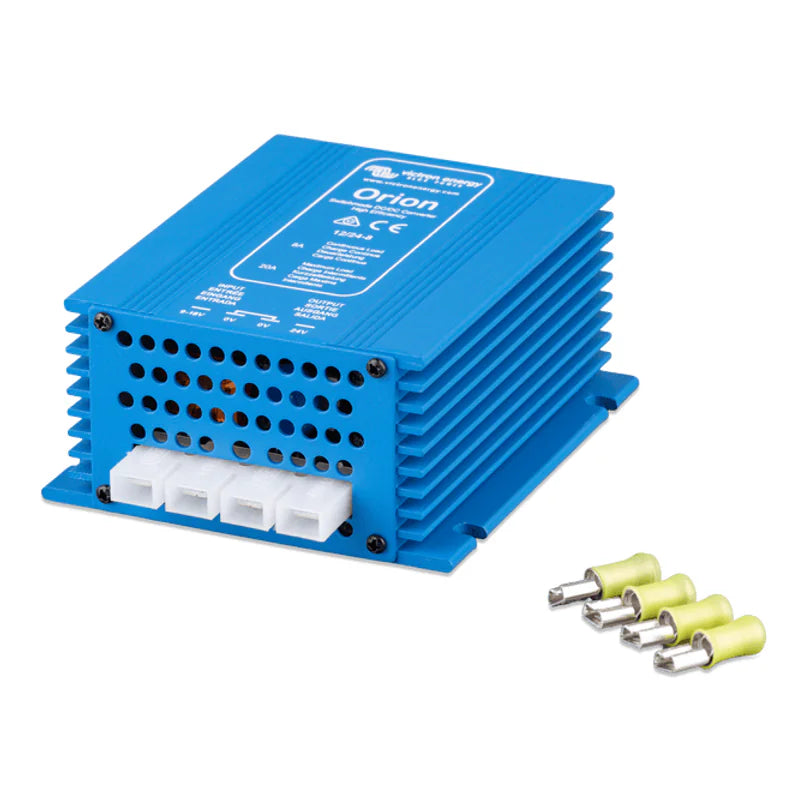

Highlights:Input terminals: 9-18V DC input connection via 6.3mm Faston tabs,Common ground: Dual 0V common ground connection points,Output terminal: 24V DC regulated output connection,Integrated mounting: Side slots for secure chassis or wall mounting,Technical specifications: Clearly marked load ratings for continuous 8A and 20A peak loads.

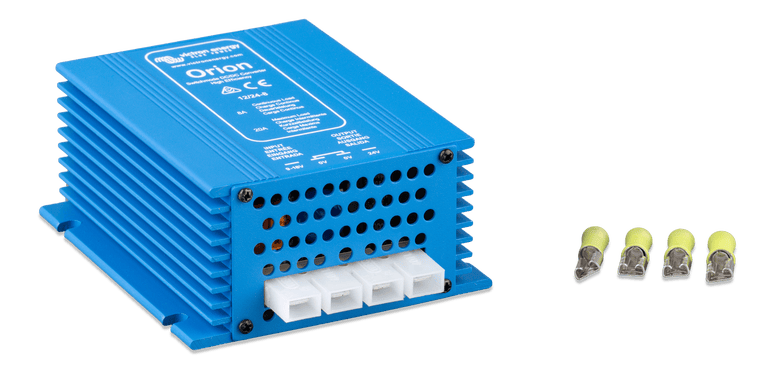

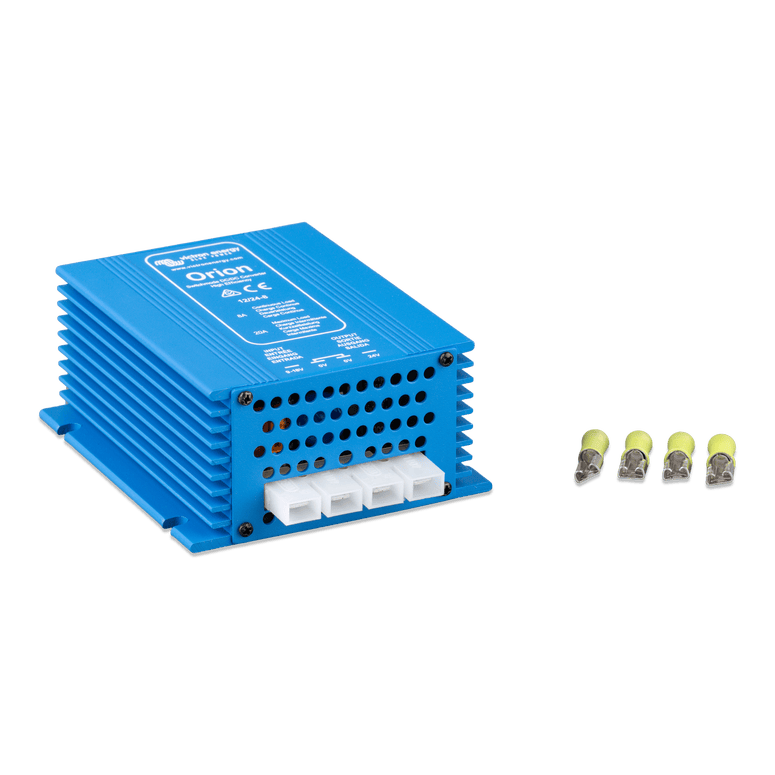

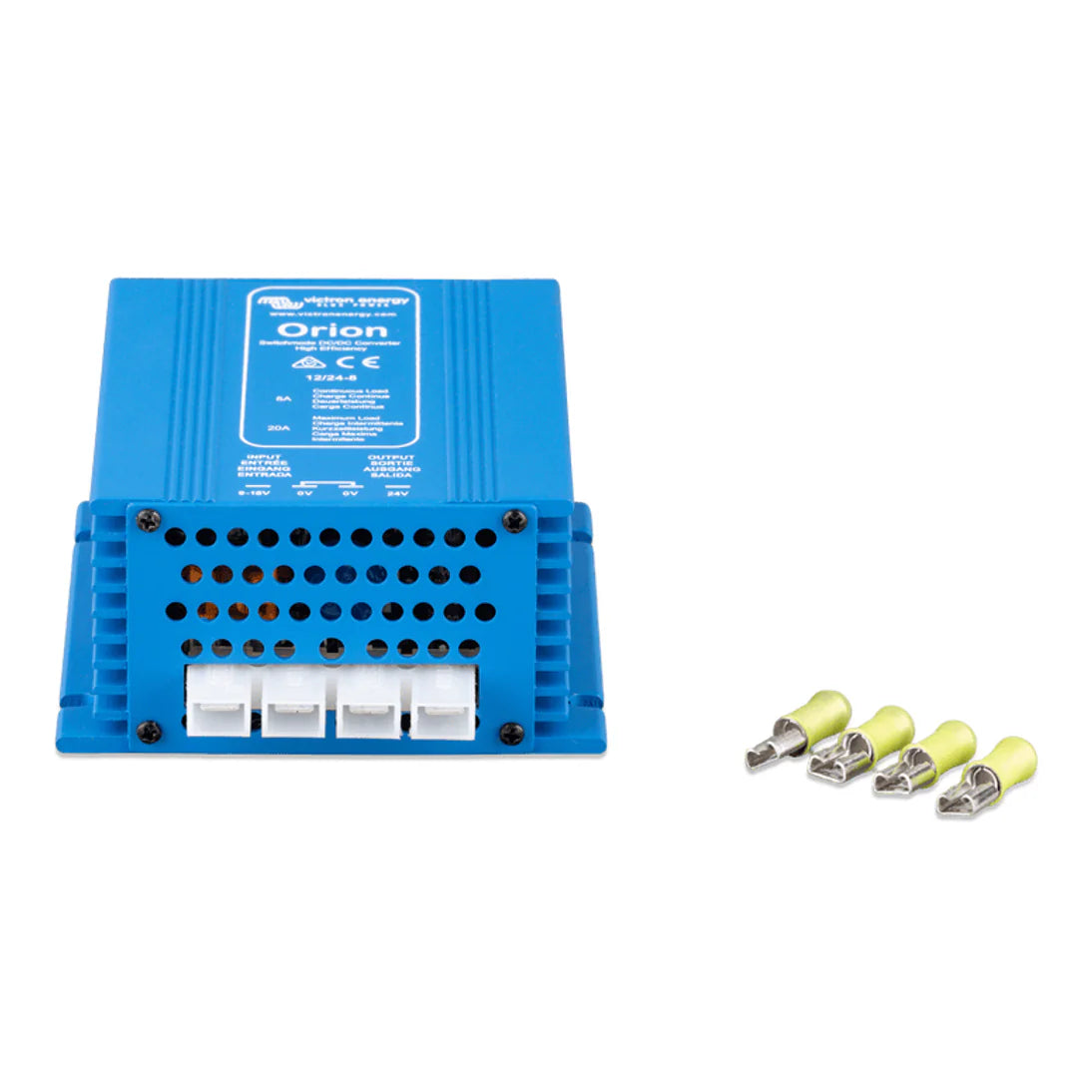

Key features: High 95% efficiency power conversion, 8A continuous and 20A maximum output current, Four 6.3mm Faston tab DC connections, IP20 protection rating for indoor applications.

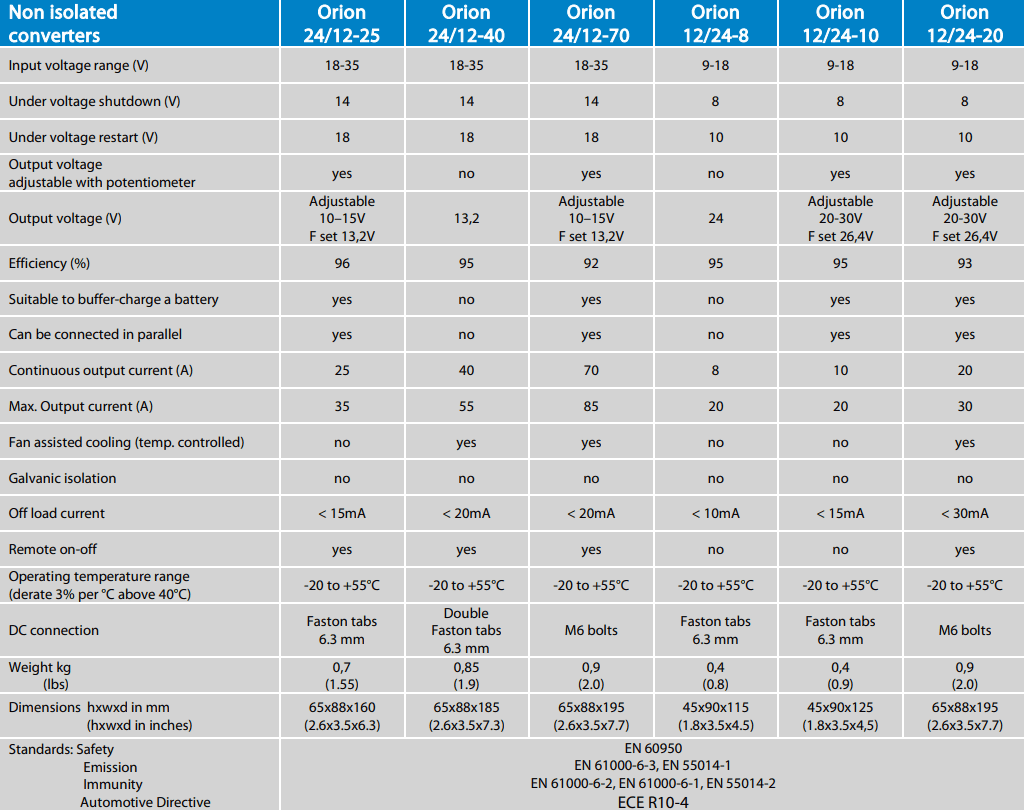

Comprehensive technical specification table for the Victron Orion range including input range, output voltage, 95% efficiency rating, and physical dimensions.

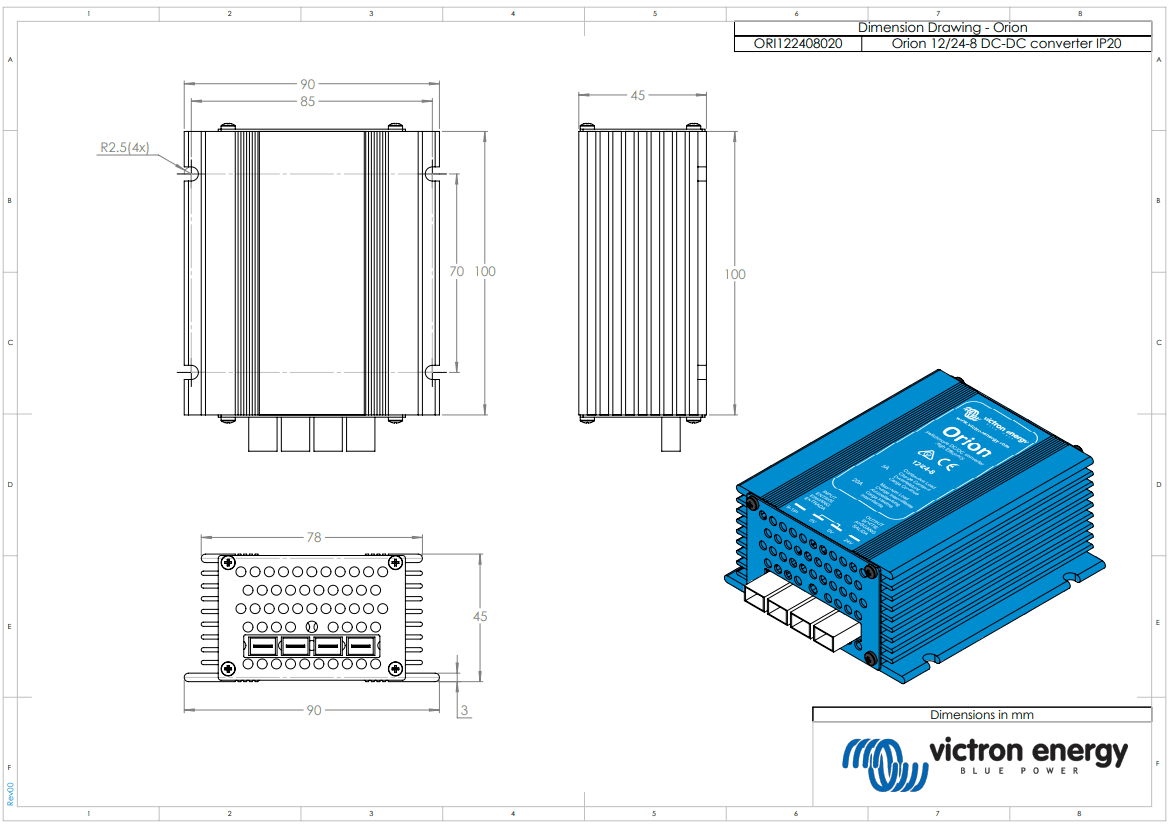

Detailed technical drawing showing the physical dimensions of 45mm x 90mm x 115mm and mounting hole placements for secure installation.
DESCRIPTION
Victron 12V to 24V Orion 12/24-8A Non-Isolated IP20 DC-DC Converter
Reliable and Efficient Power Conversion
Transform your 12V power source into a robust 24V output with the Victron Orion 12/24-8A Non-Isolated DC-DC Converter. This reliable converter is perfect for a variety of applications, including caravans, RVs, marine vessels, off-grid systems, industrial setups, and tiny homes. Ensure your devices run smoothly and efficiently with this top-tier converter.
Key Features
High-Quality Power Conversion
- Voltage Transformation: Converts 12V DC input to a 24V DC output, ensuring a steady and reliable power supply for your equipment.
- 8A Output: Delivers a robust 8A current, suitable for a range of devices and applications.
Easy Installation
- User-Friendly Design: The Victron Orion converter is designed for straightforward installation, saving you time and effort.
- Insulated Fastons: Includes four Insulated Fastons Female Crimp 6.3mm for secure and reliable connections.
Durability and Protection
- Non-Isolated IP20 Rating: Provides protection against solid objects up to 12mm, ensuring durability in various environments.
- High Efficiency: Designed for optimal performance with minimal energy loss, making it a cost-effective choice for long-term use.
Ideal Applications
- Caravan and RV Systems: Perfect for ensuring your recreational vehicle’s electrical systems run efficiently.
- Off-Grid and Industrial Applications: Provides consistent power in remote locations and industrial settings.
Why Choose Victron Orion 12/24-8A DC-DC Converter?
Choosing the Victron Orion DC-DC converter ensures you get a product known for its reliability, efficiency, and ease of use. Whether you need to power your RV, marine vessel, or off-grid system, this converter is a dependable choice that guarantees consistent performance.
Upgrade Your Power System Today
Invest in the Victron Orion 12/24-8A Non-Isolated IP20 DC-DC Converter to enhance the efficiency and reliability of your power systems. Ensure your devices always receive the power they need, wherever you are.
Upgrade your power system now to experience reliable and efficient power conversion across various applications, from caravans and RVs to marine, off-grid, and industrial settings.
SPECIFICATIONS
Specifications
| Model | Orion 12/24-8 |
| Input voltage range (V) | 9-18 |
| Under voltage shutdown (V) | 8 |
| Under voltage restart (V) | 10 |
| Output voltage adjustable with potentiometer | no |
| Output voltage (V) | 24 |
| Efficiency (%) | 95 |
| Suitable to buffer-charge a battery | no |
| Can be connected in parallel | no |
| Continuous output current (A) | 8 |
| Max. Output current (A) | 20 |
| Fan assisted cooling (temp. controlled) | no |
| Galvanic isolation | no |
| Off load current | < 10mA |
| Remote on-off | no |
| Operating temperature range (derate 3% per °C above 40°C) | -20 to +55°C |
| DC connection | Faston tabs 6.3 mm |
| Weight kg (lbs) | 0.4 (0.9) |
| Dimensions hxwxd in mm (hxwxd in inches) | 45x90x115 (1.8x3.5x4.5) |
| Standards: Safety Emission Immunity Automotive Directive | EN 60950 EN 61000-6-3, EN 55014-1 EN 61000-6-2, EN 61000-6-1, EN 55014-2 ECE R10-4 |
| SKU: | VIC-ORI122408020 |
| Barcode: | 8719076022732 |
| Model #: | ORI122408020 |
| MPN: | ORI122408020 |
