Victron 12.8V 20Ah Lithium SuperPack Battery
Victron 12.8V 20Ah Lithium SuperPack Battery
A simple, all-in-one LiFePO4 battery featuring a built-in BMS for straightforward drop-in installation.
Highlights:M5 Terminals: Secure M5 threaded connection points for battery cables,Integrated BMS: Internal battery management system for over-charge and temperature protection,256Wh Energy: Total energy storage capacity of 256 Watt-hours,LiFePO4 Chemistry: High-stability Lithium Iron Phosphate technology,Charge Parameters: Clear voltage and current ratings for optimal charging.
Key features: 181mm width by 167mm height, Compact 77mm depth profile, M5.0 threaded insert terminal specifications.
DESCRIPTION
Victron Energy 12.8V 20Ah Lithium SuperPack Battery
The Victron Energy 12.8V 20Ah Lithium SuperPack provides reliable and long-lasting energy storage in an extremely straightforward package. Designed for ease of use, this compact lithium battery offers the numerous benefits of modern LiFePO4 technology without the complex installation requirements typically associated with component-based independent battery systems. It serves as an excellent power solution for users who require high performance and low weight in a small form factor.
Integrated Battery Management
A primary advantage of the Lithium SuperPack series is the fully integrated Battery Management System (BMS). With many standard lithium setups, an external BMS and safety relays are required to monitor cell health and protect the system. The SuperPack eliminates this complexity. It features an internal switch that will automatically disconnect the battery power in the event of over-discharge, over-charge, or unusually high temperatures. This ensures the internal cells remain protected from common electrical faults, providing dependable longevity without extensive wiring.
The Advantages of LiFePO4 Technology
Switching to Lithium Iron Phosphate (LiFePO4) chemistry offers significant improvements over traditional lead-acid or AGM alternatives. The SuperPack delivers a much higher energy density, meaning you get more usable power from a significantly smaller and lighter footprint. Weighing just 3.6kg, this 20Ah unit is effortless to transport and install in tight compartments. Furthermore, lithium batteries maintain a consistent voltage output throughout their discharge cycle, ensuring your connected devices run efficiently right down to the integrated BMS cutoff point. They also offer an impressive cycle life, drastically reducing the long-term cost of replacement.
Straightforward Drop-In Installation
With simple M5 threaded insert terminals and a self-managed internal architecture, setting up the 20Ah SuperPack is exceptionally easy. There are no additional communication cables or external contactors to mount. This plug-and-play approach makes the battery well suited to small off-grid setups, marine applications, portable power boxes, kayak sounder setups, and 12V auxiliary power systems where space, weight, and simplicity are primary considerations.
- Built-In BMS: Fully integrated internal protection automatically prevents damage from over-voltage, under-voltage, and excessive temperatures.
- Parallel Expansion: Can be safely connected in parallel with identical 20Ah SuperPack models to increase overall system capacity.
- Lithium Iron Phosphate (LiFePO4) Chemistry: Offers superior cycle life, deeper safe discharge levels, and excellent thermal stability.
- Compact and Lightweight: Weighing only 3.6kg, it is highly portable and straightforward to integrate into restricted physical spaces.
- Simple Connectivity: Features standard M5 terminals for reliable and secure cable connections without requiring specialised lugs.
System Limitations and Wiring
Please note that while the Lithium SuperPack batteries are designed for flexibility in capacity expansion, there are specific wiring limitations. You can comfortably wire multiple 20Ah SuperPacks in parallel to increase your total amp-hour capacity. However, series connection is strictly prohibited by the manufacturer. These batteries are designed exclusively for 12V system architectures and cannot be strung together to create 24V, 36V, or 48V battery banks.
Whether you are upgrading a small 12V marine electronics system, running efficient camping lights, or adding dependable auxiliary power to a custom project, the Victron Lithium SuperPack provides a robust energy storage solution in a highly accessible format.
SKU: VIC-BAT512020705
Visit Victron's Official Victron 12.8V 20Ah Lithium SuperPack Battery Webpage Here
SPECIFICATIONS
Specifications
| Brand | Victron Energy |
| Model Name | Lithium SuperPack 12.8V/20Ah |
| Chemistry | Lithium Iron Phosphate (LiFePO4) |
| Nominal Voltage | 12.8V |
| Nominal Capacity (at 25°C) | 20Ah |
| Nominal Energy (at 25°C) | 256Wh |
| Terminals | M5 Insert |
| Cycle Life | Up to 2500 cycles at 80% Depth of Discharge |
| Parallel Connection | Allowed |
| Series Connection | Not Allowed (Strictly Prohibited) |
| Protection | Integrated Internal BMS (Over-discharge, over-charge, high temperature) |
| Weight | 3.6 kg |

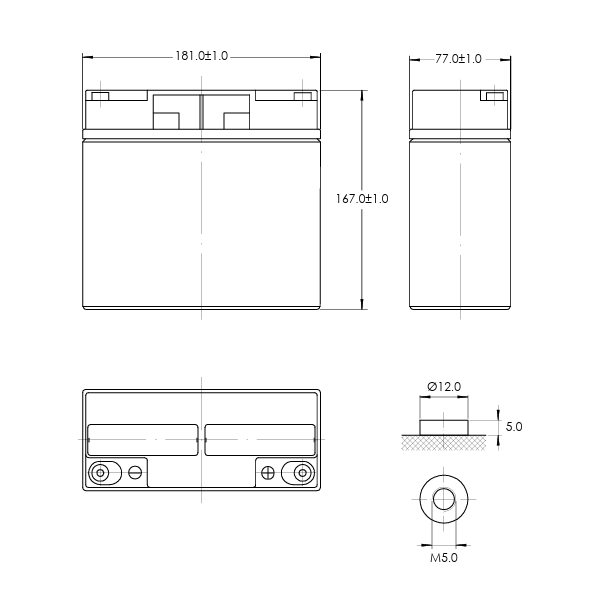

| Dimensions (L x W x H) | 167 x 181 x 77 mm (approx. 16.7 x 18.1 x 7.7 cm) |
| SKU: | VIC-BAT512020705 |
| Barcode: | 8719076047537 |
