Victron Lynx Smart BMS 500 M8


Front view of the blue Victron Lynx Smart BMS 500 with integrated status LEDs and IP22 ratingKey features: 500A continuous current rating, Bluetooth connectivity for system monitoring, IP22 ingress protection class, 9V to 60V DC battery voltage range, Integrated safety contactor.Victron Lynx Smart BMS 500 unit with included cable lug, RJ45 terminators and terminal blockPerspective view of Victron Lynx Smart BMS showing bottom connectivity ports for system integrationHighlights:M8 Busbar Connection: M8 tinned copper busbar terminals for high current capacity,I/O Terminal Block: Removable multi-connector for alarm relay and allow-to-charge signals,VE.Can Ports: Dual RJ45 ports for integration with the Victron GX ecosystem,BMS Connectors: Circular 3-pole connectors for Victron Lithium Smart battery cables,Fuse Monitoring: RJ10 ports for monitoring up to four Lynx Distributor modules.Side perspective of blue Victron Lynx Smart BMS 500 showing enclosure ventilation and designClose-up of the bottom interface panel on the Victron Lynx Smart BMS 500 showing communication portsThe interface panel features dual VE.Can ports, a removable I/O terminal block, BTV connectors for battery communication, and fuse monitoring inputs for modular system expansion.Technical specifications table for the Victron Lynx Smart BMS 500 and 1000 Amp modelsSystem wiring diagram showing Victron Lynx Smart BMS integrated with batteries, distributor and inverterDimensional engineering drawing of the Victron Lynx Smart BMS 500 with measurements in millimetres
Front view of the blue Victron Lynx Smart BMS 500 with integrated status LEDs and IP22 rating
Victron Lynx Smart BMS 500 unit with included cable lug, RJ45 terminators and terminal block
Perspective view of Victron Lynx Smart BMS showing bottom connectivity ports for system integration
Side perspective of blue Victron Lynx Smart BMS 500 showing enclosure ventilation and design

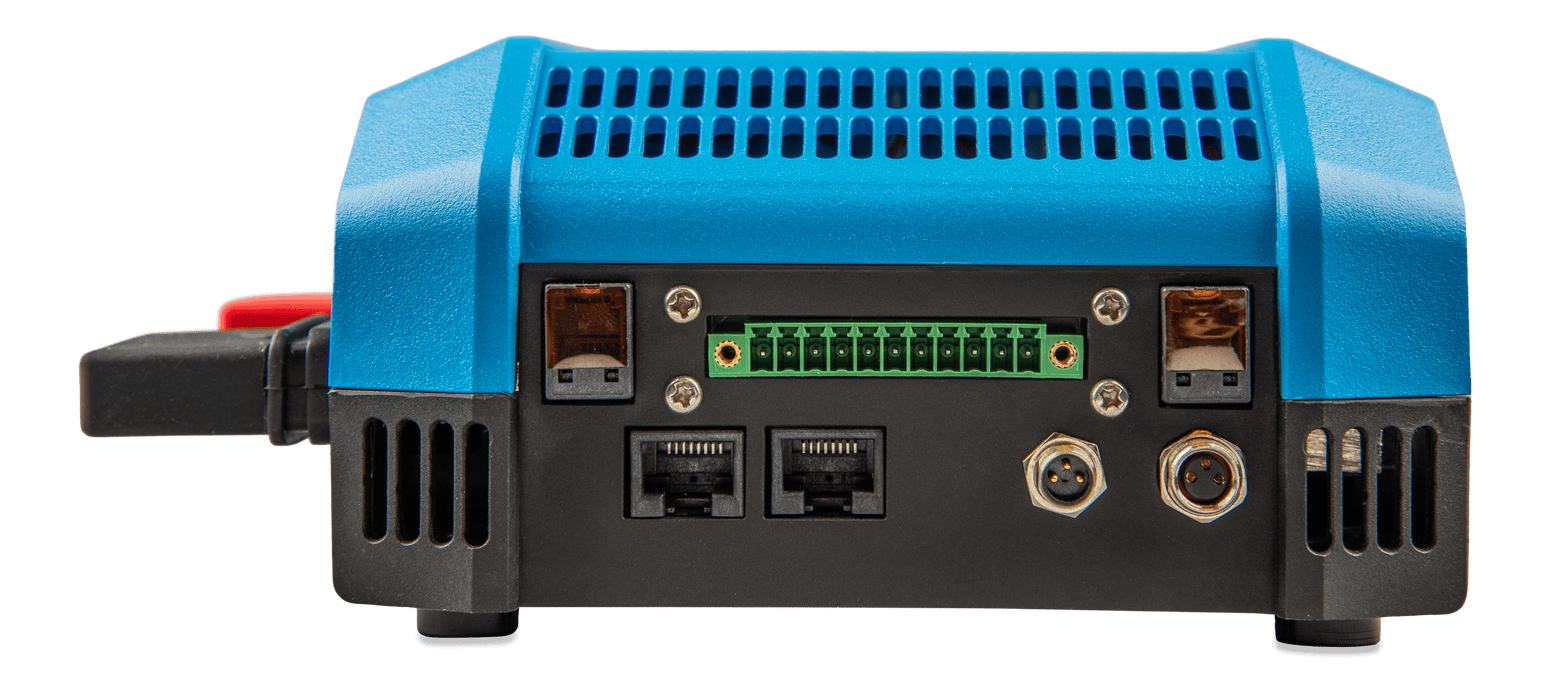

Close-up of the bottom interface panel on the Victron Lynx Smart BMS 500 showing communication ports

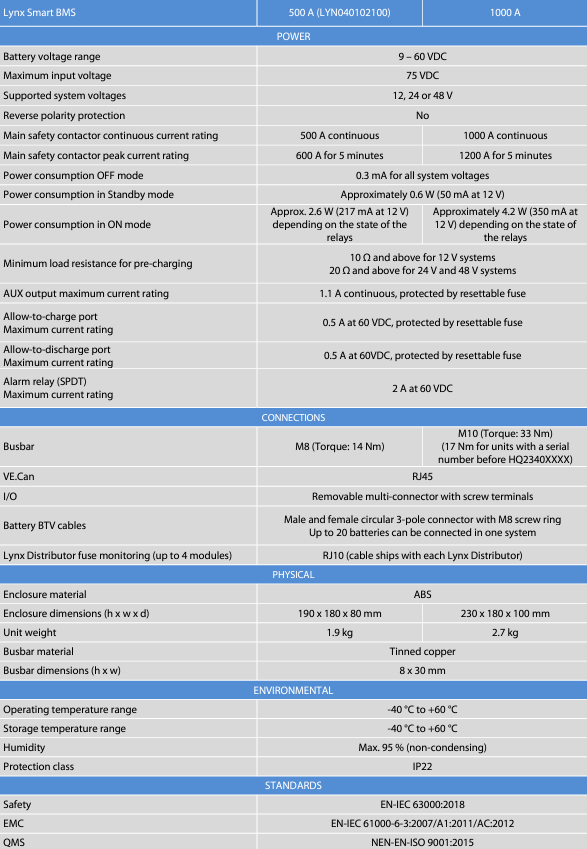

Technical specifications table for the Victron Lynx Smart BMS 500 and 1000 Amp models

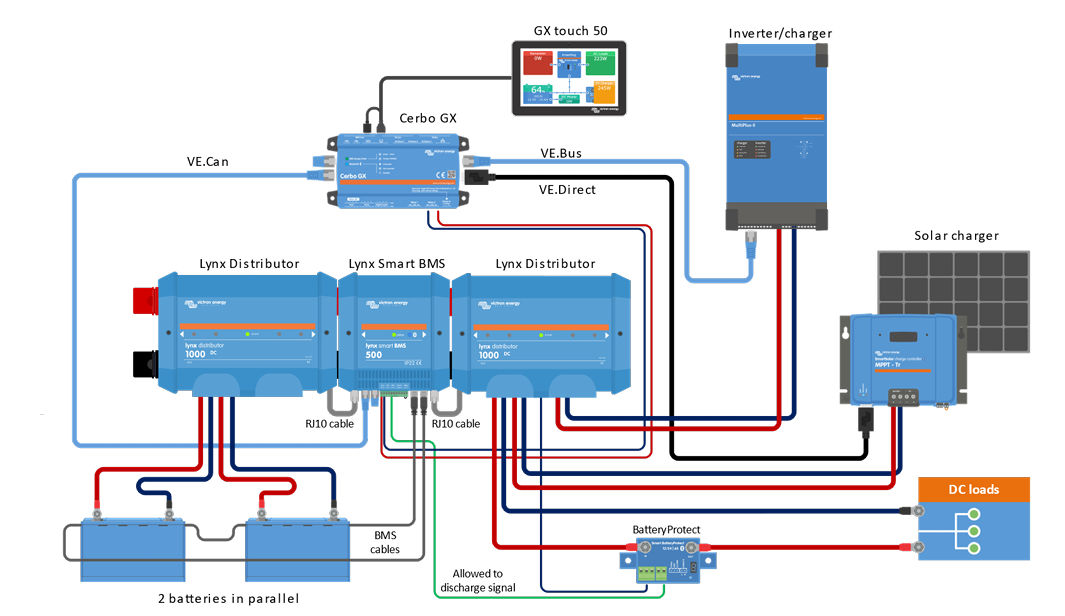

System wiring diagram showing Victron Lynx Smart BMS integrated with batteries, distributor and inverter
Dimensional engineering drawing of the Victron Lynx Smart BMS 500 with measurements in millimetres
Regular price $1,539.55
$1,710.50
/
Availability: In Stock at Victron Warehouse Allow up to 5 days before dispatch
View all products from Victron

Notify me when available

You have already submited form for Default Title

Thanks for contacting us. We'll get back to you as soon as product / variant is back in stock.
Guaranteed Safe and Secure Checkout
American Express Apple Pay Google Pay MastercardPayPalShop Pay Union PayVisa

0
Front view of the blue Victron Lynx Smart BMS 500 with integrated status LEDs and IP22 rating

Victron Lynx Smart BMS 500 M8

DESCRIPTION

Optimize Your Energy Storage with Lynx Smart 500A BMS M8 for Victron Lithium Batteries

Discover the pinnacle of battery management with the Lynx Smart BMS, designed exclusively for Victron Lithium Battery Smart series. These high-efficiency Lithium Iron Phosphate (LiFePO4) batteries come in 12.8V and 25.6V across various capacities, perfect for diverse energy needs.

Versatile Configuration for Maximum Power: Configure these batteries in series, parallel, or series/parallel combinations to build a robust battery bank for 12V, 24V, or 48V systems. With a capacity to integrate up to 20 batteries, achieve impressive energy storage of up to 84 kWh in a 12V system and up to 102 kWh in 24V and 48V systems.

Feature-Rich BMS Solution: The Lynx Smart BMS stands out as the most comprehensive and advanced BMS available, seamlessly integrating into the Lynx Distributor system.

Advanced Safety and Control Mechanisms:

  • Built-in Contactor: Acts as a secondary safety system, doubling as a remote-controllable main system switch.
  • Pre-Charge Circuit: Prevents high inrush currents, simplifying your setup by eliminating the need for external pre-charging.

Monitoring and control

Monitor and control the BMS via Bluetooth using the VictronConnect App or a GX device such as a Cerbo GX and the VRM Portal. A built-in battery monitor that operates in a similar fashion as the other Victron Energy battery monitors, provides data such as state of charge, voltage, current, historical data, status info and more in real time, and with Instant Readout even without the need to connect to the BMS, allowing diagnostic at a glance.

Intelligent System Integration:

Compatible Victron inverter/chargers and solar chargers are automatically controlled via a connected GX device and DVCC. The ATC/ATD contacts can be used to control other chargers and loads that have a remote on/off port.

Programmable relay

The relay can be used either as an alarm relay (combined with the pre-alarm) or to control an alternator via its external regulator (ignition cable). In Alternator ATC mode, the relay will only activate when the contactor is closed. Alternator ATC contact of the alternator opens first and then with a delay of 2 seconds the contactor. These 2 seconds ensure that the alternator is switched off before the battery is disconnected from the system.

AUX Terminal

The advantage of the onboard auxiliary power supply (1.1 A @ system voltage) is to provide power to specific loads (i.e. a GX device) after the BMS has shut down the loads in the event of a low cell voltage event. If no charge voltage is detected within 5 minutes, the BMS including the AUX connection switches off.

VE.Can and NMEA 2000 data communication

VE.Can allows for easy connection (standard RJ45 network cable) and communication with a GX device. Since the CANbus protocol is based on NMEA 2000 (and J1939), it is easy to integrate into a marine network and feed your marine MFD with data (requires a VE.Can to NMEA 2000 micro-C male cable).

Lynx Distributor fuse monitoring

Read out fuse status and receive an alarm in case a fuse is blown. The Lynx Smart BMS monitors up to 4 connected Lynx Distributors and their fuses via VictronConnect or a GX device

1) To reduce required balancing time, we recommend to use a little different batteries in series as possible for the application. 24 V systems are best built using 24 V batteries. And 48 V systems are best built using two 24 V batteries in series. While the alternative, four 12 V batteries in series, will work, it will require more periodic balancing time.

SPECIFICATIONS

Specifications

Lynx Smart BMS 500 A
Power
Battery voltage range 9 – 60 VDC
Maximum input voltage 75 VDC
Supported system voltages 12, 24 or 48 V
Reverse polarity protection No
Main safety contactor continuous current rating 500 A continuous
Main safety contactor peak current rating 600 A for 5 minutes
Power consumption OFF mode 0.3 mA for all system voltages
Power consumption in Standby mode Approximately 0.6 W (50 mA at 12 V)
Power consumption in ON mode Approx. 2.6 W (217 mA at 12 V) depending on the state of the relays
Minimum load resistance for pre-charging 10 Ω and above for 12 V systems 20 Ω and above for 24 V and 48 V systems
AUX output maximum current rating 1.1 A continuous, protected by resettable fuse
Allow-to-charge port Maximum current rating 0.5 A at 60 VDC, protected by resettable fuse
Allow-to-discharge port Maximum current rating 0.5 A at 60VDC, protected by resettable fuse
Alarm relay (SPDT) Maximum current rating 2 A at 60 VDC
Connections
Busbar M8 (Torque: 14 Nm)
VE.Can RJ45
I/O Removable multi-connector with screw terminals
Battery BTV cables Male and female circular 3-pole connector with M8 screw ring Up to 20 batteries can be connected in one system
Lynx Distributor fuse monitoring (up to 4 modules) RJ10 (cable ships with each Lynx Distributor)
Physical
Enclosure material ABS
Enclosure dimensions (h x w x d) 190 x 180 x 80 mm
Unit weight 1.9 kg
Busbar material Tinned copper
Busbar dimensions (h x w) 8 x 30 mm
Environmental
Operating temperature range -40 °C to +60 °C
Storage temperature range -40 °C to +60 °C
Humidity Max. 95 % (non-condensing)
Protection class IP22
Standards
Safety EN-IEC 63000:2018
EMC EN-IEC 61000-6-3:2007/A1:2011/AC:2012
QMS NEN-EN-ISO 9001:2015

SKU: VIC-LYN034160200
Barcode: 8719076047476
Model #: LYN034160200
MPN: LYN034160200

WARRANTY

Victron Energy Limited Warranty Policy

Direct Customers

Victron Energy provides the following warranty to any direct customer (OEM, distributor or dealer) in relation to any products that Victron Energy has directly sold to the direct customer. This warranty is not an end-user warranty between Victron Energy and an end-user, and end-users shall not have any rights or remedies under this limited warranty towards Victron Energy directly. The direct customer shall, in turn, ensure that the end-user is provided with a warranty identical to this warranty, subject to applicable local mandatory law.

End-Users

Victron Energy may also provide a warranty directly to end-users, in which case the below warranty conditions equally apply to such warranty. In that case, end-users shall claim their warranty at their place of purchase or through the original direct customer of Victron, which can be found through the support section on Victron’s website https://www.victronenergy.com/support. Hence, the direct customer shall on behalf of Victron Energy deal with any warranty claims made under any warranty that Victron Energy may provide directly to end-users. This support section on Victron’s website https://www.victronenergy.com/support will provide further guidance on the procedure for end-users to make a claim under this limited warranty.

If the end-user is a consumer – a natural person who is acting for purposes which are outside that person's trade, business, craft or profession – the following applies. The rights and remedies granted to the consumer under this limited warranty are without prejudice to the consumer’s statutory rights. Furthermore, the consumer is entitled by law to remedies from the seller free of charge in the event of a lack of conformity of the goods (such as repair, replacement, price reduction or rescission), which remedies are not affected by this limited warranty.

Warranty

Victron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the original end-user, with a maximum of 66 months from the Victron Energy invoice date. Exceptions on this are: lead-acid batteries: 2 years from date of purchase by the original end-user, with a maximum of 30 months from the Victron Energy invoice date, Lithium batteries: 3 years from date of purchase by the original end-user, with a maximum of 42 months from the Victron Energy invoice date. In addition to this, proof of correct battery usage is required when making a battery warranty claim.

For a 10% surcharge on the current net price for products that came with a 5-year warranty, an additional 5 years of warranty can be purchased by Victron’s direct customers, bringing the total warranty to 10 years. Warranty extensions need to be applied for ultimately one year before the expiration of the original term. Victron may ask proof that the product was still functional at the time of purchase of the extended warranty.

During the warranty period, Victron Energy will, at its discretion, repair, replace or (partly) credit the defective product free of charge. The warranty does not include performing or reimbursing de‐installation, transportation, and re‐installation.

This warranty will be considered void if the unit has suffered any physical damage or alteration, either internally or externally, and does not cover damages arising from improper use like:

  • Reversed battery polarity.
  • Inadequate connection.
  • Mechanical shock or deformation.
  • Contact with liquid or oxidation by condensation.
  • Use in an inappropriate environment (dust, corrosive vapour, humidity, high temperature, biological infestation, etc.).
  • Breakage or damage due to lightning.
  • Connection terminals and screws destroyed or other damages, like overheating, due to insufficient tightening.
  • For any electronic breakage except due to lightning (reverse polarity, over‐voltage due to external cause), the state of the internal control diode and/or the input/output X and Y capacitors determine the warranty.

This warranty will not apply where the product has been misused, neglected, improperly installed, or repaired by anyone other than Victron Energy or one of its authorized Repair Centres. In order to qualify for the warranty, the product must not be disassembled or modified.

This warranty and our warranty obligations thereunder (repair, replacement or credit) are the direct customer’s and, if applicable, the end-user’s sole rights and remedies and our sole obligations with respect to any defective and/or non-conforming product or breach of warranty and is subject to and without prejudice to the limitations of liability in this warranty.

Victron Energy shall not be liable for damages, whether direct, incidental, special, or consequential, even caused by negligence or fault.

As a product requires service, it must be brought back to the place of purchase. In case no contact can be made with the merchant, or if he is either unable or not allowed to provide service, direct contact should be made with Victron Energy through the support section on Victron’s website.

In case Victron Energy replaces a product, it will own the replaced product. Victron Energy owns all parts removed from repaired products. Victron Energy uses new or reconditioned parts made by various manufacturers when performing warranty repairs or building replacement products.

If Victron Energy repairs or replaces a part of a product, its warranty term is not extended: the warranty will apply for the remaining term of the original warranty term. For example, if Victron Energy replaces a product with a 5-year warranty after 3 years, the warranty of this product will apply for another 2 years, with a minimum of 6 months.

All remedies and the measure for damages are limited to the above. Victron Energy shall in no event be liable for consequential, incidental, contingent or special damages, even if having been advised of the probability of such damages.

The foregoing limited warranty provided by Victron Energy is in lieu of any other warranties, express or implied arising by law, course of dealing, course of performance, usage of trade or otherwise, of any kind whatsoever including, without limitation, warranties of merchantability or fitness for a particular purpose, with respect to any product. The above is without prejudice to the arrangement for consumers detailed above.

Life Support Policy

As a general policy, Victron Energy does not recommend the use of any of its products in life support applications where failure or malfunction of Victron Energy's product can be reasonably expected to cause the failure of the life support device or to significantly affect its safety or effectiveness. Victron Energy does not recommend the use of any of its products in direct patient care. Victron Energy will not knowingly sell its products for use in such applications unless it receives in writing assurances satisfactory to Victron Energy that the risks of injury or damage have been minimized, the customer assumes all such risks, and the liability of Victron Energy is adequately protected under the circumstances.

Warranty on repairs for products outside their warranty period

The warranty period on products that are outside their warranty period and have been repaired by Victron Energy or one of the Victron Energy Repair centres is six (6) months from delivery. The same applies to spare parts and circuit boards that have been supplied or repaired by Victron Energy.

Transport

It is the responsibility of the sender to sufficiently package these products. The transport must be organized in a way to avoid any damage, especially when a single unit or heavy unit is sent.

Severability

If a part of the terms and conditions of this warranty is held invalid, void or unenforceable due to any particular national or international legislation, it shall not affect other parts of the terms and conditions of this warranty.

Applicable law

This warranty is exclusively governed by the laws of the Netherlands, to the exclusion of the UN Convention on Contracts for the International Sale of Goods.

Contact details

Victron Energy B.V. | De Paal 35, 1351 JG Almere, The Netherlands | https://www.victronenergy.com/support
