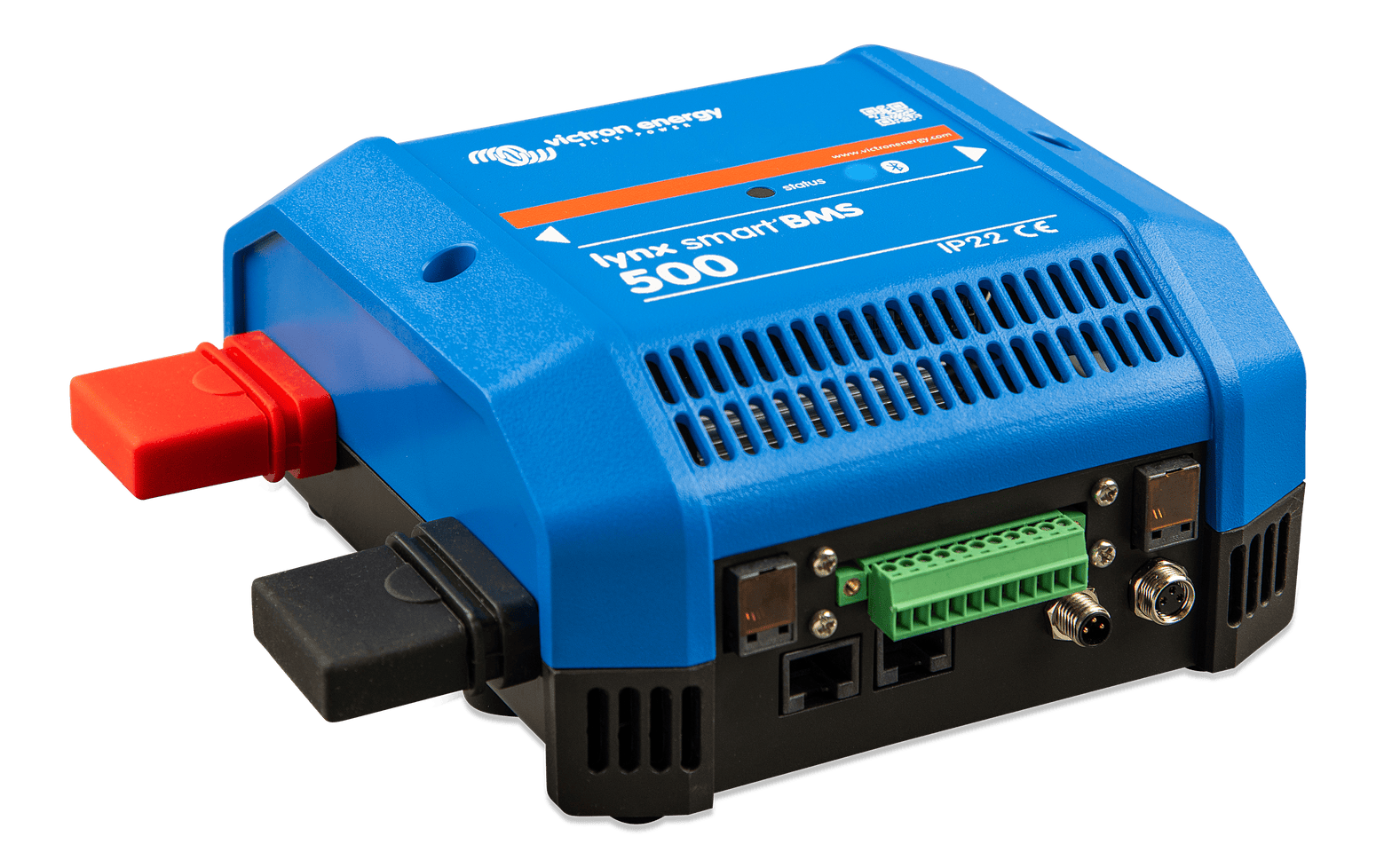

Victron Lynx Smart BMS 500 NG (NextGen) M10

Specific to NG Range

RRP $1,800.70
$1,539.55
SAVE $261.15 (14%)
In Stock
Victron logo

Enjoy free AusPost shipping for orders over $100 on most items, including our Victron Lynx Smart BMS 500 NG (NextGen) M10, to the majority of areas. Check your shipping details on the cart page for more information.

Optimize Your Energy Storage with Victron Lynx Smart BMS 500 NG (NextGen) M10 for Victron Lithium Batteries

Take control of your energy storage with the Victron Lynx Smart BMS 500 NG (NextGen), designed to work seamlessly with Victron Lithium Battery Smart series. This advanced Battery Management System (BMS) offers a reliable and feature-rich solution for maximizing the performance, safety, and longevity of your Lithium Iron Phosphate (LiFePO4) battery systems in a wide range of applications.

High-Capacity Battery Management for Versatile Energy Systems

The Victron Lynx Smart BMS 500 NG allows you to configure your lithium batteries in series, parallel, or series/parallel combinations, perfect for building robust 12V, 24V, or 48V battery banks. Whether you’re looking to power a caravan, RV, marine vessel, off-grid home, or industrial system, the Lynx Smart BMS provides the flexibility to meet any energy need.

  • Scalable Energy Storage: Build a battery bank with up to 20 batteries, reaching energy capacities of up to 192 kWh for 12V systems and 384 kWh for 24V and 48V systems.
  • Series and Parallel Configuration: Create versatile systems designed for long-lasting energy supply and minimal balancing time for optimal performance.

Industry-Leading Features and Safety

The Victron Lynx Smart BMS 500 NG integrates advanced safety measures, ensuring your energy system remains protected in any scenario. With built-in monitoring and intelligent controls, this BMS offers a full range of essential features:

  • Built-in Contactor: Acts as a secondary safety mechanism while providing remote-control capabilities for switching your system on and off.
  • Pre-Charge Circuit: Prevents harmful inrush currents, eliminating the need for external pre-charging components.
  • Bluetooth Monitoring: Real-time data on battery voltage, charge state, and system health via the VictronConnect App or GX devices like the Cerbo GX.

Intelligent System Integration and Control

The Lynx Smart BMS 500 NG effortlessly integrates into your larger energy system. By connecting with Victron inverters, solar chargers, and other components, the BMS provides streamlined control and efficient energy management:

  • Compatible with Victron inverter/chargers: Automatically controls power systems via connected GX devices, ensuring maximum system performance.
  • VE.Can and NMEA 2000 Communication: Seamlessly integrates into marine networks for comprehensive data monitoring.

Enhanced Performance with Parallel Redundancy

The Lynx Smart BMS NG series introduces parallel redundancy, allowing for the installation of multiple BMS units to create a more robust and scalable battery system:

  • Redundancy for Increased Capacity: Multiple Lynx BMS units can be installed, adding redundancy and boosting total system capacity.
  • Continuous Operation: Even in the event of a network issue, your system will continue to function safely until reconnection is possible.

Ideal for a Range of Applications

Whether you are powering a fully-electric yacht, hybrid generator, or off-grid energy system, the Victron Lynx Smart BMS 500 NG is designed to deliver robust performance in demanding environments. With firmware upgrades and ongoing support, this BMS represents the cutting-edge in energy storage management.

Key Features:

  • Scalable battery bank configurations for 12V, 24V, and 48V systems.
  • Bluetooth-enabled monitoring via VictronConnect App or GX devices.
  • Built-in safety mechanisms like the contactor and pre-charge circuit.
  • VE.Can and NMEA 2000 compatibility for seamless data communication.
  • Parallel redundancy to increase system capacity and reliability.

Don’t miss the chance to optimize your energy storage. Upgrade your system today with the Victron Lynx Smart BMS 500 NG for superior performance in marine, off-grid, or industrial environments!


Visit Victron's Official Lynx Smart BMS Product Manual for More Details
Visit Victron's Official Lynx Smart BMS Webpage for More Details
(LYN034160310)

Specifications

Lynx Smart BMS 500 A
Power
Battery voltage range 9 – 60 VDC
Maximum input voltage 75 VDC
Supported system voltages 12, 24 or 48 V
Reverse polarity protection No
Main safety contactor continuous current rating 500 A continuous
Main safety contactor peak current rating 600 A for 5 minutes
Power consumption OFF mode 0.3 mA for all system voltages
Power consumption in Standby mode Approximately 0.6 W (50 mA at 12 V)
Power consumption in ON mode Approx. 2.6 W (217 mA at 12 V)
depending on the state of the
relays
Minimum load resistance for pre-charging 10 Ω and above for 12 V systems
20 Ω and above for 24 V and 48 V systems
AUX output maximum current rating 1.1 A continuous, protected by resettable fuse
Allow-to-charge port
Maximum current rating
0.5 A at 60 VDC, protected by resettable fuse
Allow-to-discharge port
Maximum current rating
0.5 A at 60VDC, protected by resettable fuse
Alarm relay (SPDT)
Maximum current rating
2 A at 60 VDC
Connections
Busbar M8 (Torque: 14 Nm)
VE.Can RJ45
I/O Removable multi-connector with screw terminals
Battery BTV cables Male and female circular 3-pole connector with M8 screw ring
Up to 20 batteries can be connected in one system
Lynx Distributor fuse monitoring (up to 4 modules) RJ10 (cable ships with each Lynx Distributor)
Physical
Enclosure material ABS
Enclosure dimensions (h x w x d) 190 x 180 x 80 mm
Unit weight 1.9 kg
Busbar material Tinned copper
Busbar dimensions (h x w) 8 x 30 mm
Environmental
Operating temperature range -40 °C to +60 °C
Storage temperature range -40 °C to +60 °C
Humidity Max. 95 % (non-condensing)
Protection class IP22
Standards
Safety EN-IEC 63000:2018
EMC EN-IEC 61000-6-3:2007/A1:2011/AC:2012
QMS NEN-EN-ISO 9001:2015
SKU VIC-LYN034160310
Barcode # 8719076063551
MPN # LYN034160310
