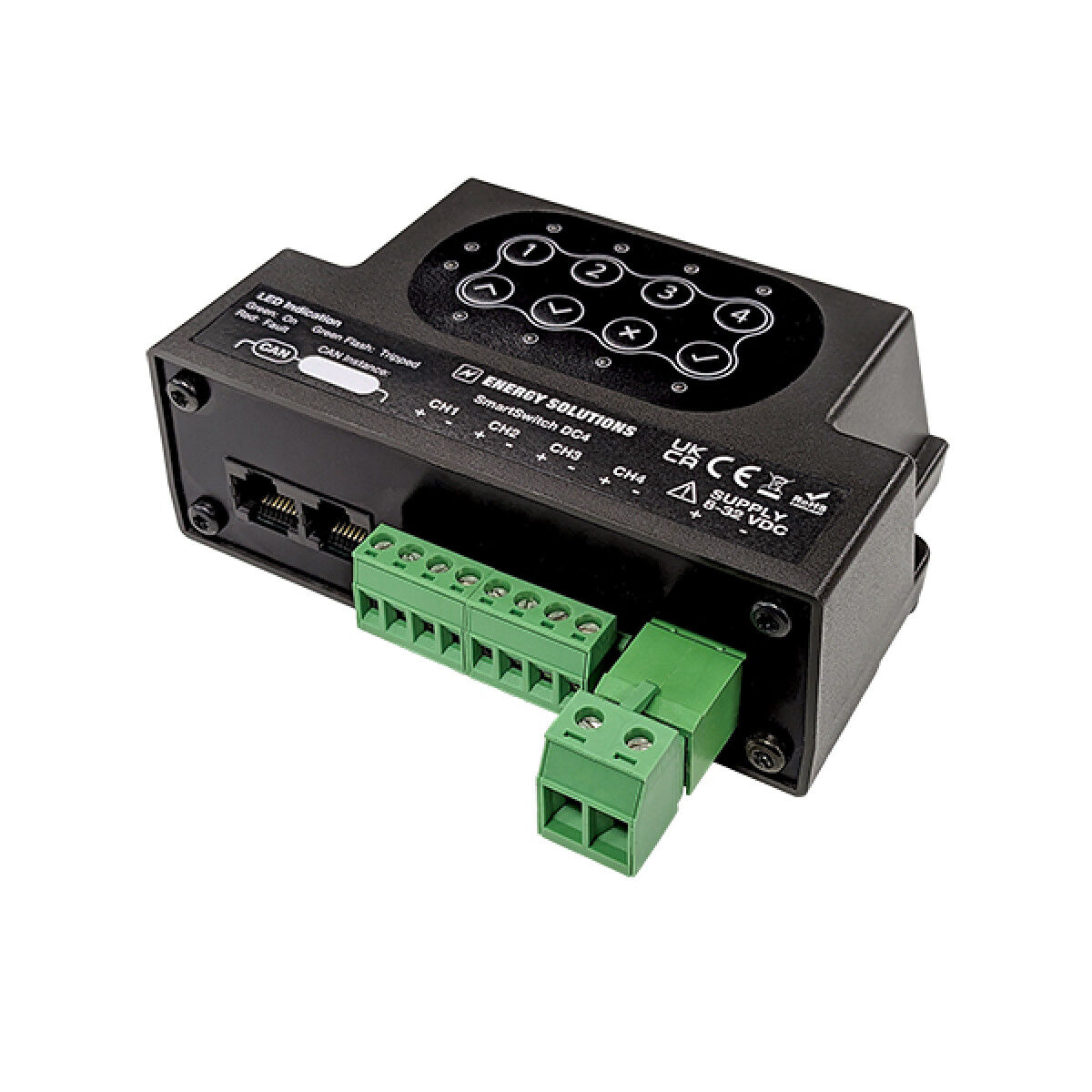

Energy Solutions DC4 SmartSwitch 4 Channel DC Switch Hub

Victron Compatible 4 Channel Switch

RRP $499.00
$449.00
SAVE $50.00 (10%)
In Stock

Enjoy free AusPost shipping for orders over $100 on most items, including our Energy Solutions DC4 SmartSwitch 4 Channel DC Switch Hub, to the majority of areas. Check your shipping details on the cart page for more information.

You may also need:


SmartSwitch DC4: Advanced 4 Channel CAN-Controlled DC Switch & Dimmer (12-24V DC, 15A)

Seamless Digital Control for Modern Electrical Systems

Engineered for precision and performance, the SmartSwitch DC4 is a revolutionary 4-channel digital DC switch and dimmer, fully controllable via CAN bus with a single RJ45 VE.Can pinout. Operating on both 12V and 24V systems and delivering up to 15A, this compact module redefines electrical integration for RV, marine, off-grid, caravan, tiny home, and industrial applications.

Transform Your Electrical Control System

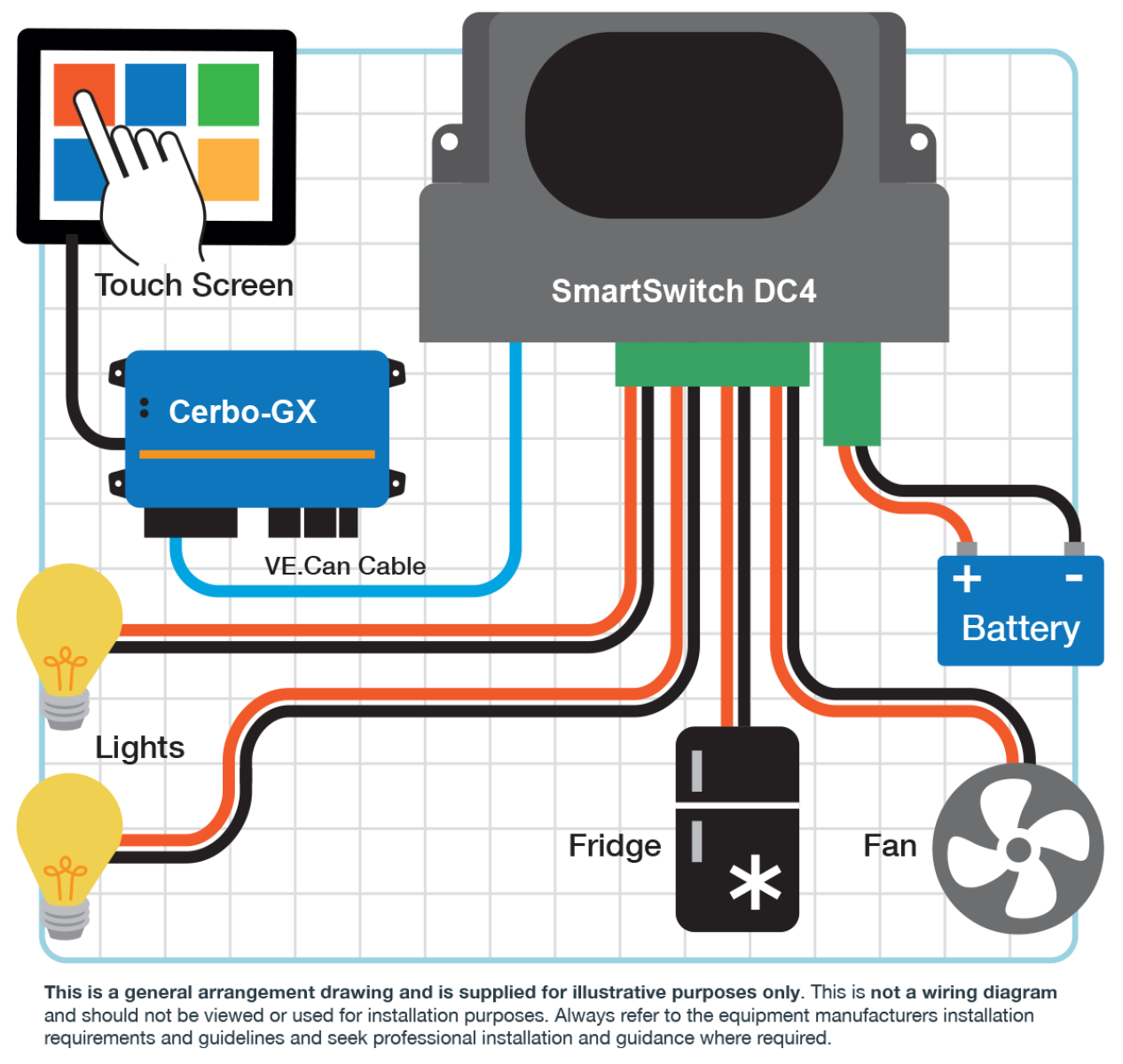

SmartSwitch DC4 eliminates outdated manual switches by enabling one-touch control of your DC loads. With seamless integration into Victron Cerbo systems and complete CAN communication capability, it’s a game-changer for smart energy solutions.

  • Single-cable connection for simplified wiring
  • One-touch control of DC lights or loads
  • Multi-mode functionality: On/Off, momentary, dimming
  • Integrated load protection: Overcurrent and over-temperature safeguards
  • Victron Cerbo compatible and plug & play ready

Flexible and Customisable Channel Features

Each of the 4 independently configurable channels can be set to:

  • Switch DC loads on/off (latched)
  • Provide dimming through 120Hz PWM
  • Act as a digital input for feedback and control

Built-in Safety and Monitoring

Featuring internal power isolation, the DC4 ensures robust operation with enhanced diagnostics:

  • Current monitoring up to 30A full scale
  • Over-current protection with simulated ATO fuse characteristics (2A, 3A, 4A, 5A)
  • Over-temperature protection at module and channel levels
  • Output voltage sensing for real-time load and input monitoring

Future-proof your setup with the potential for upcoming analogue voltage measurement upgrades and advanced digital input capabilities.

Firmware Compatibility Notice

Firmware Requirement: The SmartSwitch DC4 is currently compatible with GX Firmware versions v3.60 to v3.76. When updating your GX device, please ensure it remains within this firmware range to maintain optimal performance and full feature support for the SmartSwitch.

Applications

Perfect for use in:

  • RV and campervan electrical systems
  • Marine and boat automation
  • Off-grid and solar power setups
  • Tiny homes and smart cabins
  • Industrial and mobile power applications

Upgrade to Smart Switching Today

Say goodbye to complex wiring and outdated switches. Upgrade your vehicle or vessel with the SmartSwitch DC4 and enjoy smarter, safer, and more efficient power control—customised for your evolving needs.


Visit Victron's Official EV Charger Webpage for More Details
(SMARTSWITCH-DC4)

Technical Specifications
Operating Voltage 8–32V DC (for loads), 6–32V (control only)
Compatible Voltages 12V and 24V systems only
Output Channels 4 x independently controlled DC outputs (latched, momentary, or dimming mode)
Max Output per Channel 5A continuous
Total System Limit Internally fused at 15A total
Current Monitoring Per channel, full-scale up to 30A
Overload Protection Triggered at 90°C (auto-recovery at 75°C)
CANbus Isolated, internally powered – supports J1939/NMEA2000 with address claim and PGN
LED Indicators On/tripped/fault state per channel

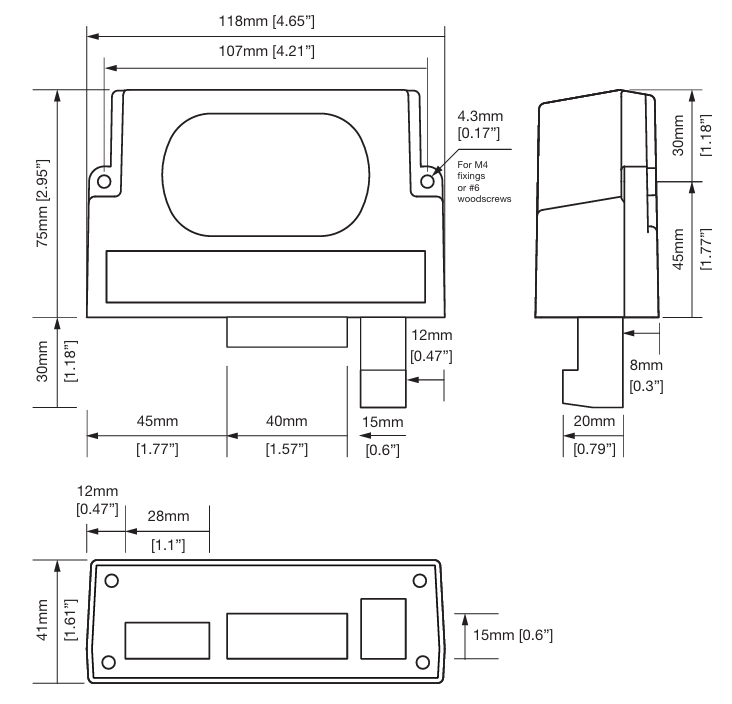

Mounting DIN rail friendly or surface mount
Weight 170g with connectors
Enclosure Rating UL94V-0 flame retardant
Certifications EN61000-6-1, EN60000-6-3 A1, EN60945:2002 (marine compliant)
SKU SMARTSWITCH-DC4
MPN # SMARTSWITCH-DC4
