Exotronic 200W Portable Folding Solar Panel + 20A Bluetooth MPPT Solar Controller

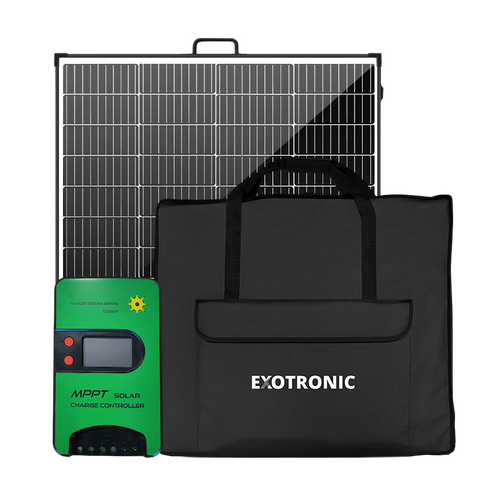

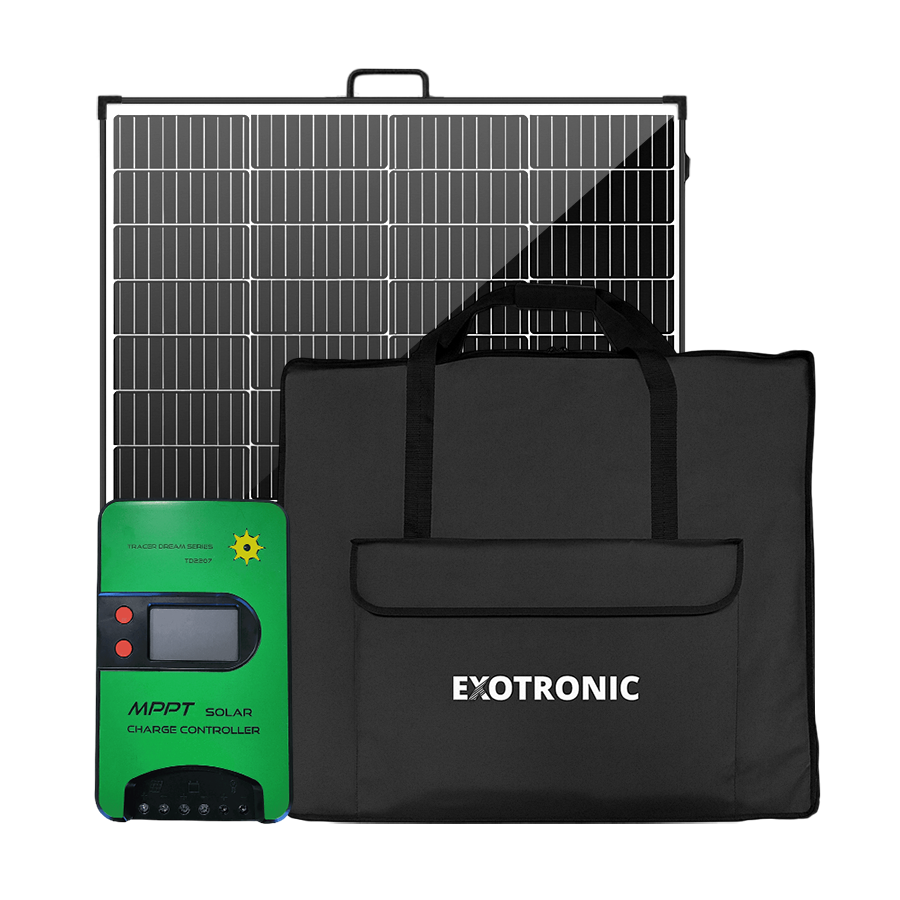

Exotronic Foldable 200W Portable Solar Solution including an Exotronic 20A Bluetooth MPPT

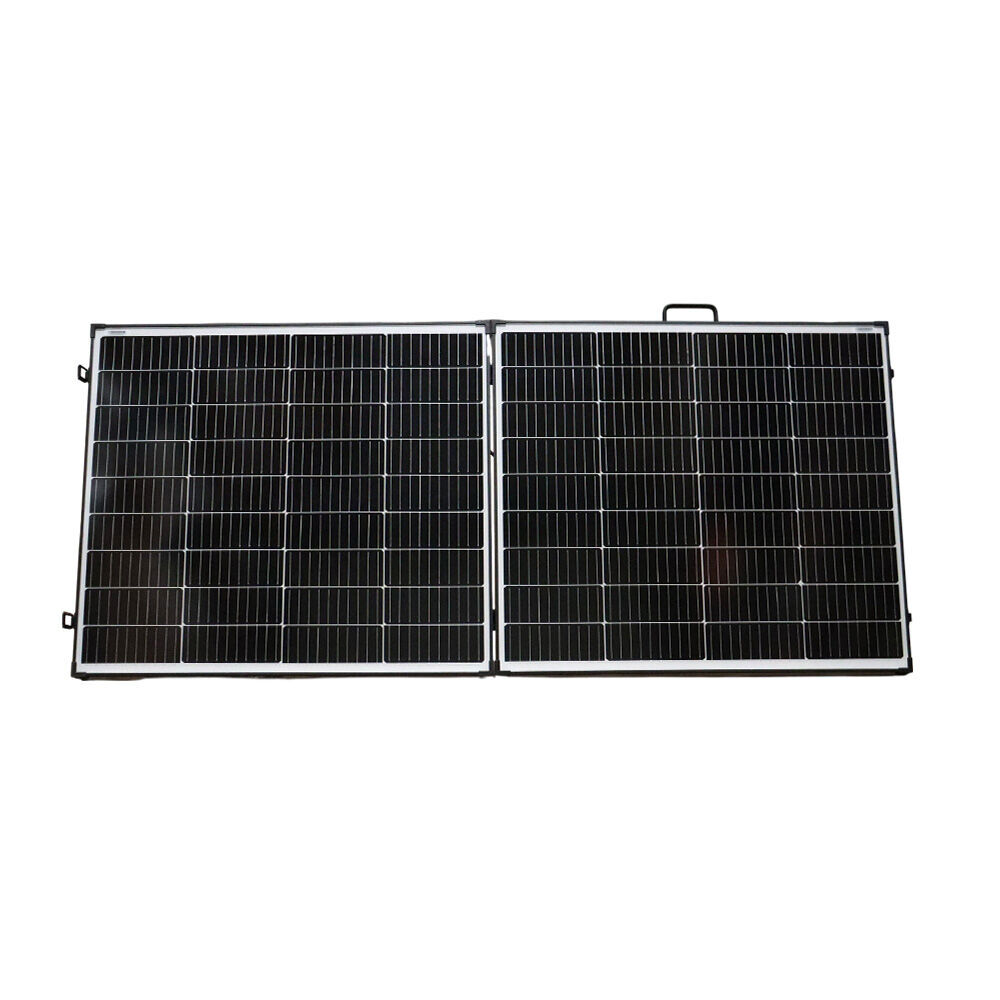

When camping, parking under shade, or need access to free power to charge your battery, Exotronic has you covered with a strong but small form-factor foldable glass solar panel solution.  The 200W briefcase is made up from two 100W solar modules using Trina half-cut 23% PERC monocrystalline solar cells with 9-wire busbars to maximise module efficiency.

Easy Setup and Transport

Weighing only 11.2kg, this panel can be manoeuvred with minimal effort.

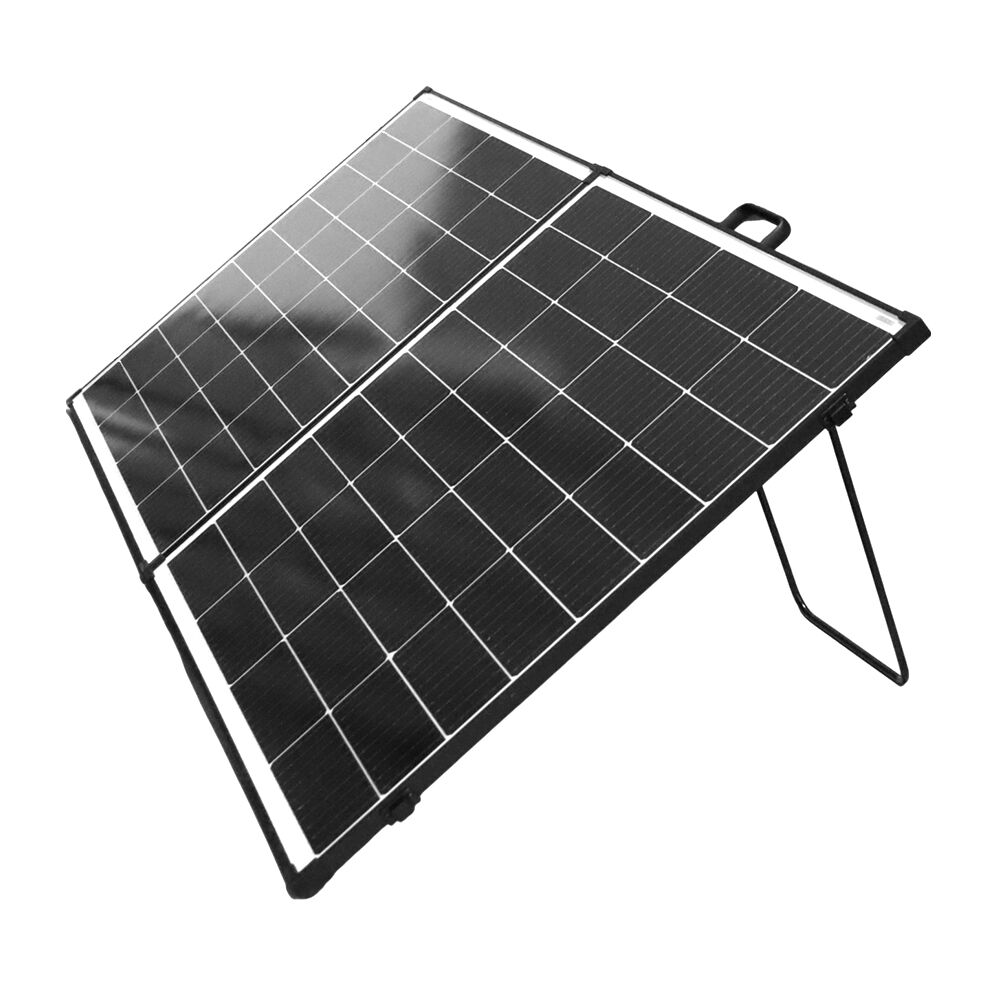

These modules include bumpers on the corners and fold-away legs,

Shade Resistant

Each folded section is wired independently, so if one side is shaded the other side will still operate.

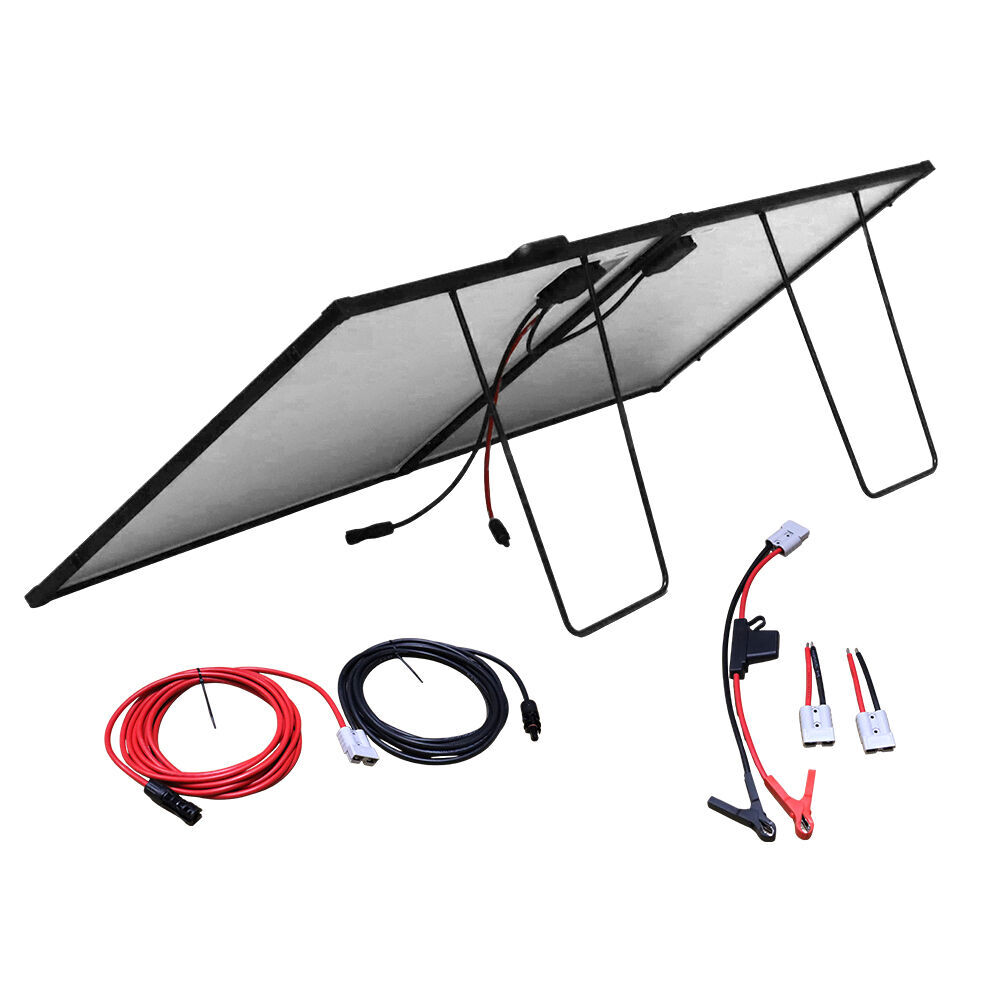

Premium Cable Set

Also included is an array of premium quality cables to suit any situation:

• 5m 4mm2 PV1-F heavy duty tinned copper (marine) MC4 to 50A grey Anderson cable between the solar panel and solar charge controller (this can be connected directly to your existing DC-DC charger solar input or solar controller) - do not connect the panel directly to a battery without a controller
• 2x 50A grey Anderson tails, to connect to your existing MPPT or PWM solar controller
• Alligator to 50A grey Anderson with 30A fuse (this can be used to jump start a lithium battery BMS or charge a starter battery when needed)

Protective Canvas Bag Included

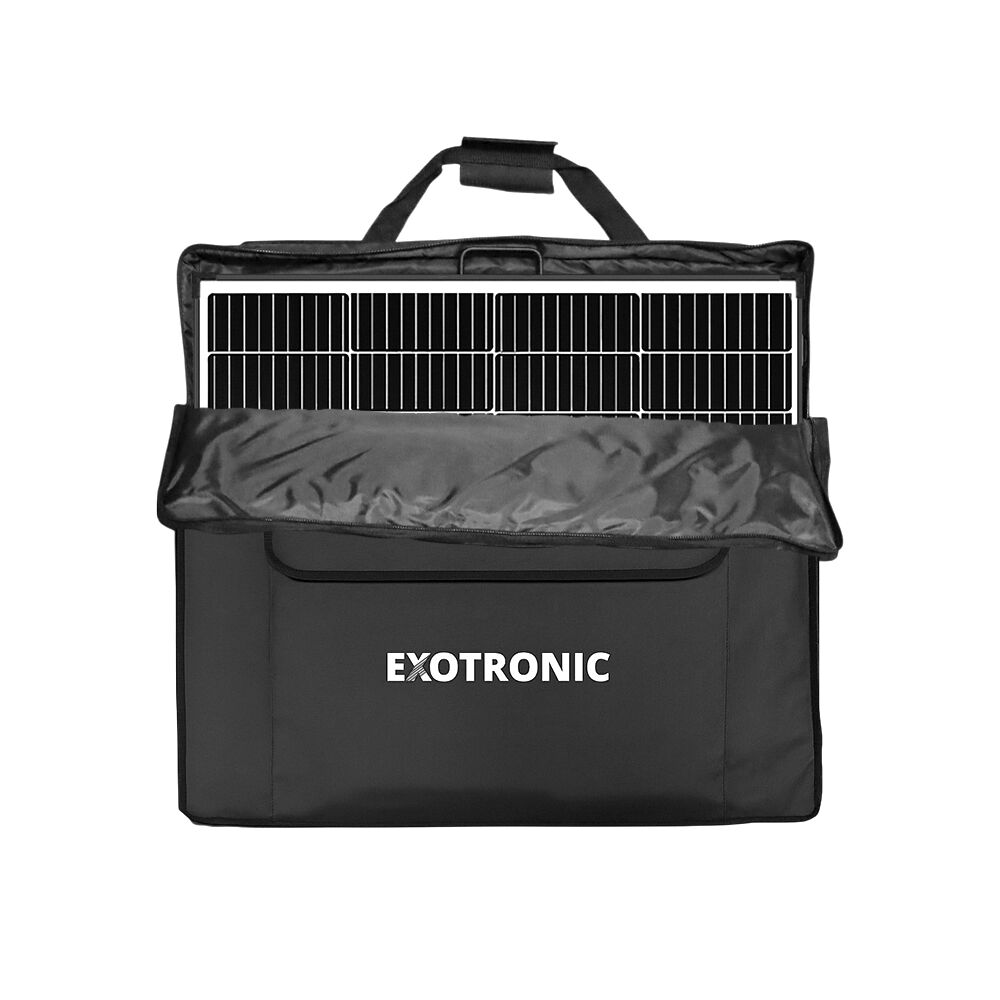

The included padded canvas bag helps protect the solar module from scratches when stored away and includes a carry handle and pocket to store the cables and controller when not in use.

High-Efficiency Solar Power

Using 23% efficient Trina monocrystalline passivated emitter rear contact (mono-PERC) square cut cells and the latest 9-wire bus-bar low-loss design, these panels achieve a high efficiency with a positive power tolerance.

PERC cells provide better performance in low light applications compared to traditional monocrystalline silicone designs as some of the light that passes through the cell is bounced back and converted into electricity.

The 9-wire busbar decreases the resistance of the module and carries current evenly over the whole surface of the cells to ensure that all there are minimal power losses within the module and significantly reduces uneven cell heating and hot spots.

Exotronic Tracer Dream 75V Bluetooth Series: Advanced Solar Charge Controller

For optimal operation and safety, position the solar controller in proximity to your battery. This strategic placement minimizes heat transfer between the MPPT and the solar panel, enhancing efficiency and durability.

The Tracer Dream 75V Bluetooth Series is engineered with MPPT technology. Its 32-bit CPU ensures stability and high-speed operation. The innovative Synchronous Rectifier Technology enhances circuit transfer efficiency up to an impressive 98.5%, while the Pmax tracking accuracy soars to 99.5%. This ensures the controller quickly identifies the exact Pmax even in rapidly changing sunlight conditions. It effectively manages extreme weather and weak sunlight, ensuring maximum performance.

Key Features:

• Employs advanced MPPT technology for swift and stable operation. It boasts up to 99.5% efficiency in tracking the Maximum Power Point.
• Leverages Synchronous Rectifier Technology, enhancing the circuit transfer efficiency to an exceptional 98.5%.
• Successfully identifies and tracks multi-peak power point function and PV array limited power input function, guaranteeing that the controller avoids overloading under any conditions.
• Supports a wide Maximum Power Point range of PV array, with a maximum PV input voltage of 75V.
• Automatically recognizes 12/24VDC system voltage.
• Features a user-friendly LCD display, providing dynamic operation data and working status.

Control and Monitoring:

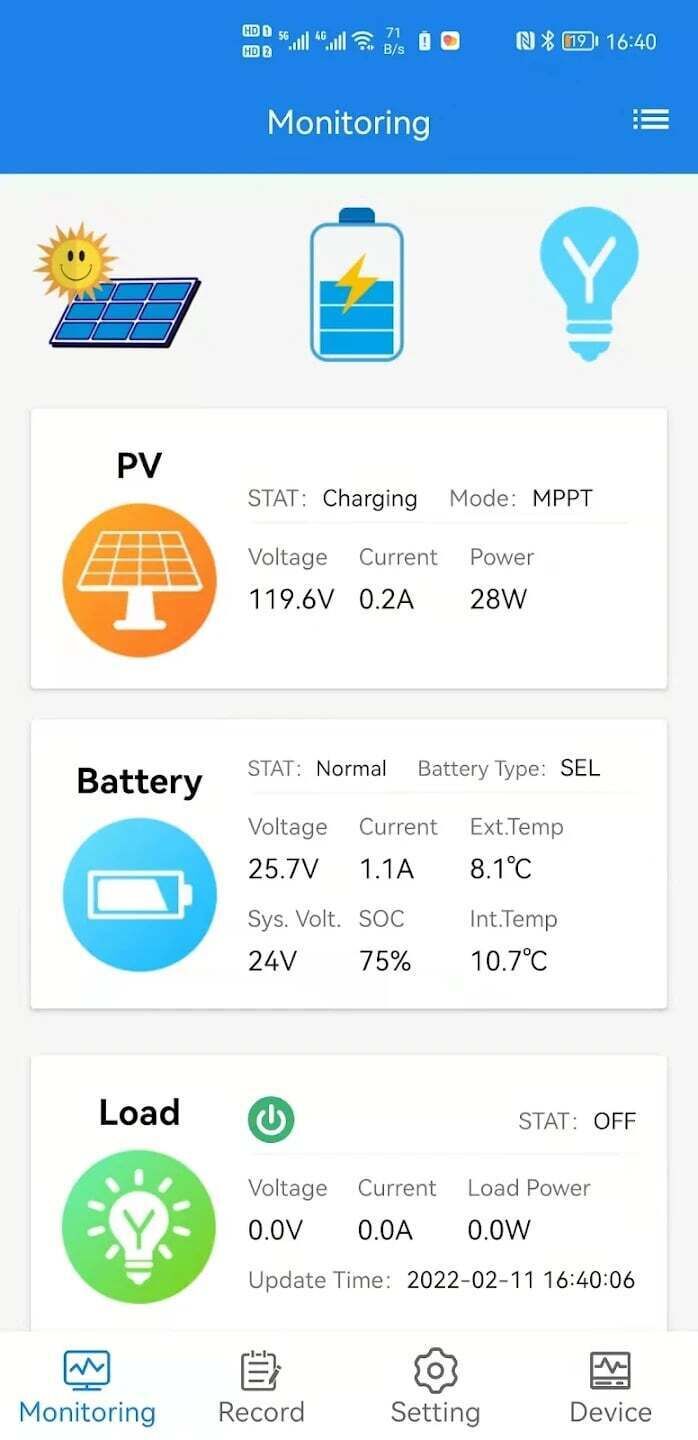

• Access the Bluetooth App on your Apple or Android device by searching for LD iConnect. The default password is 1234.
• Incorporates a built-in operation log for comprehensive record-keeping.
• Offers multiple Load Output Control modes: Normal Mode, Sensor Mode, and Timer Mode.
• Provides a Temperature Compensation Function to mitigate environmental effects.
• Offers a charging and discharging accumulation function, alongside real-time power generation display.

Battery Charging and Protection:

• Includes a 3-stage charging mode with several chemistry modes: Sealed, Gel, Flooded, Lithium, and many user-adjustable settings (default set to Lithium).
• Comprehensive digital protection functions ensure the device's longevity and safety. These include safeguards against reverse connection, overcharging, over-discharging, overvoltage, overload, short circuits, and more.
