Victron 12/24V 10A SmartSolar MPPT 75/10 Bluetooth Solar Charge Controller

Bluetooth built-in for remote monitoring and control.


Front view of blue Victron SmartSolar MPPT 75/10 charge controller with labels and status indicatorsHighlights:Bluetooth Connectivity: Integrated Bluetooth for wireless monitoring and configuration via the VictronConnect app,IP43 Protection: Electronic components are protected to IP43 for durability in various environments,QR Code Support: Direct link to documentation and setup guides for the solar controller,Charging Status LEDs: Indicates active charging stage including Bulk, Absorption and Float modes,Battery and PV Terminals: Clearly marked screw terminals for secure connection of 12V or 24V batteries and solar panels,Load Output: Dedicated load output terminals with short circuit protection and low voltage disconnect.
Angled view of MPPT 75/10 controller showing wiring terminal block and replaceable blade fuseKey features: Ultra-fast Maximum Power Point Tracking (MPPT) for improved energy harvest, Replaceable 20A blade fuse for internal protection, Robust screw terminals compatible with up to 6mm² wiring, Convection cooled design with no moving parts.Front-angled view of the 10A solar charge controller terminals and internal fuse componentSide-on angled view of the blue Victron MPPT controller enclosure showing terminal accessClose-up of the screw-down terminals and yellow 20A fuse on a SmartSolar controllerThe connection area features secure 6mm² screw terminals for PV, battery, and load wiring, alongside a user-accessible 20A blade fuse for easy maintenance.Smartphone screen displaying VictronConnect real-time solar yield and battery statusWirelessly monitor your solar system performance in real-time, including solar wattage, battery voltage, and current via the VictronConnect app.History tab in VictronConnect app showing 30-day solar yield trends and performance logsAccess up to 46 days of historical performance data to track total solar energy harvest and battery voltage extremes over time.Technical specification chart for Victron SmartSolar MPPT controllers showing electrical ratingsDetailed electrical specifications table covering rated charge current, max PV open circuit voltage, and operating temperature range for the MPPT series.Dimensional line drawing of the MPPT 75/10 solar controller showing mounting hole positionsInstallation guide drawing showing physical dimensions of 100 x 113 x 40 mm and the specific 4mm diameter mounting hole pattern.
Front view of blue Victron SmartSolar MPPT 75/10 charge controller with labels and status indicators
Victron 12/24V 10A SmartSolar MPPT 75/10 Bluetooth Solar Charge Controller
Angled view of MPPT 75/10 controller showing wiring terminal block and replaceable blade fuse

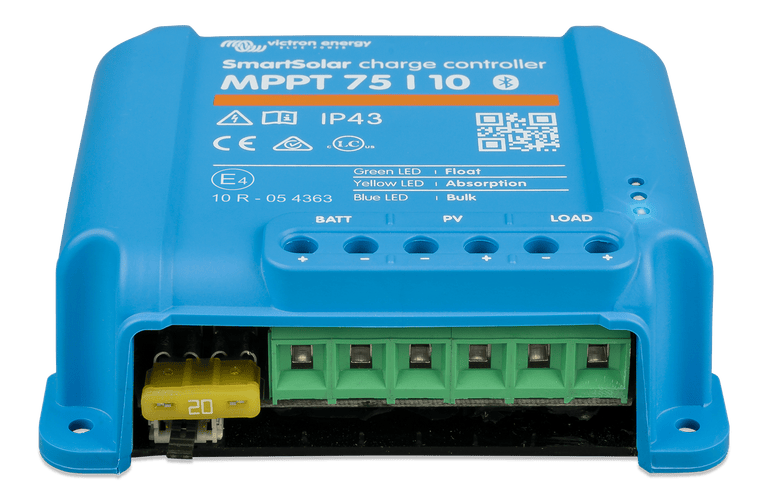

Front-angled view of the 10A solar charge controller terminals and internal fuse component

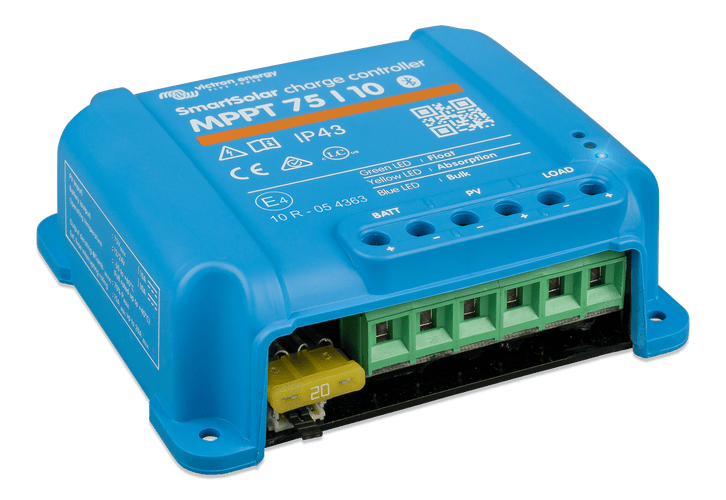

Side-on angled view of the blue Victron MPPT controller enclosure showing terminal access
Close-up of the screw-down terminals and yellow 20A fuse on a SmartSolar controller

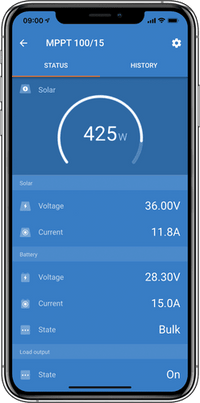

Smartphone screen displaying VictronConnect real-time solar yield and battery status

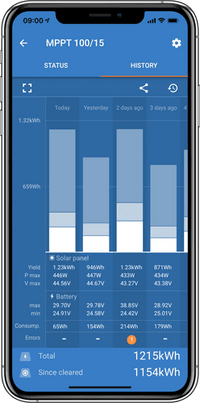

History tab in VictronConnect app showing 30-day solar yield trends and performance logs
Technical specification chart for Victron SmartSolar MPPT controllers showing electrical ratings
Dimensional line drawing of the MPPT 75/10 solar controller showing mounting hole positions
Regular price $79.84
$111.10
/
Availability: In Stock
View all products from Victron
Guaranteed Safe and Secure Checkout
American Express Apple Pay Google Pay MastercardPayPalShop Pay Union PayVisa

30
Front view of blue Victron SmartSolar MPPT 75/10 charge controller with labels and status indicators

Victron 12/24V 10A SmartSolar MPPT 75/10 Bluetooth Solar Charge Controller

DESCRIPTION

Victron 12/24V 10A SmartSolar MPPT 75/10 Bluetooth Solar Charge Controller

Elevate your solar system's efficiency with the Victron 12/24V 10A SmartSolar MPPT 75/10 Bluetooth Solar Charge Controller. This compact and advanced controller is designed to maximize the performance of your solar panels, offering an easy and efficient way to manage your solar energy.

Bluetooth Smart: Effortless Solar Management

With the integrated Bluetooth Smart technology, managing your solar energy system is a breeze. This feature allows for wireless setup, monitoring, updating, and synchronization of your SmartSolar Charge Controllers, providing a user-friendly interface through your smartphone or tablet.

VE.Direct: Reliable Wired Data Connectivity

The VE.Direct port offers a robust wired data connection to Cerbo GX and other GX devices, PCs, or similar devices. This direct connectivity ensures efficient data sharing and device integration, optimizing your solar energy system's performance.

Ultra-fast MPPT: Enhanced Energy Harvest

Utilize our ultra-fast Maximum Power Point Tracking (MPPT) technology to significantly increase your energy harvest—by up to 30% over PWM charge controllers and by up to 10% over slower MPPT controllers. This technology is ideal for environments with cloudy skies and fluctuating light intensity, ensuring you capture the maximum solar energy available.

Load Output: Intelligent Battery Protection

The load output feature prevents battery over-discharge by disconnecting the load when the battery voltage drops to a predetermined level. This intelligent battery management algorithm optimizes operation and protects your battery's health and longevity.

Battery Life: Prolonged Battery Longevity

Our innovative Battery Life algorithm promotes efficient charging of your solar charge controller, avoiding harmful cycles between partially charged and fully discharged states. This strategy ensures a near-full recharge approximately once every week, extending your battery's life.

Programmable Battery Charge Algorithm: Tailored Charging Solutions

Visit our software section for details on customizing your battery charge algorithm. This flexibility allows you to tailor the charging process to your specific needs, ensuring optimal performance of your solar system.

Day/Night Timing and Light Dimming

Explore additional functionalities such as day/night timing and light dimming through our software. These advanced features provide enhanced control over your solar system, allowing for further optimization of energy use.

Internal Temperature Sensor: Accurate Charge Adjustment

The built-in internal temperature sensor accurately compensates for absorption and float charge voltage according to temperature fluctuations, ensuring your battery is charged efficiently and safely under all conditions.

Optional External Battery Voltage and Temperature Sensing

Enhance your system's monitoring capabilities with optional accessories like the Smart Battery Sense or a BMV-712 Smart Battery Monitor. These devices communicate vital battery voltage and temperature information to your SmartSolar Charge Controllers via Bluetooth, optimizing your solar energy system's efficiency.

Advanced Charging Features

Adaptive 3-Stage Battery Charging

The sophisticated 3-stage charging process, consisting of Bulk, Absorption, and Float stages, ensures efficient and thorough battery charging. This adaptive approach adjusts the Absorption stage duration based on the battery's discharge level, maintaining batteries at a healthy voltage and ensuring they remain fully charged.

  • Bulk Stage: Delivers maximum charge current for rapid battery charging.
  • Absorption Stage: Switches to constant voltage, gradually reducing current to avoid overcharging.
  • Float Stage: Keeps batteries at a lower voltage to preserve their charged state, especially when solar power is not available at night.

Flexible Charge Algorithm and Equalization Charging

The VictronConnect App offers a choice of 8 pre-set charge algorithms or a fully programmable charge algorithm, allowing for complete customization of charge voltages, stage durations, and charge current. Additionally, equalization charging can be activated for specific lead-acid battery types to ensure all cells are balanced, promoting battery health and longevity.

Invest in the Victron 12/24V 10A SmartSolar MPPT 75/10 Bluetooth Solar Charge Controller for a smart, efficient, and customizable approach to solar charging, ensuring your solar system operates at its maximum potential.

SPECIFICATIONS

Specifications

Solar Charge Controller MPPT 75/10
Battery voltage (auto select) 12/24 V
Rated charge current 10 A
Nominal PV power, 12 V 145 W
Nominal PV power, 24 V 290 W
Nominal PV power, 48 V n.a.
Max. PV short circuit current 13 A
Automatic load disconnect Yes
Max. PV open circuit voltage 75 V
Peak efficiency 98%
Self-consumption – load on 12 V: 19 mA 24 V: 16 mA
Self-consumption – load off 12 V: 10 mA 24 V: 8 mA
Charge voltage 'absorption' 14.4 V / 28.8 V (adj.)
Charge voltage 'float' 13.8 V / 27.6 V (adj.)
Charge algorithm multi-stage adaptive
Temperature compensation -16 mV / °C resp. -32 mV / °C
Max. continuous load current 15 A
Low voltage load disconnect 11.1 V / 22.2 V / 44.4 V or 11.8 V / 23.6 V / 47.2 V or Battery Life algorithm
Low voltage load reconnect 13.1 V / 26.2 V / 52.4 V or 14 V / 28 V / 56 V or Battery Life algorithm
Protection Output short circuit / Over temperature
Operating temperature -30 to +60 °C (full rated output up to 40 °C)
Humidity 95%, non-condensing
Data communication port VE.Direct
Enclosure
Colour Blue (RAL 5012)
Power terminals 6 mm² / AWG10
Protection category IP43 (electronic components), IP22 (connection area)
Weight 0.5 kg
Dimensions (h x w x d) 100 x 113 x 40 mm
Standards
Safety EN/IEC 62109-1, UL 1741, CSA C22.2
Stored Trends
Data stored Battery voltage, current and temperature, as well as load output current, PV voltage and PV current.
Number of days trends data is stored 46

Note:

1a) If more PV power is connected, the controller will limit input power. 1b) The PV voltage must exceed Vbat + 5 V for the controller to start. Thereafter, the minimum PV voltage is Vbat + 1 V.

2. A PV array with a higher short circuit current may damage the controller.


SKU: VIC-SCC075010060R
Barcode: 8719076040798
Model #: SCC075010060R
MPN: SCC075010060R
