Enerdrive 24V 30A DC2DC ePower Charger/MPPT (DC-DC)

Multiple source charging for DC systems 24V

RRP $648.00
$555.00
SAVE $93.00 (14%)
In Stock
Enerdrive logo

Enjoy free AusPost shipping for orders over $100 on most items, including our Enerdrive 24V 30A DC2DC ePower Charger/MPPT (DC-DC), to the majority of areas. Check your shipping details on the cart page for more information.

Fully automatic multi-stage, multi-input battery charger with the ability to charge from either an alternator linked to a battery; or via solar power with the in built Maximum Power Point Tracking (MPPT) Solar Controller

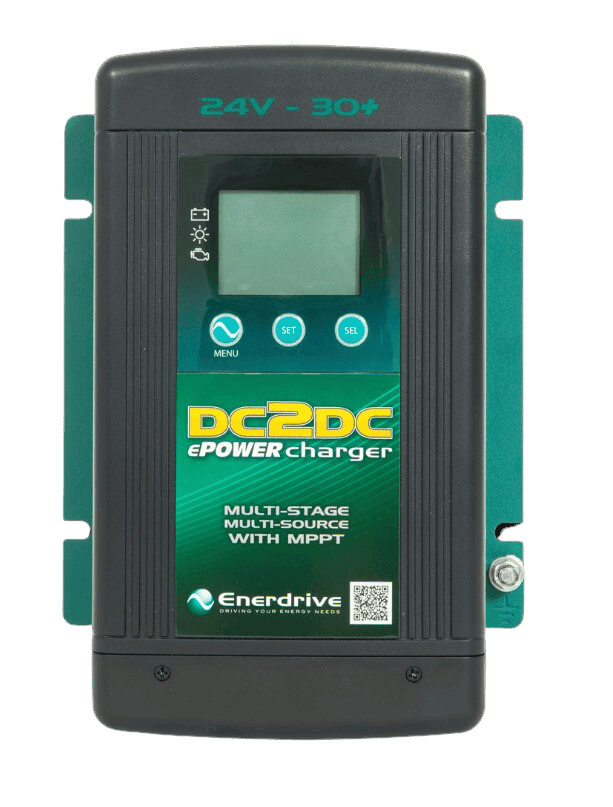

Enerdrive ePOWER 24V – 30A DC2DC Battery Charger

ePower DC to DC battery charger is smaller than our most compact AC Battery Charger.

  • Two totally independent DC Inputs for both engine and solar regulation charging one house battery bank output
  • DC M6 screw terminals that will allow for large battery cable connection between all sources
  • A dedicated Maximum Power Point (MPPT) solar regulator
  • The same battery algorithms as included in our AC mains ePOWER battery charger including a specific lithium charging profile
  • 30A output up to 40+°C with thermo controlled fan cooling
  • Fully programmable LCD display to show which source is charging the battery along with charger status, voltage and amperage
  • Temperature sensor included in charger for more accurate battery charging

The Enerdrive ePOWER DC2DC Battery Charger is a fully automatic multistage, multi input battery charger with the ability to charge from either an alternator linked to a battery; or via solar power with the in built Maximum Power Point Tracking (MPPT) Solar Controller. With two inputs available, the house battery will be charged from either the engine while underway, or via the solar panels when stationary. The process to choose either engine or solar is fully automatic and both functions are controlled from within the unit itself without the need for external relays.

During normal operation the ePOWER DC2DC Battery Charger will do a full charge cycle to float stage on the house battery bank with ability to choose either GEL, AGM, Flooded, Custom Programmable or Lithium. Once float stage is reached the charger transitions to a power supply mode to support any on-board DC loads.

Multistage Charging Process

The ePOWER DC2DC Battery Charger is a fully automatic, set and forget charger. It is designed to quickly and accurately recharge your deep cycle batteries utilising charger algorithms that help to maximise the life of your specialised deep cycle batteries.

The ePOWER DC2DC Battery Charger features multistage smart charging technology that enables the charger to be connected to your battery banks permanently. With the input of multiple sources, you can be assured of charging your batteries whenever underway; or when the sun is shining on your solar array.

As dictated by battery manufacturer’s recommendations, deep cycle batteries require a multistage charge sequence for perfect, fast and accurate charging. The Enerdrive ePOWER DC2DC smart charger delivers three primary charge stages.

Bulk or Boost charge; The battery is charged at full rated output current of the charger until the battery reaches its final charging voltage, known as its absorption voltage. In this step, around 80% of the battery is recovered as fast as possible.

Absorption Charge; With the charger voltage held steady, the remaining 20% is replaced with the charger allowing the current to taper off as the battery approaches full charge.

Float; Finally, in the float stage the charger voltage is lowered and held at a constant and safe predetermined level. This prevents the battery from being overcharged, yet allows the charger to supply enough current to make up for the self-discharge losses of the battery, while supporting any additional loads connected to the battery (such as DC lighting and refrigerators). This stage allows for the charger to be used as a DC power supply.

Smart Charging Feature

The ePOWER DC2DC Battery Charger will regulate its output based on the loads connected to your battery banks. This function is important to maintain the life of your battery banks as some battery chargers mistake loads for discharge and continue to keep the batteries in the bulk or absorption stage for extended periods of time, which will damage the battery bank. The ePOWER DC2DC Battery Charger has two methods of load based regulation to ensure your battery charger transitions to float when it should do so.

Battery Temperature Sensor

Included standard with all ePOWER Battery Chargers.

Eco-Friendly Dual Battery Solution

The Enerdrive ePOWER DC2DC+ Battery Charger offers versatile applications, making it an ideal choice for a variety of settings. Its robust design and multi-input capability allow it to be effectively used in caravan settings, where reliable power is crucial for long journeys and remote living. The charger's input compatibility with both 12V and 24V systems also makes it perfect for 4x4 vehicles, supporting adventurers and off-road enthusiasts who require dependable battery charging in challenging terrains. Additionally, its solar regulation feature and MPPT solar regulator make it an excellent option for eco-friendly solar installations in remote locations or for those looking to reduce their carbon footprint. The charger's ability to handle different battery types like GEL, AGM, Flooded, Lithium, and custom profiles extends its usability to marine environments, where it can provide reliable charging for boats and yachts. Its compact size and efficient cooling system further enhance its suitability for use in tight spaces and in varying temperature conditions, ensuring consistent performance in diverse applications.

Watch these helpful Enerdrive Videos




Visit Enerdrive's 24V 30A DC2DC official webpage.


(EN3DC30-24)

Specifications

Model EN3DC30-24V
Output Rating
Output Voltage 24V Nominal (17.0V min)
Output Current (Maximum) 30A
Output Power 865W
Charger DC Output (CH1):
Selectable Battery Type Gel, AGM, Flooded, Lithium, Program
Charger Voltage Range 27.6V – 31.0V
Float Voltage Range 26.0V – 27.6V
Charger Current (User Selectable) 5 / 10 / 20 / 30A (default 30A)
Equalize Voltage (Flooded Battery) 31.0V
Equalize Charging Current 10% of Bulk Current Setting
Charging Control 2 stage / 3 stage selectable (Default 3 Stage)
DC Output Bank Single
Current draw from CH1 when not operating ≤50 mA
Battery Temperature Setting Low/ Normal/ High (Battery Temperature Sensor Standard)
Efficiency 95%
INPUT Rating (CH2 – MPPT Solar)
Input Voltage 14.5 – 45VOC
Maximum Solar Input ≤23V input, 500W (600W allowable) ≥37.5V-45V input, 800W (1000W allowable)
INPUT Rating (CH3 – Start/Alternator)
Input Voltage 10.5 – 16VDC / 21 – 32VDC
Dimensions
Height x Width x Depth 242mm x 172mm x 74mm
Unit Weight 1.85 Kg
Shipping Weight 2.17 kg
SKU EN3DC30-24
Model # DC 2 DC / MPPT Enerdrive
Barcode # 9342616003503
MPN # EN3DC30-24

5 Years*

*See Enerdrive Website for the latest warranty statement
