Victron 24V to 24V Orion-Tr Smart 24/24-12A Isolated DC-DC Charger

24V In, 24V Out

Was $257.45
$205.96
Save $51.49
Sale Ends in
At 23:59 pm, 30 June 2024
In stock at Victron Warehouse Victoria
Please allow 3 business days before dispatch
Victron logo

Enjoy free AusPost shipping for orders over $100 on most items, including our Victron 24V to 24V Orion-Tr Smart 24/24-12A Isolated DC-DC Charger, to the majority of areas. Check your shipping details on the cart page for more information.

Smart Power Solution: Orion-Tr 24/24-12A Isolated DC-DC Charger

WARNING: This unit is specifically designed for 24V to 24V charging systems. Using it with other voltage systems may cause irreversible damage.

The Victron Orion-Tr Smart Isolated DC-DC Charger is your go-to for reliable, efficient, and smart charging. It's perfect for keeping your vehicle's battery, RV, marine, or off-grid storage system in peak condition, ensuring you have power when you need it most.

Effortless Connectivity with Bluetooth Smart

Stay in control and customize your charger settings with the convenience of Bluetooth technology. Use any Bluetooth-enabled smartphone or tablet to keep track of your charger's performance and make adjustments on the fly. With the latest software updates at your fingertips, your charger will always be up-to-date.

Customizable Charging for Every Need

  • Adaptable charge settings allow you to tailor the charging process to your specific battery type and needs, whether you're looking to optimize battery life or need a quick boost.
  • Compatibility with modern smart alternators makes this charger an ideal choice for newer vehicles, ensuring seamless integration and charging.

Intelligent Charging with a 3-Stage Algorithm

  • The Orion Smart charger's bulk, absorption, and float stages adapt to your battery's needs, offering a fast charge when empty and preventing overcharging when full.
  • The fixed output voltage mode is also available for devices that need a constant power supply.

Remote Control Options

With the ability to connect a remote switch or relay, you have the flexibility to control the charger from afar, making it convenient for hard-to-reach installations or for integrating into complex systems.

Expandable Power for Larger Systems

Need more power? You can safely connect multiple units in parallel for increased current output, making it a scalable solution for larger energy demands.

Protection Against the Elements

With an IP43 protection rating when installed with the screw terminals facing downwards, the charger is protected against ingress of objects and spraying water, ensuring durability in various installation environments.

No-Hassle Installation

The user-friendly screw terminals mean no special tools are needed, simplifying the installation process. It’s a straightforward setup that’s as easy as it is robust.

Stay Safe with Built-In Features

Integrated safety features, including a non-replaceable input fuse and high-temperature protection, ensure your system is safeguarded against potential electrical issues.

Whether you're powering an off-grid DC installation, hitting the road in your RV, or sailing the seas, the Victron Orion-Tr Smart Charger delivers the power you need with the intelligence and safety you can trust.

To learn more about the differences between isolated and non-isolated DC-DC chargers, read our in-depth guide on our blog:

Isolated vs Non-Isolated DC-DC Chargers and Converters - Solar4RVs Guide

For detailed specifications and further information from the manufacturer, visit the Victron Energy website:

Victron Energy - Orion-Tr Smart Isolated DC-DC Charger
(ORI242428120)

Specifications

Model Orion-Tr Smart DC-DC Charger Isolated 24/24-12 (280W)
Input voltage range (1) 16-35V
Under voltage shut down 14V
Under voltage restart 15V
Nominal output voltage 24.2V
Output voltage adjust range 20-30V
Output voltage tolerance +/- 0,2V
Output noise 2mV rms
Cont. output current at nominal output voltage and 40°C 12A
Maximum output current (10 s) at nominal output voltage 15A
Short circuit output current 30A
Cont. output power at 25°C 320W
Cont. output power at 40°C 280W
Efficiency 89%
No load input current < 80mA
Standby current Less than 1mA
Galvanic isolation 200V dc between input, output and case
Operating temperature range -20 to +55°C (derate 3% per °C above 40°C)
Humidity Max. 95% non-condensing
DC connection Screw terminals
Maximum cable cross-section 16 mm² AWG6
Weight 1.3 kg (3 lb)

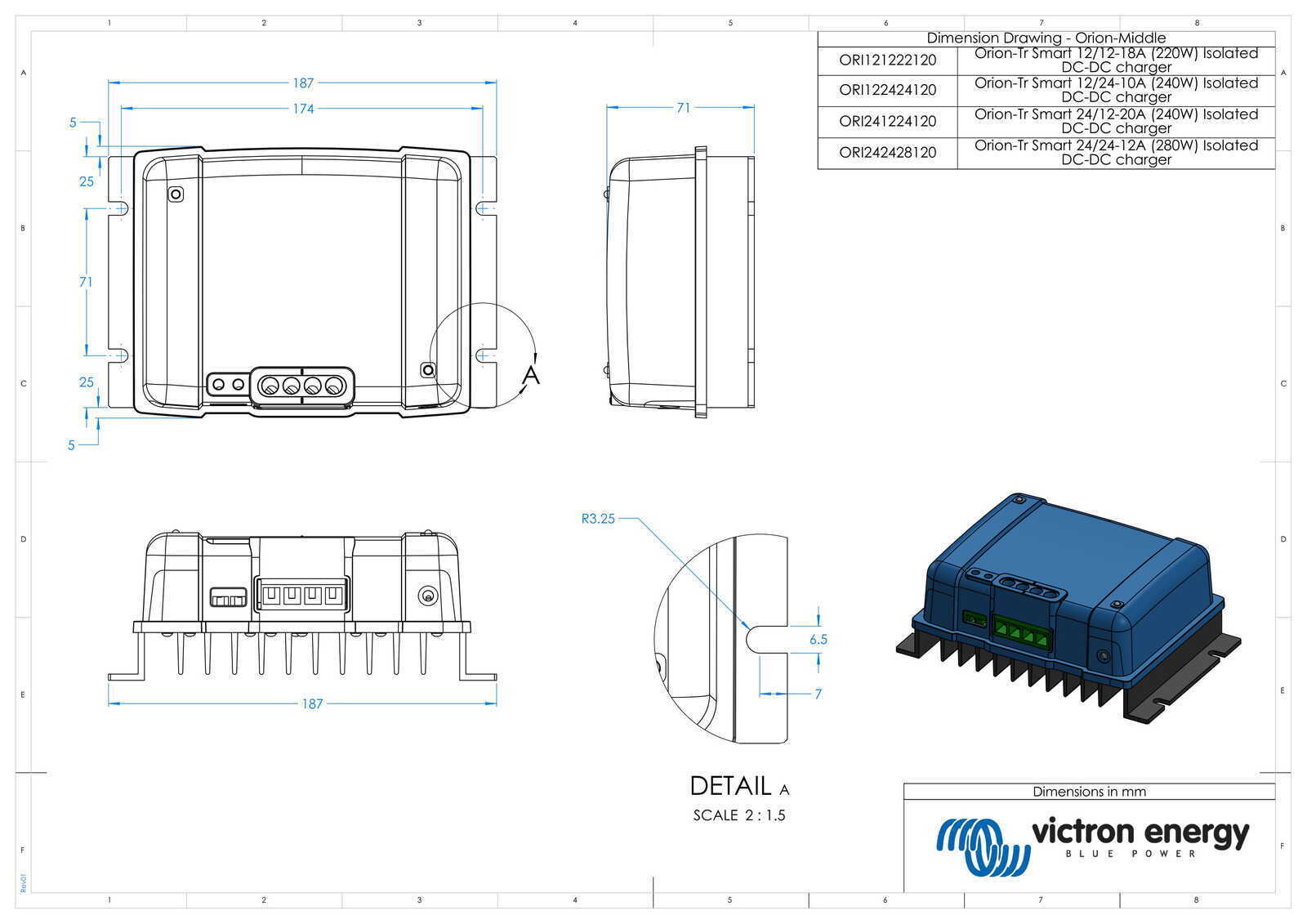

Dimensions hxwxd 130 x 186 x 70 mm (5.1 x 7.3 x 2.8 inch)
Standards: Safety Emission Immunity Automotive Directive EN 60950, EN 61000-6-3, EN 55014-1, EN 61000-6-2, EN 61000-6-1, EN 55014-2, ECE R10-5
  1. If set to nominal or lower than nominal, the output voltage will remain stable within the specified input voltage range (buck-boost function). If the output voltage is set higher than the nominal by a certain percentage, the minimum input voltage at which the output voltage remains stable (does not decrease) increases by the same percentage.

Note 1) The VictronConnect App will not display current in or current out.

Note 2) The Orion-Tr Smart Charger is not equipped with a VE.Direct port.

SKU VIC-ORI242428120
Model # ORI121236120
Barcode # 8719076046097
MPN # ORI242428120
