Votronic Tank Level Display S - Faeces Toilet Black Water
The German made VOTRONIC tank displays have been designed for precise level measuring, and they are suitable for any tank material and tank size. Combined with the tank sensor it provide precise level measuement information.

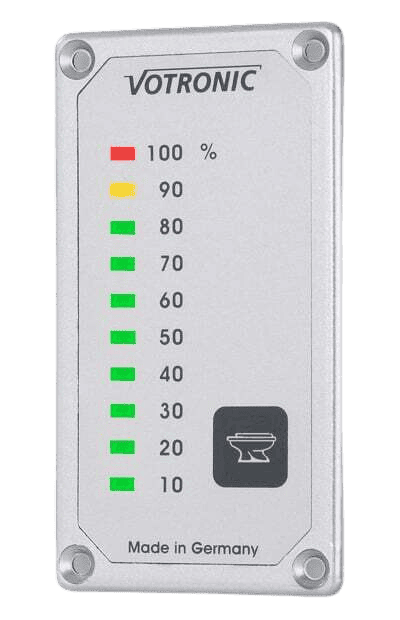

There are three tank displays available: fresh water, grey water and toilet water (faeces). This model is the toilet water display.
Each of the three units vary in the arrangement of the three-colour display light-emitting diodes at the range ends and in the symbols imprinted on the front panel. The tank levels have clearly arranged luminous bar with 10 lightemitting diodes in three colours so the tank levels can be read conveniently at a glance. The displays are working continuously; the intermediate results are displayed in variable brightness. Tendencies can be recognised at once.
During filling and emptying of the tanks, the continuously raising or dropping display shows a direct image of the instantaneous level allowing complete control of the procedure. The continuous operation of the display contributes to this control. At the touch of a button, the display can be switched-on or -off, or it is switched-off automatically after approx. 10 minutes.
The display units are executed as panel version matching to the VOTRONIC modular system. The appearance (identical height 85 mm) is adapted to the other VOTRONIC display units. Of course, it is possible to retrofit a single display in the vehicle. The small dimensions of the front panel and the particularly small mounting depth of only 15 mm allow an installation at almost any location. Thus, storage space, which is located behind, can be used further.
