Victron 12/24/48V 85A SmartSolar MPPT 150/85-Tr VE.Can Bluetooth Solar Charge Controller
Victron SmartSolar MPPT 150/85-Tr VE.Can – Advanced Solar Charge Controller for Maximum Energy Efficiency
High-Efficiency Solar Charging with Ultra-Fast MPPT Technology
Maximise your solar energy harvest with the Victron SmartSolar MPPT 150/85-Tr VE.Can charge controller. Designed with cutting-edge ultra-fast Maximum Power Point Tracking (MPPT) technology, this unit improves energy capture by up to 30% compared to traditional PWM controllers and outperforms slower MPPTs by up to 10%. This advanced controller excels even in challenging conditions like overcast skies or variable sunlight, ensuring consistent solar performance across all environments including RVs, caravans, marine systems, and industrial setups.
Intelligent Energy Management in Partial Shading Conditions
The SmartSolar MPPT 150/85-Tr is engineered with smart Maximum Power Point Detection algorithms that optimise energy capture in partially shaded conditions. While many controllers lock onto sub-optimal MPPs, Victron’s advanced logic dynamically adjusts to find the global maximum, thereby maximising every ray of sun for your off-grid, tiny home, or mobile power system. With a built-in Bluetooth Smart module, users can monitor and fine-tune charging in real time via the VictronConnect app.
Exceptional Conversion Efficiency and Protection Features
With a fanless design and over 98% efficiency, this charge controller is built for durability and silent operation in any environment. The device includes a full suite of electronic protections, such as over-temperature derating, PV reverse polarity protection, and PV short-circuit safeguards. These make it a reliable solution for mission-critical solar power setups. Whether you're equipping a marine vessel or an industrial field unit, the SmartSolar MPPT 150/85-Tr offers robust reliability and safety.
Versatile Configuration and Data Communication Options
The unit’s flexible charge algorithm features full programmability alongside eight pre-set profiles selectable via a rotary switch—ideal for various battery chemistries. For comprehensive monitoring and control, the controller offers both VE.Direct and VE.Can communication interfaces. It integrates seamlessly with Color Control GX and other GX products, enabling coordinated operation of up to 25 units through VE.Can or up to 10 via Bluetooth—perfect for scalable solar installations across large RVs or commercial off-grid projects.
Key Benefits at a Glance:
- Ultra-fast MPPT improves harvest efficiency significantly
- Fully programmable and adaptable to multiple battery types
- Supports battery recovery from zero volts, including Li-ion systems
- Built-in Bluetooth for wireless configuration and diagnostics
- Optional LCD screen and remote on/off capability for system flexibility
Upgrade to a Smarter, More Efficient Solar Power Solution
Whether you’re powering a caravan, marine craft, RV, industrial system, or a tiny home, the Victron SmartSolar MPPT 150/85-Tr VE.Can charge controller provides unmatched performance, flexibility, and ease of use. Its ultra-efficient solar harvesting, smart shading detection, and expansive monitoring capabilities make it the superior choice for both residential and commercial off-grid solar systems.
Upgrade your solar system today to experience maximised energy harvest, improved battery health, and intelligent control—making your setup future-ready and maintenance-free.
Visit Victron's Official SmartSolar VE.Can Solar Charge Controller Webpage
(SCC115085411)

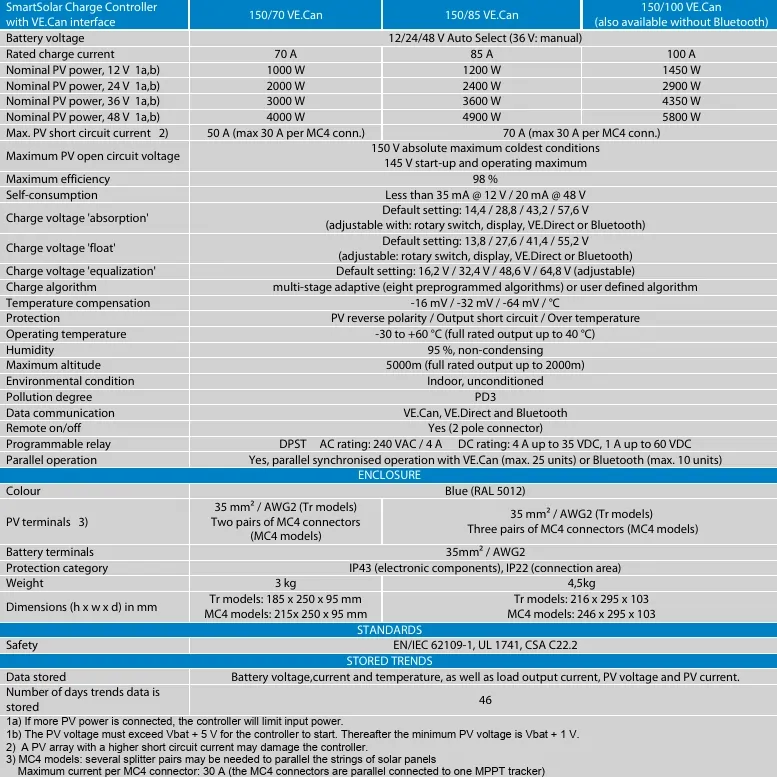

Specifications
SmartSolar Charge Controller | 150/85 |
Battery voltage | 12 / 24 / 48 V Auto Select (software tool needed to select 36 V) |
Rated charge current | 85 A |
Nominal PV power, 12 V 1a,b) | 1200 W |
Nominal PV power, 24 V 1a,b) | 2400 W |
Nominal PV power, 36 V 1a,b) | 3600 W |
Nominal PV power, 48 V 1a,b) | 4900 W |
Max. PV short circuit current 2) | 70 A (max 30 A per MC4 conn.) |
Maximum PV open circuit voltage | 150 V absolute maximum coldest conditions 145 V start-up and operating maximum |
Maximum efficiency | 98 % |
Self-consumption | Less than 35mA @ 12 V / 20mA @ 48 V |
Charge voltage 'absorption' | Default setting: 14.4 / 28.8 / 43.2 / 57.6 V (adjustable with: rotary switch, display, VE.Direct or Bluetooth) |
Charge voltage 'float' | Default setting: 13.8 / 27.6 / 41.4 / 55.2 V (adjustable: rotary switch, display, VE.Direct or Bluetooth) |
Charge voltage 'equalization' | Default setting: 16.2 V / 32.4 V / 48.6 V / 64.8 V (adjustable) |
Charge algorithm | Multi-stage adaptive (eight pre-programmed algorithms) or user defined algorithm |
Temperature compensation | -16 mV / -32 mV / -64 mV / °C |
Protection | PV reverse polarity / Output short circuit / Over temperature |
Operating temperature | -30 to +60 °C (full rated output up to 40 °C) |
Humidity | 95 %, non-condensing |
Maximum altitude | 5000m (full rated output up to 2000m) |
Environmental condition | Indoor, unconditioned |
Pollution degree | PD3 |
Data communication port | VE.Direct or Bluetooth |
Remote on/off | Yes (2 pole connector) |
Programmable relay | DPST AC rating: 240 VAC / 4 A DC rating: 4 A up to 35 VDC, 1 A up to 60 VDC |
Parallel operation | Yes: up to 10 units can be synchronized with Bluetooth |
ENCLOSURE | |
Colour | Blue (RAL 5012) |
PV terminals 3) | 35 mm² / AWG2 (Tr models) Three pairs of MC4 connectors (MC4 models) |
Battery terminals | 35 mm² / AWG2 |
Protection category | IP43 (electronic components), IP22 (connection area) |
Weight | 4.5 kg |

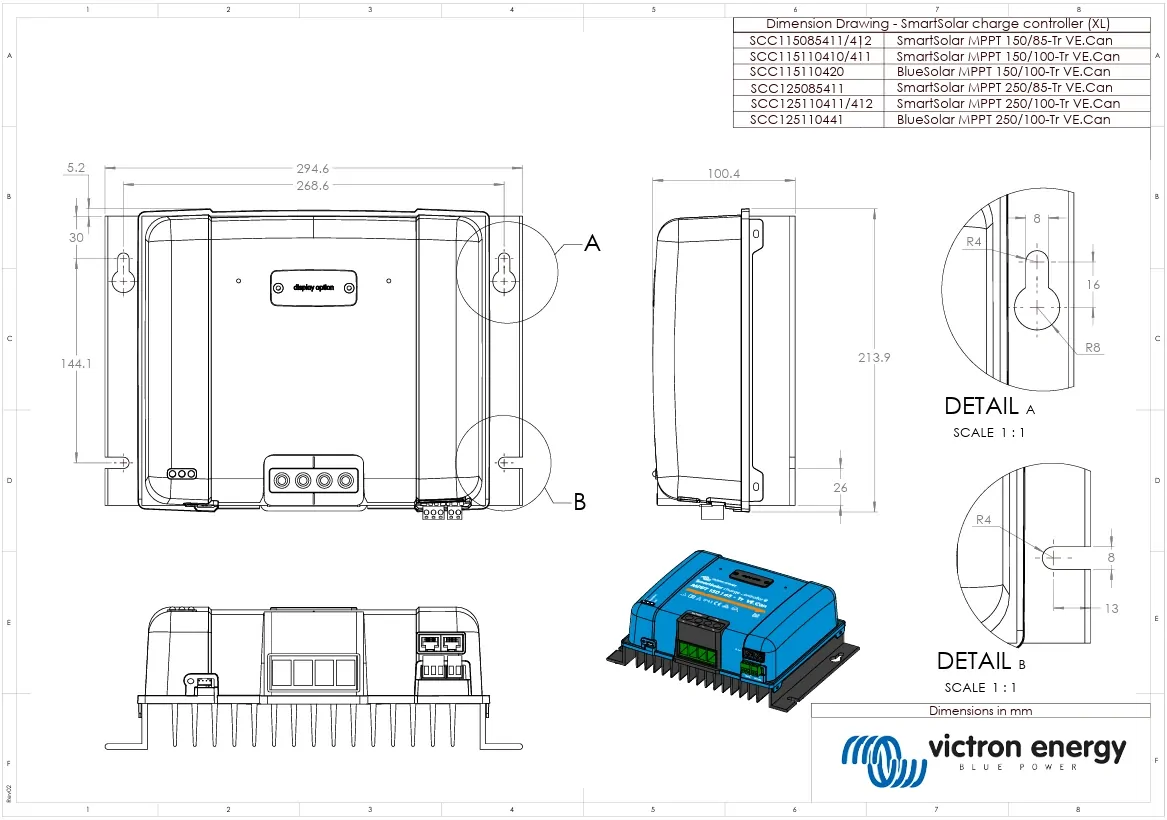

Dimensions (h x w x d) | Tr models: 216 x 295 x 103 mm MC4 models: 246 x 295 x 103 mm |
STANDARDS | |
Safety | EN/IEC 62109-1, UL 1741, CSA C22.2 |
STORED TRENDS | |
Data stored | Battery voltage, current and temperature, as well as load output current, PV voltage and PV current. |
Number of days trends data is stored | 46 |
1a) If more PV power is connected, the controller will limit input power.
1b) The PV voltage must exceed Vbat + 5 V for the controller to start. Thereafter the minimum PV voltage is Vbat + 1 V.
2) A PV array with a higher short circuit current may damage the controller.
3) MC4 models: several splitter pairs may be needed to parallel the strings of solar panels
Maximum current per MC4 connector: 30 A (the MC4 connectors are parallel connected to one MPPT tracker)
SKU | VIC-SCC115085411 |
Barcode # | 8719076050339 |
MPN # | SCC115085411 |
