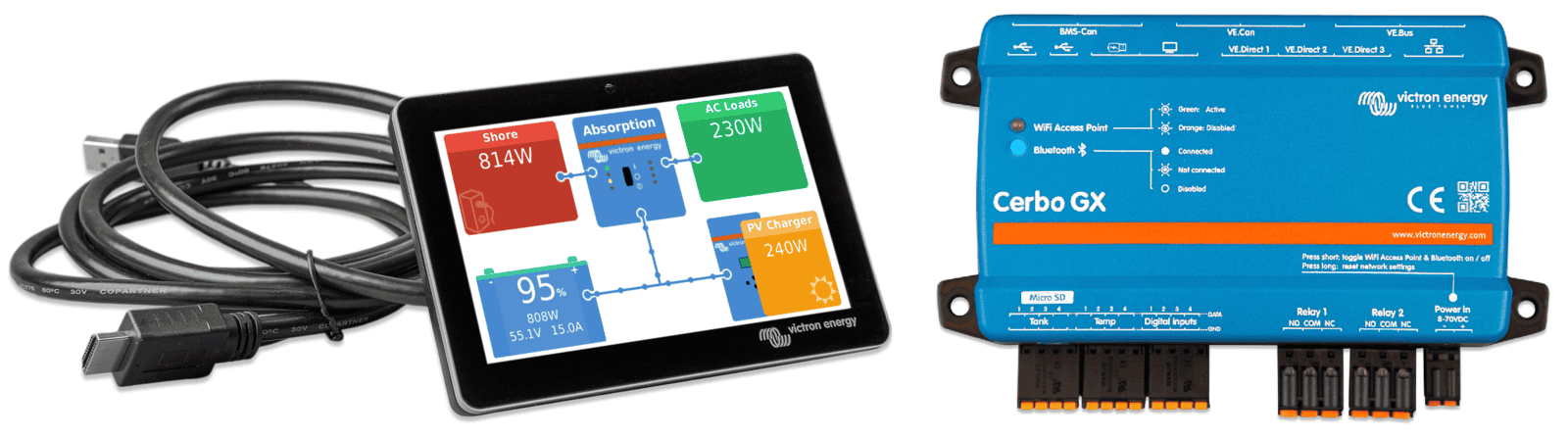

Victron Cerbo GX MK2 & GX Touch 50 Display Combo
Victron Cerbo GX MK2 & GX Touch 50 Display Combo
Highlights:BMS-Can: Port for connection to managed lithium batteries,VE.Can: Communication port for Victron and third-party CAN devices,VE.Direct: Three ports for connecting MPPT controllers and battery monitors,VE.Bus: Dual RJ45 ports for MultiPlus or Quattro inverter/chargers,Connectivity LEDs: Status indicators for Wi-Fi Access Point and Bluetooth,IO Terminals: Inputs for tank levels, temperature sensors and digital inputs,Relay Outputs: Two programmable relays for alarms or generator control,Power Input: 8 to 70V DC power input connection.
Key features: 3 isolated VE.Direct and 2 VE.Bus ports, 4 tank level and 4 temperature sensor inputs, Dual NO/NC programmable relays for automation, Dedicated BMS-Can and VE.Can integration ports, Includes slim 5-inch GX Touch 50 touchscreen.
Guaranteed Safe and Secure Checkout
16
DESCRIPTION

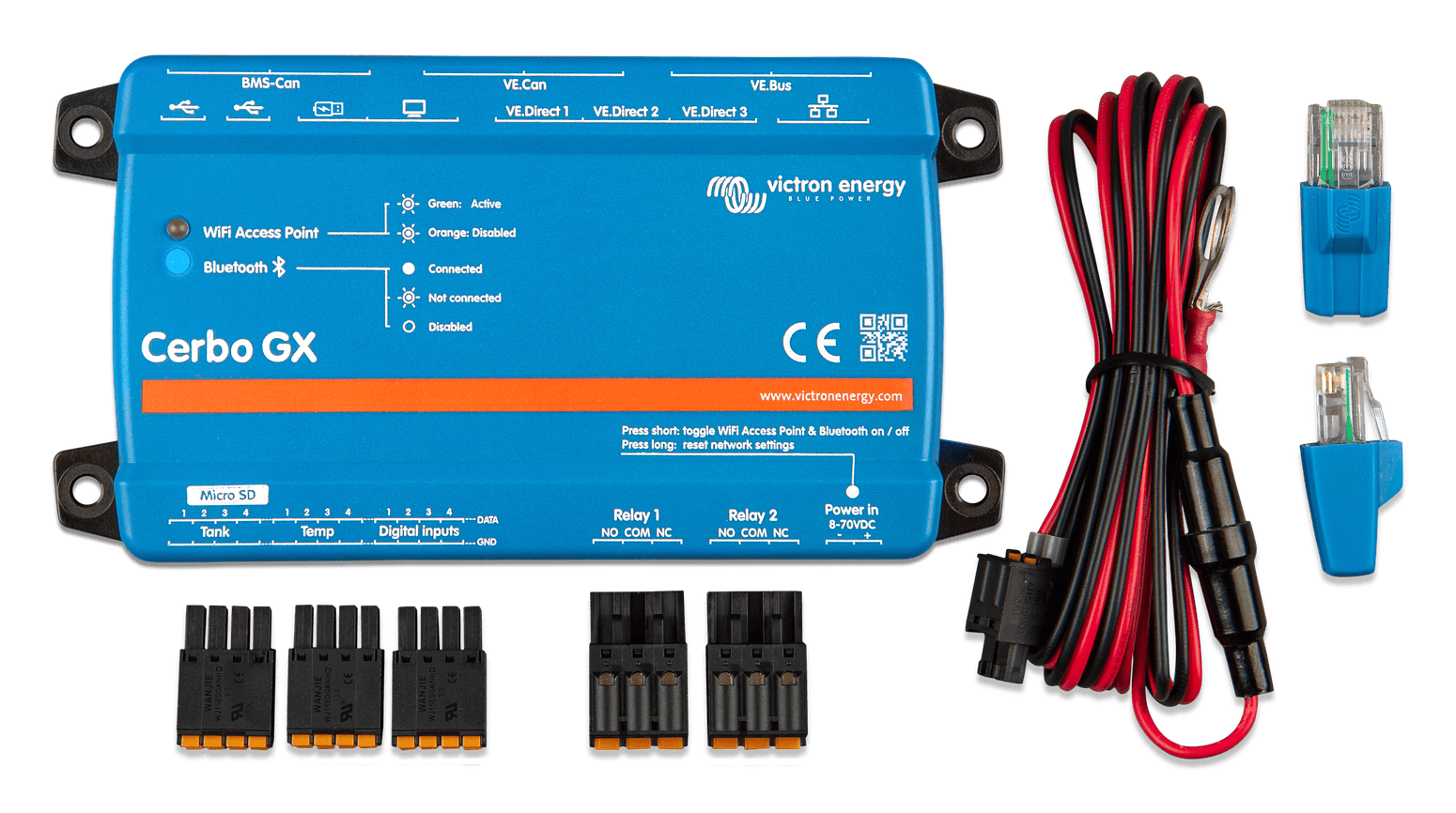

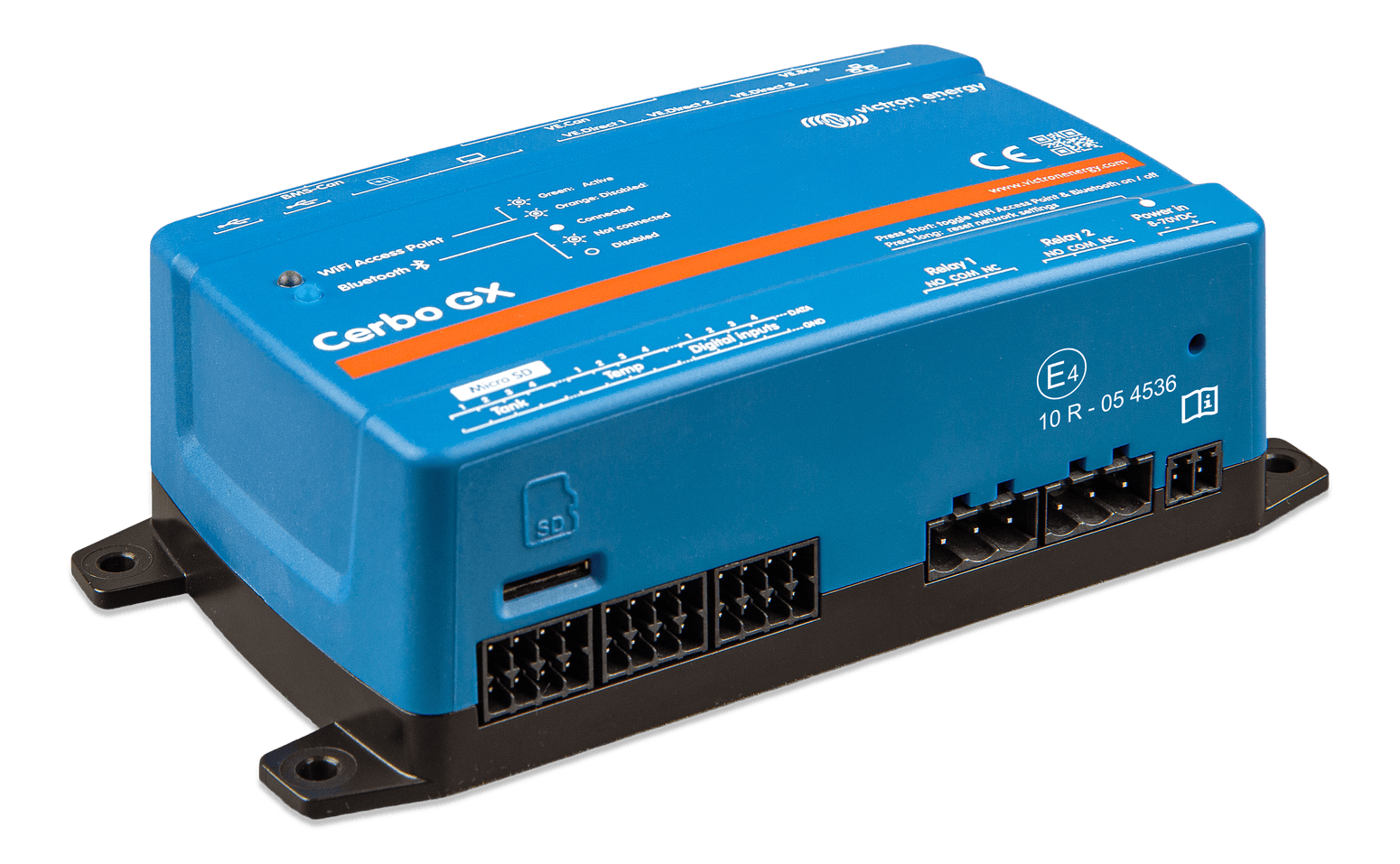

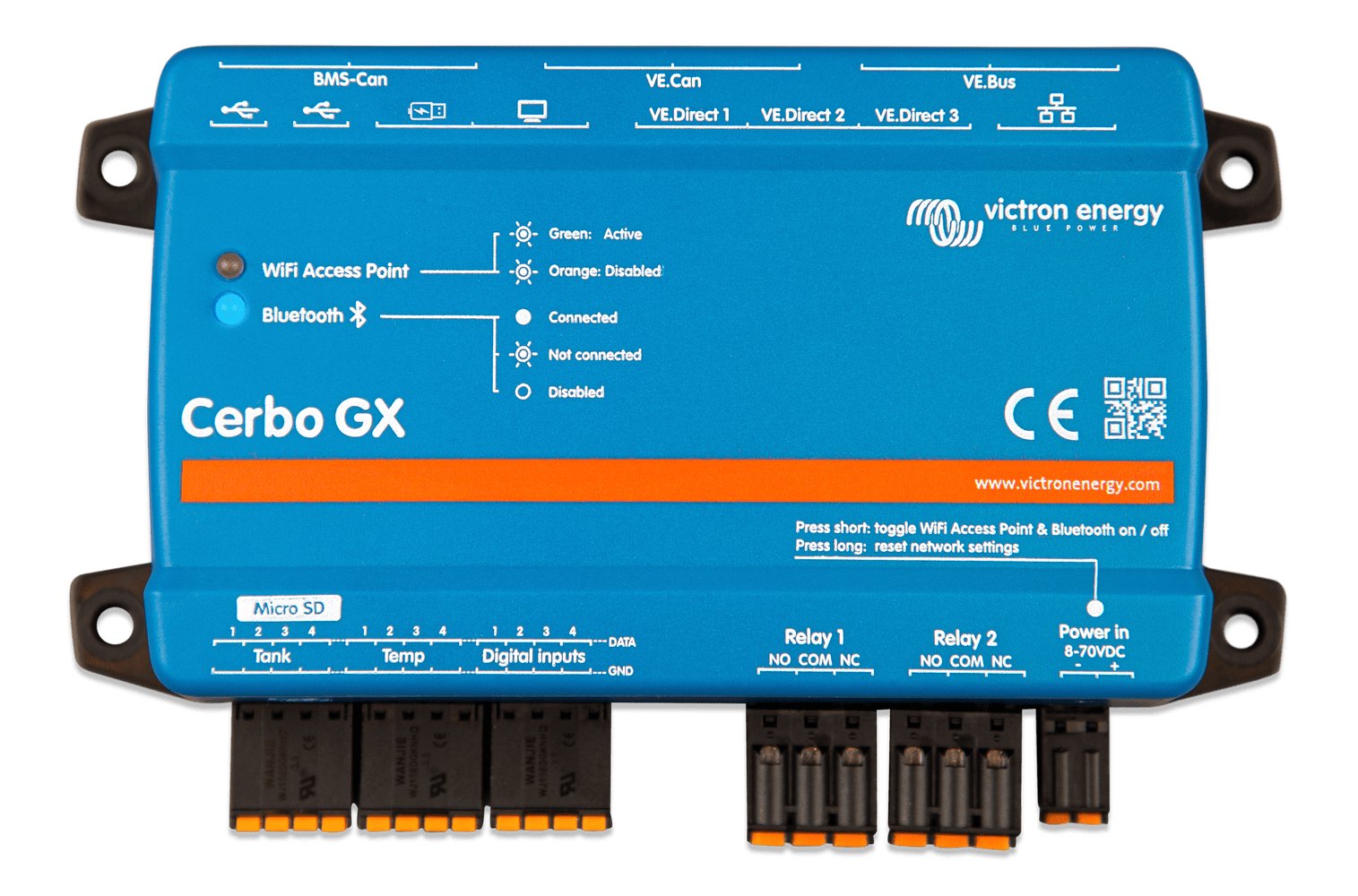

Victron Cerbo GX MK2: Power System Monitor
This all-new communication-centre allows you to always have perfect control over your system from wherever you are and maximises its performance. Simply connect through our Victron Remote Management (VRM) portal, or access directly, using the separate GX Touch 50, a MFD or our VictronConnect app thanks to its added Bluetooth capability. This latest addition to the GX-range combines all the best of connectivity, redefining smart power solutions in every way.
Perfect monitoring & control
Instantly monitor the battery state of charge, power consumption, power harvest from PV, generator, and mains, or check tank levels and temperature measurements. Easily control the shore power input current limit, (auto)start/stop generator(s) or change any setting to optimise the system. Follow up on alerts, perform diagnostic checks and resolve challenges remotely. The Cerbo GX MK2 turns any power challenge into an effortless experience.
Maximise your system performance
The Cerbo GX MK2 maximises the performance of your systems components in real-time and keeps them in perfect tune. With its Dual Core Processor and the addition of an extra CAN-bus port you can now support even bigger systems; closely follow managed (lithium) batteries while the second port can support up to 25 simultaneously connected VE.Can solar chargers. The new NMEA 2000-out support has the GX easily integrated into any boats network. Four tank- and four temperature ports as well as 3 VE.Direct ports, 3 USB ports, 4 digital inputs and 2 relays allow you to expand control to a new level. Maximising systems performance was never this easy.
Expand your view
The new GX Touch 50 display allows you to have an instant overview of your system and adjust settings in the blink of an eye. Its super slim 5 inch waterproof design, top-mountable setup and its simple installation bring a lot of flexibility when creating a crisp and clean dashboard.
Simple mounting and configuration
The Cerbo GX MK2 is now optimised to more than meet the standards of installer professionals. The device is easily mountable on a DIN-Rail (with DIN35 adapter small, not included) and its separate touchscreen can now be bolted on top of a dashboard, eliminating the need to create perfect cut-outs (like with the Color Control GX) and is connected through just one cable, taking away the hassle of having to bring many wires to a dashboard. Its new Bluetooth feature enables a quick connection and configuration via our VictronConnect app.
Outsmart any power challenge
The Cerbo GX MK2 serves endless purposes, extending perfect control to the most diverse applications. For solutions including generators, such as Marine, or Backup & Off-grid, it will auto-start/stop your generator, or delays ignition until the end of ‘quiet’ periods. For Energy Storage Systems it keeps backup batteries at 100%, kicks-in during power-cuts and diverts excess (solar) power to self-consumption, saving you money. For RV and Emergency vehicles it keeps vital systems function flawlessly. But that’s just to name a few...

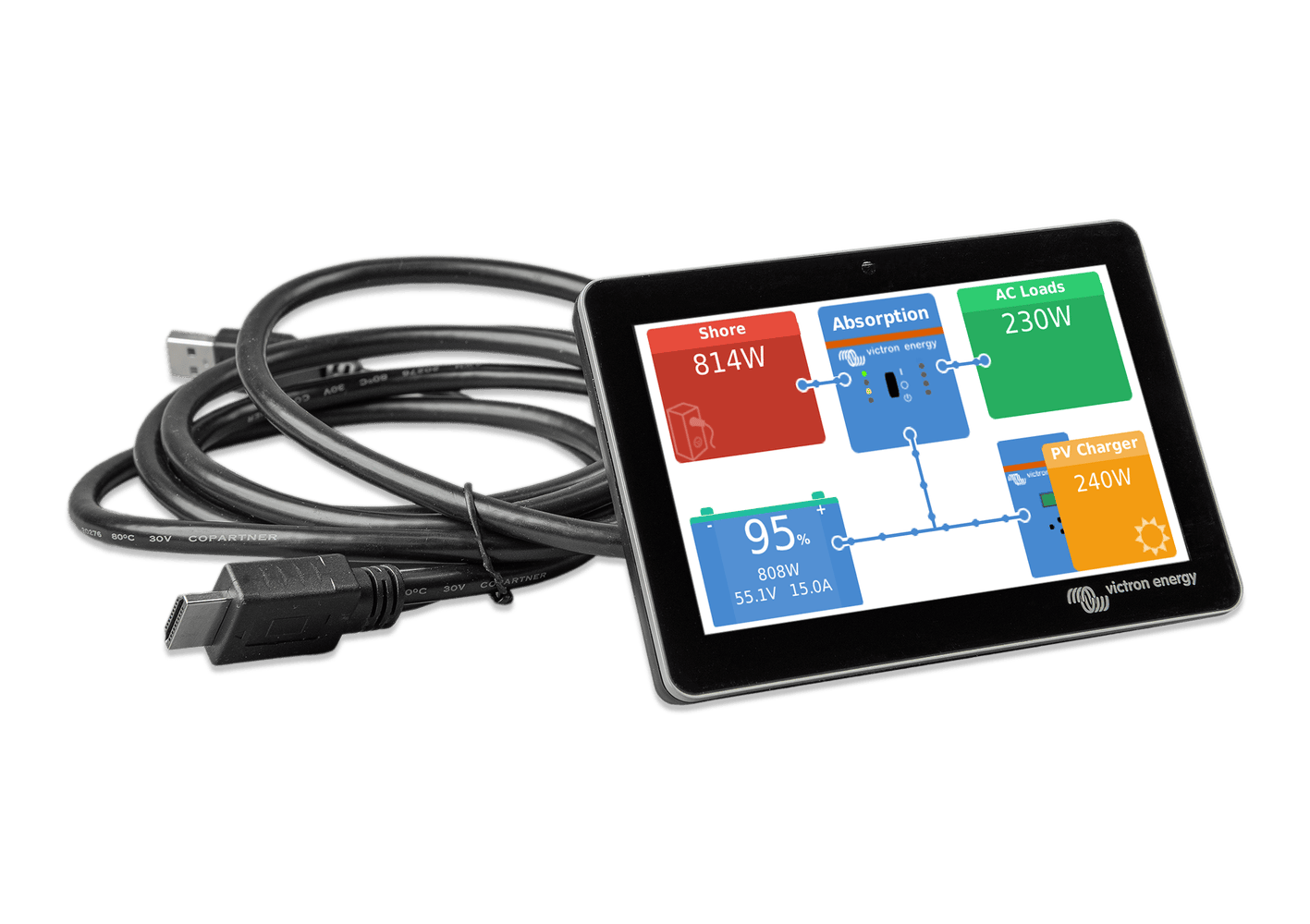

Victron GX Touch 50: The Essential 5" Display for System Monitoring and Control
Intuitive Touchscreen Interface for Cerbo GX MK2: Enhance your system's control and monitoring capabilities with the Victron GX Touch 50. This 5-inch touchscreen display provides a comprehensive overview of your system, allowing for quick adjustments and settings optimization. Designed to seamlessly integrate with the Cerbo GX MK2, it offers an unparalleled user experience in system management.
Effortless Installation and Sleek Design
The GX Touch 50 redefines installation convenience. Its bolt-on, top-mountable design means no complex cut-outs are necessary, making it ideal for clean and crisp dashboard setups. The super slim profile of the screen adds sophistication to your control panel. With just one cable connection, it simplifies the setup process, perfect for both professional installers and DIY enthusiasts.
Enhanced System Control with the Cerbo GX MK2
As a companion to the Cerbo GX MK2, the communication centre of your power system, the GX Touch 50 allows for complete control over your setup. Whether you're on-site or remote, you have the power to maximize system performance at your fingertips.
Seamless Integration with Cerbo GX MK2 for Superior Control
Experience enhanced system management with the Victron GX Touch 50, a dedicated 5" touchscreen display designed exclusively for use with the Cerbo GX MK2. This display serves as a visual interface, offering you a clear and interactive overview of your system's status and performance. It allows you to monitor and adjust settings conveniently, ensuring your system operates at its best.
Though the GX Touch 50 itself does not have Bluetooth capability or direct access to the Victron Remote Management (VRM) portal, it works in tandem with the Cerbo GX MK2 to provide these functionalities. By connecting to the Cerbo GX MK2, which is the hub of communication and connectivity, you can access a wide range of features including remote system management and data monitoring through the VRM portal, as well as connectivity options with the VictronConnect app when used with compatible devices.
The GX Touch 50 enhances the usability of your Cerbo GX MK2, making it easier to interact with your system in real-time. Its intuitive interface simplifies the process of monitoring and adjusting your system, ensuring that you have all the critical information at your fingertips. With the GX Touch 50, managing your Victron energy system becomes more straightforward and efficient, providing a user-friendly gateway to advanced power solutions.
Protection Cover Included for Added Durability
Now included with the GX Touch 50 is a protection cover, ensuring your display remains safe from environmental elements, enhancing its durability and longevity.
Choose the Victron GX Touch 50 for a smarter, more connected, and efficient power management experience. Its combination of intuitive control, sleek design, and advanced connectivity options make it a pivotal addition to any Victron energy system.
SKU: VIC-Cerbo-MK2-Touch_50
Visit Victron's Official Victron Cerbo GX MK2 & GX Touch 50 Display Combo Webpage Here
SPECIFICATIONS
Specifications
| Cerbo GX | |
|---|---|
| Supply voltage | 8 – 70 VDC |
| Power draw without GX Touch | 2.8 W @ 12 V |
| Power draw with GX Touch | Backlight off: 3.8 W @ 12 V |
| Backlight at max: 4.8 W @ 12 V | |
| Mounting | Wall or DIN rail (35 mm) |
| Communication ports | |
| VE.Direct ports (always isolated) | 3 (max. possible VE.Direct devices: 15) |
| VE.Bus (always isolated) | 2 paralleled RJ45 sockets |
| VE.Can | yes - non isolated |
| BMS-Can port | Yes |
| Bluetooth | Yes (4) |
| IO | |
| Resistive tank level inputs | 4 |
| Temperature sense inputs | 4 |
| Digital Inputs | 4 |
| Relays | 2 x NO/NC 30VDC:6A or 70VDC: 1A or 125VAC: 6A |
| Other | |
| Outer dimensions (h x w x d) | 78 x 154 x 48 mm |
| Operating temperature range | -20 to +50 °C |
| IP Rating | IP20 |
| Standards | |
| Safety | IEC 62368-1 |
| EMC | EN 301489-1, EN 301489-17 |
| Automotive | ECE R10-6 |
Notes:
- For more detailed information about the Cerbo GX and the GX Touch, please visit the Victron GX product range page at Victron live
- DIN rail mounting requires an additional accessory purchased separately - DIN35 Adapter.
- The listed maximum in the above table is the total of connected VE.Direct devices such as MPPT Solar Charge controllers. 'Total' means all directly connected devices plus the devices connected over USB. The limit is mostly bound by CPU processing power. Note that there is also a limit to the number of other types of devices, of which often multiple are connected: PV Inverters. Up to three or four three-phase inverters can typically be monitored on a Cerbo GX. Devices with a higher power CPU can monitor more.
- Bluetooth functionality is intended to be used to assist with initial connection and networking configuration. You cannot use Bluetooth to connect to other Victron products (e.g., SmartSolar charge controllers).
- In Cerbo GX hardware, there are two relays. Currently, Relay 1 can be used for programming as an alarm relay, generator start/stop, tank pump, temperature-controlled relay, or manual operation. Relay 2 is available for programming as a temperature-controlled relay or manual operation in the Relay menu of the GX (requires firmware 2.80 or higher).
| SKU: | VIC-Cerbo-MK2-Touch_50 |
