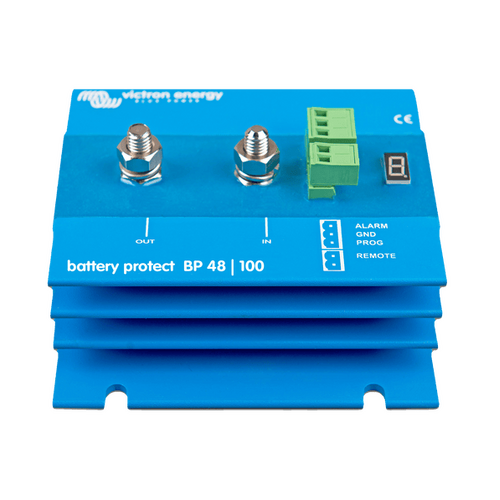

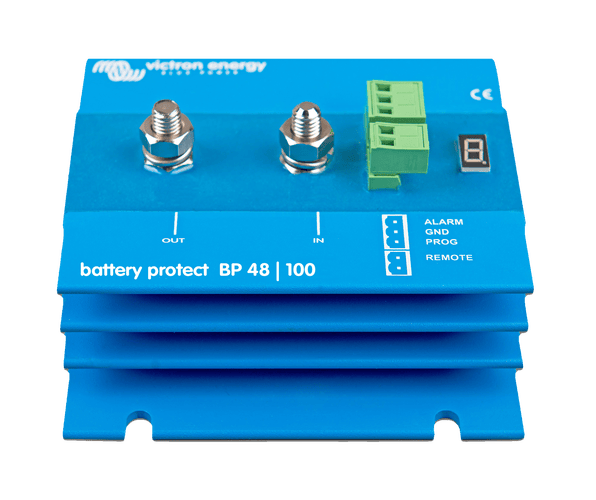

Victron Battery Protect 48V-100A Low Voltage Disconnect
Please allow 3 business days before dispatch
Victron Battery Protect 48V-100A: Advanced Power Management for Industrial and Off-Grid Systems
Note: "Victron Battery Protect" units are NOT Bluetooth-enabled. See "Victron Smart Battery Protect" units if Bluetooth connectivity is required.
Important Considerations for Inverter Connection

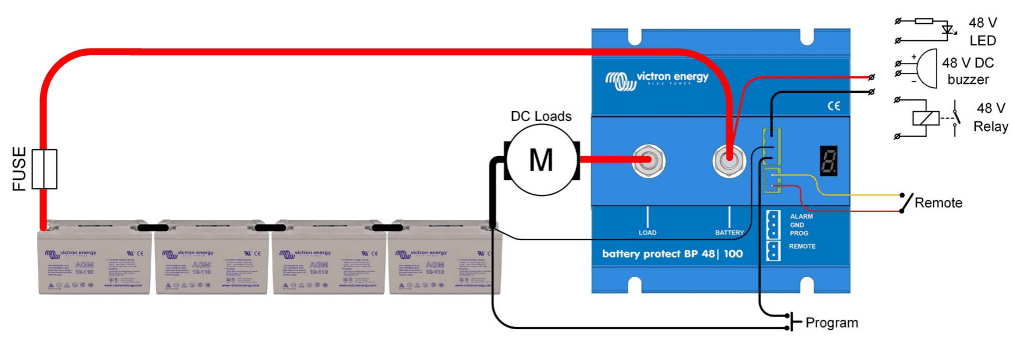

It's crucial to avoid connecting inverters or inverter/chargers directly to the BatteryProtect's DC inputs to prevent reverse current damage. Instead, use the BatteryProtect to control the inverter or inverter/charger via its remote port, as illustrated in the manual.
Essential for Preserving Battery Health in 48V Systems
The Victron Battery Protect 48V-100A is key to safeguarding batteries in high-power applications from complete discharge. Ideal for industrial setups and off-grid systems, it disconnects non-essential loads before the battery is drained or too low for operational needs.
Uni-Directional Current Management for Enhanced Safety
Designed as a uni-directional device, the BatteryProtect ensures safe current flow, either to a load or from a charger, providing reliable over-voltage protection for sensitive equipment in demanding environments.
Specialized for High-Voltage Systems and Lithium Batteries
With an intelligent system that caters to 48V setups, this device is also optimized for Li-ion batteries, offering a unique control mode via the VE.Bus BMS and functioning as a charge interrupter for advanced battery care.
Ultra-Low Consumption for Energy Efficiency
The BatteryProtect's minimal energy consumption is vital in maintaining system efficiency, particularly crucial in 48V setups like large solar arrays and industrial machinery.
Over Voltage and Ignition Protection for Industrial Safety
Equipped with robust over-voltage protection and MOSFET switches, the BatteryProtect ensures safe and spark-free operation, a must-have for industrial and off-grid applications.
Versatile Remote Switch Functionality
Its ability to function as a remote switch offers additional convenience, allowing for remote operation of various devices, an essential feature in large-scale and remotely managed systems.
Smart Alarm and Load Management
The delayed alarm feature and intelligent load management system of the BatteryProtect ensure seamless operation, maintaining system integrity and preventing unnecessary power interruptions.
The Victron Battery Protect 48V-100A is an ideal choice for managing high-capacity battery systems in industrial and off-grid applications, ensuring optimal performance and extended battery life.
Visit Victron Energy's Official Battery Protect Webpage for More Details
(BPR048100400)

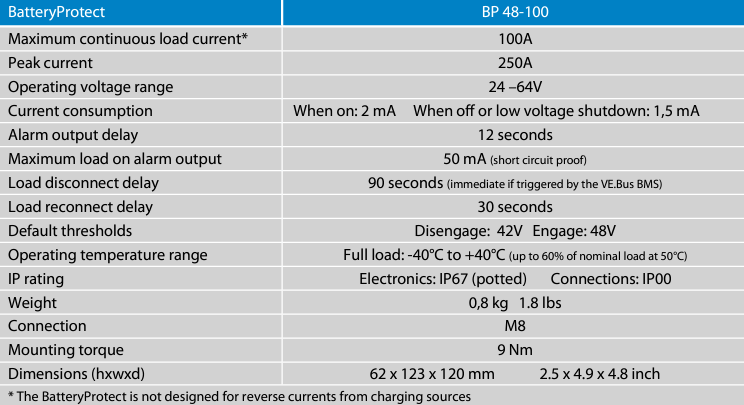

Specifications
Specification | Detail |
---|---|
Maximum Continuous Load Current* | 100A |
Peak Current | 250A |
Operating Voltage Range | 24 – 64V |
Current Consumption | When on: 2 mA When off/low voltage shutdown: 1.5 mA |
Alarm Output Delay | 12 seconds |
Maximum Load on Alarm Output | 50 mA (short circuit proof) |
Load Disconnect Delay | 90 seconds (immediate if triggered by the VE.Bus BMS) |
Load Reconnect Delay | 30 seconds |
Default Thresholds | Disengage: 42V Engage: 48V |
Operating Temperature Range | Full load: -40°C to +40°C (Up to 60% of nominal load at 50°C) |
IP Rating | Electronics: IP67 (potted) Connections: IP00 |
Weight | 0.8 kg / 1.8 lbs |
Connection | M8 |
Mounting Torque | 9 Nm |

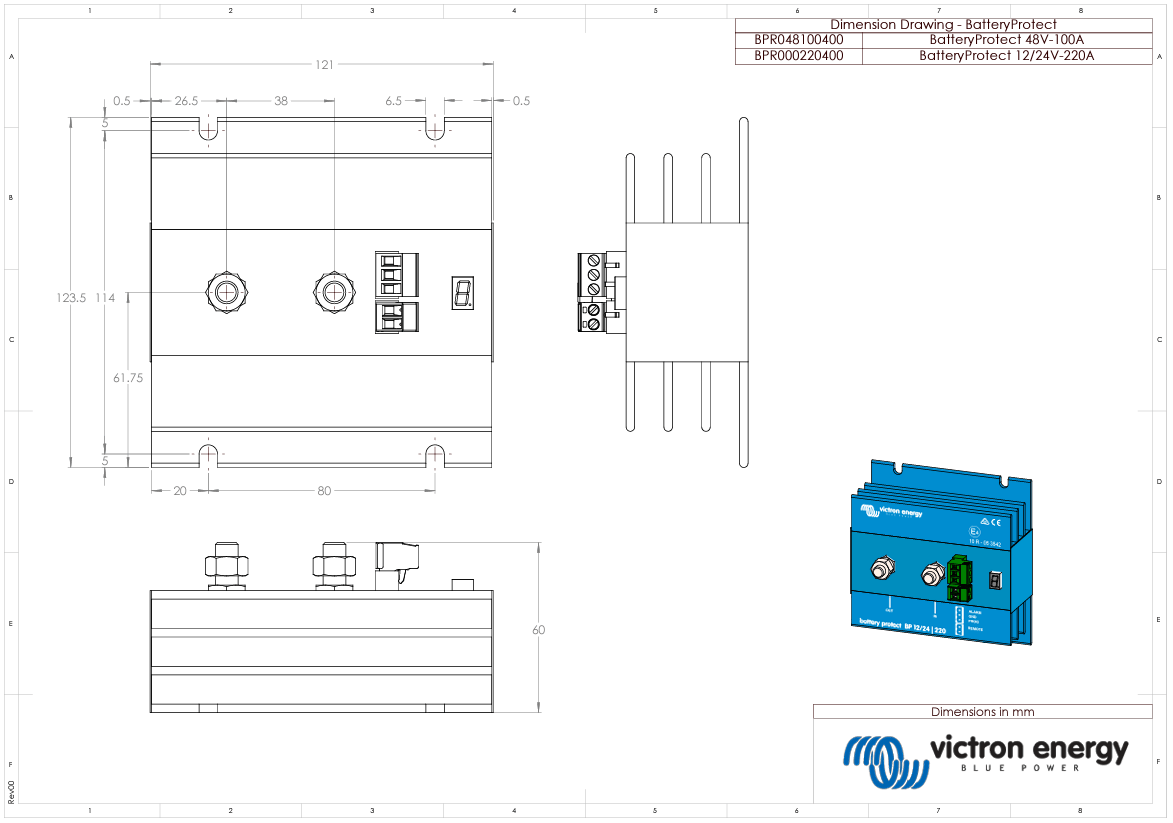

Dimensions (HxWxD) | 62 x 123 x 120 mm / 2.5 x 4.9 x 4.8 inches |
Additional Note | The BatteryProtect is not designed for reverse currents from charging sources |
*Note: The BatteryProtect is specifically designed to handle load currents and is not suitable for reverse currents from charging sources.
SKU | Vic-BPR048100400 |
Barcode # | 8719076021469 |
MPN # | BPR048100400 |
